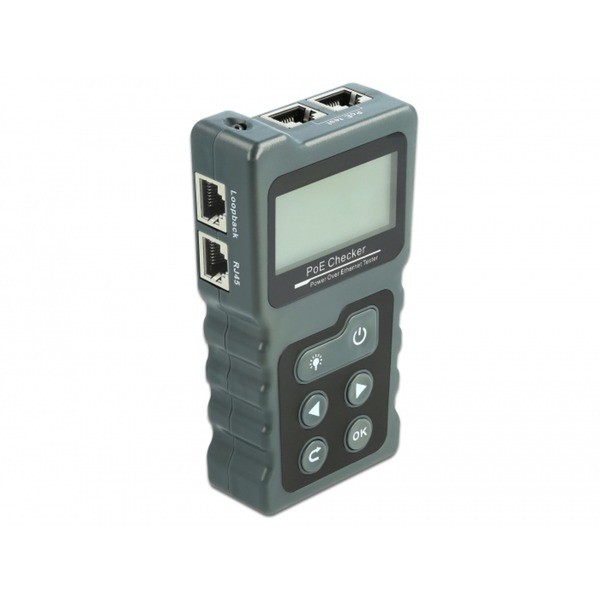

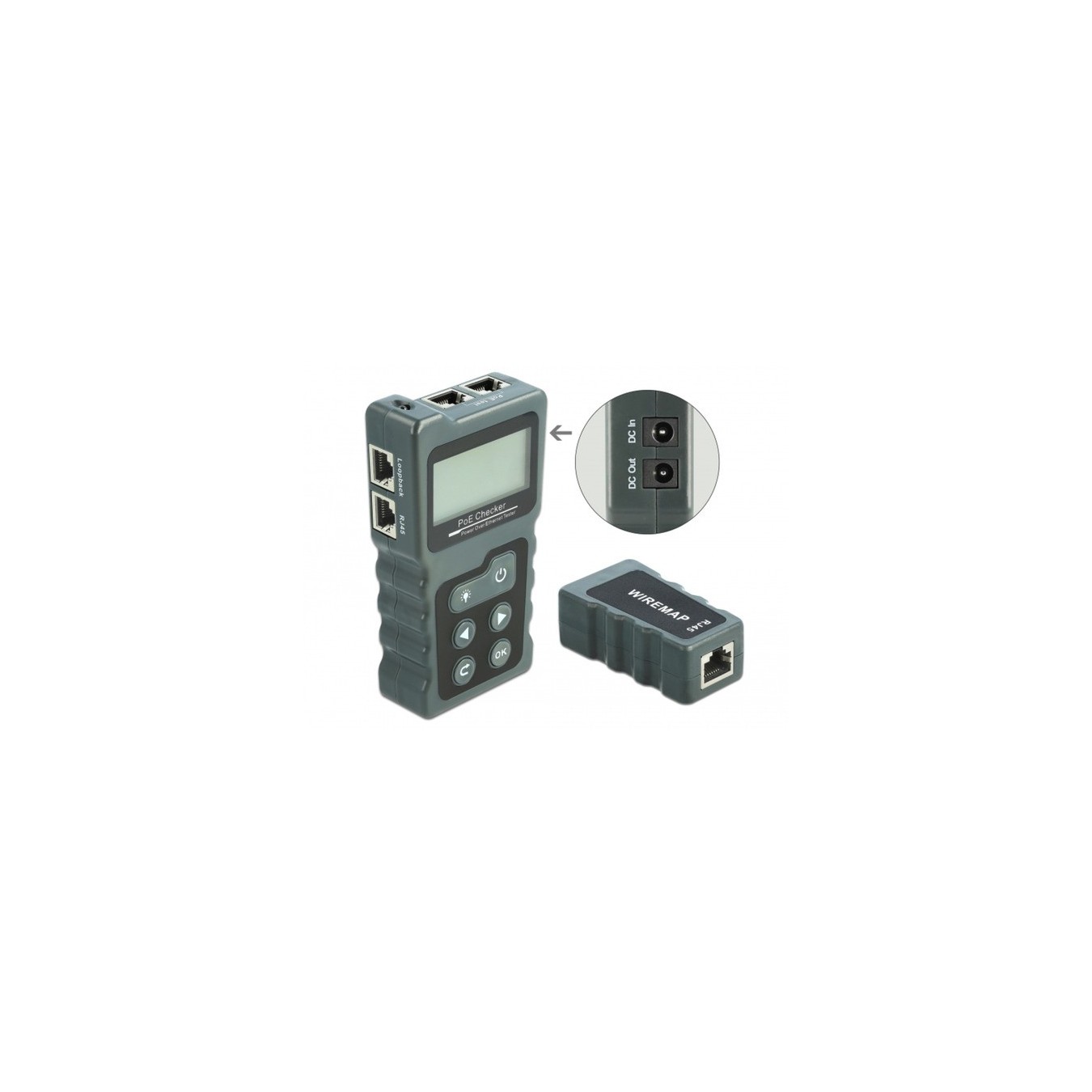

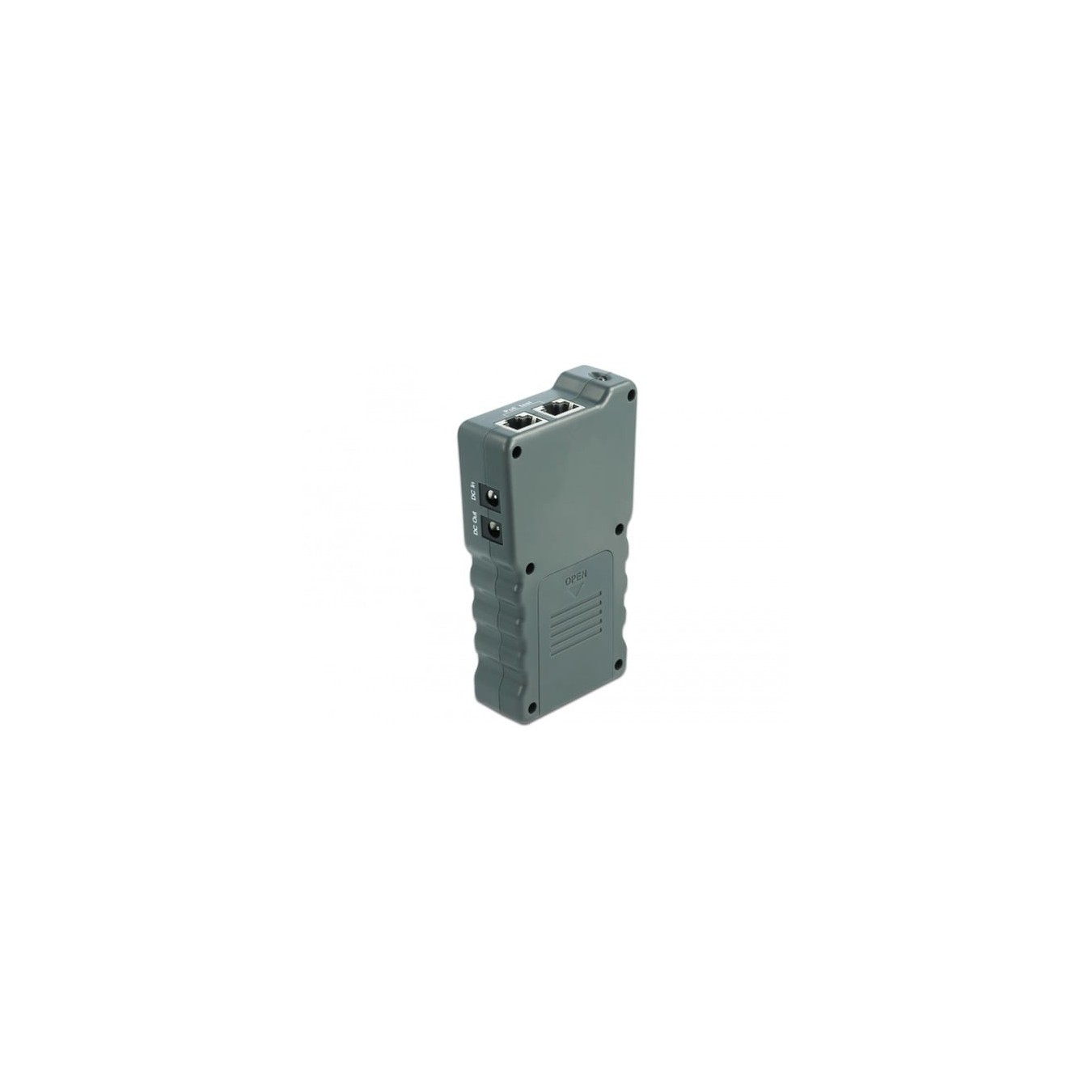

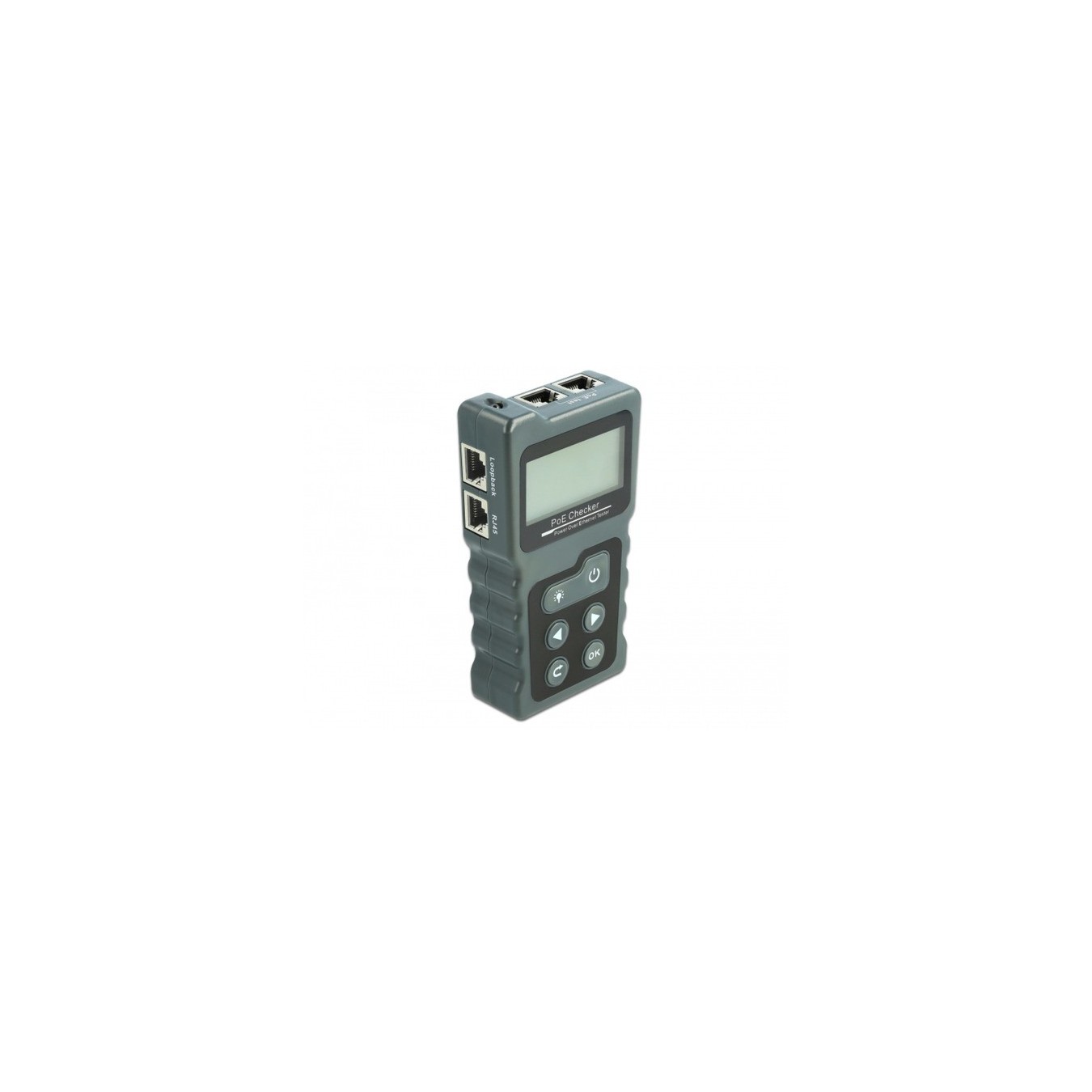

LCD Cable Tester - RJ45 PoE DC
Delock 63110 LCD Cable Tester for RJ45 networks; quickly tests cable wiring and displays open, short, and crossed wires with PoE/DC status on a backlit LCD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

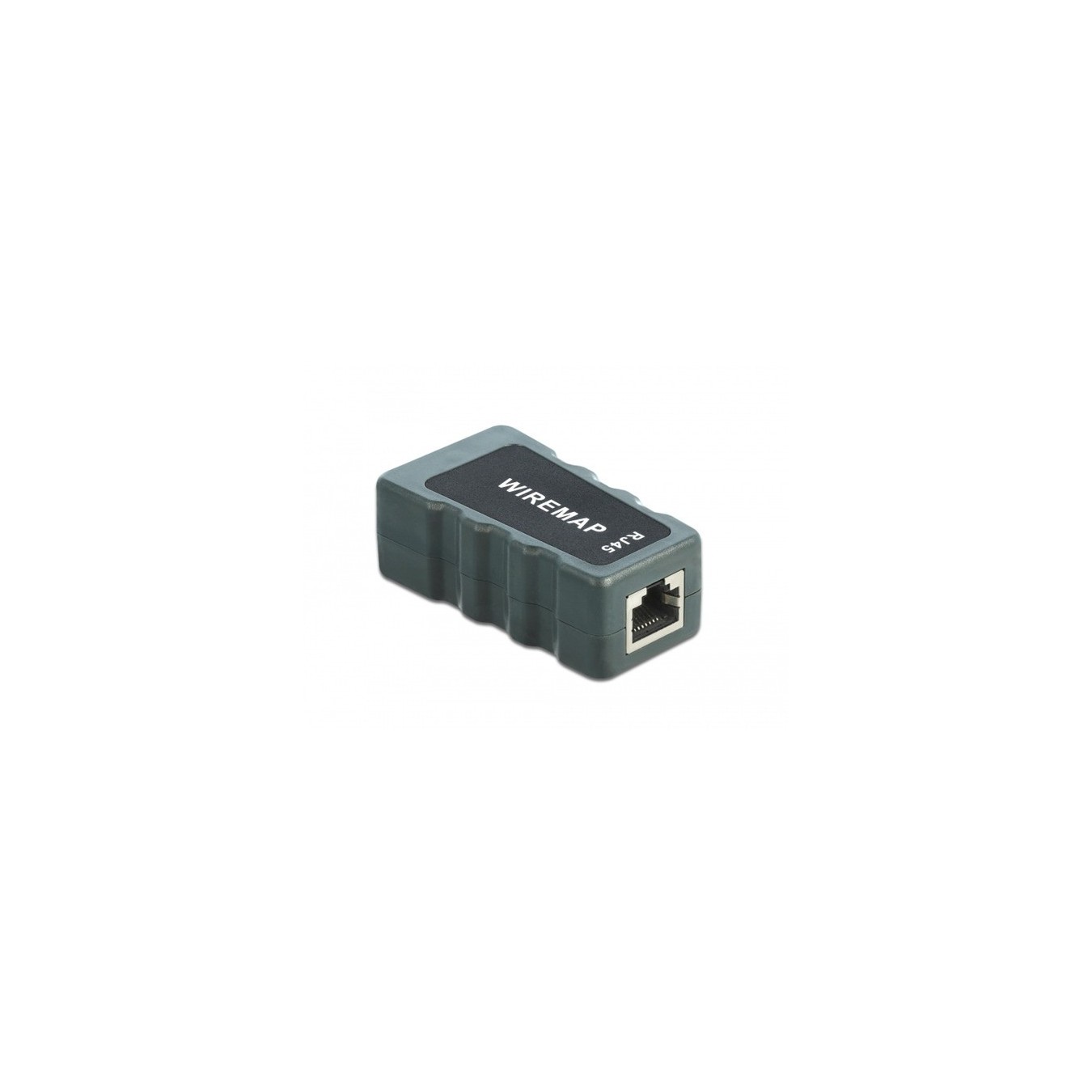

With the cable tester 63110 from Delock you can quickly and easily test the assignment of network cables. If there are errors in the assignment, they are clearly displayed on the LCD display. The PoE standard and the wire pairs used for a PoE voltage source can also be determined. With a connected consumer, the current voltage, polarity, current and power are displayed in real time. The remote unit can be used to check cables that have already been laid.
| Typ | Cable tester |
| Color | grau |
| EAN | 4043619631100 |
| Manufacturer no. | 63110 |
| Purpose of use | For measuring the occupancy of network cables |
| Suitable for | network |
| Operating mode | Battery operation |
| Service | Automatic power-off mode, 6 control buttons |
| Display/display | Matrix LCD display with backlight, display of open circuit, short circuit, crossed wires, display for used PoE standards 802.3af or 802.3at, for used PoE wire pairs (12/36) or (45/78), display of voltage, polarity, current and power for PoE or DC |
| Feature | Flashlight function |
| More information | Test range: voltage DC 0 - 60 volts, current 0 - 3 A, power 0 - 180 watts |
| Accessories - available | Remote unit, DC cable approx. 30cm, bag, operating instructions |
| Dimensions - General | Width: 69mm x Height: 28mm x Depth/Length: 125mm |
