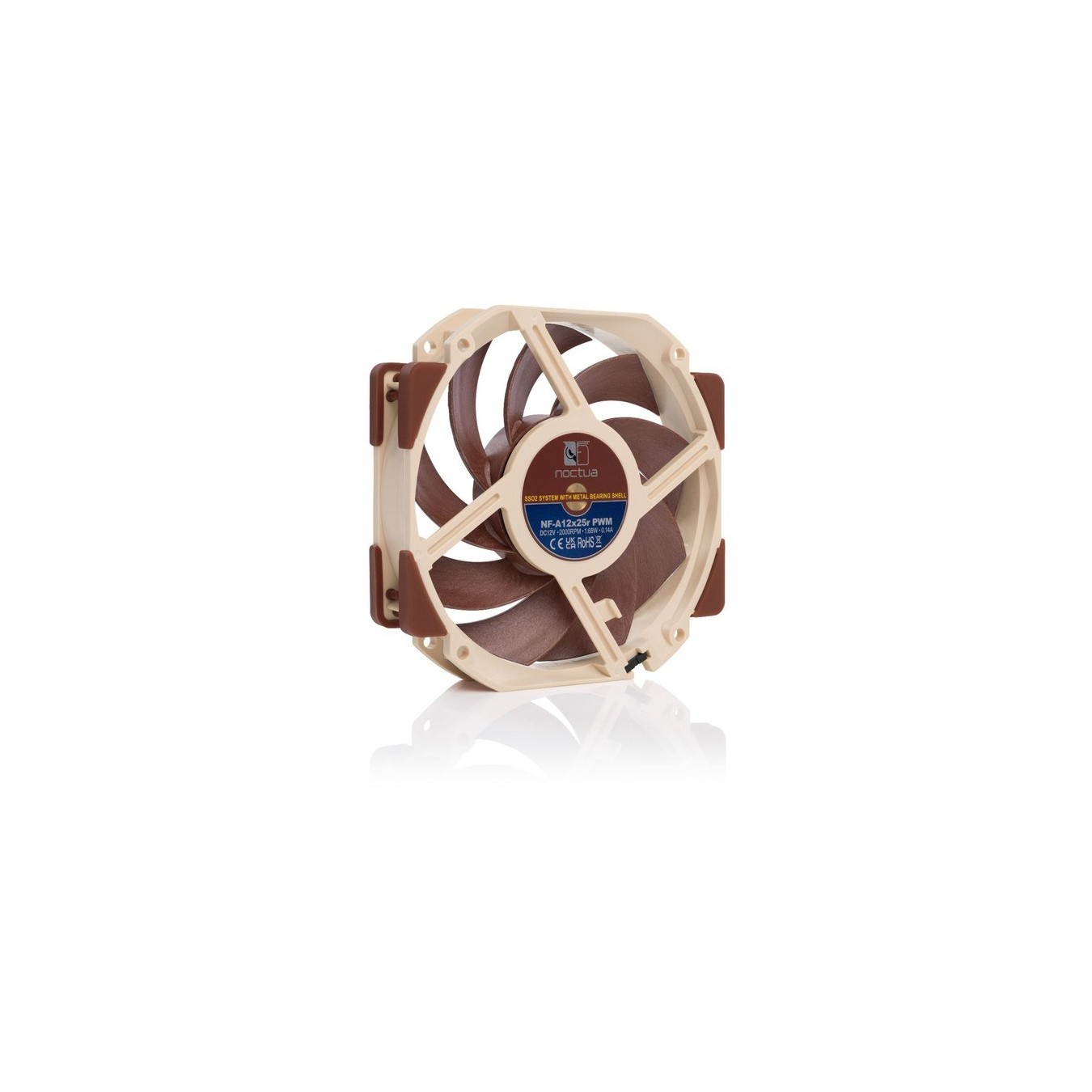

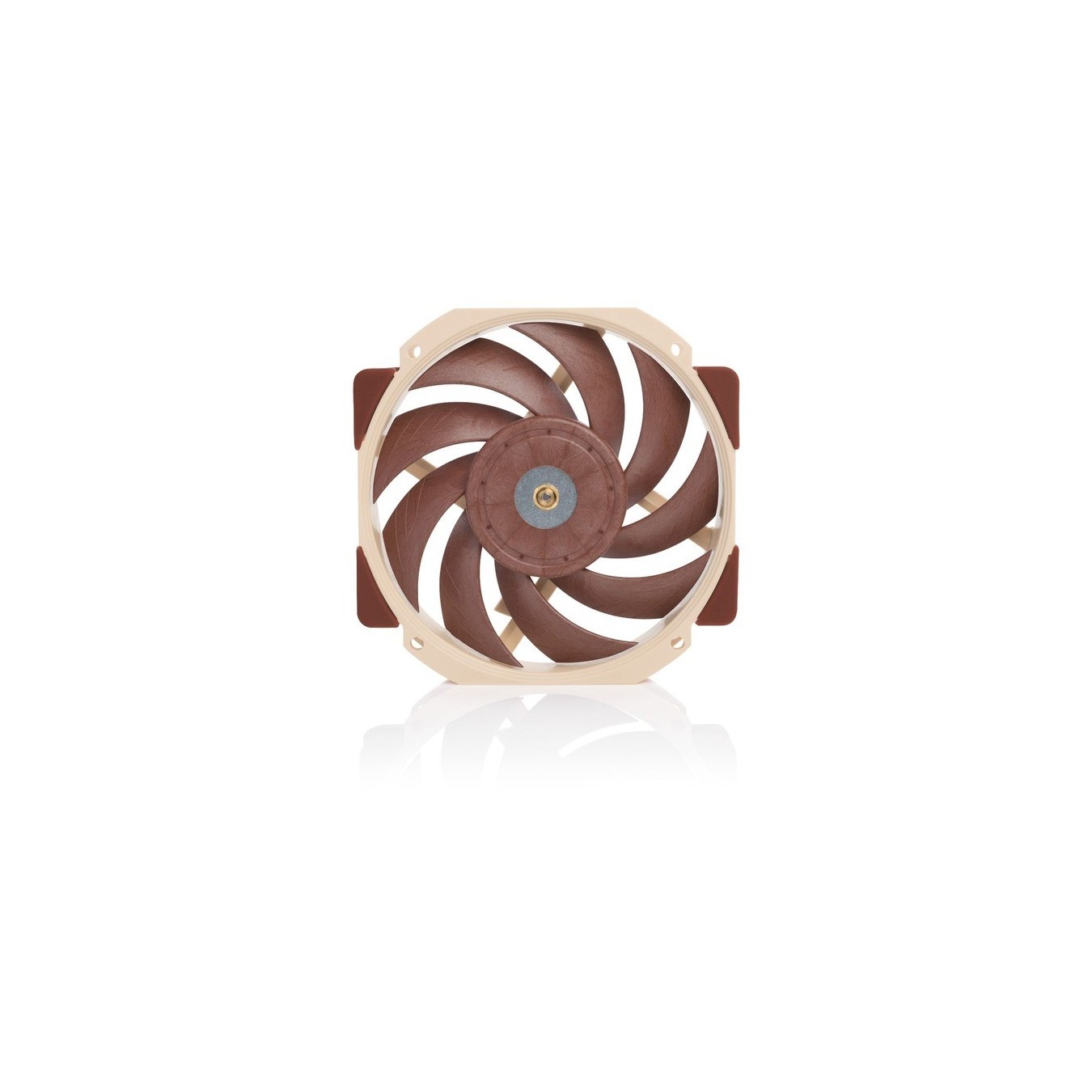

Premium Fan - NF-A12x25r PWM - 120x120x25, case fan
Noctua NF-A12x25r PWM Premium Fan, 120x120x25, round-frame edition; ideal for low-profile builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Fan Size | 120 mm |
|---|---|
| Cooling (CPU & Case) - AIO Radiator Size | 120 mm |

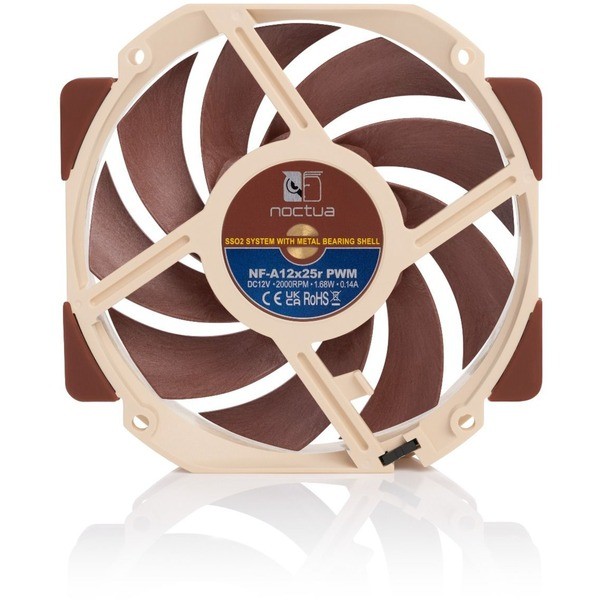

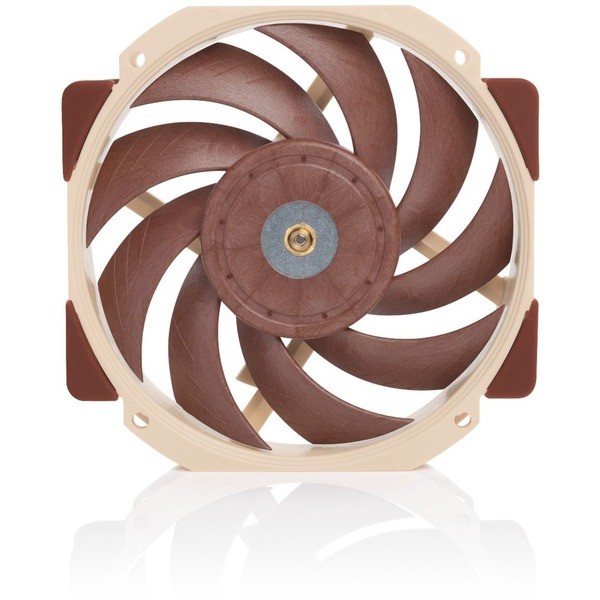

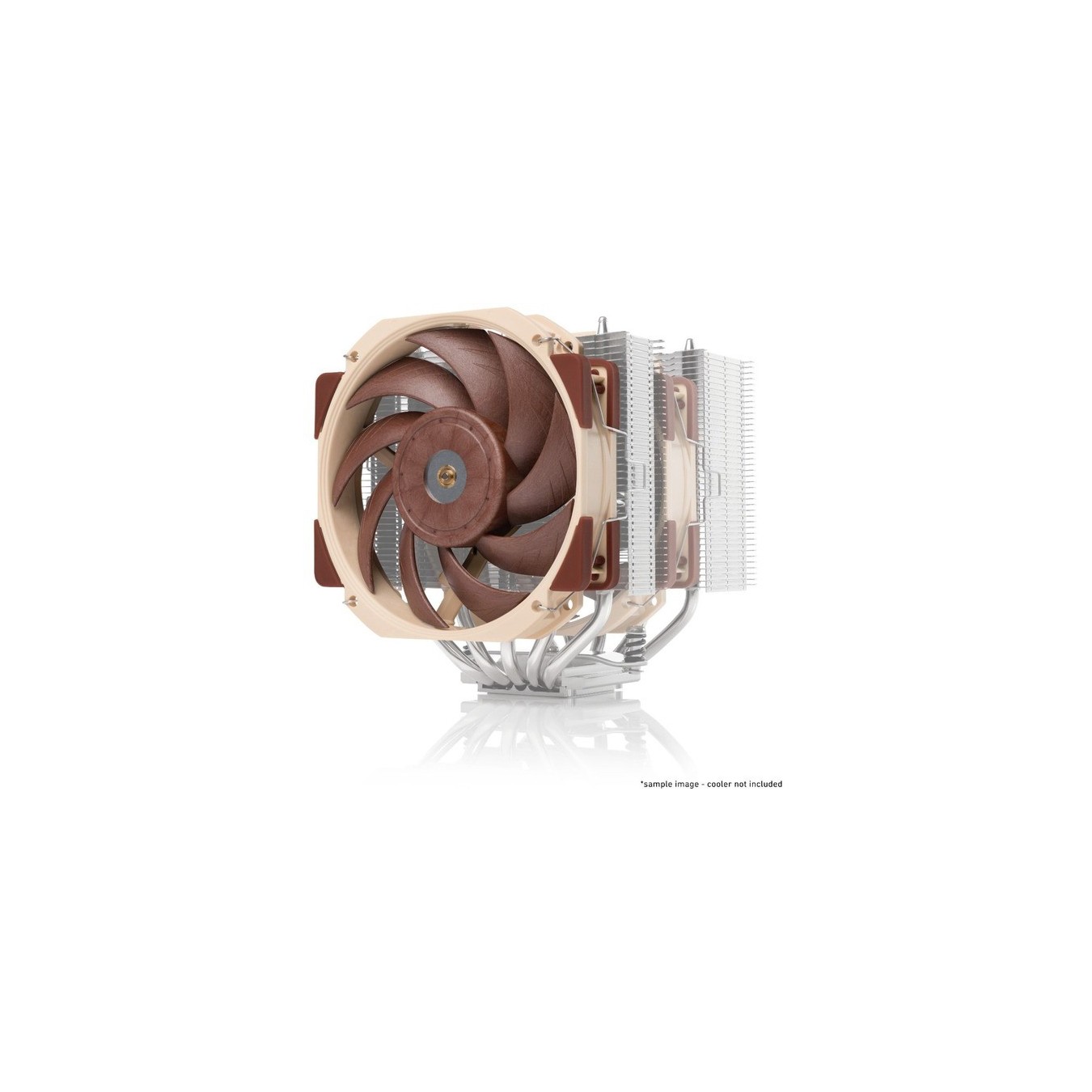

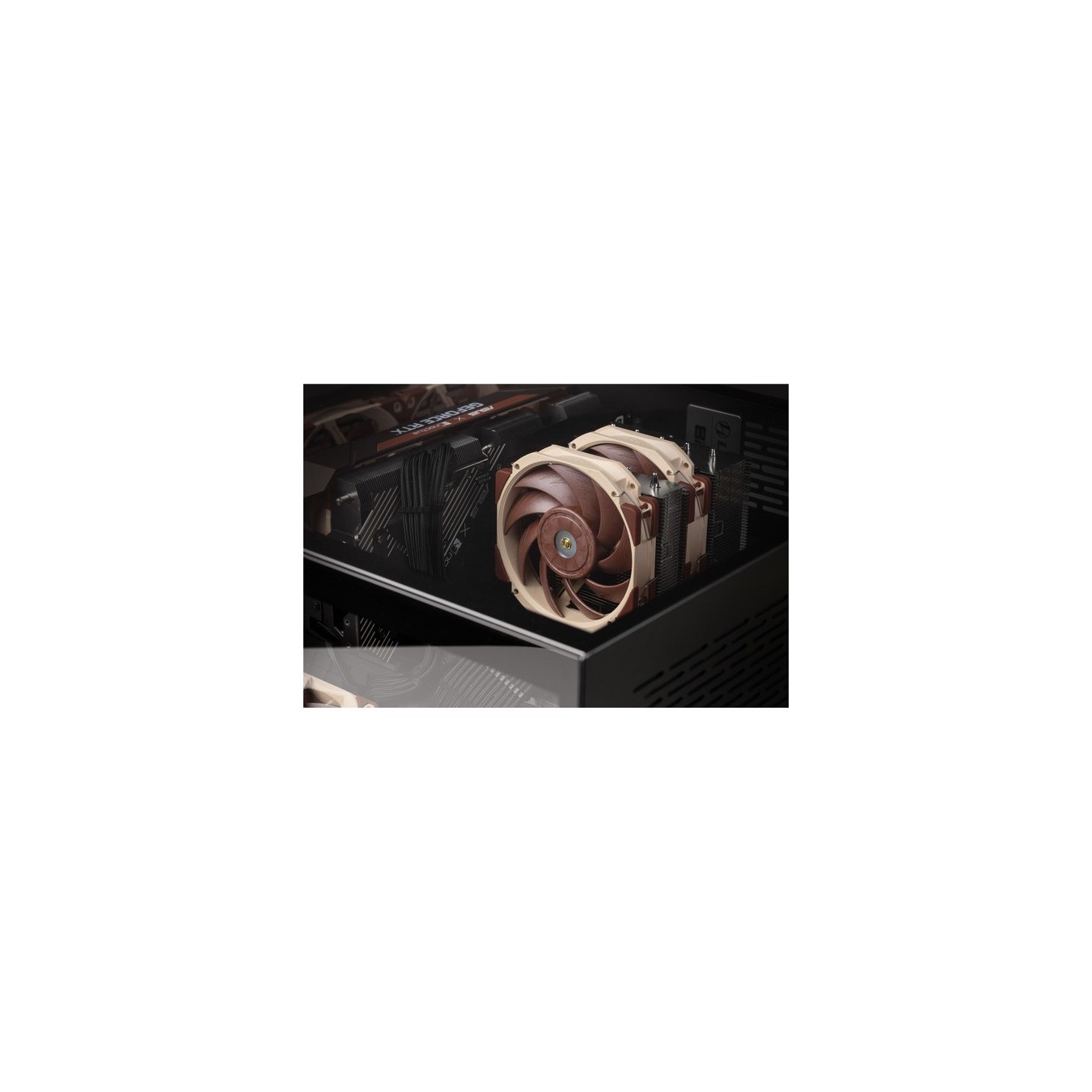

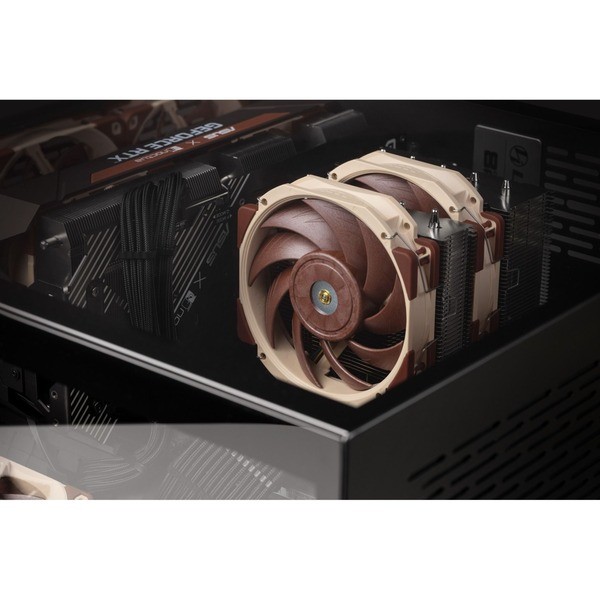

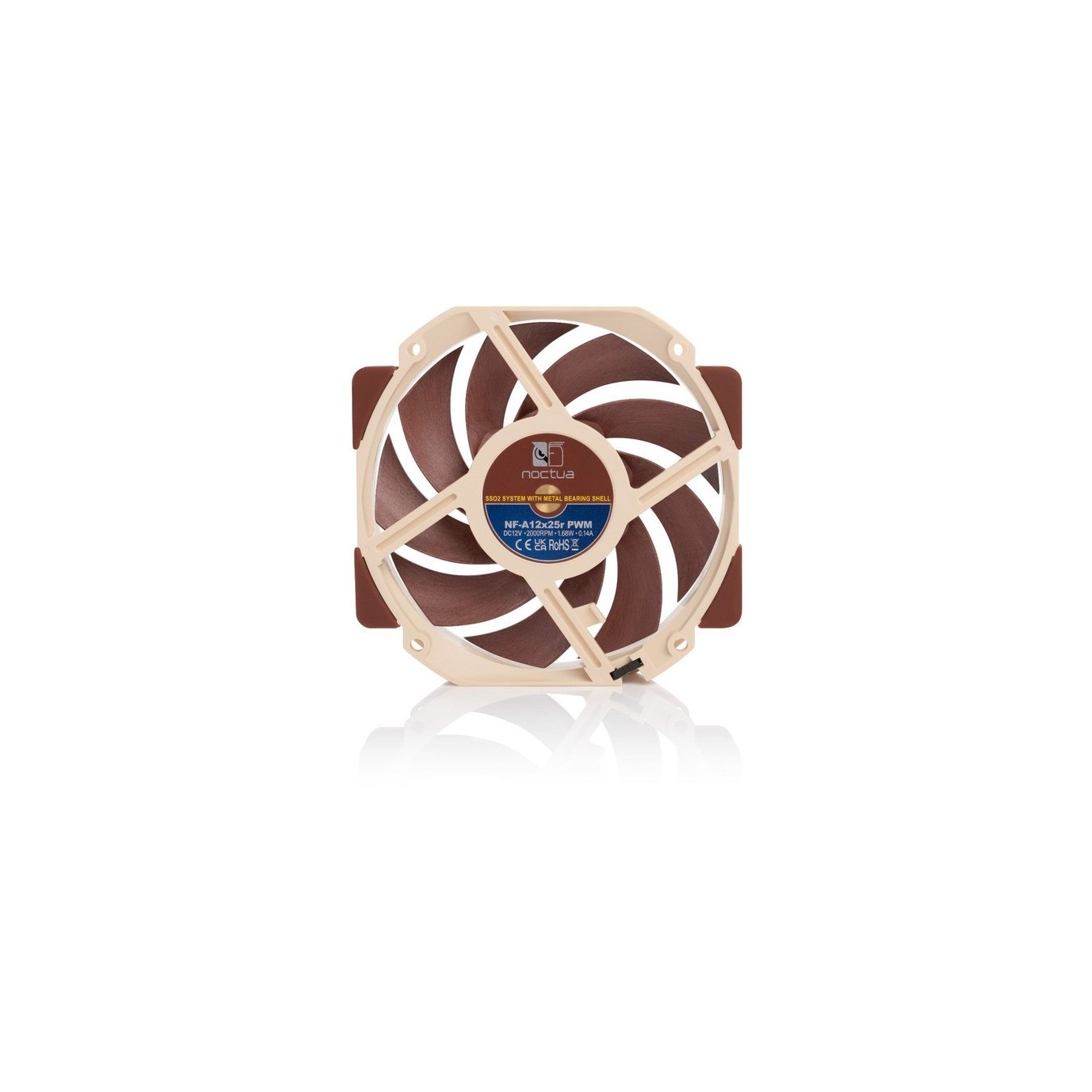

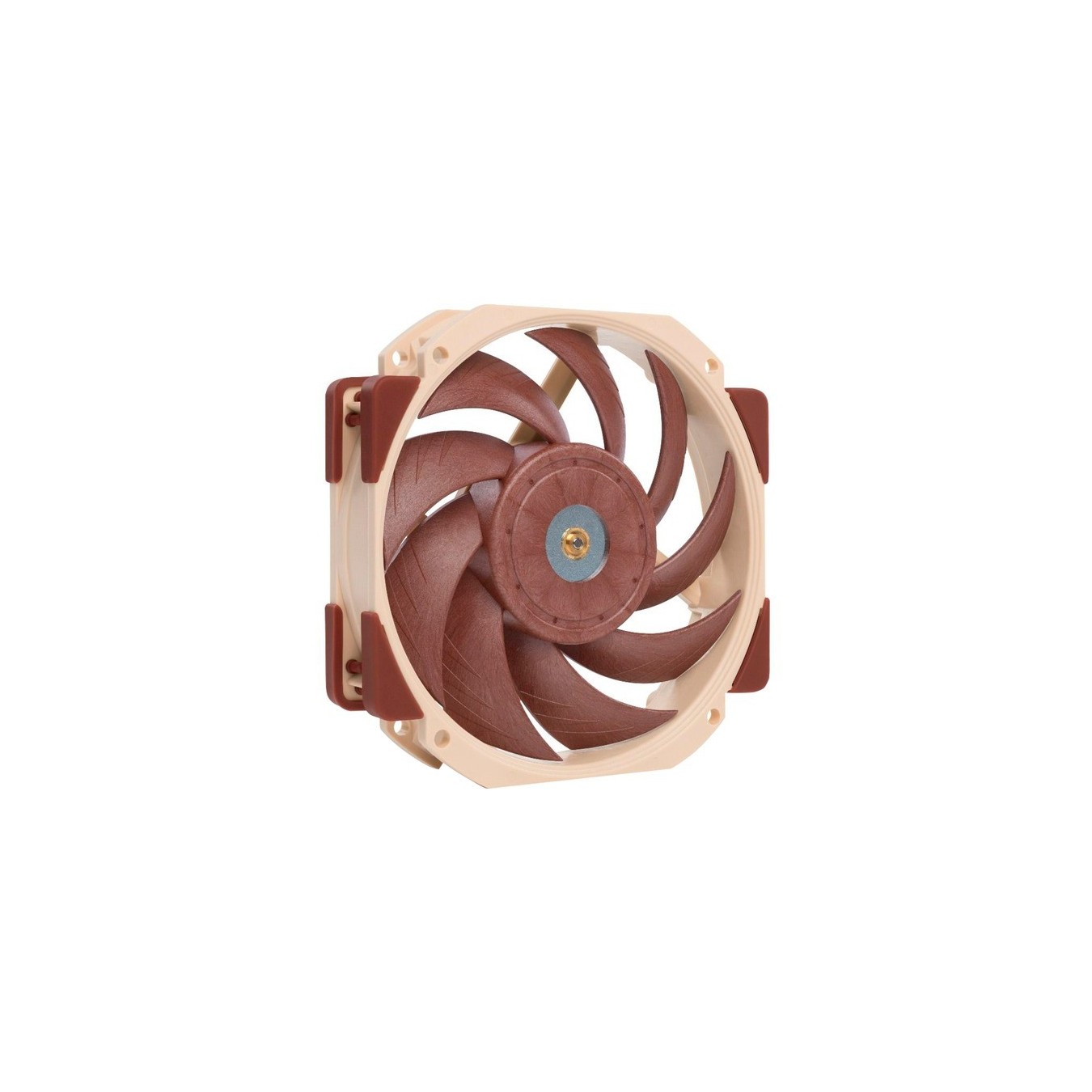

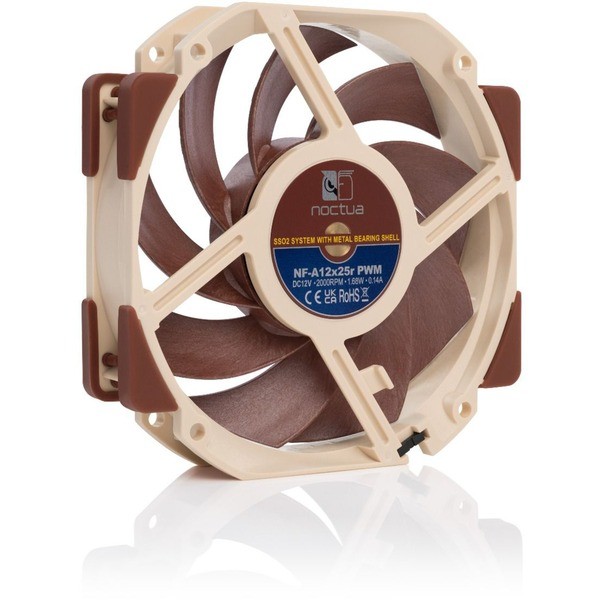

The NF-A12x25r PWM Premium Fan 120x120x25 is a round frame version of Noctua's award-winning 120mm flagship NF-A12x25. Its round shape makes it ideal for use in low-profile dual-tower CPU coolers such as the NH-D12L, as well as other space-constrained applications where 120mm square frame fans cannot accommodate. Just like the square NF-A12x25, the round NF-A12x25r also has a record-breaking low fan clearance of just 0.5 mm, thanks to the use of Sterrox liquid crystal polymer compound (LCP) and a metal-reinforced motor hub and axle for maximum precision. Using the same state-of-the-art impeller design with flow acceleration channels, the NF-A12x25r achieves the same class-leading quiet cooling performance as its square frame sibling. It also supports fully automatic speed control via PWM fan connectors and comes with a low-noise adapter that can reduce the maximum speed from 2000 to 1700 rpm. The package is rounded off by exceptional smooth running, Noctua's SSO2 bearings of the reference class, an extensive accessory package of the NF-A12x25r - a thoroughly high-quality product. Its superior efficiency, state-of-the-art construction and groundbreaking materials make it a top choice for any 120mm application requiring a round frame.
| Typ | fan |
| EAN | 9010018100563 |
| Manufacturer no. | NF-A12x25r PWM |
| Art | Case fan |
| use | for PC cases |
| Fastening | screwed |
| volume | 18.8dB to 22.6dB |
| speed | 2,000 U/min |
| Fan storage | SSO 2 |
| Volume flow | 84,5 m³/h - 102,1 m³/h |
| Air pressure | From 1.65 mm/H2O to 2.34 mm/H2O |
| Power connection | 4-Pin-PWM |
| Voltage range | 12 Volt |
| Power consumption | 1,68 Watt |
| More information | Rotation speed with low noise adapter: up to 1700 rpm. Rotation speed without low noise adapter: up to 2000 rpm. |

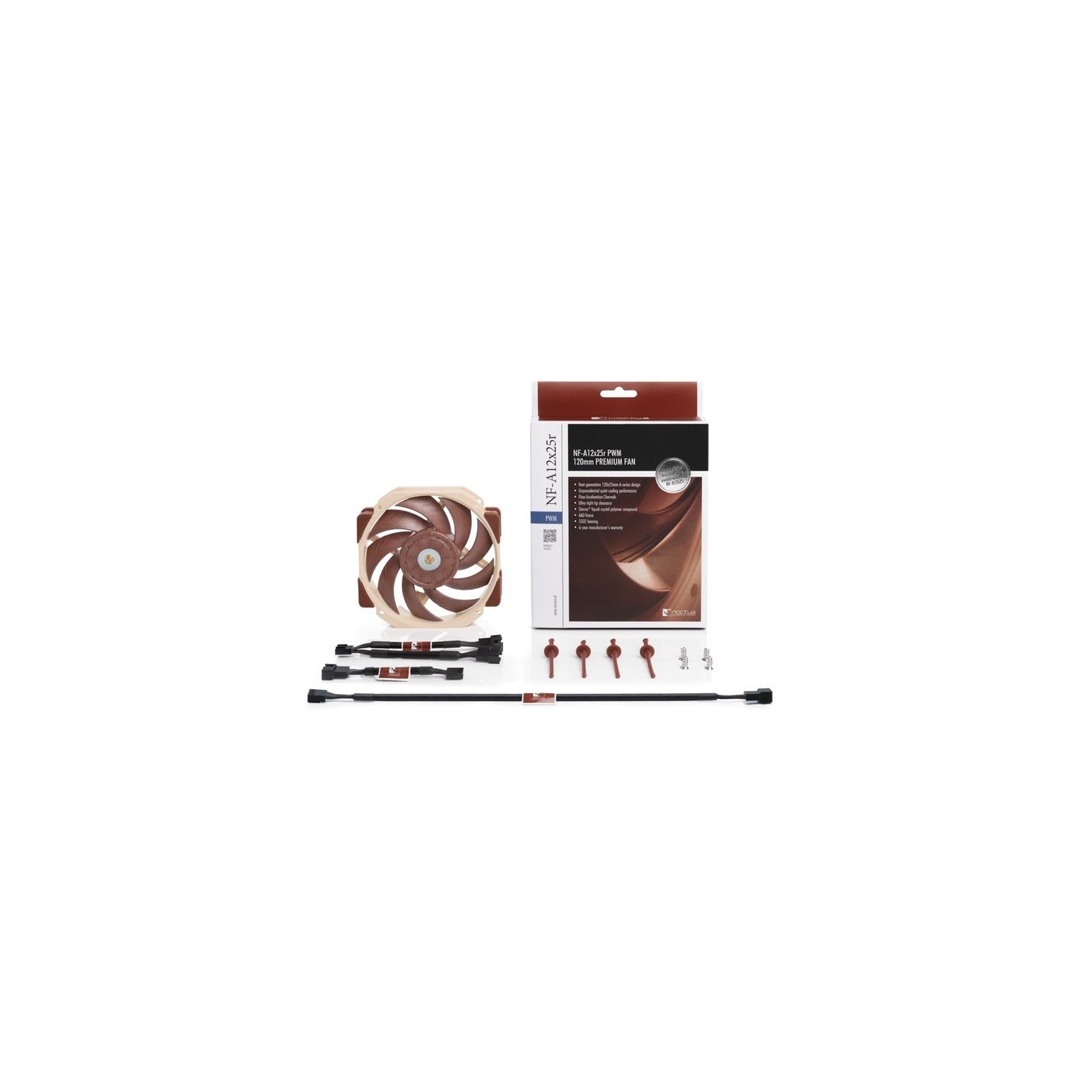

| Accessories - available | Low-Noise-Adaptor (L.N.A.), 4-Pin Y-Kabel, Extension Kabel (30 cm), 4x Anti-Vibration Mounts, 4x Lüfterschrauben |
| Dimensions - Fan1 | Quantity: 1 piece, width: 120 mm, height: 120 mm, depth: 25 mm |
