server chassis - 3U-30255
Inter-Tech 3U-30255 server enclosure in Black. ATX support, steel 1.0-1.2 mm, 38 L, 48.2 × 58.8 × 13.35 cm, 10.7 kg; 6 external 5.25" bays; front USB-A 3.2 Gen 1; 1x 120 mm fan available.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

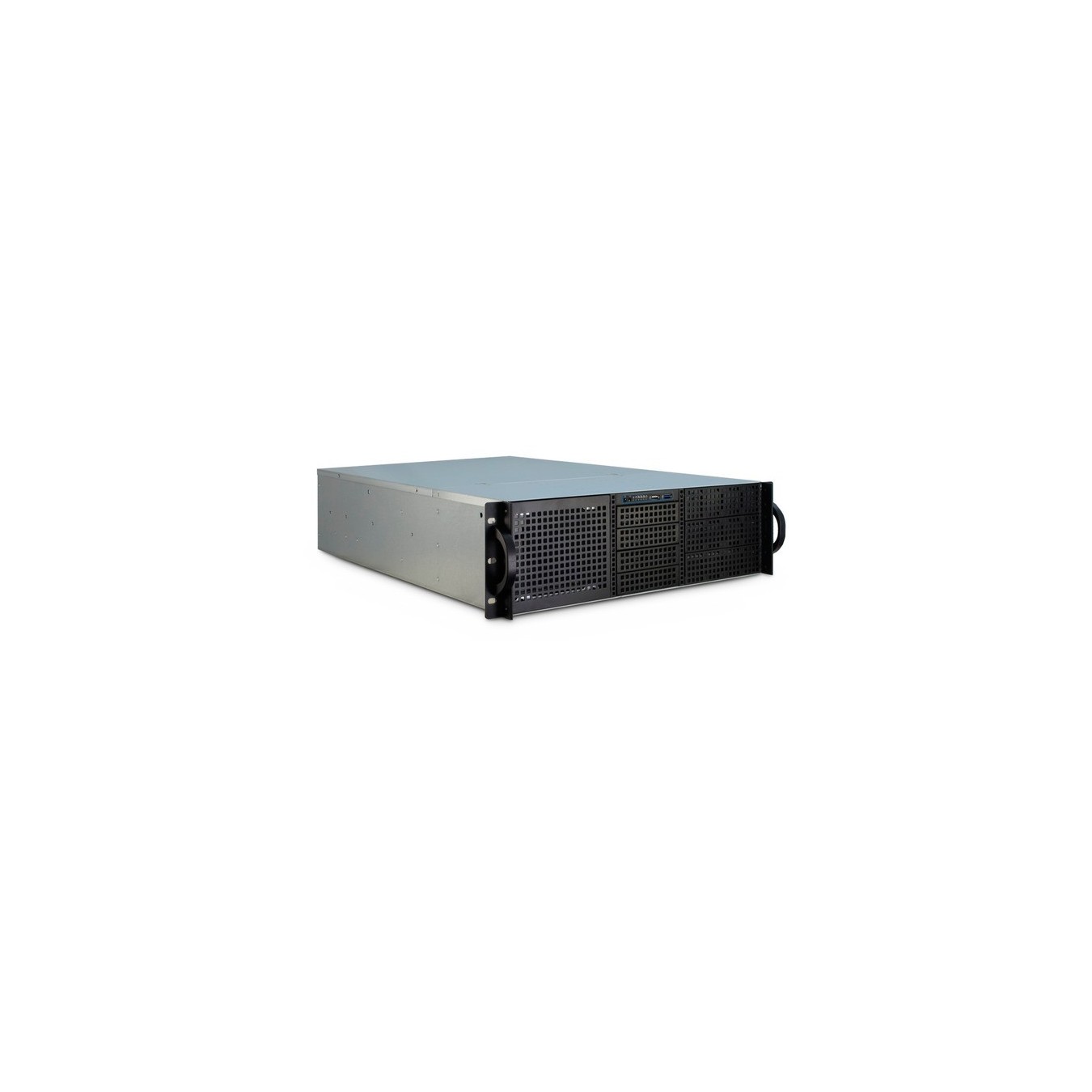

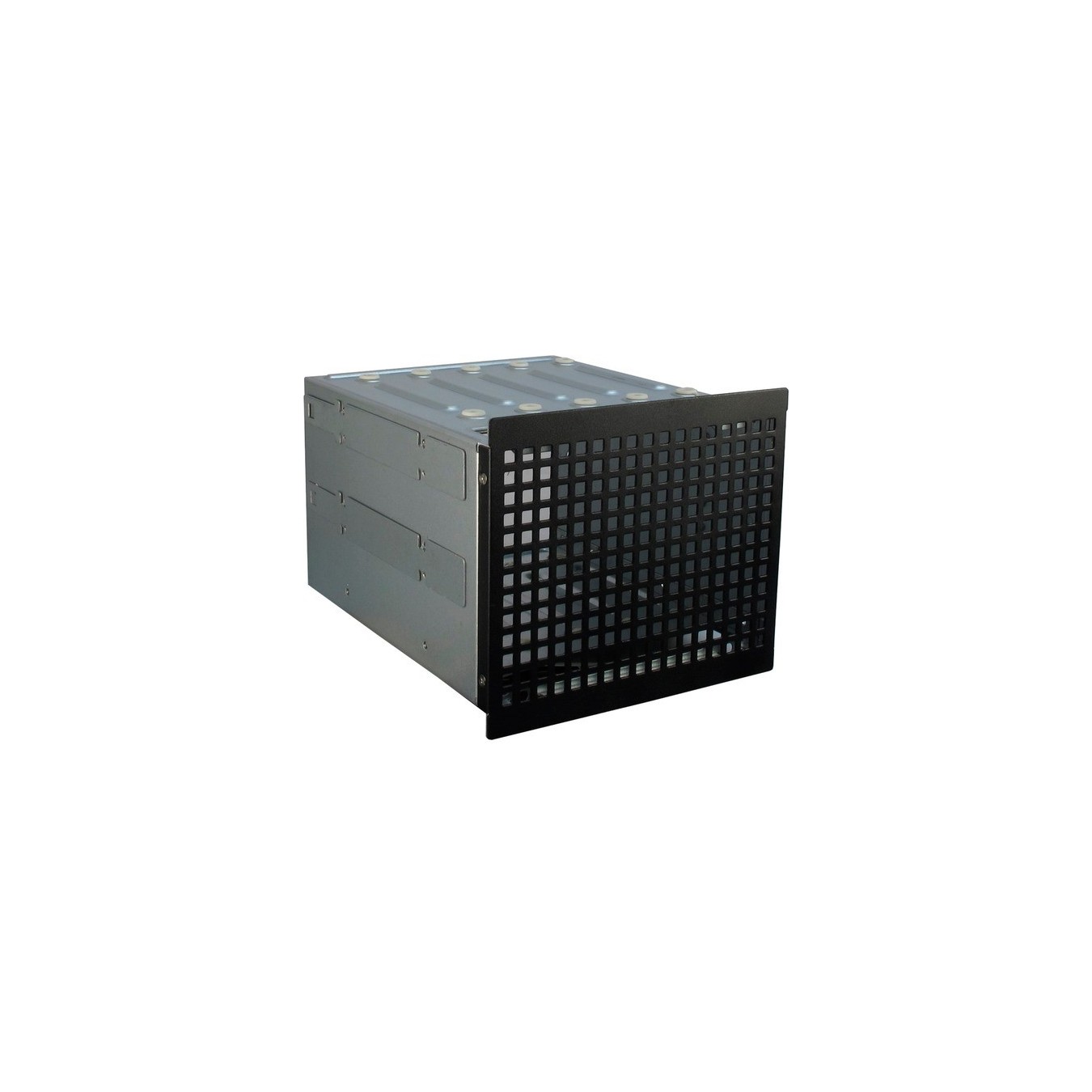

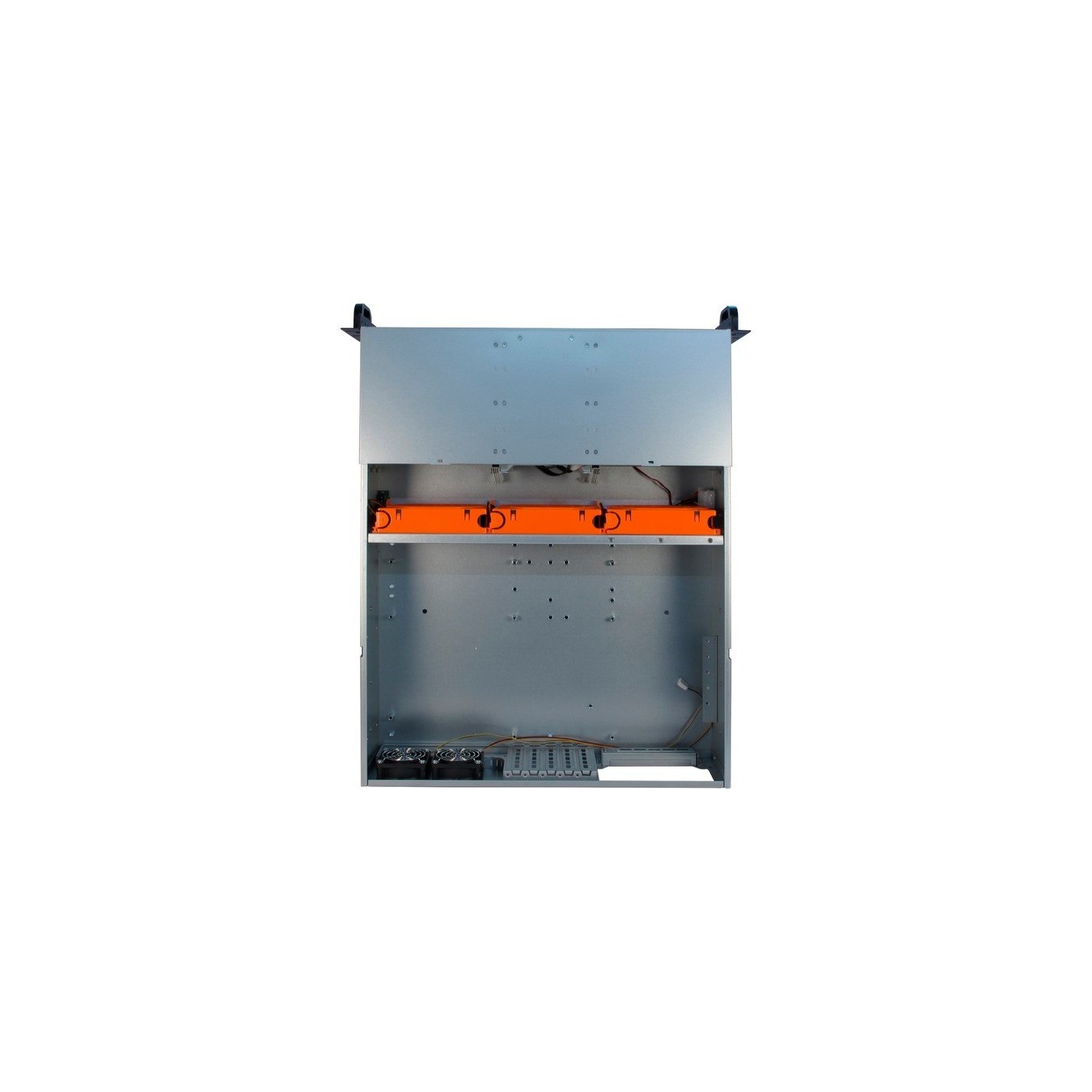

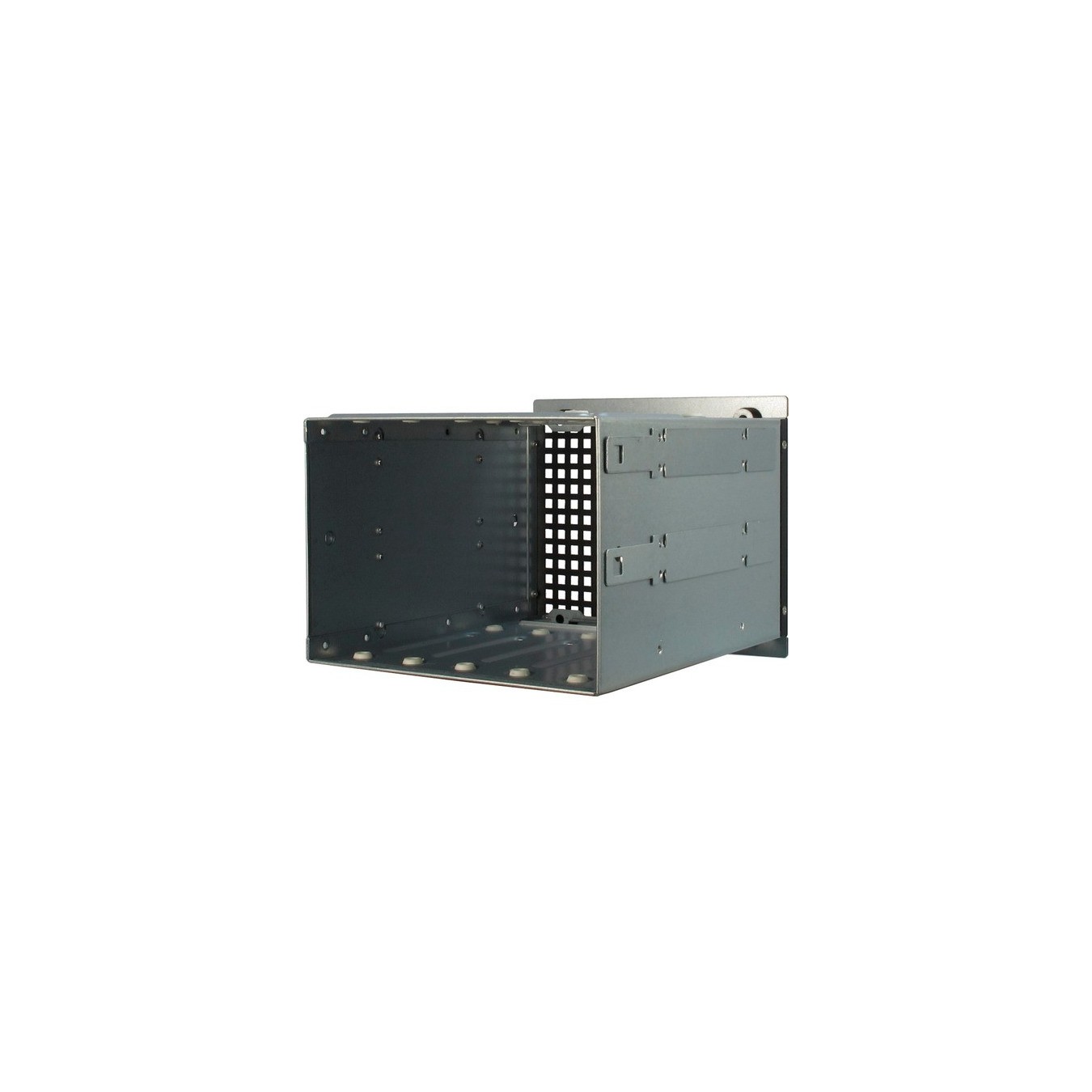

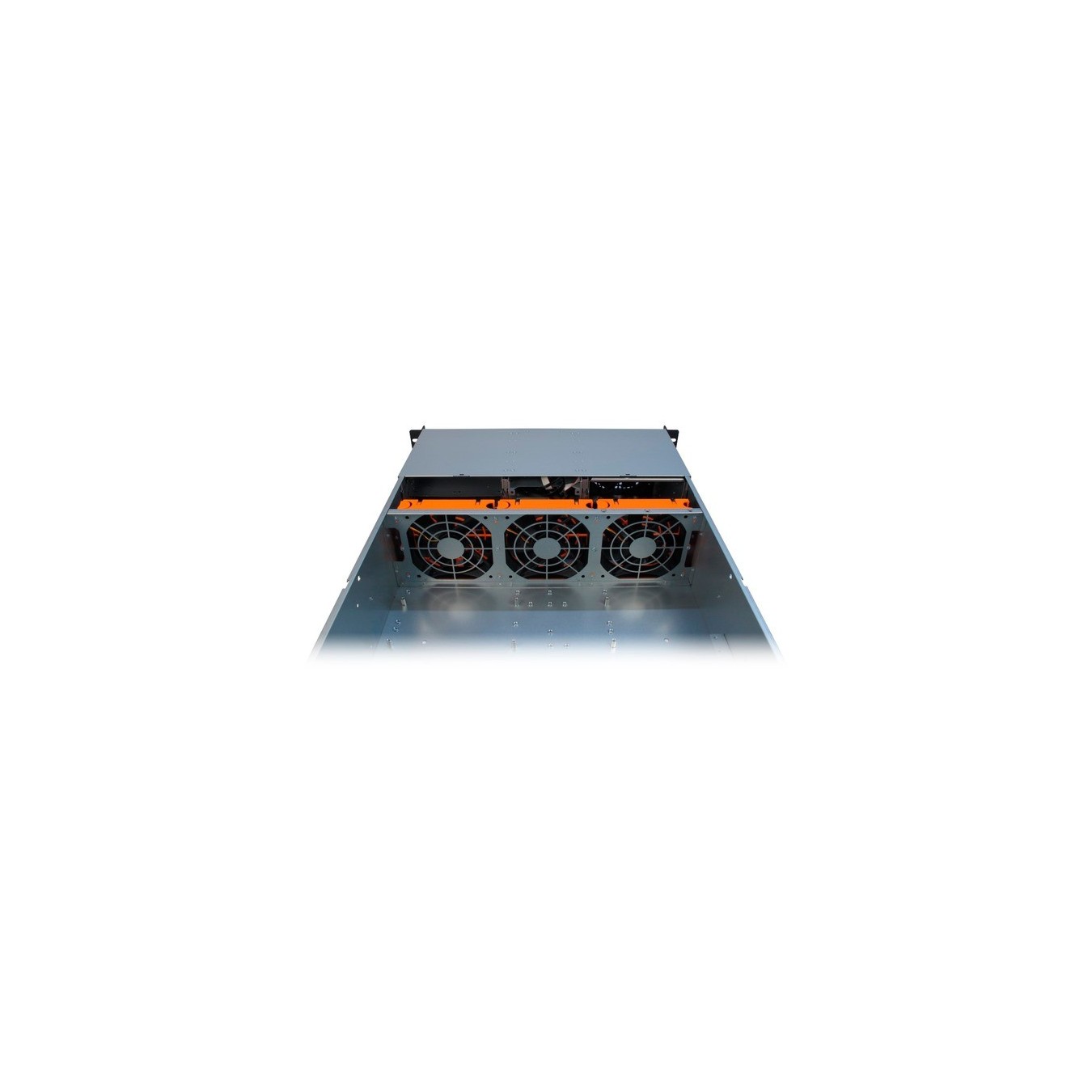

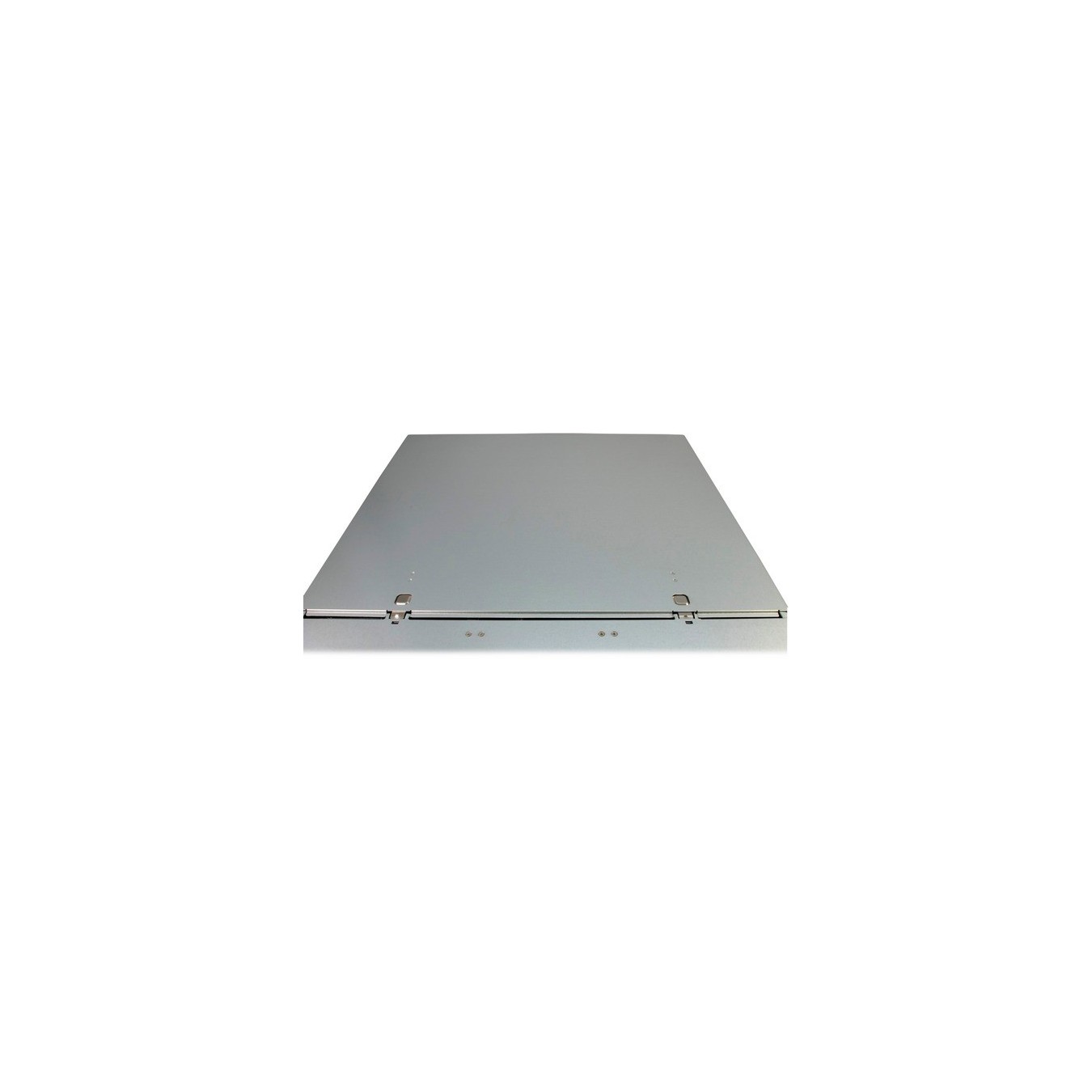

The Inter-Tech 3U 30255 is the perfect rack for a cost-effective server system. Through the excellent material quality combined with the excellent workmanship, Inter-Tech has created the basis for an extremely variable housing. The 3U 30255 offers the option of removing the mounting frames on both sides and installing up to six 5.25" external drives. There are four 3.5" slots for hard drives in the middle. A maximum of twelve 3.5" or fourteen 2.5" hard drives can be installed internally. In addition, four 120 mm fans reliably ensure optimal cooling. Easily accessible USB interfaces in the front and the lid with two snap-in closures complete the package. The two USB-A 3.2 Gen 1 (5 Gbit/s) ports complete the housing.
| Typ | Server enclosure |
| Color | schwarz |
| EAN | 4260133126299 |
| Manufacturer no. | 88887108 |
| Design | Rack |
| Mainboard Formfaktor | ATX |
| Material | 1.0-1.2mm steel |
| Internal dimensions - PSU form factor | ATX |
| Drive bays - 5.25 inches | external 6 pieces |
| Slots - Full-Size | 5 pieces |
| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |
| front | 1x 120 mm fan available, power switch, reset button, LED: power, hard drive activity, 3x network activity, alarm |

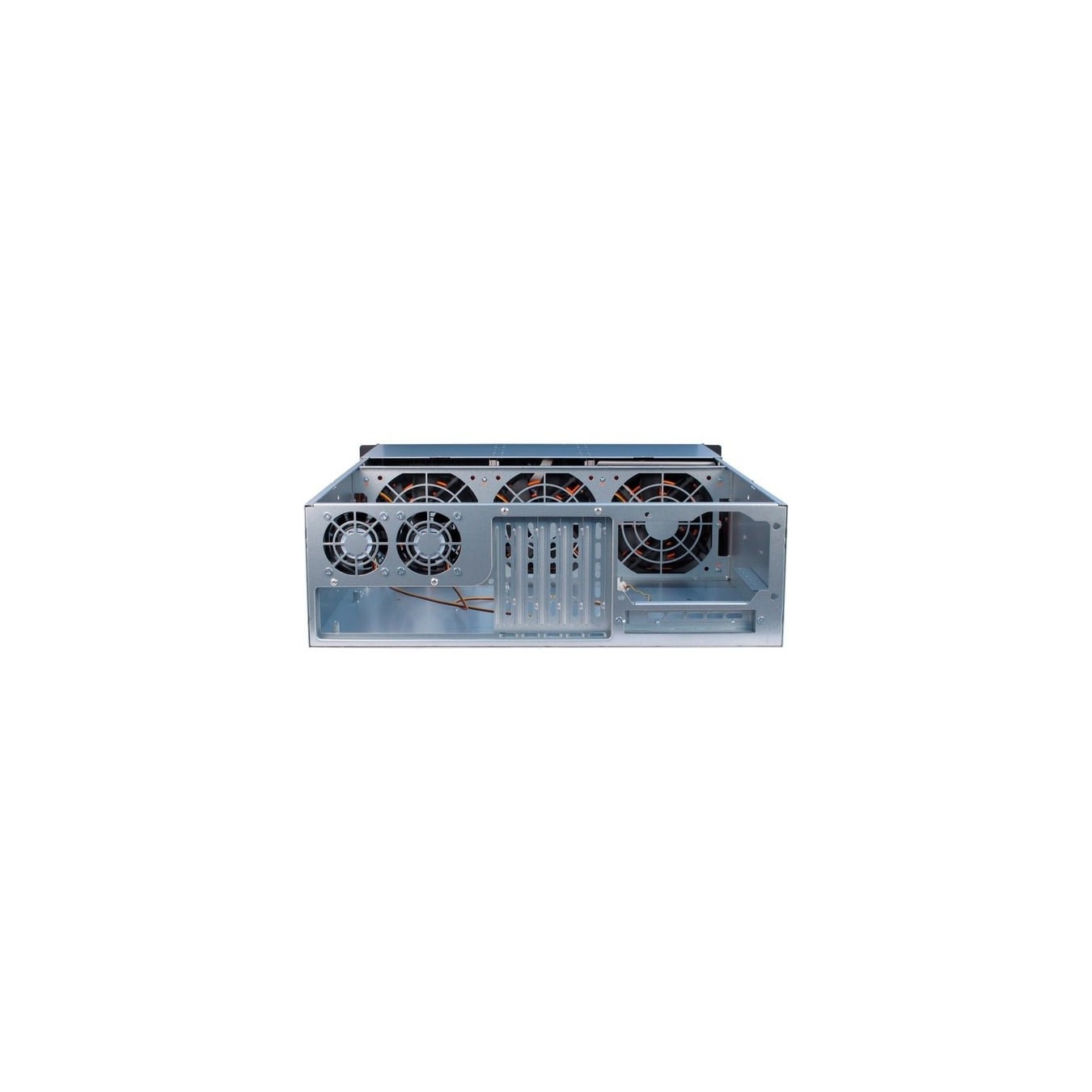

| back | 2x 60 mm fans can be installed |
| Notes | 3x 120 mm fans available, 6x 40 mm fans can be installed on the drive covers, drive cages can be removed and positioned as desired, only 5 slot openings + 1 slot for optional riser card, 2x 3-pin connection for front fans on the connection board of the middle fans, 2x USB-A 3.2 Gen 1 (5 Gbit/s) internally as standardized block plugs, lid with snap-in closure |
| Rear connection of the mainboard | No |

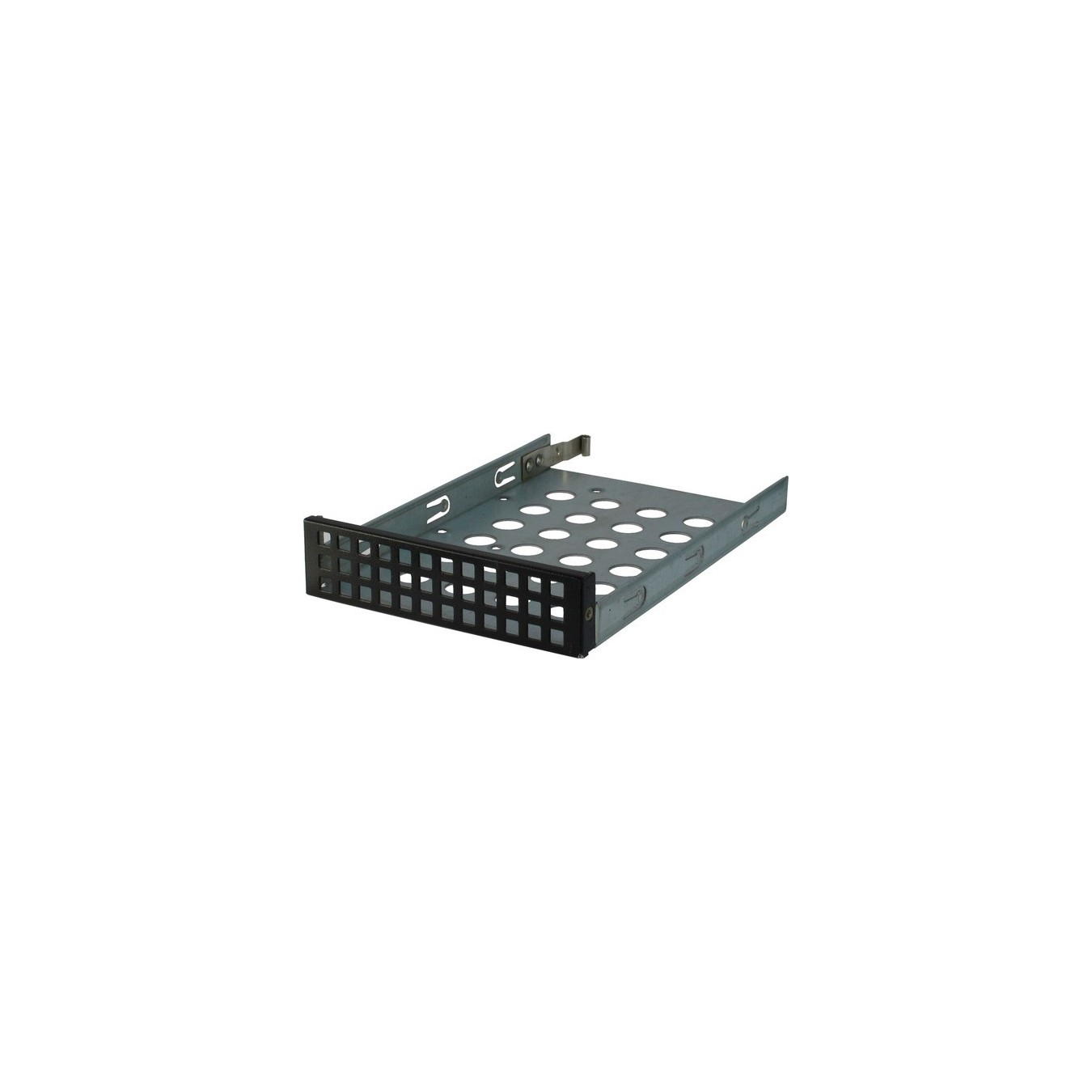

| Accessories - available | Assortment of screws, drive mounting rails |
| Volume | 38 l |
| Dimensions | Width: 48.2 cm x Height: 13.35 cm x Depth/Length: 58.8 cm |
| Weight | 10,7 kg |
