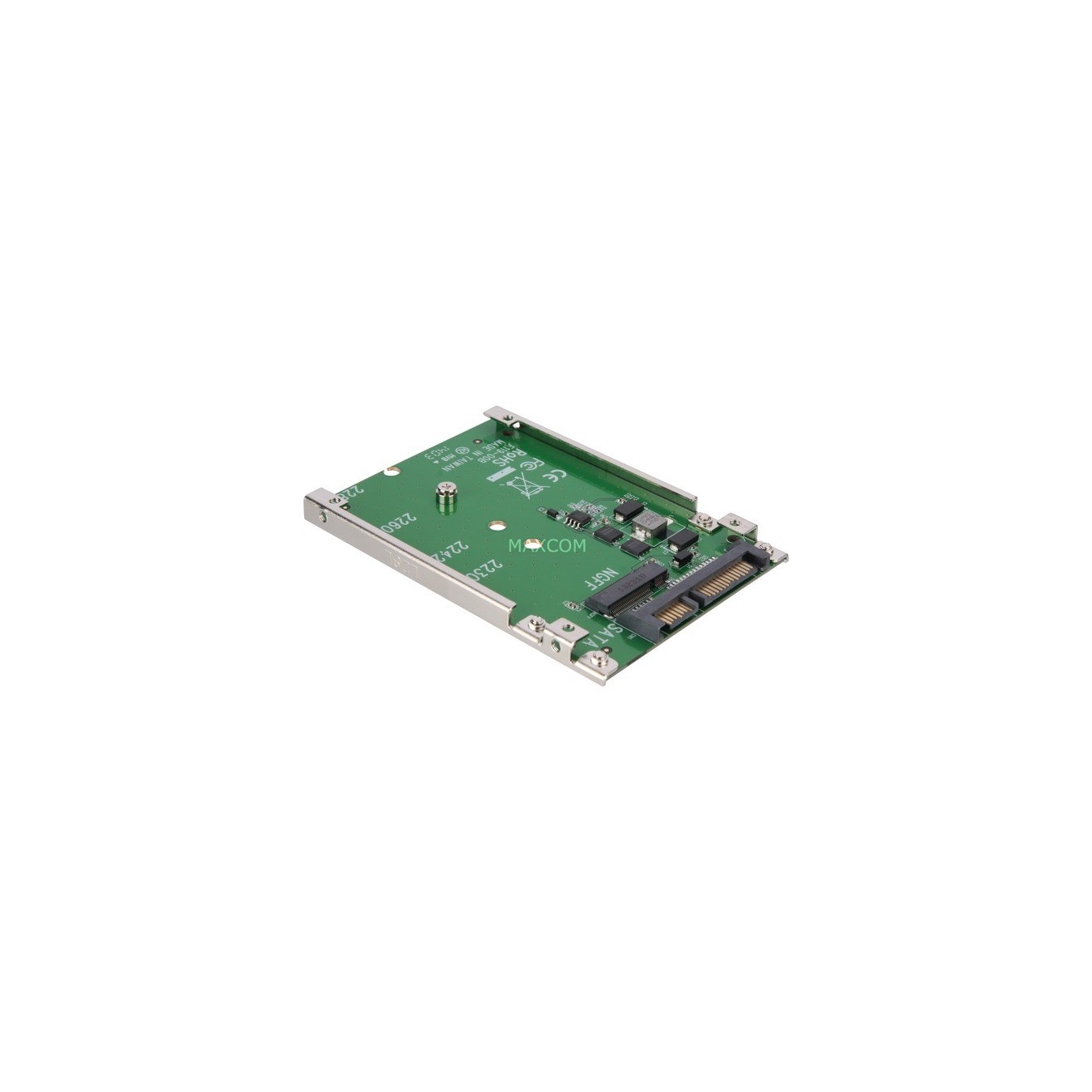

SATA Converter 22P to M.2 NGFF 2.5' Adapter
Connect M.2 NGFF SSD (2280/2260/2242/2230) to a SATA 22-pin interface and use as a 2.5-inch HDD replacement; bootable; data up to 6 Gb/s; OS independent.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
You can connect an M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format to this DeLOCK converter and use it as a replacement for a 2.5" hard drive. The converter can be integrated into the system internally via the SATA 22 pin interface.
| Typ | Adapter |
| EAN | 4043619625444 |
| Manufacturer no. | 62544 |
| Controller Art | Serial-ATA |
| Connections - internal | 1x M.2 |
| More information | System requirements: A free SATA 22 pin interface; Form factor: 2.5"; Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with Key B or Key B+M on SATA basis; Bootable; Data transfer rate up to 6 Gb/s; Dimensions (LxWxH): approx. 100 x 70 x 7 mm; OS independent, no driver installation required |
| Weight | 81 Gramm |
