PCI Express x16 Card - 4x internal NVMe M.2 key - Interface Card
Delock PCIe x16 interface card enabling up to four internal M.2 NVMe modules (2280/2260/2242/2230 formats).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

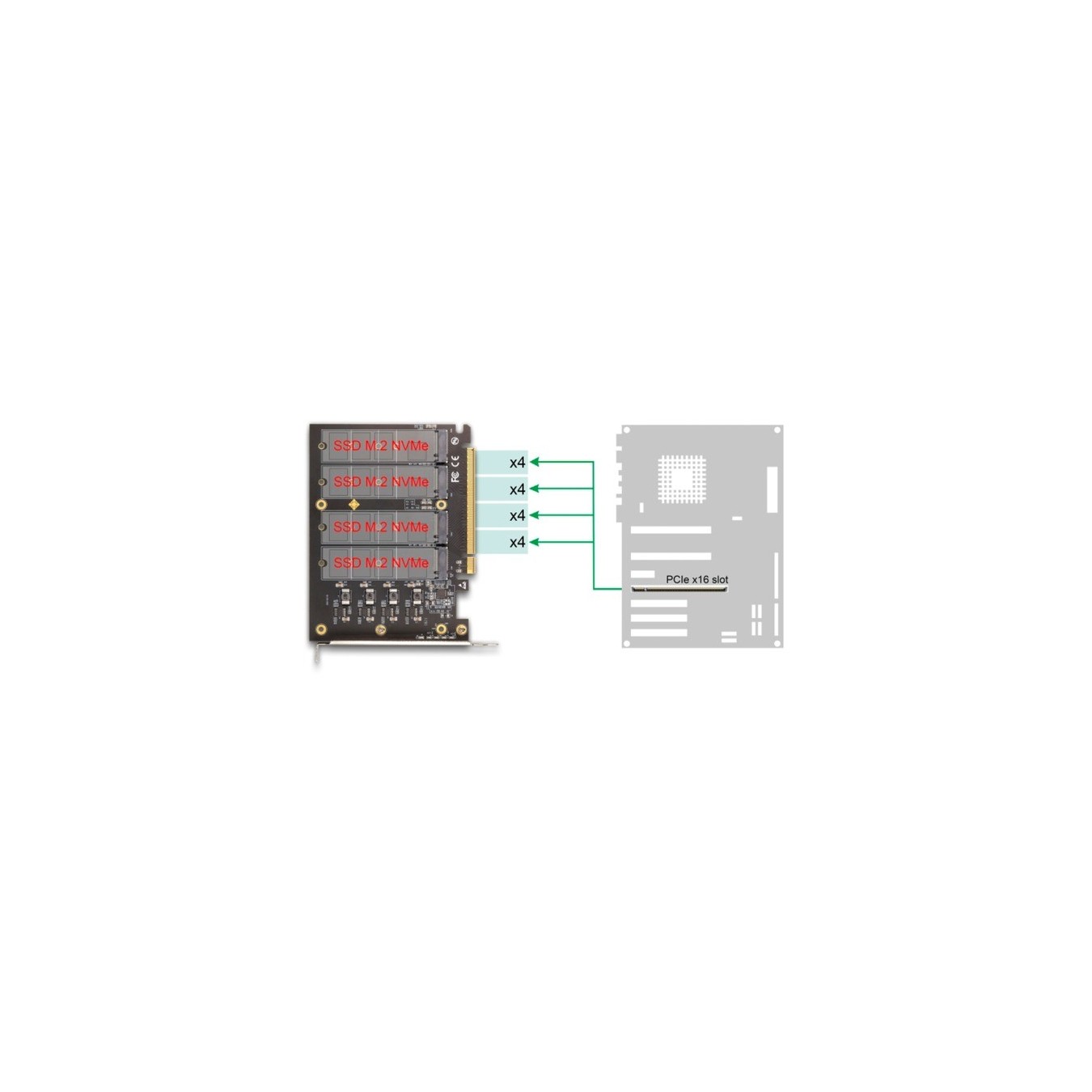

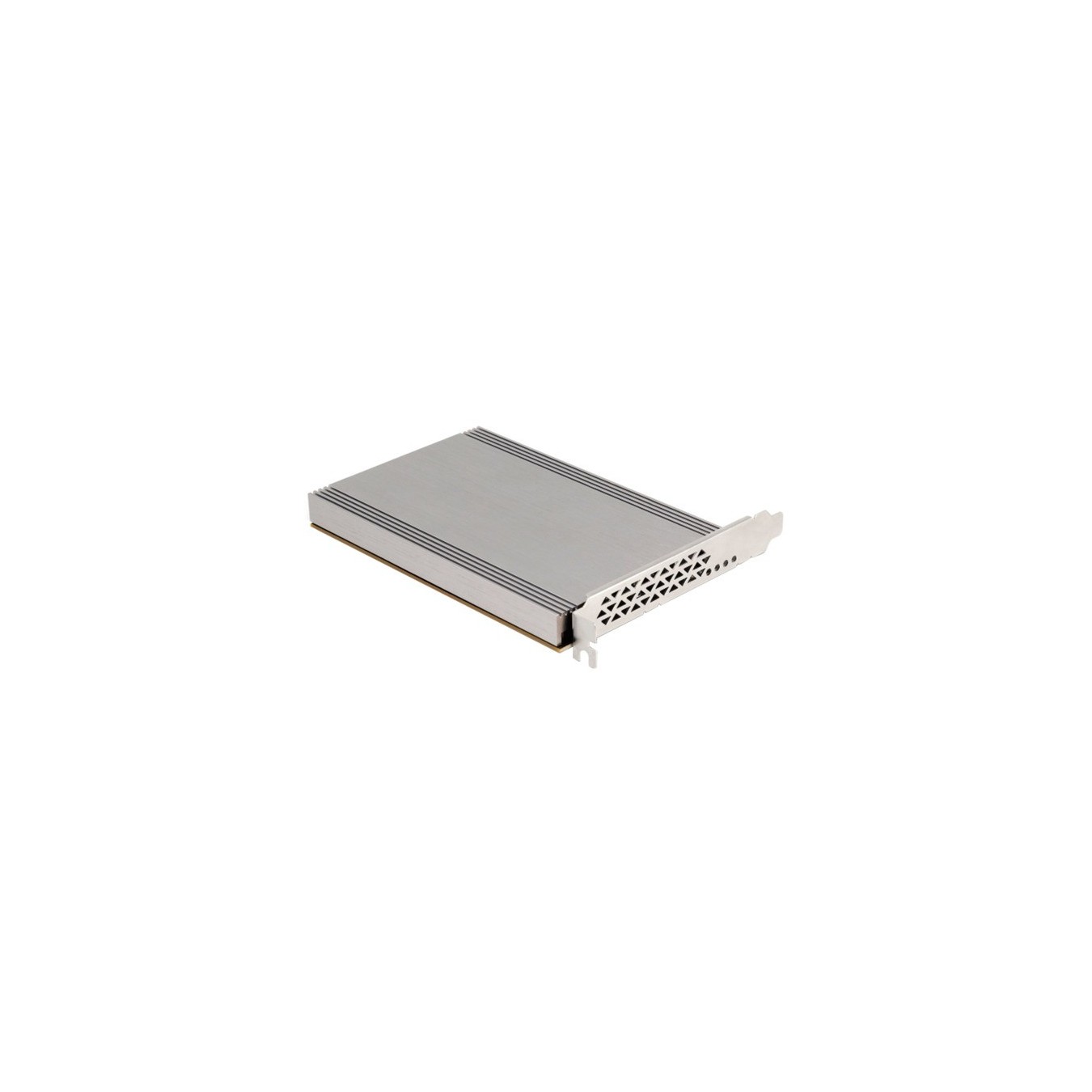

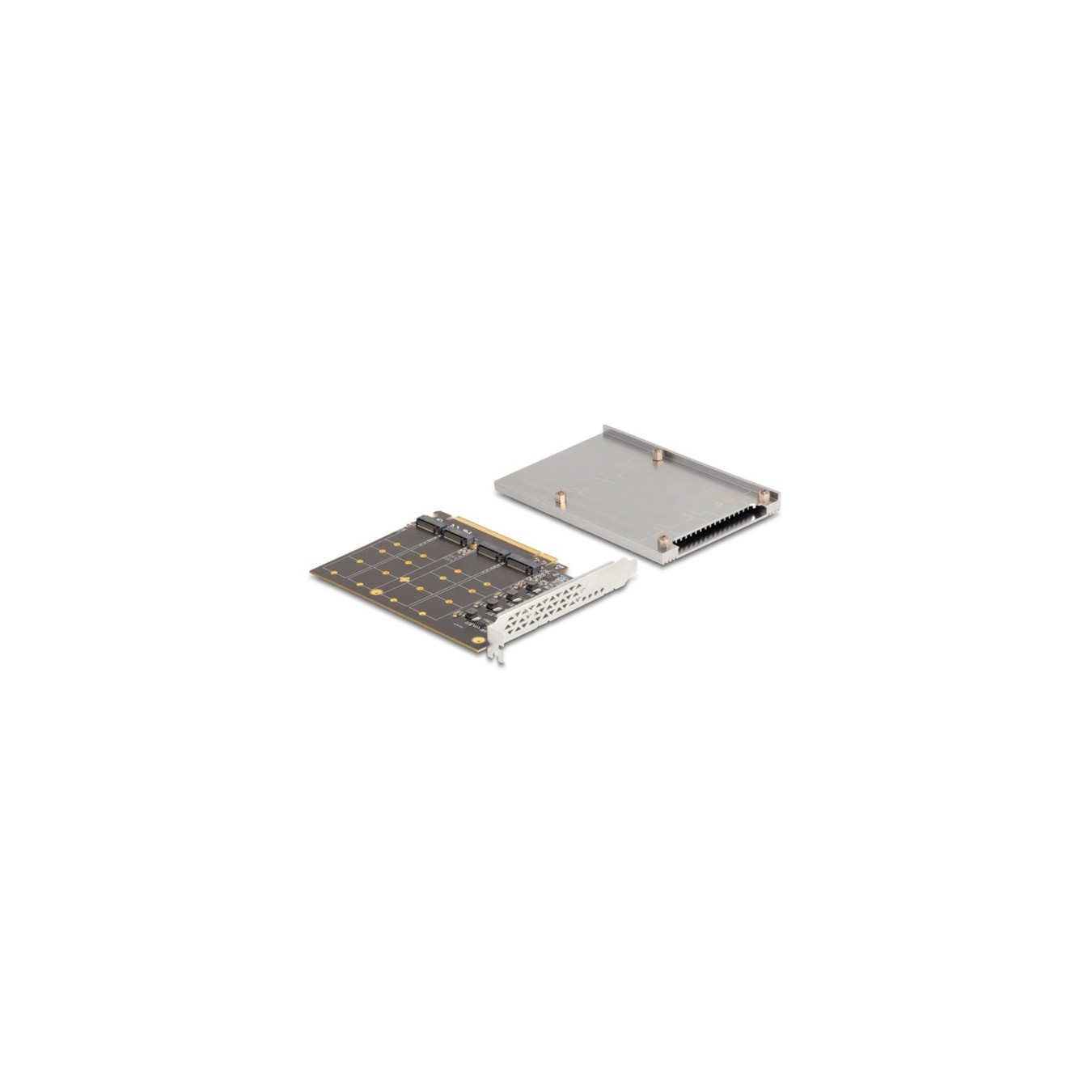

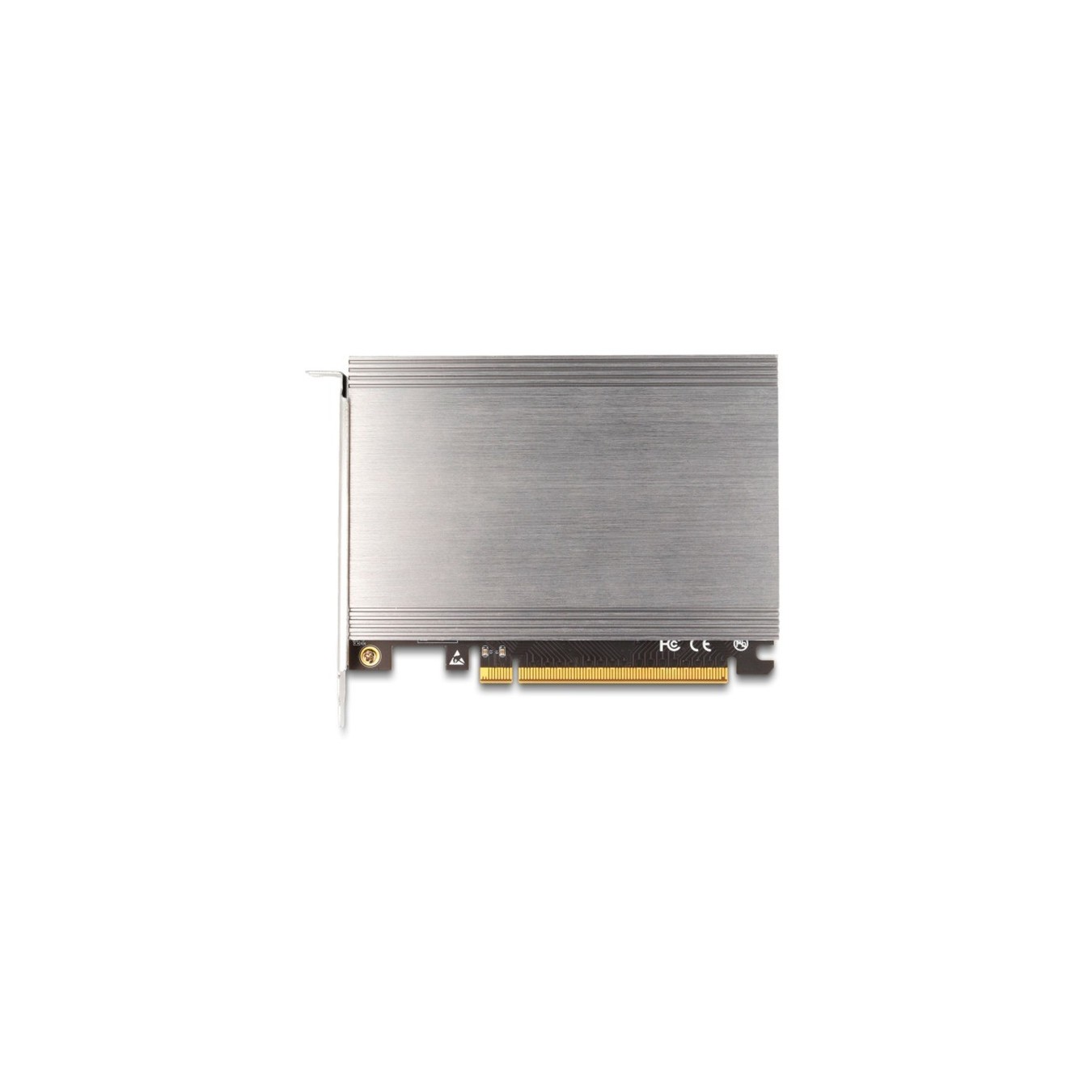

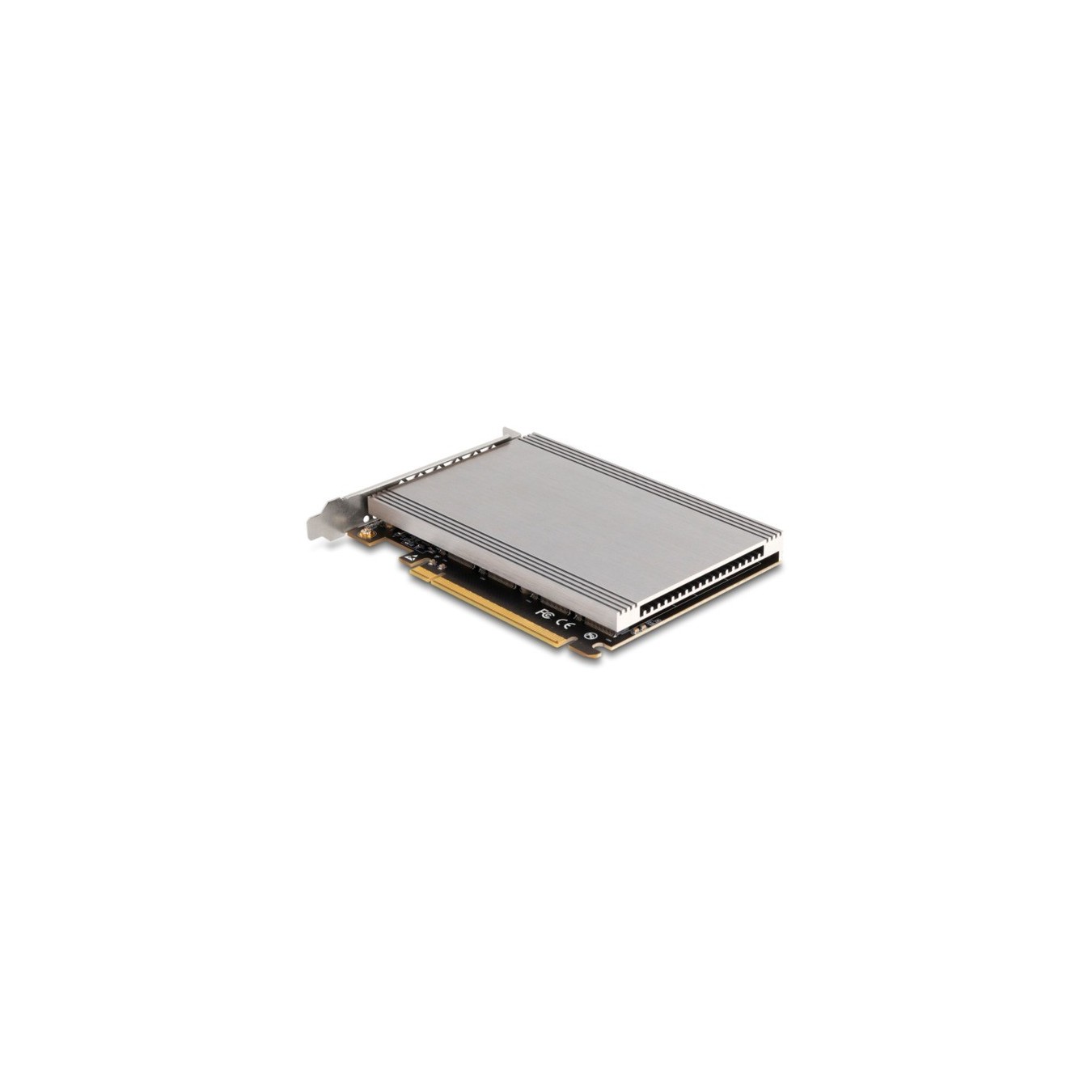

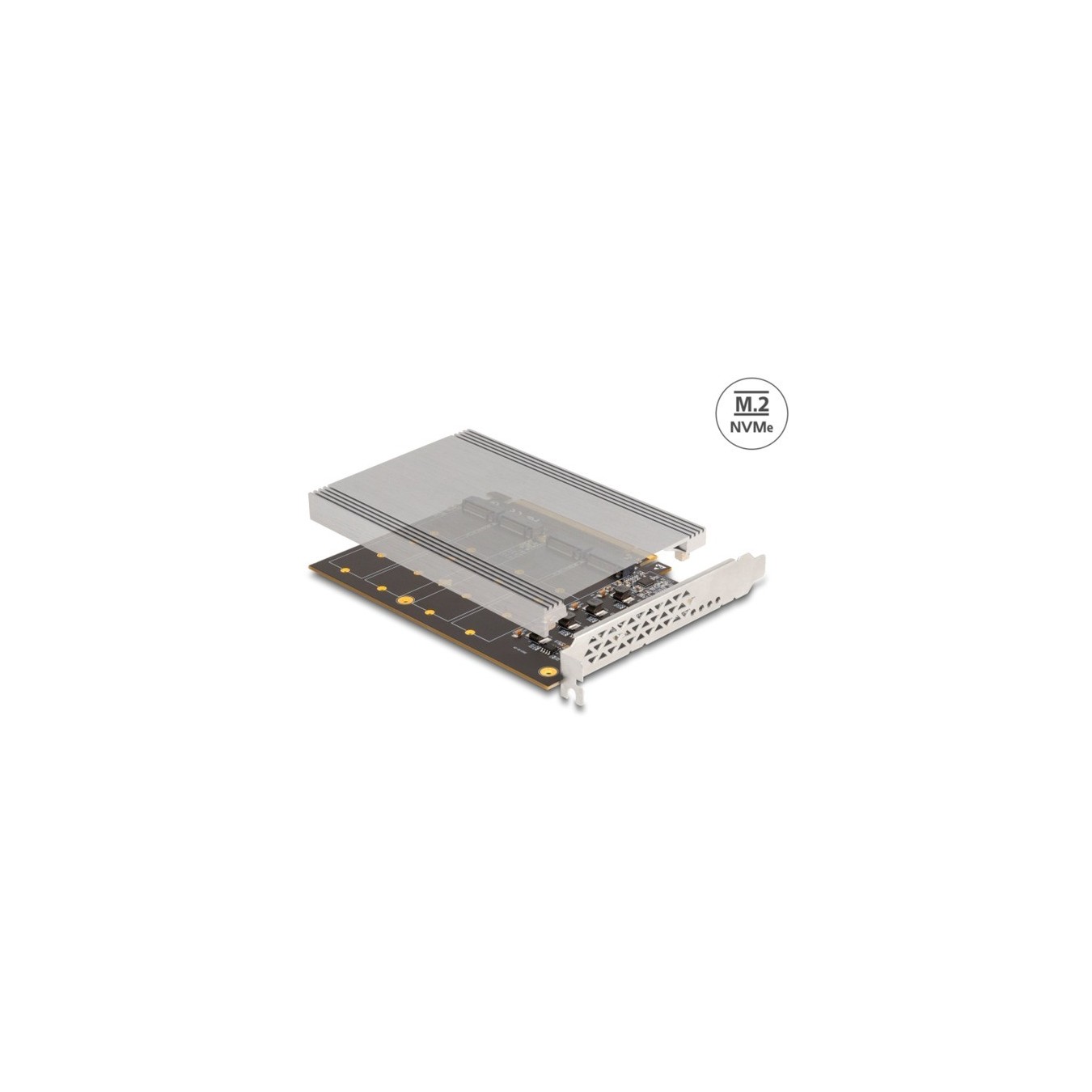

This PCIe X16 card from Delock expands the PC by up to four M.2 slots. Up to four M.2 modules in 2280, 2260, 2242 or 2230 format can be connected to the card. The bandwidth of the PCIe slot on supported mainboards is distributed among the various modules with PCIe bifurcation. This card requires a free PCIe X16 slot for connection in a PC system. The heat sink ensures efficient cooling of the installed M.2 modules.
| Typ | Interface card |
| EAN | 4043619902101 |
| Manufacturer no. | 90210 |
| Controller Art | M.2 |
| slot | PCIe x16 Version 4.0 |
| Protocol | PCIe x16 |
| Connections - internal | 4x M.2 |
| Operating System - Supported | Linux, Windows 10, Windows 11, Windows Server 2019 |
| More information | supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key M or Key B+M based on PCIe | Maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible | 5 x LED display | bootable, from UEFI version 2.3.1 | supports S.M.A.R.T. | supports TRIM | Heatsink dimensions: 144 x 95 x 8 mm (L x W x H) | supports Linux with kernel 5.19 or higher |
| Notice | This card requires a motherboard with PCIe Bifurcation support to split the PCIe signal. Without PCIe bifurcation, only the first M.2 slot of the card can be used. |

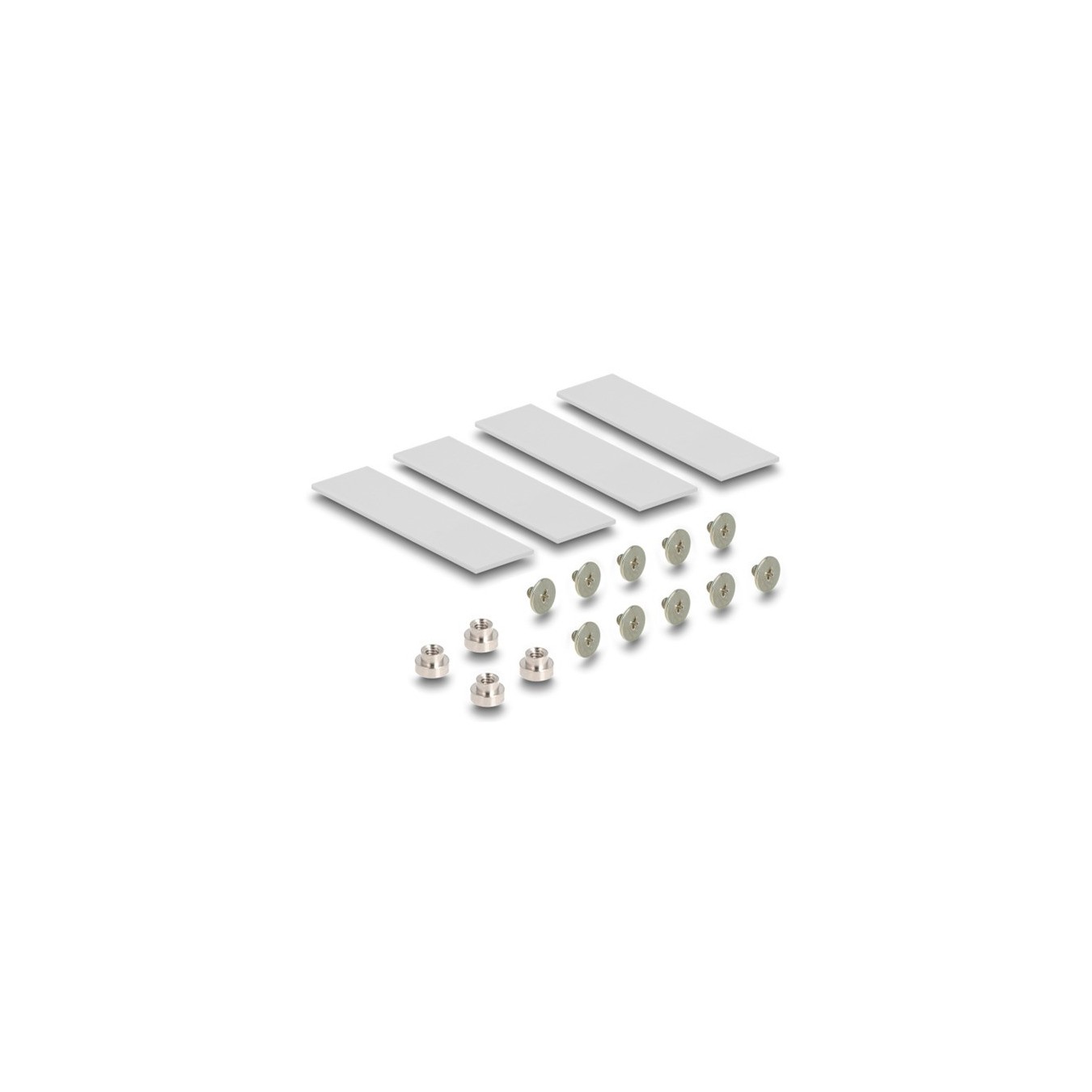

| Accessories - available | Fastening material, instructions, heat sink, 4x thermal pad |
