PCI Express Card - 1 x Internal M.2 NGFF Controller
Delock PCIe card with an M.2 NGFF slot; supports 2280/2260/2242 M.2 SSDs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

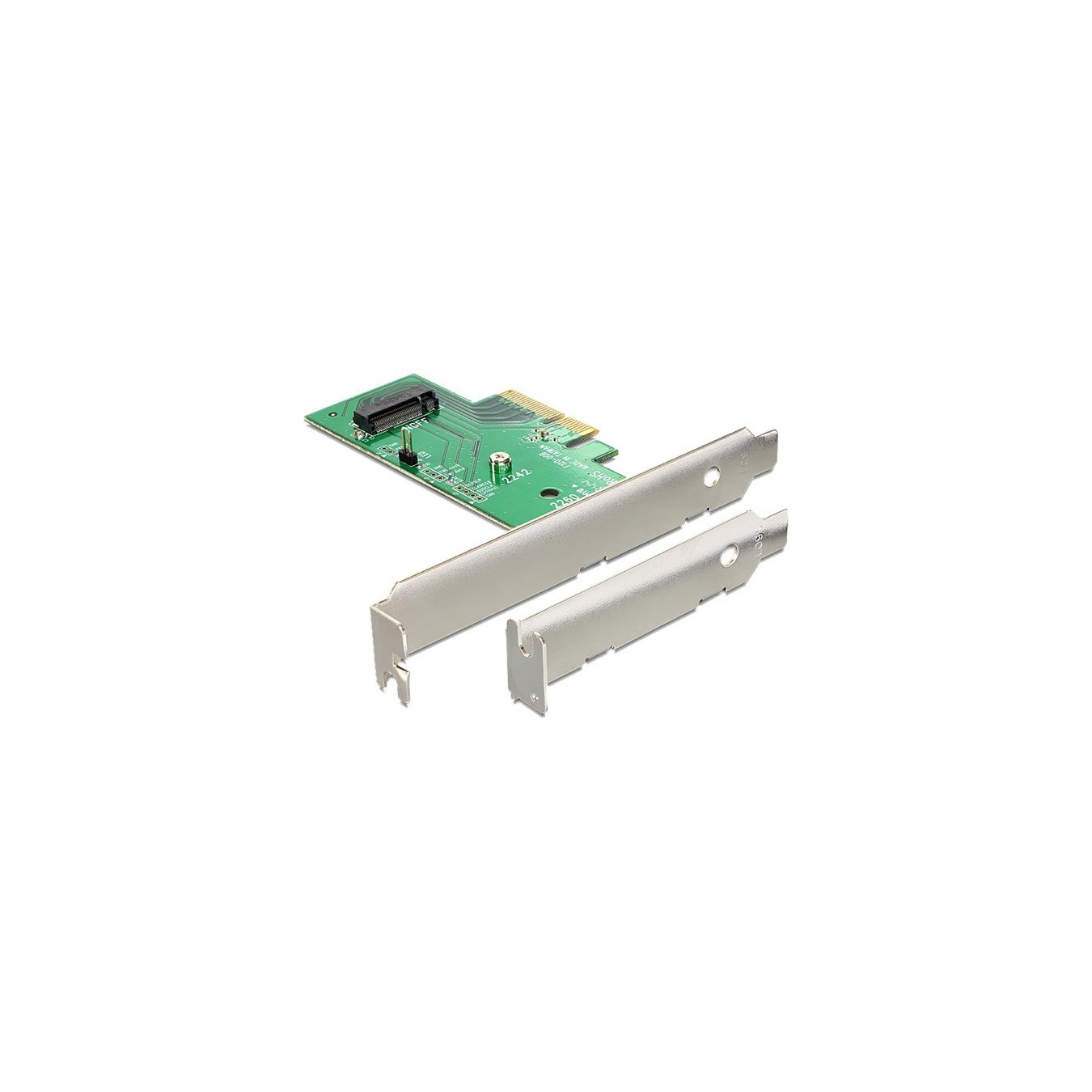

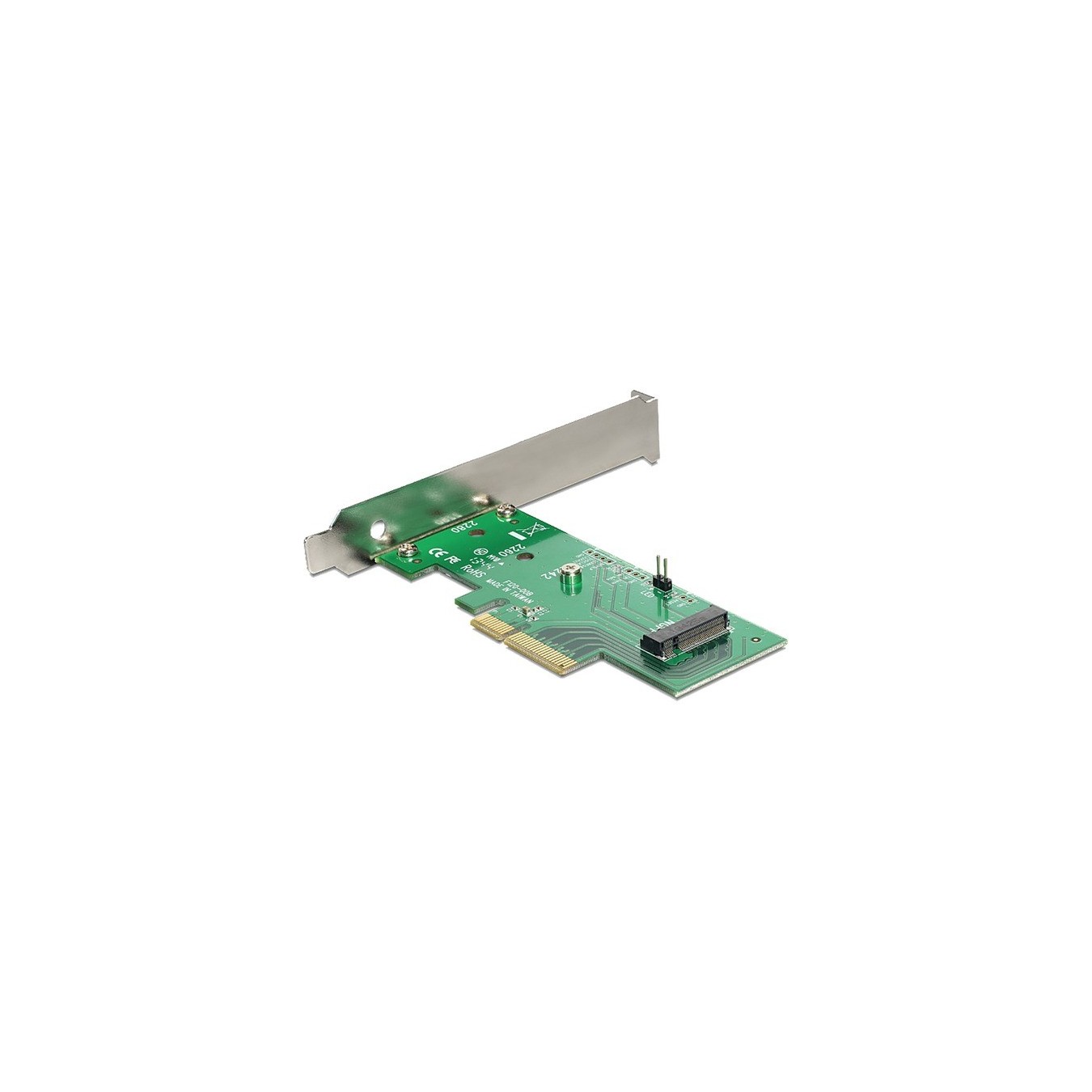

This PCI Express card from Delock expands the PC with an M.2 NGFF slot. You can connect an M.2 NGFF SSD in 2280, 2260 and 2242 format to this.
| Typ | Controller |
| EAN | 4043619893706 |
| Manufacturer no. | 89370 |
| Controller Art | M.2 |
| slot | PCIe x4 Version 4.0 |
| Connections - internal | 1x M.2 |
| Low Profile | optional |
| More information | Supports M.2 NGFF modules in format 2280, 2260 and 2242 with Key M or Key B+M based on PCIe; maximum height of the components on the module: 1.5 mm, two-sided assembly possible; OS independent, no driver installation required |
| Weight | 105 Gramm |
