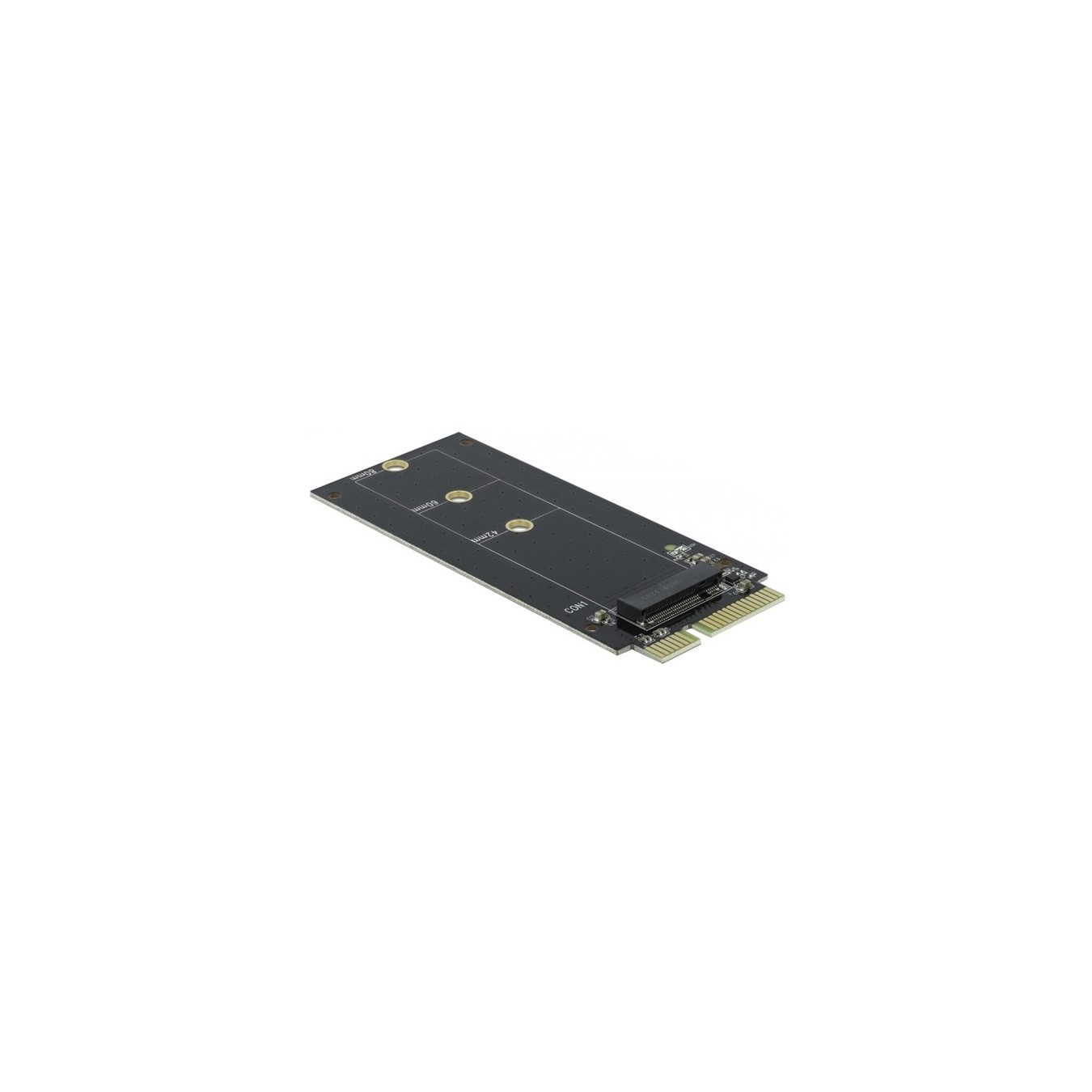

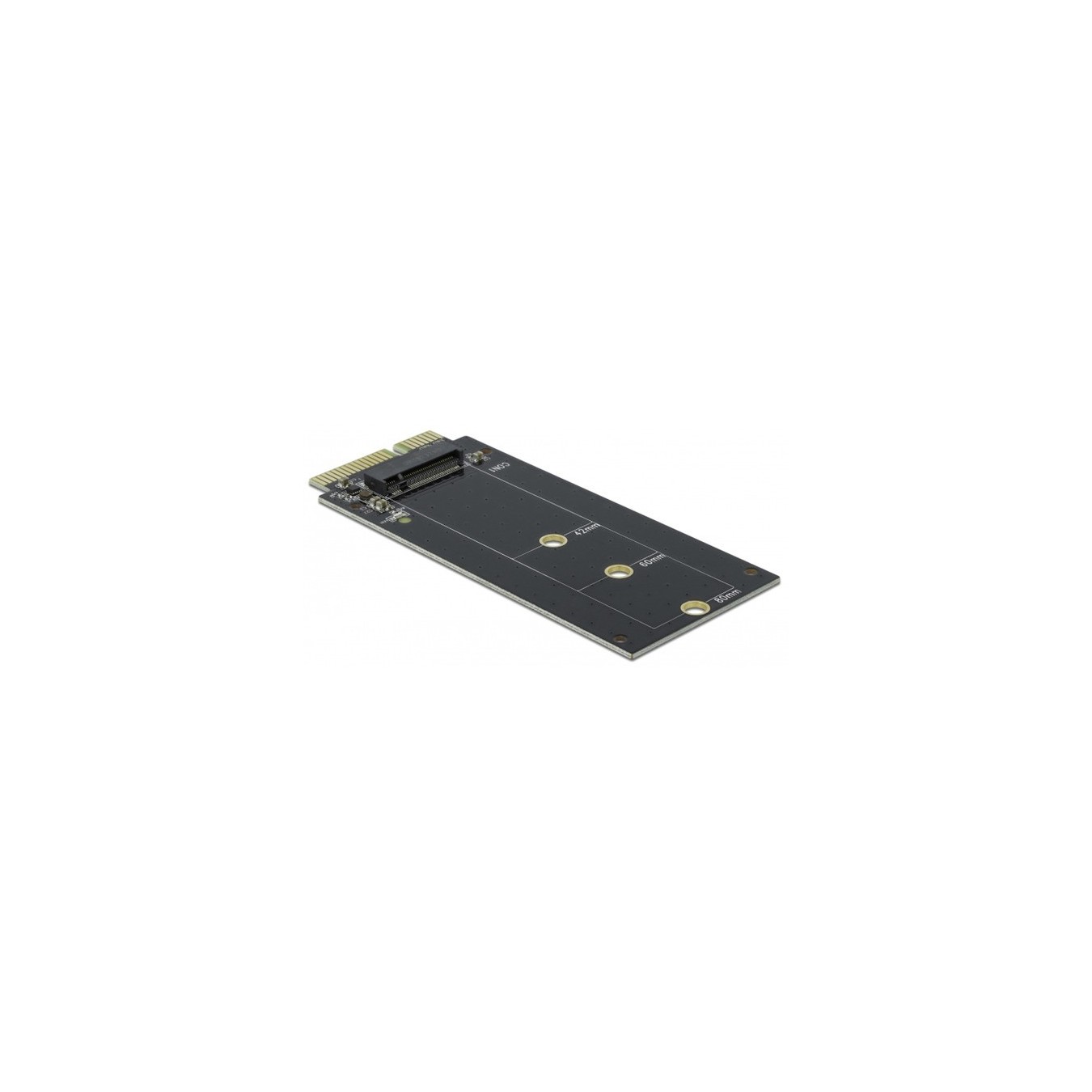

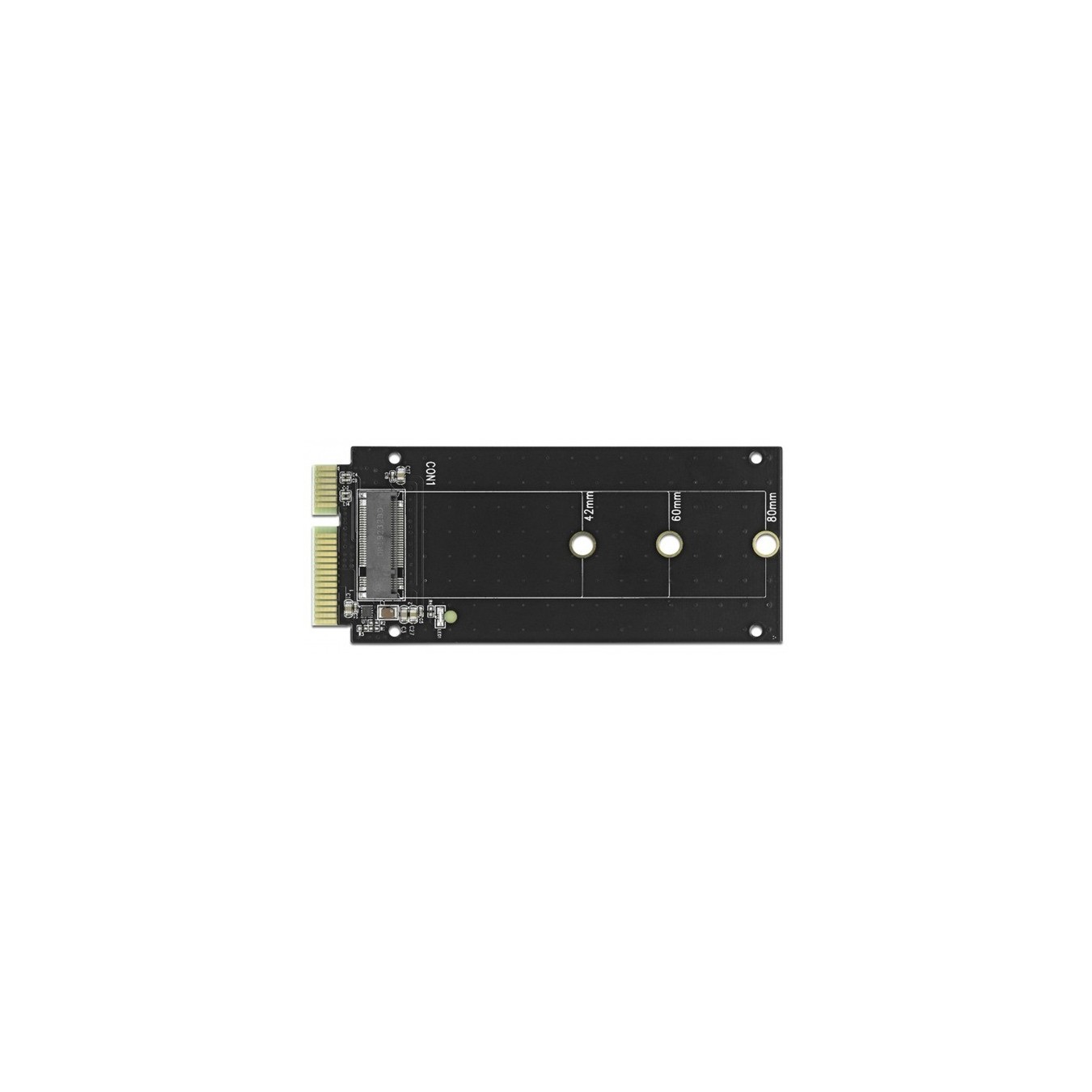

SATA 22-Pin Connector - to M.2 Key B, Adapter
Delock SATA 22-pin to M.2 adapter; connects M.2 SATA SSDs (2280/2260/2242/2230) with Key B or B+M; 6 Gbit/s, NCQ, SMART, TRIM, DevSleep, Hot Swap, Bootable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
An M.2 SSD in 2280, 2260, 2242 and 2230 format can be connected to this adapter from Delock. The adapter can be integrated into the system internally via the SATA 22 pin interface.
| Typ | Adapter |
| EAN | 4043619640997 |
| Manufacturer no. | 64099 |
| slot | SATA (22-Pin) |
| Data throughput | 6 GBit/s |
| Connections - internal | 1x M.2 |
| directly usable devices | 1 |
| Feature | Supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key B or Key B+M on SATA basis | Supports Native Command Queuing (NCQ), S.M.A.R.T., TRIM, DevSleep, Hot Swap, Bootable |

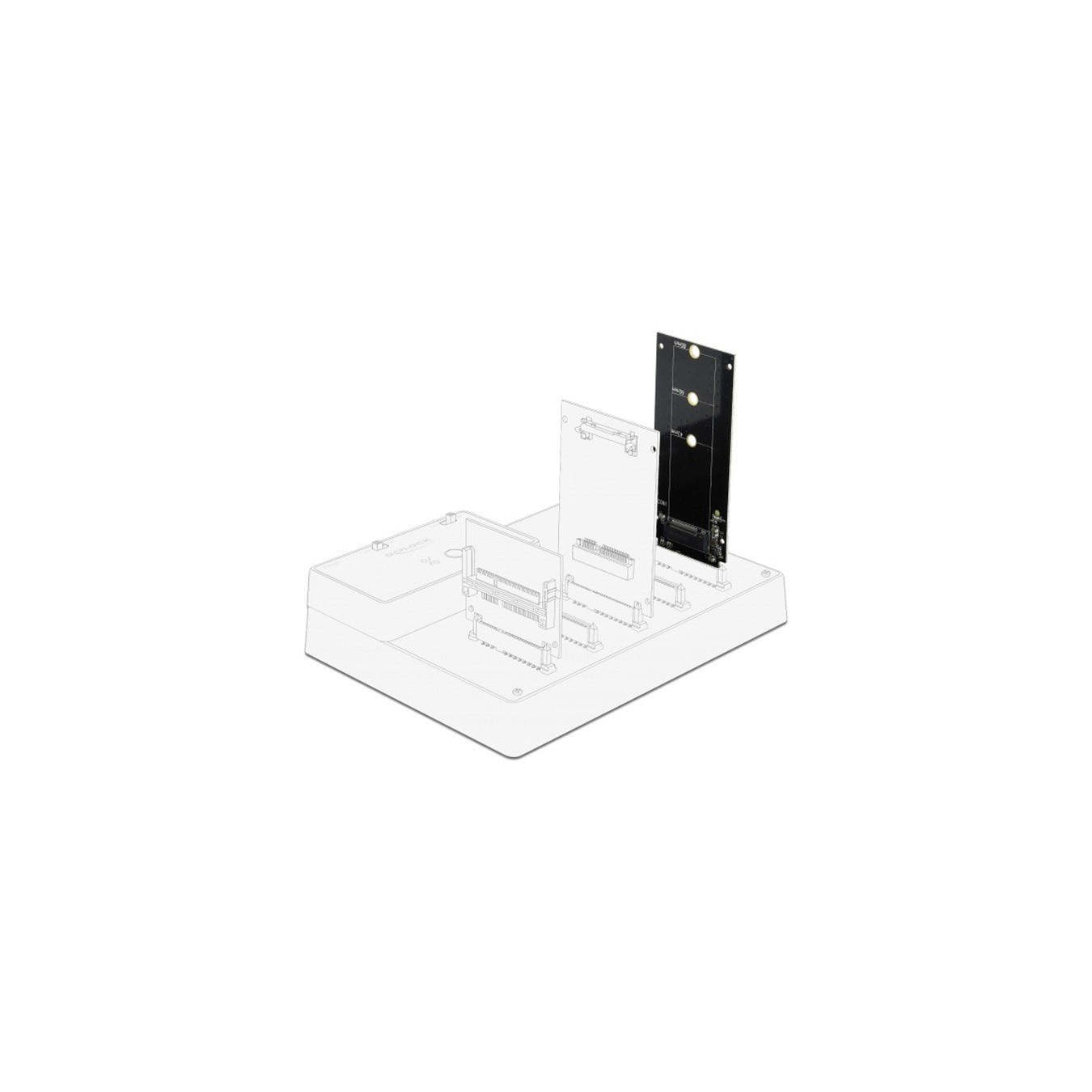

| More information | The item is suitable as an accessory for the Delock docking and cloning station 64098. This can then be used to insert and clone M.2 SATA SSDs. |
| Notice | Maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible |

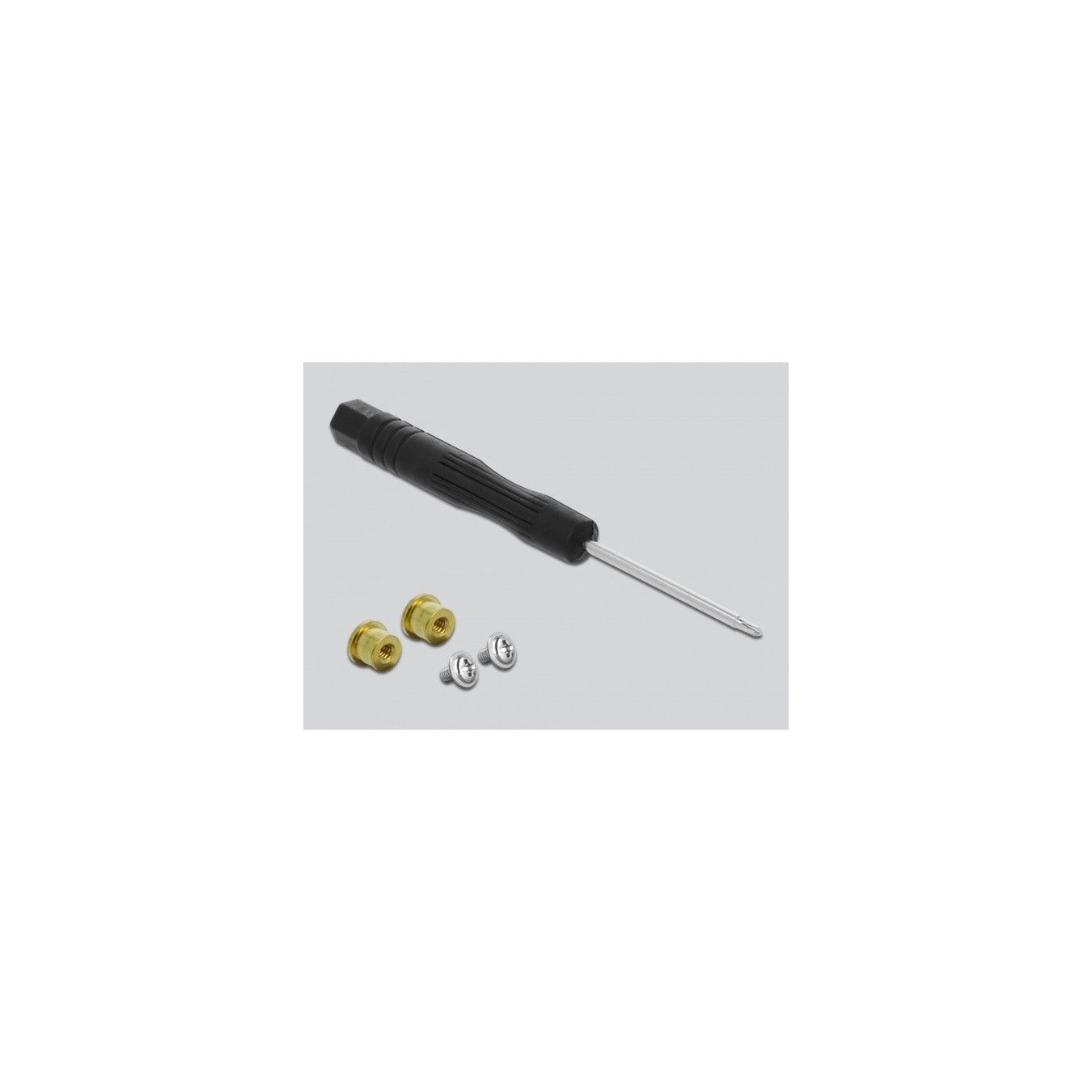

| Accessories - available | Fastening material, screwdriver |
| Dimensions | Width: 45mm x Height: 4mm x Depth/Length: 97mm |
