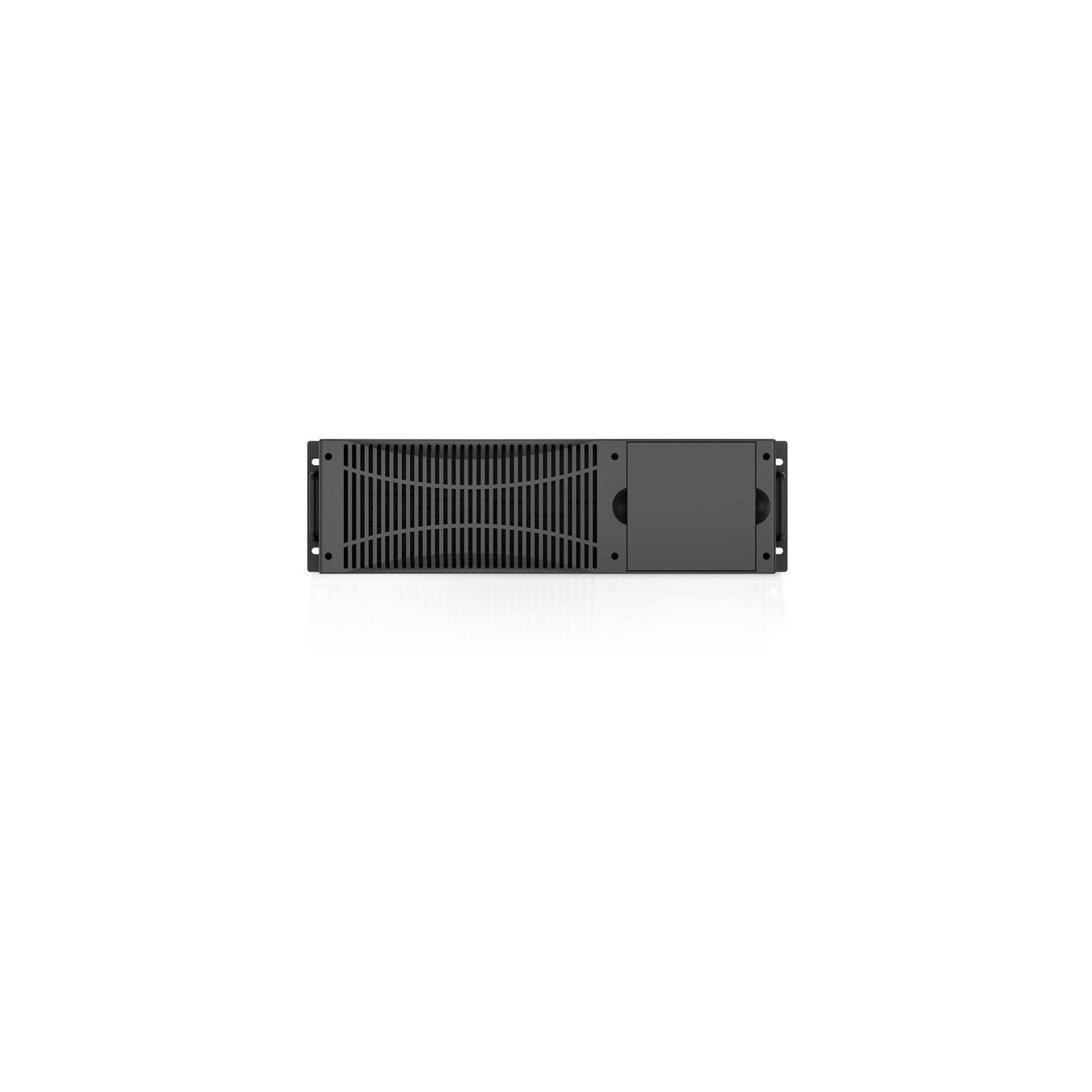

External UPS battery pack - 6kVA and 10kVA UPS models
External UPS battery pack for 6kVA and 10kVA UPS models; hot-swappable battery module compatible with rack or tower installations.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS UPS battery modules ensure that UPS systems used in highly demanding environments continue to reliably supply connected devices with power during supply interruptions. A maximum of 4 battery modules can be connected to increase the operating time of the connected IT devices. It is ensured that the systems are protected with uninterruptible power supply during battery replacement. The external battery packs can quickly increase the backup time as demand increases.
| Typ | UPS |
| Color | schwarz |
| EAN | 4016032473596 |
| Manufacturer no. | DN-170108 |
| Manufactured in | China |
| Environment - operating temperature | from 20°C to 25°C |

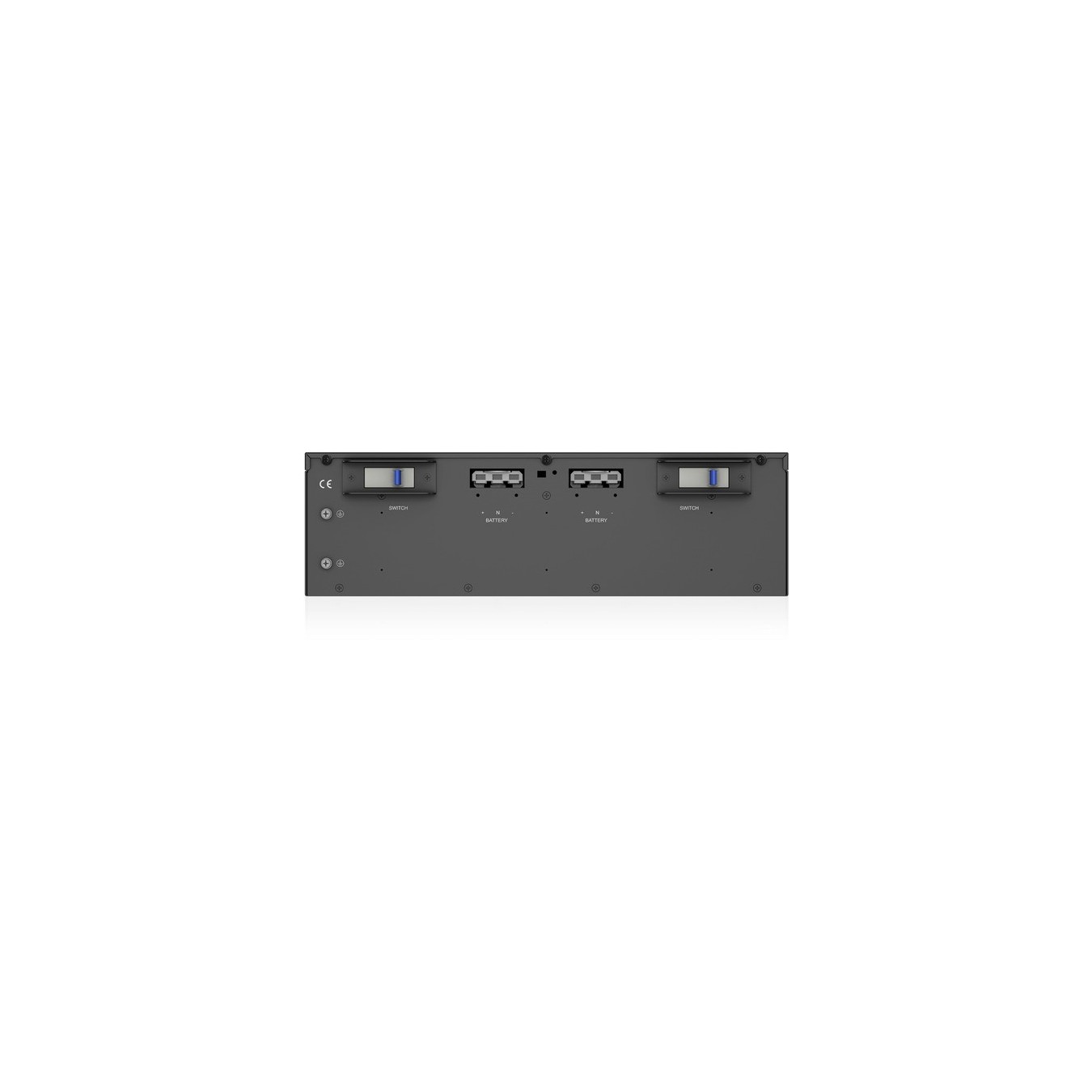

| Feature | Battery voltage: ±120 VDC, Capacity (standard unit): 12 V / 9 Ah, Quantity of batteries installed: 20 pieces, Battery type: Lead-acid battery, Typical charging time: 6 - 8 hours to restore 90% of full capacity, Terminal connections on the back, Power: 6000VA - 10000VA |

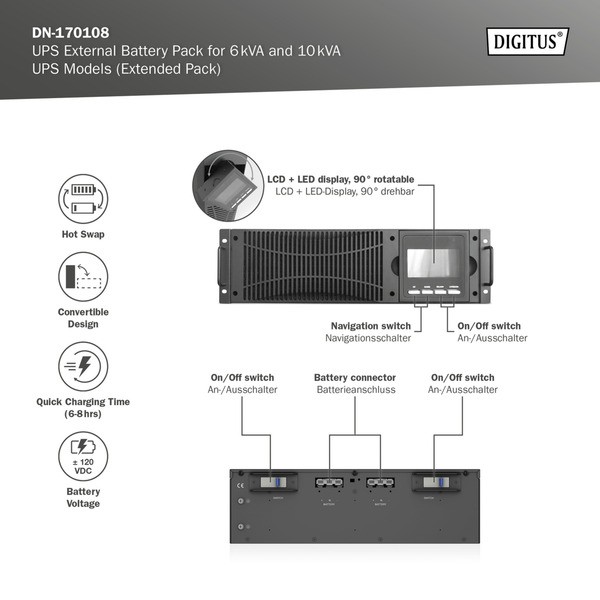

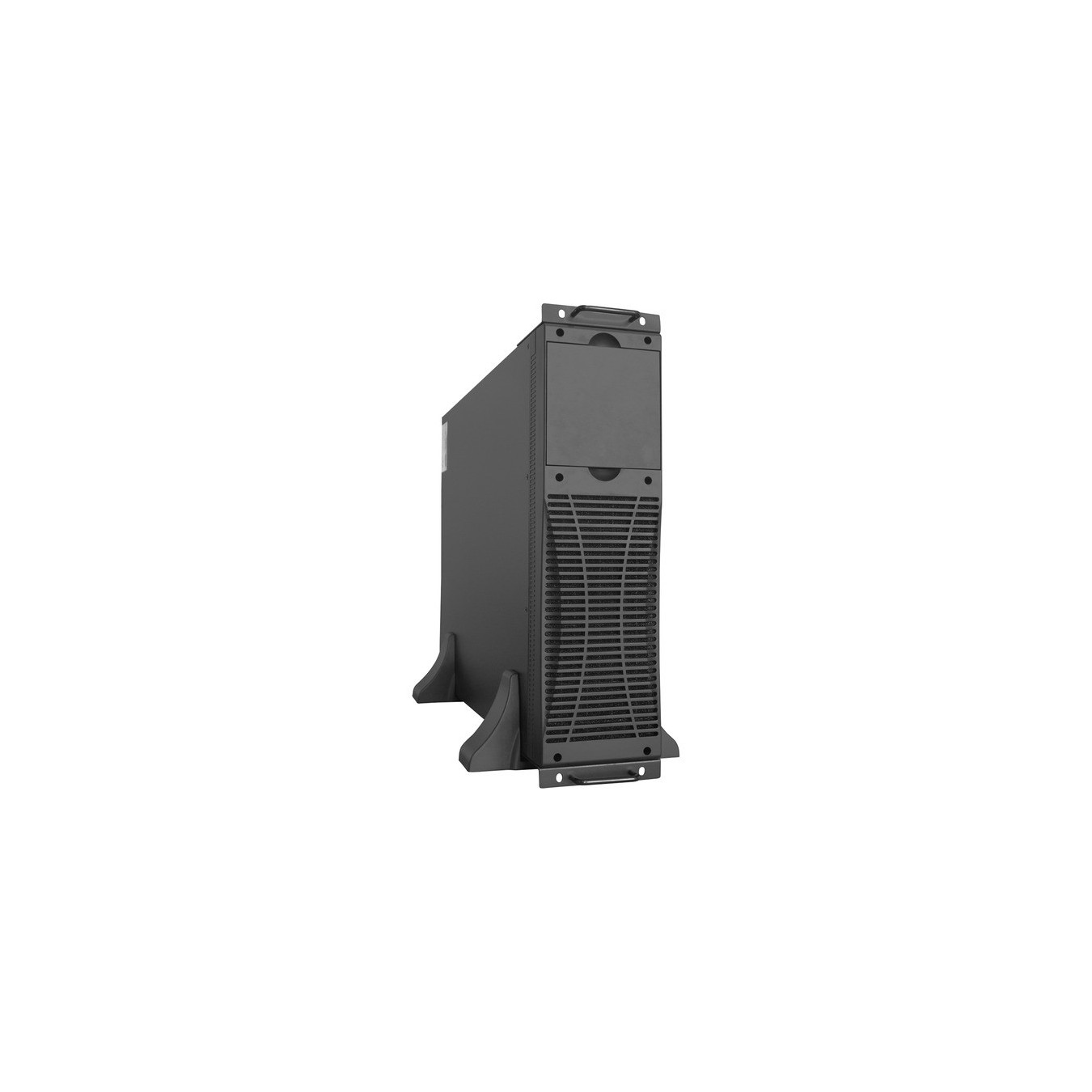

| More information | Battery module can be installed in a 19" rack or as a tower with a stand, hot swappable - battery can be replaced during operation |

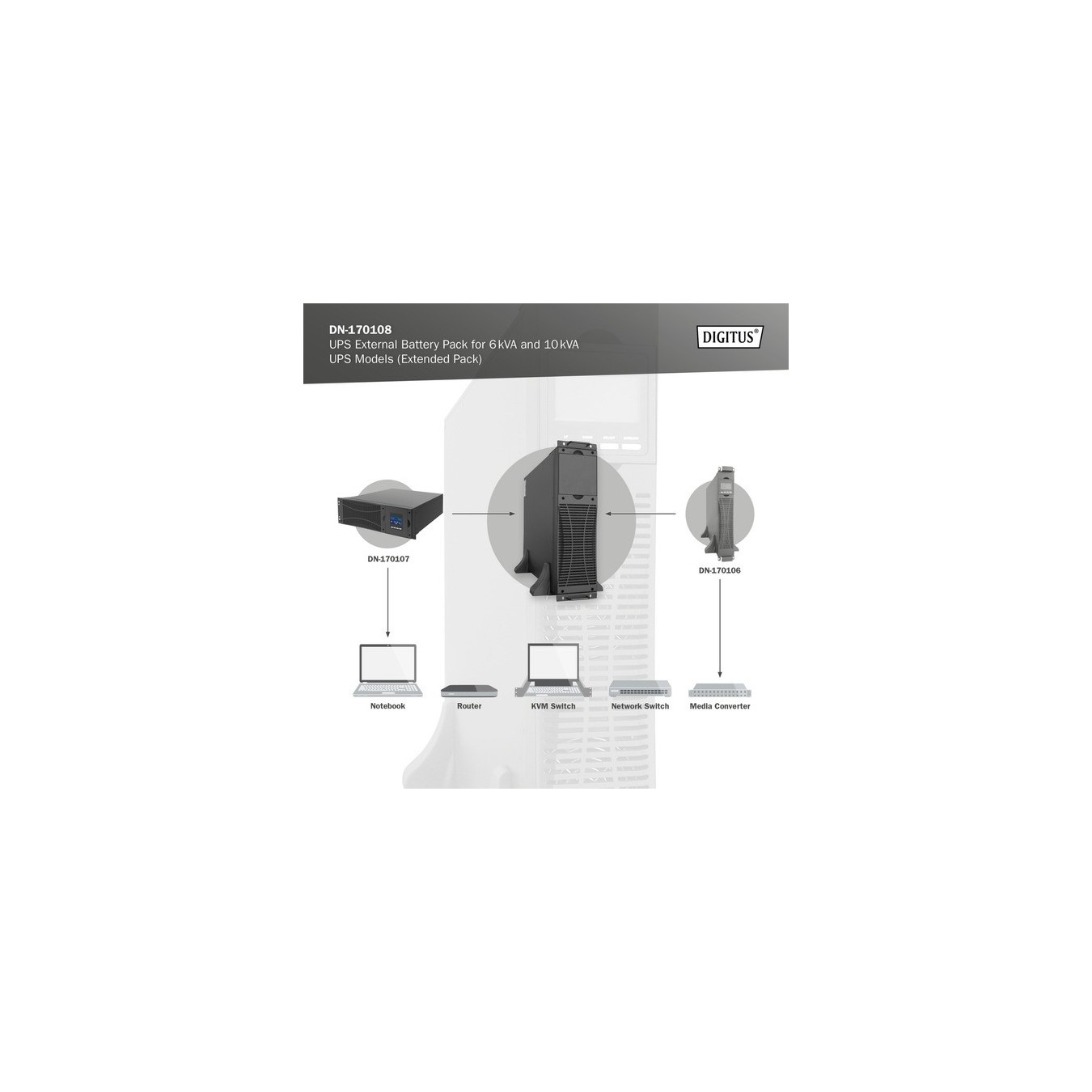

| Notice | Compatible with OnLine UPSs: DN-170106 & DN-170107 |
| Accessories - available | 1 x operating instructions, 1 x connection cable (for connecting UPS and battery module), 1.5m |
| Dimensions | Width: 44.3 cm x Height: 13.1 cm x Depth/Length: 68 cm |
| Weight | 65 kg |
