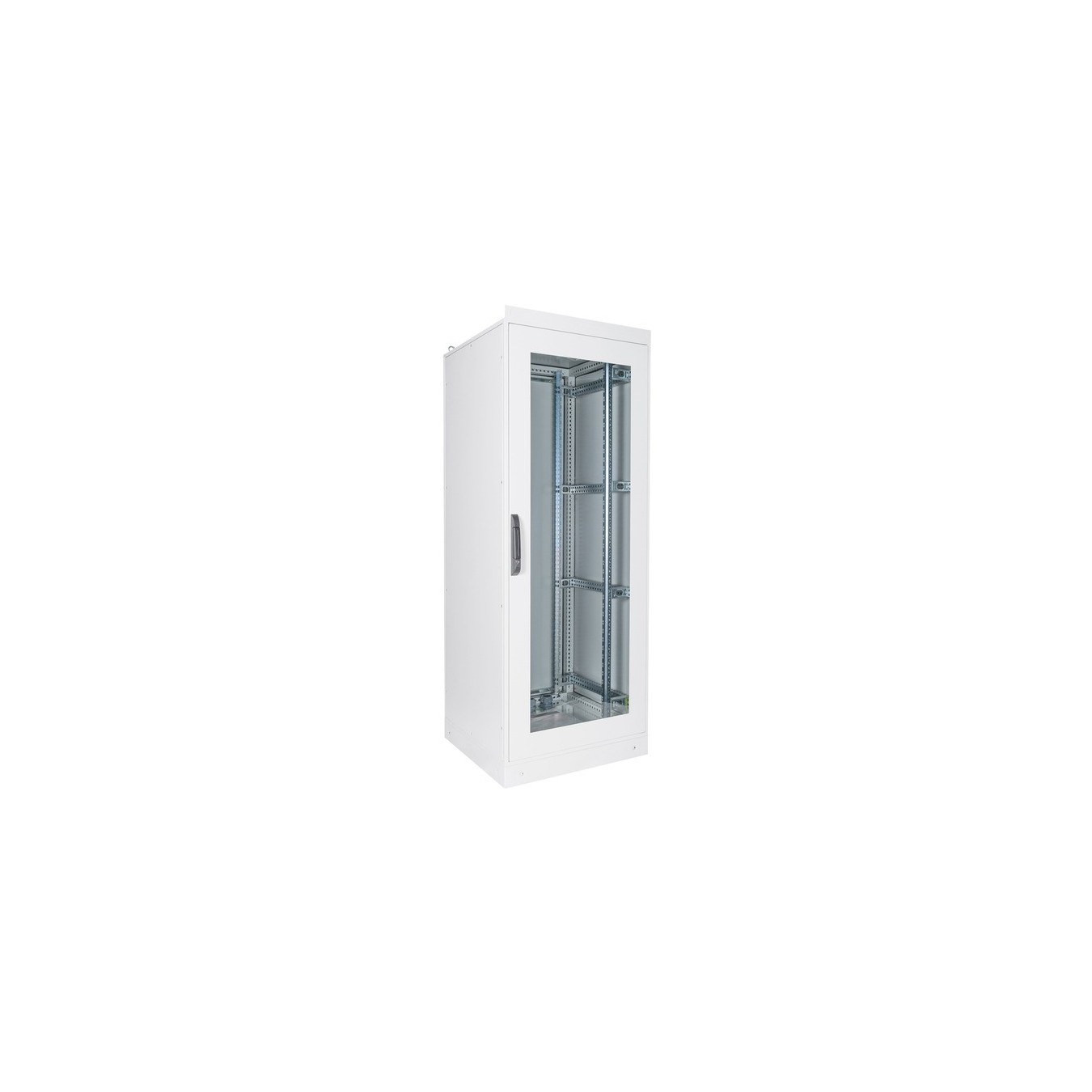

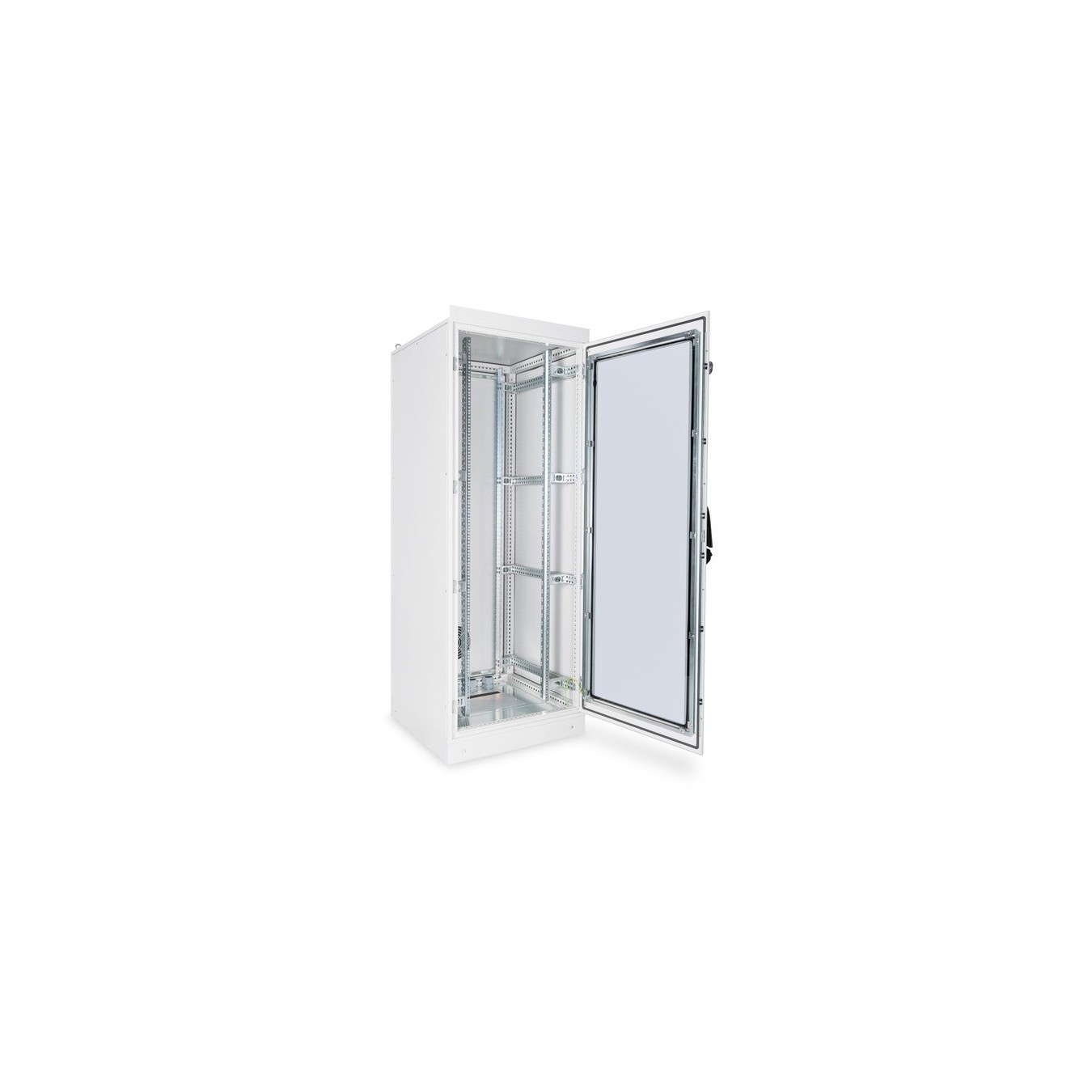

Industrial network cabinet indoor 800x800mm (WxD), IT cabinet
IP55 indoor 19" IT cabinet with 800x800 mm footprint; lockable viewing door, passive cooling, 2100 mm high, 165 kg.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Rack Cabinets - Height (U) | 42U |
|---|---|
| Rack Cabinets - Width | 800 mm |
The 483 mm (19") industrial network cabinets are protected against dust and water ingress according to the protection level IP55. They offer optimal conditions for the installation of active and passive network components and clean cabling in industrial environments. The coloring is done with a strong powder coating in gray (RAL 7035). The 483 mm (19") profile rails installed inside (two pairs = 4 pieces) are galvanized and marked Height unit provided (countable in both directions). They can be adjusted in depth and are also connected to depth struts in the cabinet to enable intensive expansion with 483 mm (19") components. A circumferential profile perforation structure provides additional support. Each cabinet is equipped with a 100 mm high base, which offers additional space for excess cable lengths. In the bottom of each cabinet there is a slide-on cable inlet with a foam rubber seal as well as other cable inlets. An extensive portfolio of accessories for the Cable routing, shelves, etc. help to meet many of the requirements of daily practice.
| Typ | IT cabinet |
| Color | light gray |
| EAN | 4016032371496 |
| Manufacturer no. | DN-19 42U-I-8/8-1 |
| Serie | Industry |
| use | Network cabinet |
| Server size | 19 inches |

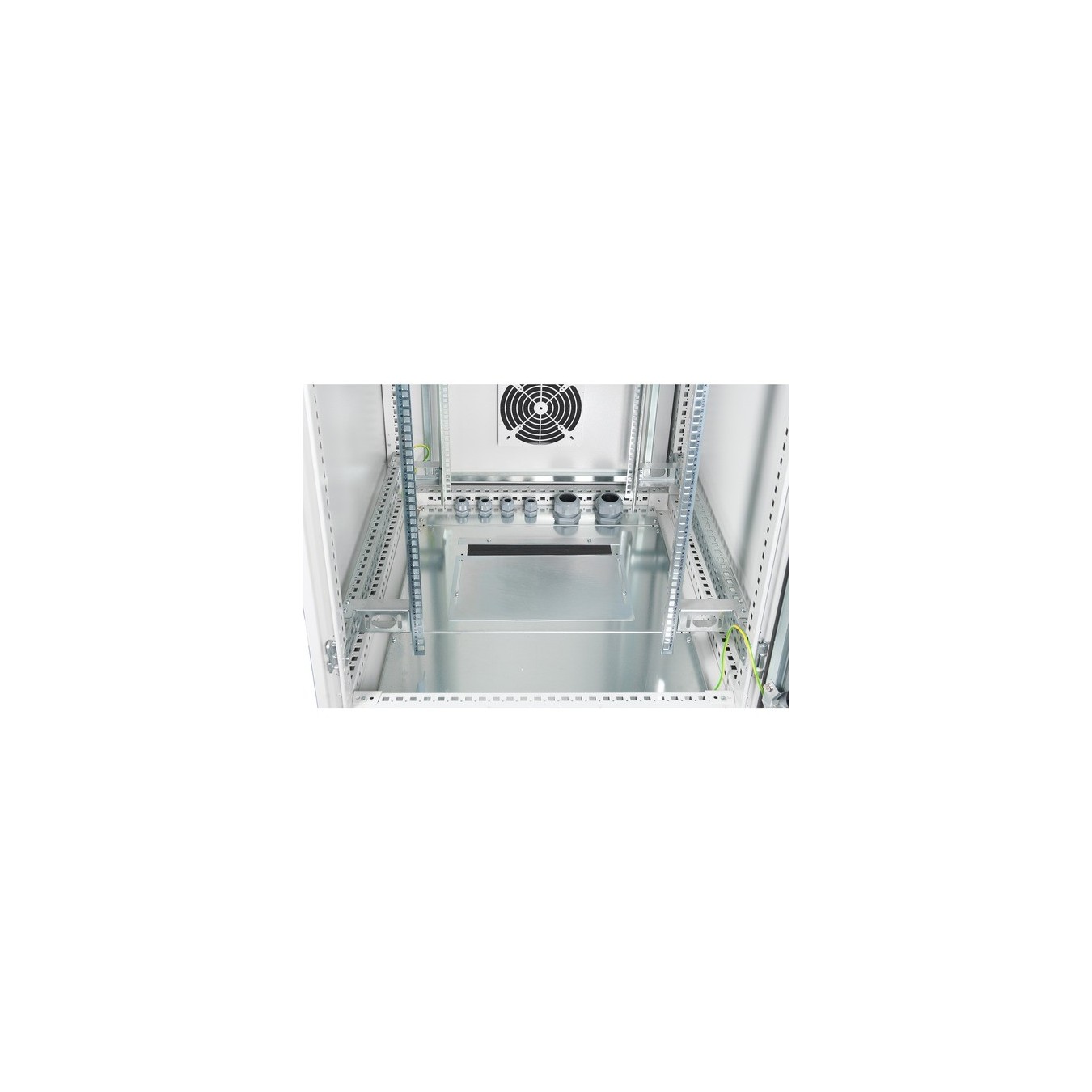

| Cable routing | Floor chassis equipped with slide-on cable inlet & PG cable inlets (1x PG 48, 4x PG 21) |
| Material | Sheet steel (powder-coated) |
| Montage | Mounted: Yes |
| Doors | Lockable, viewing door |
| cooling | Passive |
| Installation - width | maximal 483 mm |
| Protection class (IP) | 55 |
| Dimensions | Width: 80 cm x Height: 210 cm x Depth/Length: 80 cm |
| Weight | 165 kg |
