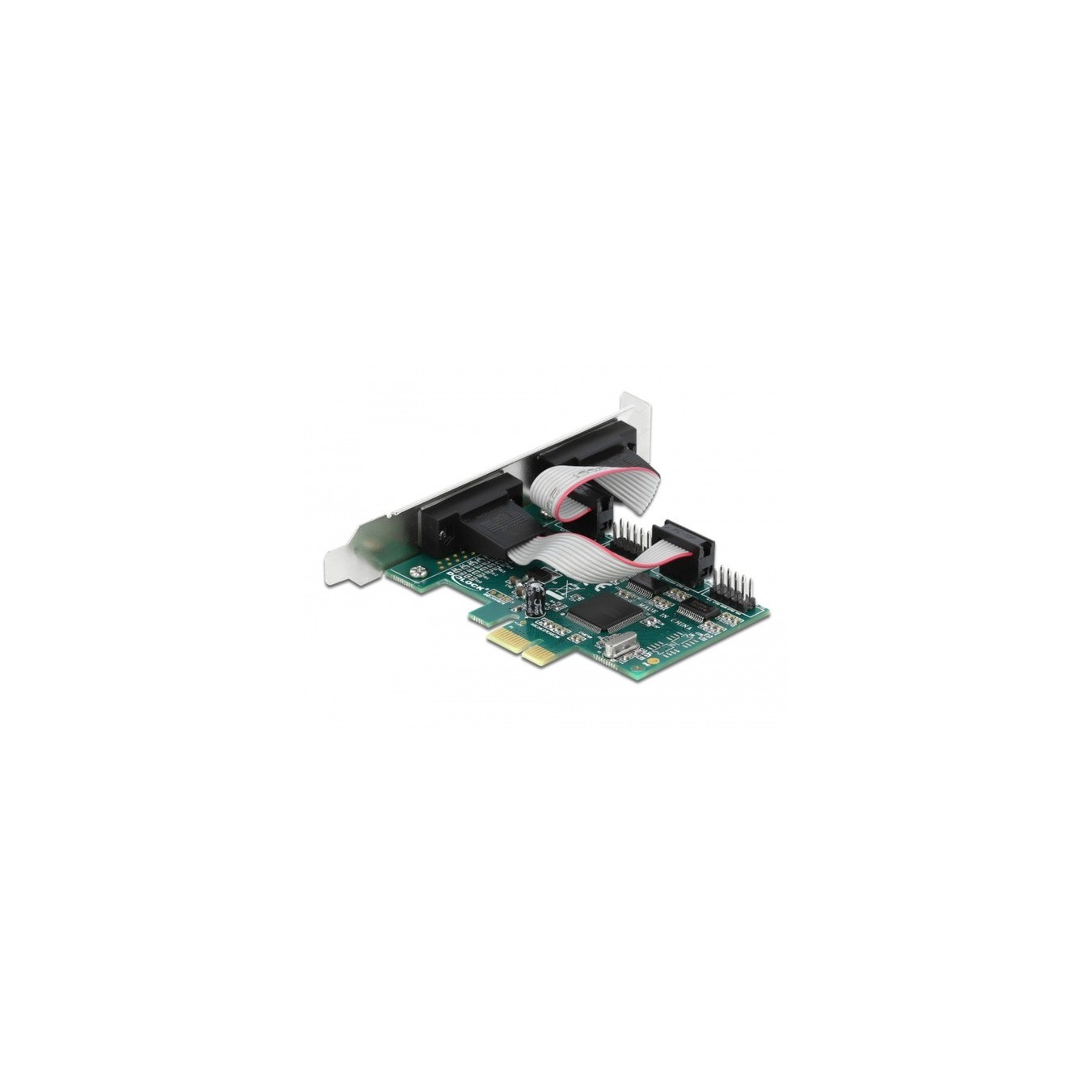

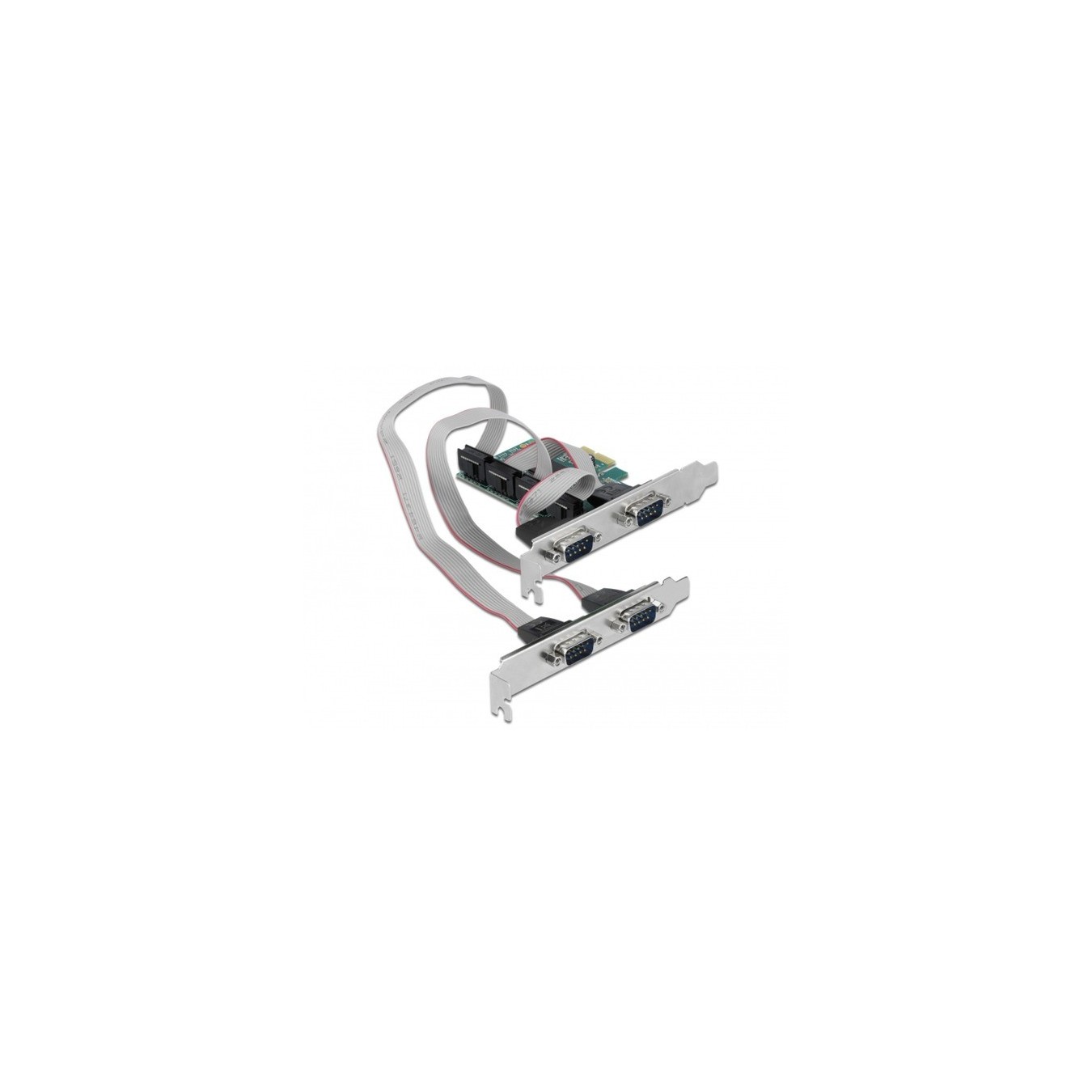

PCI Express card - 4 x serial RS-232, interface card
DeLOCK PCI Express card provides four external RS-232 ports via PCIe x1, enabling connection of serial devices such as scanners.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DeLOCK PCI Express card for 4 x serial RS-232 expands the PC with four external serial RS-232 ports. Various devices with a serial RS-232 connection, such as scanners, protocol converters, IoT devices, etc. can be connected to the card. Using the low profile panels included in delivery, the PCI Express card can also be installed in a mini PC.
| Typ | Interface card |
| EAN | 4043619904105 |
| Manufacturer no. | 90410 |
| Controller Art | Serial |
| slot | PCIe x1 Version 1.1 |
| Chip | Wch ch384l |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10, Windows Server 2012 R2, Windows Server 2016 |
| Feature | Compatible with UART 16C550, 16C552, 16C554 |
| More information | System requirements: PC with one free PCI Express slot and one free slot |

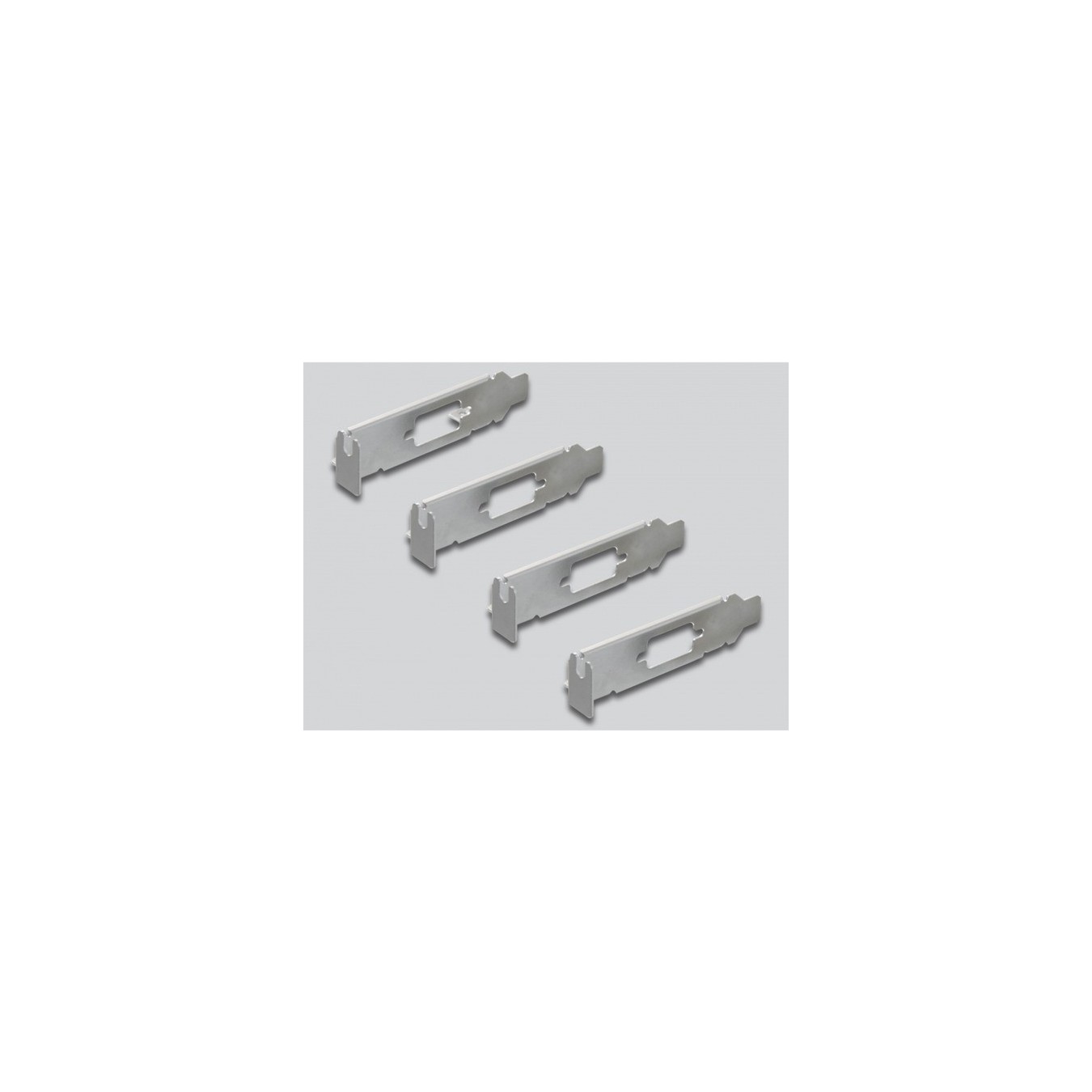

| Accessories - available | Instruction manual, 4x low profile bezel |
| Dimensions | Width: 61mm x Height: 16mm x Depth/Length: 82mm |
| Weight | 250 Gramm |
