Slim Bay removable frame for 4 x M.2 NVMe SSD with Slim SAS SFF-8654 connection
This sturdy metal removable frame from Delock can be installed in a PC using an optional frame. It is also possible to use the removable frame directly in a server rack or 19″ stor...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

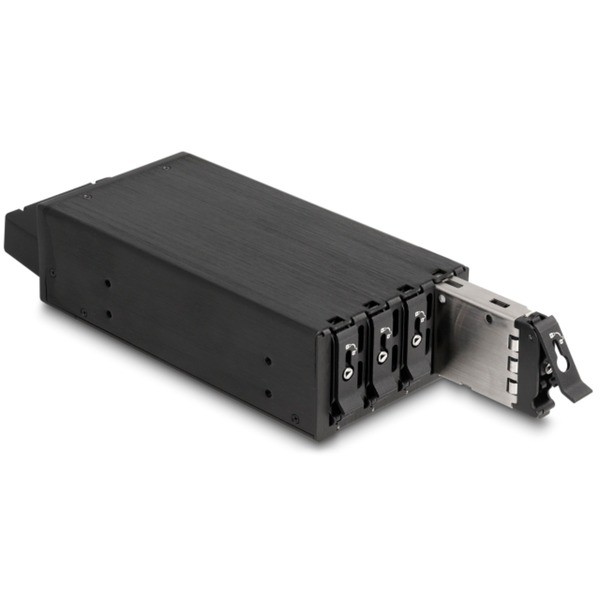

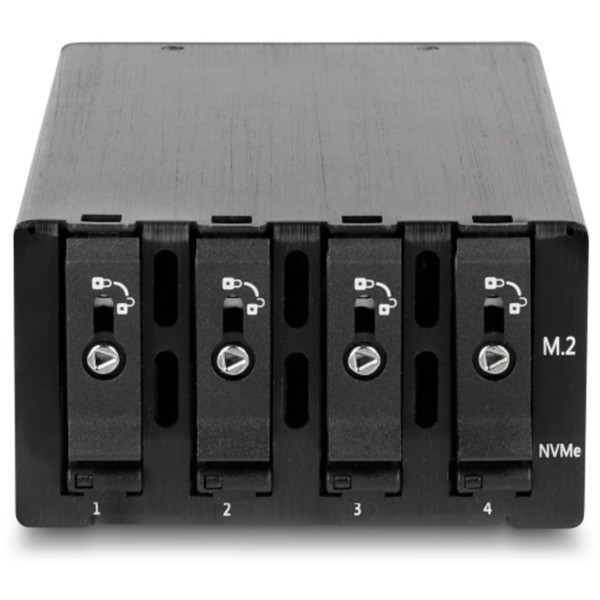

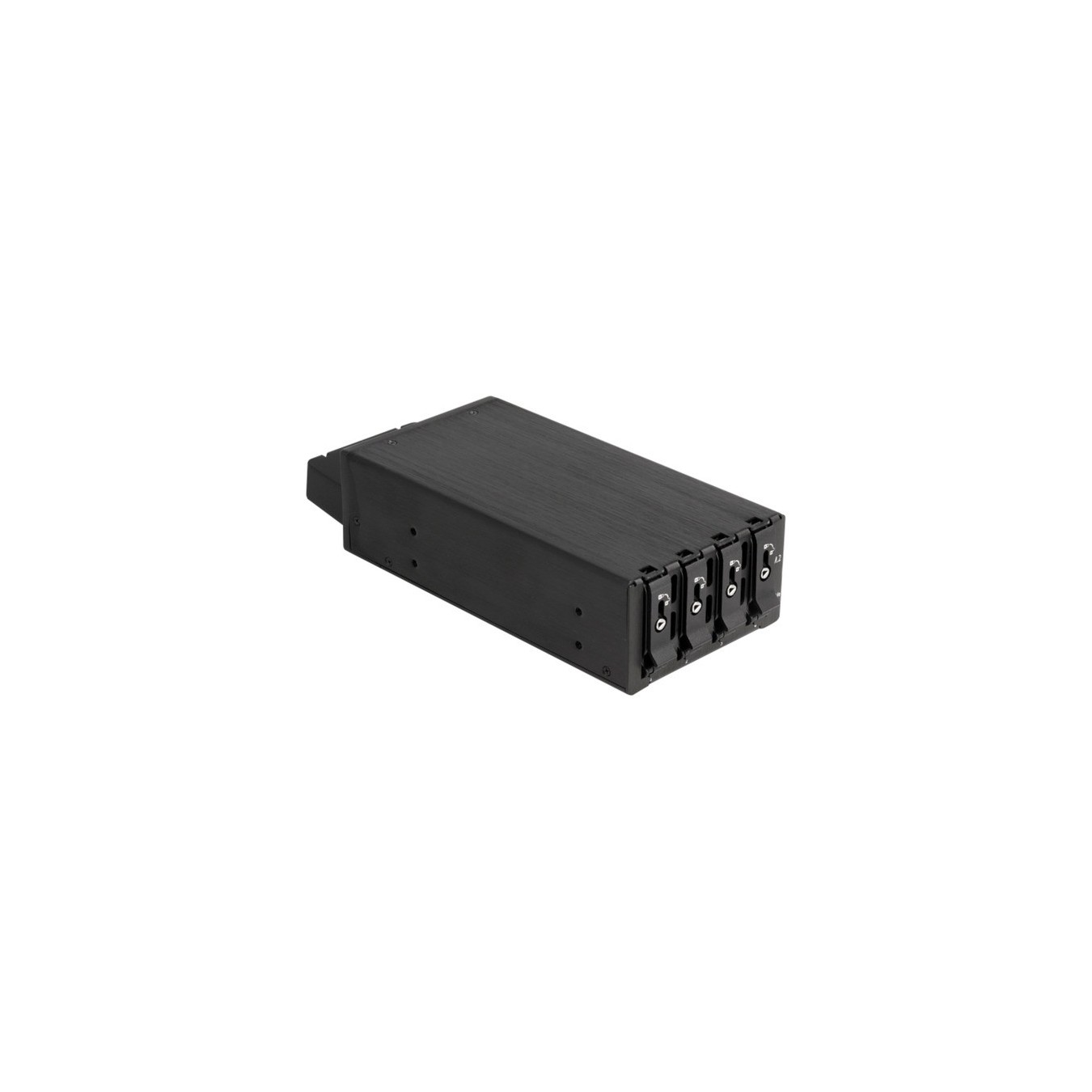

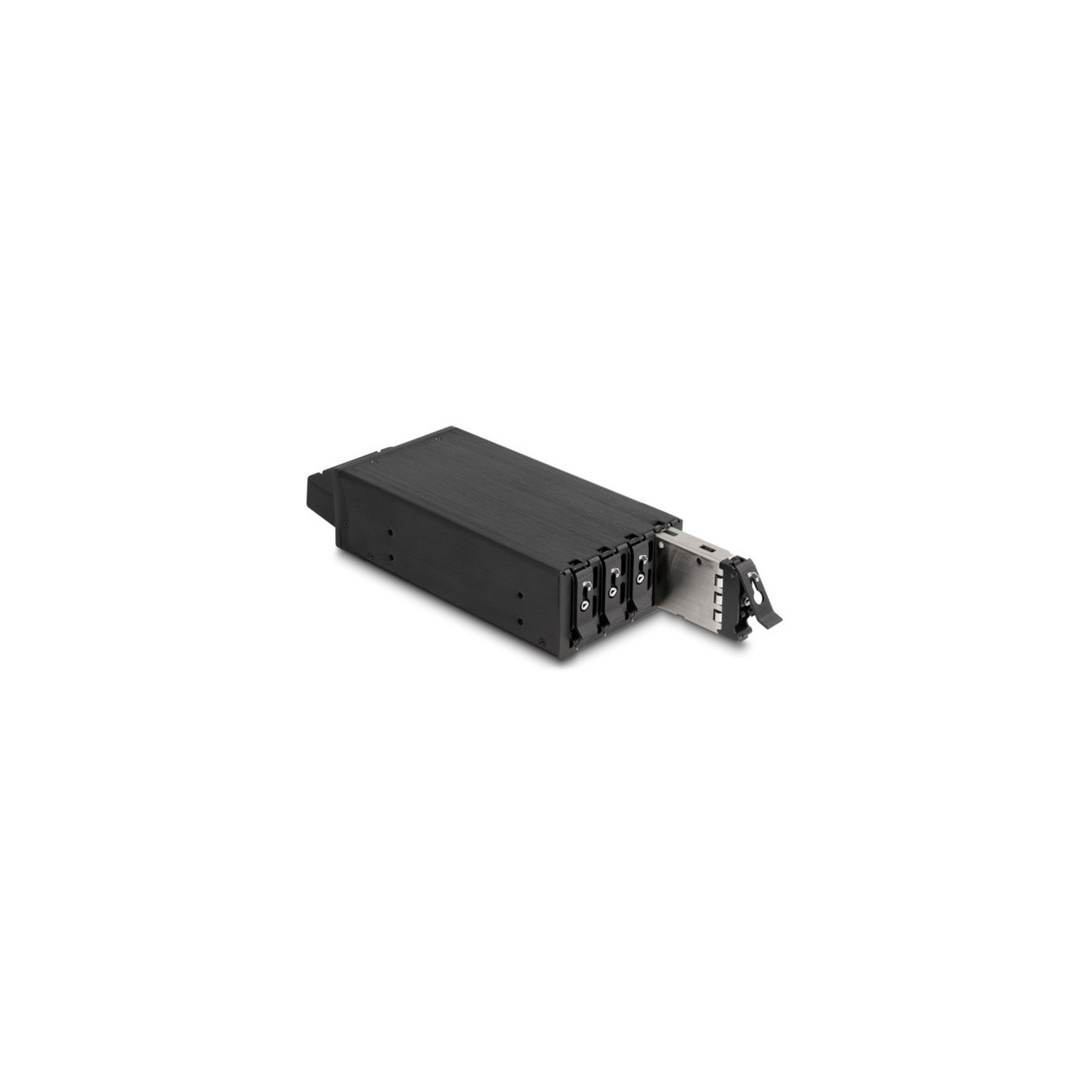

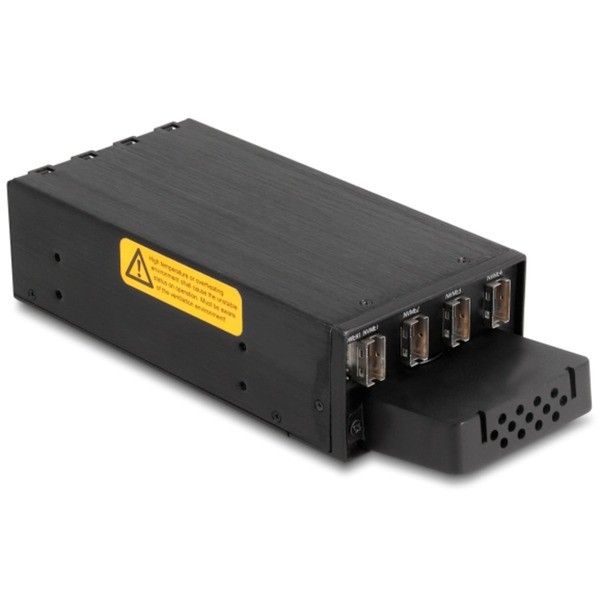

This sturdy metal removable frame from Delock can be installed in a PC using an optional frame. It is also possible to use the removable frame directly in a server rack or 19″ storage housing. To ensure maximum speed on each port, each slot has its own Slim SAS SFF-8654 port.
| Typ | Removable frame |
| EAN | 4043619471263 |
| Manufacturer no. | 47126 |
| use | Hot swap frame |
| Suitable for | M.2 module format 2280, 2260, 2242 and 2230 with Key M or Key B+M on PCIe basis |
| Installable drives | 4x M.2 |

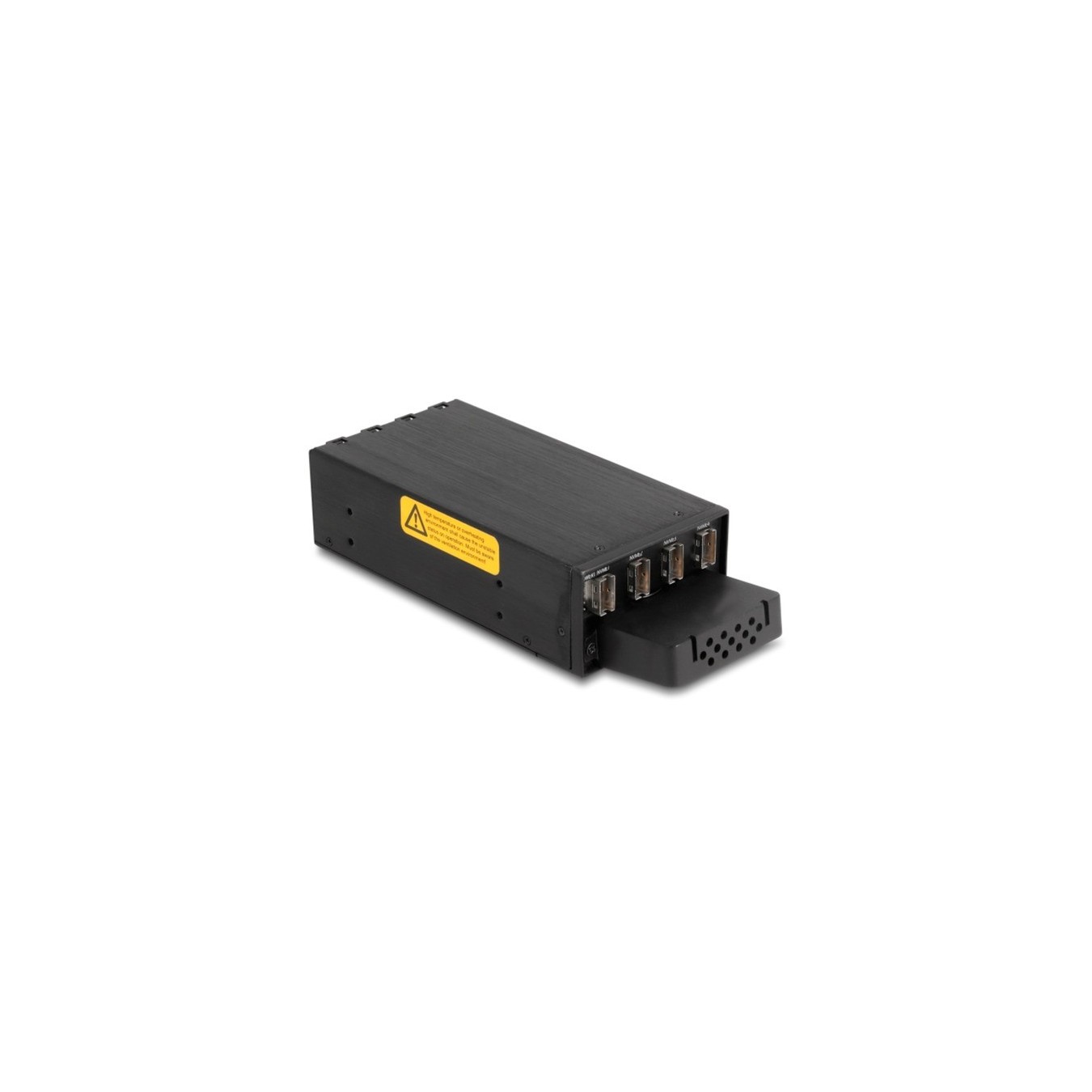

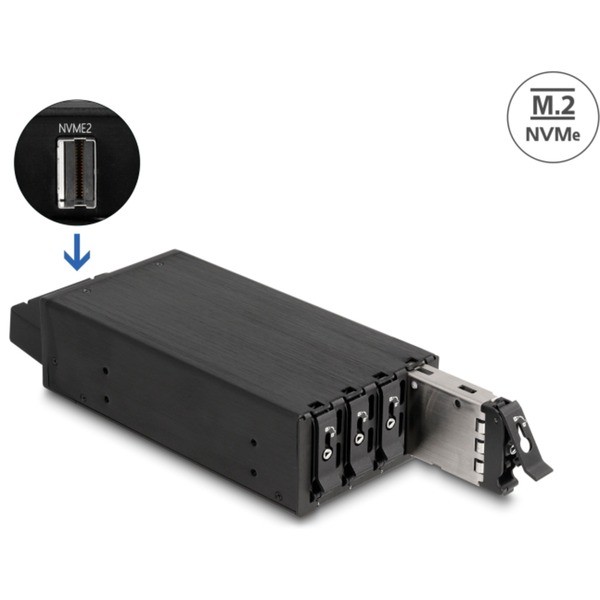

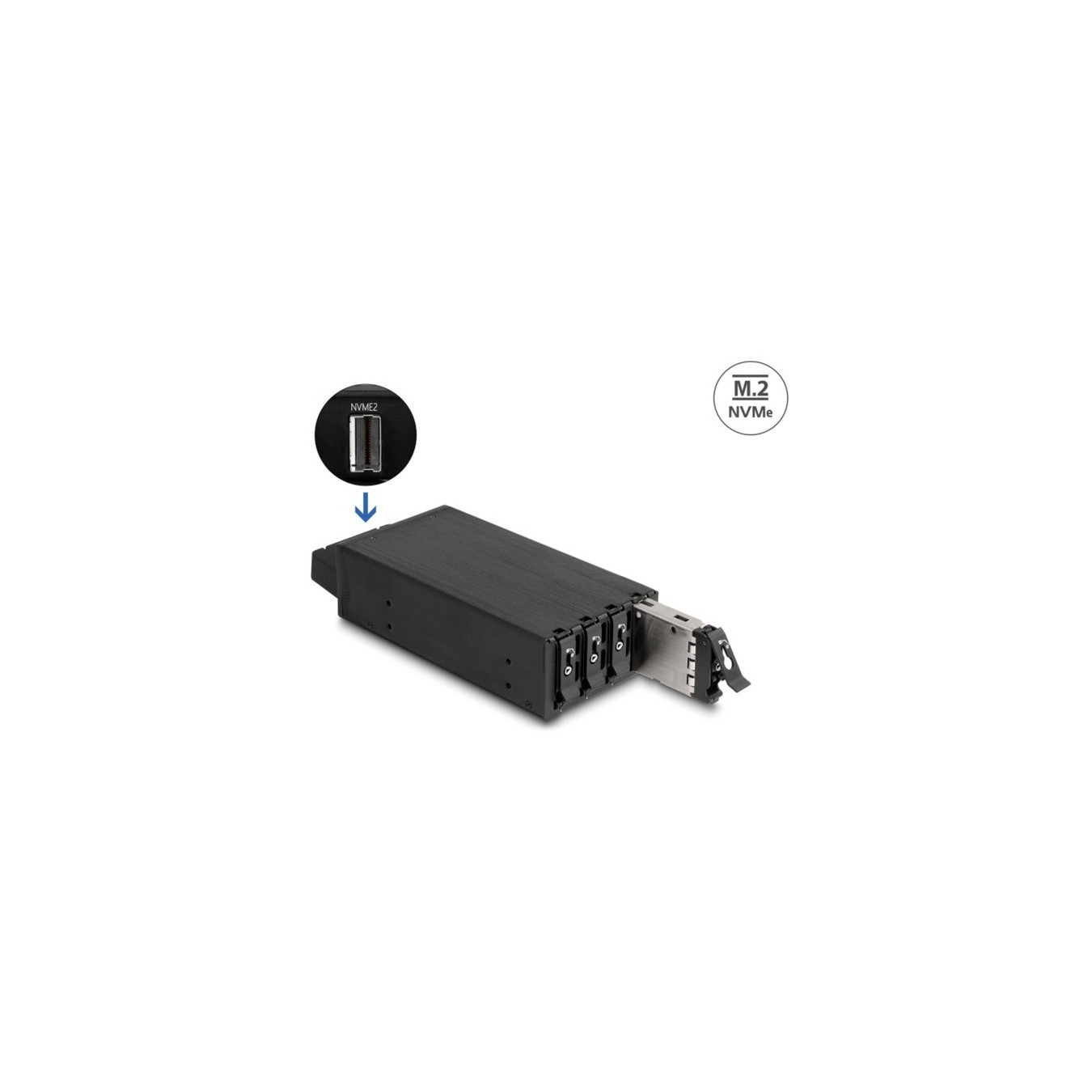

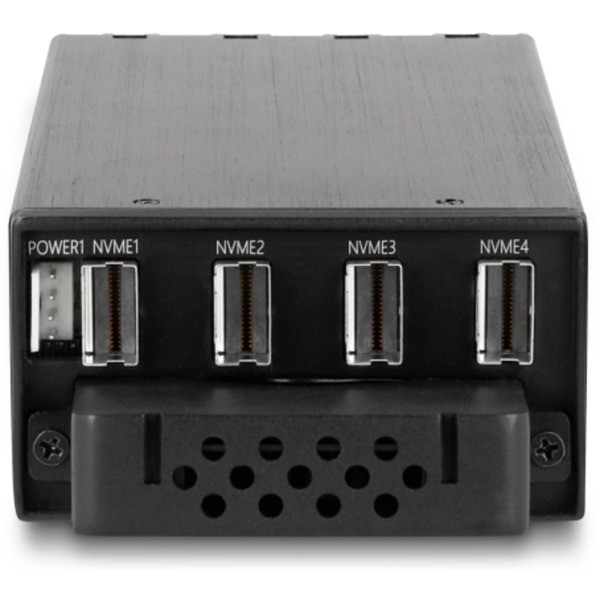

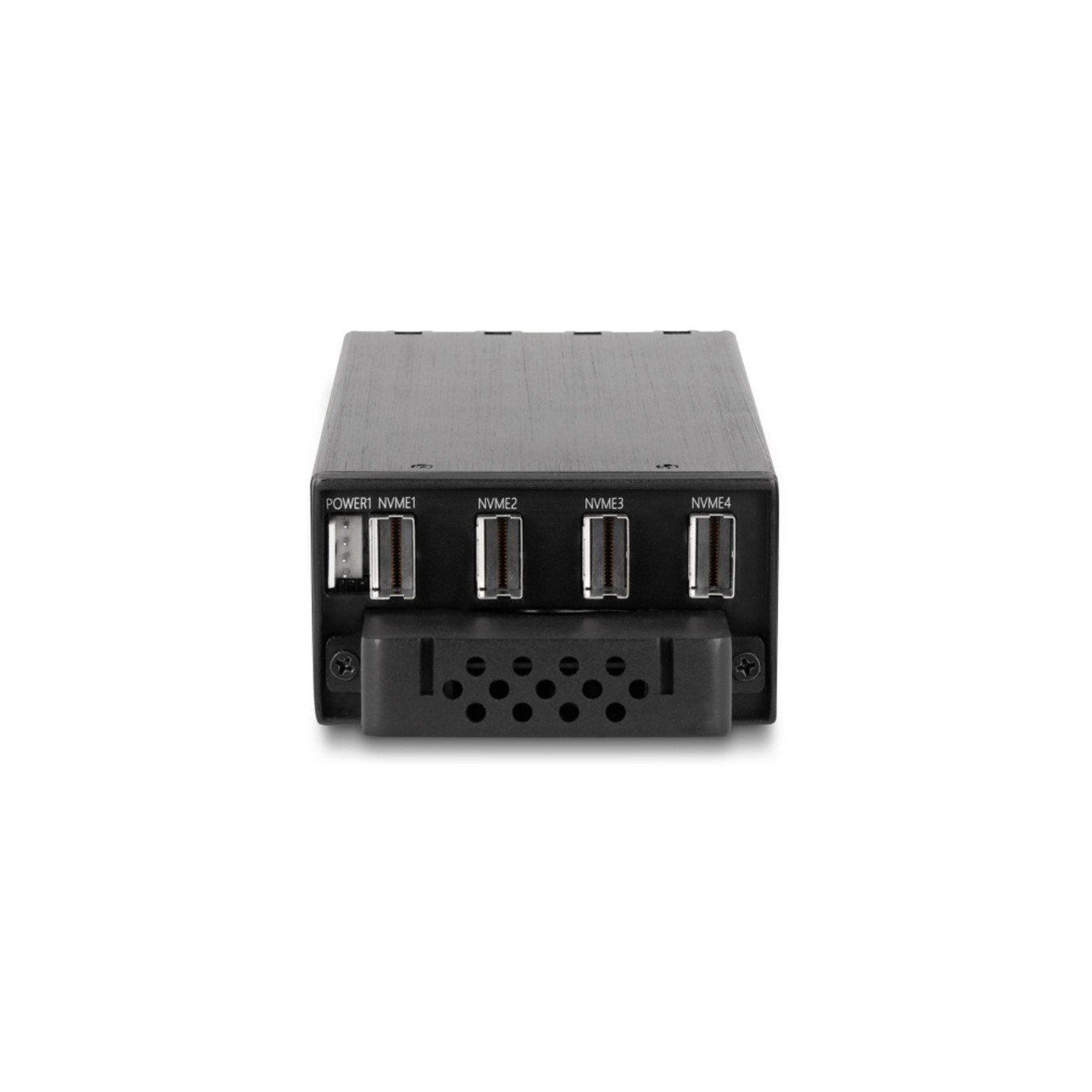

| Connections - external | 4x SFF-8654 |
| Feature | Maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible |

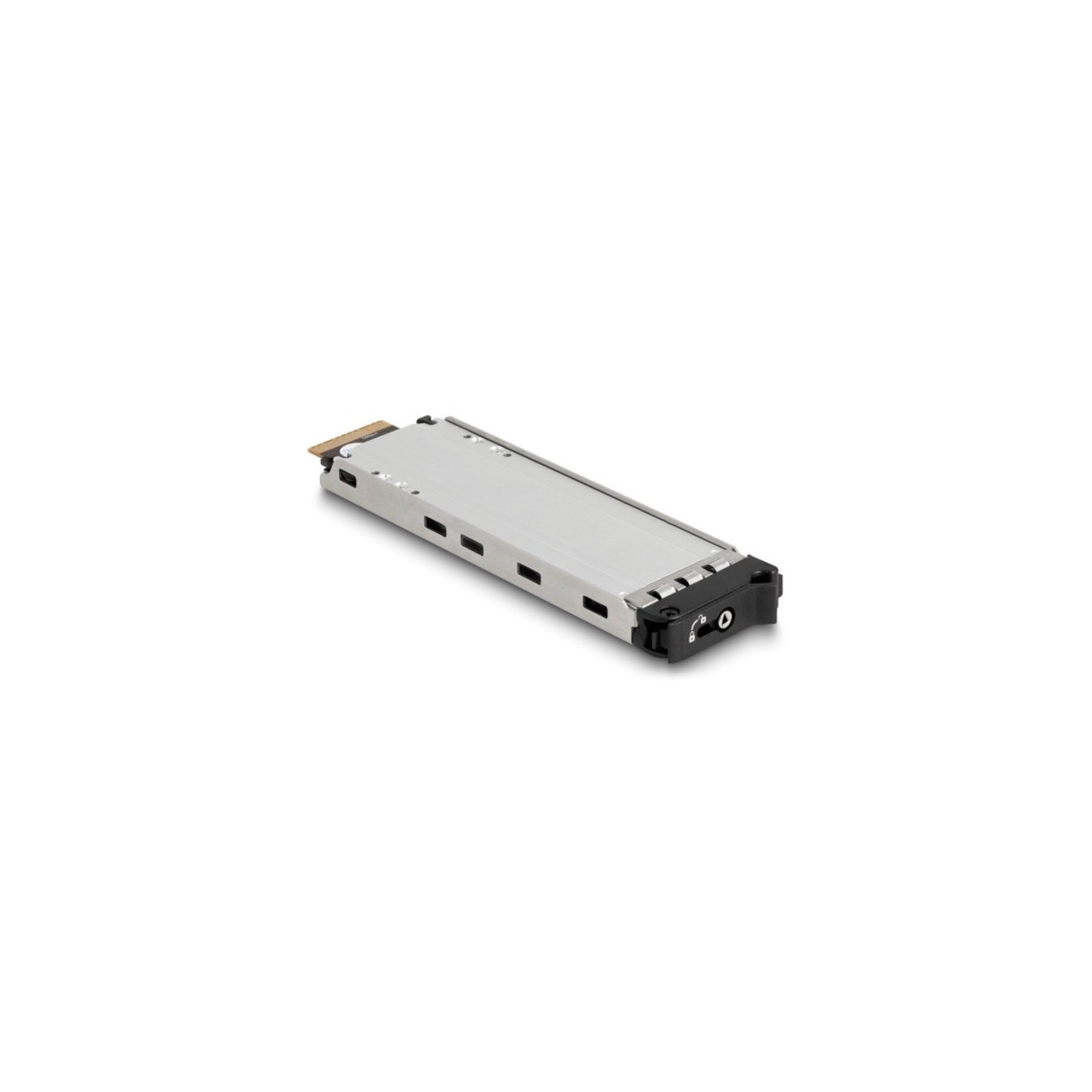

| More information | Thanks to the special mechanism, the SSDs can be replaced quickly and easily. For example, B. Data backups can be removed and stored in a safe place. |

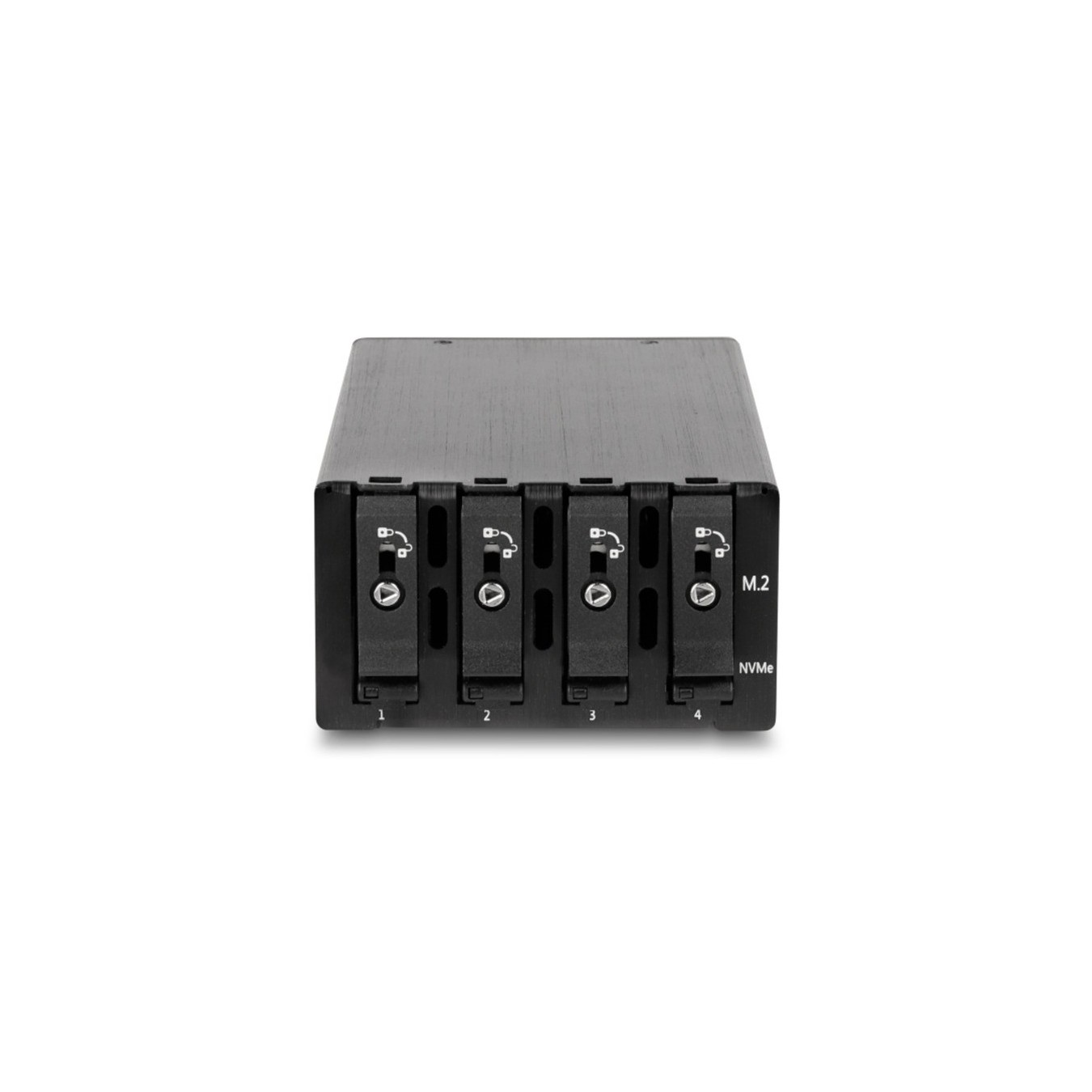

| Notice | The removable frame has a key lock so that only authorized people can remove the hard drive. The sturdy metal support has springs on the top and bottom that absorb vibrations and therefore also support use in mobile devices. |

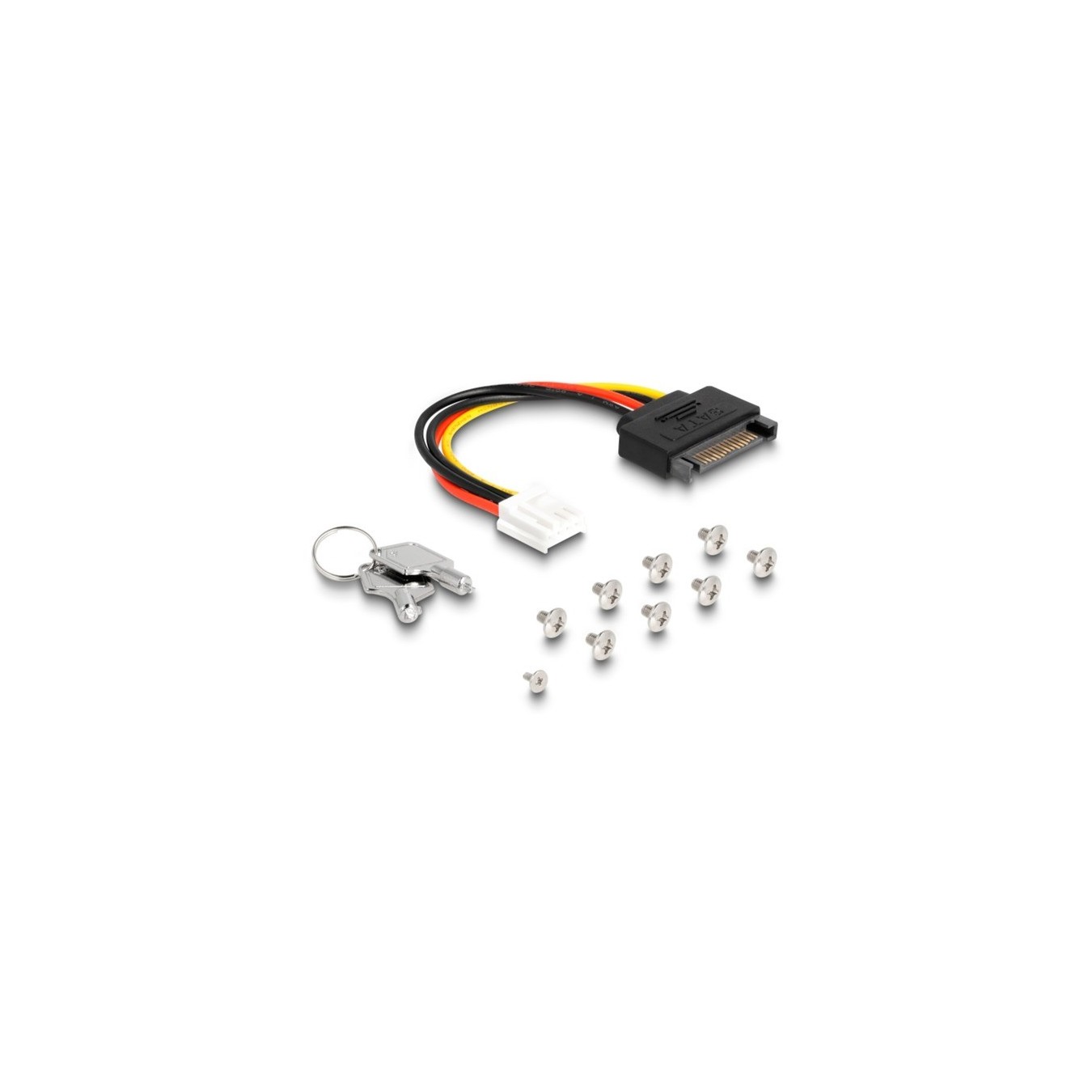

| Accessories - available | Cable SATA 15 pin to 4 pin floppy socket, length approx. 12 cm | 2 x keys | 4 x screw IM 2.0 x 4.0 mm, head 5.0 mm | Instruction manual |
| Dimensions | Width: 72mm x Height: 40mm x Depth/Length: 174mm |
