Power cable SATA 15Pin (male) to 2x SATA 15Pin (female) - Characteristics

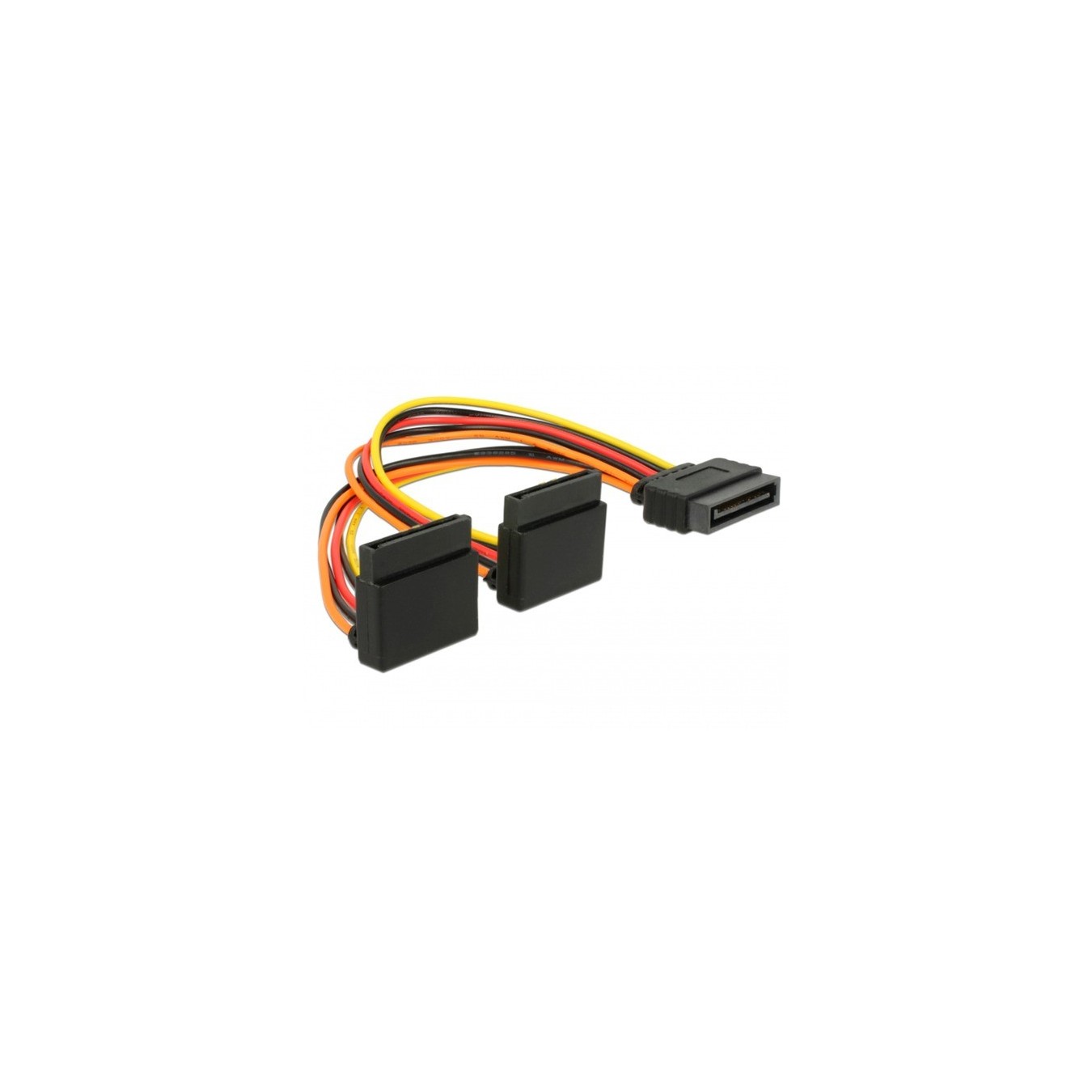

Delock 60170 power cable: 1x SATA male to 2x SATA female, 15 cm, 5 power lines (12V/5V/3.3V), gold-colored clips, angled sockets.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

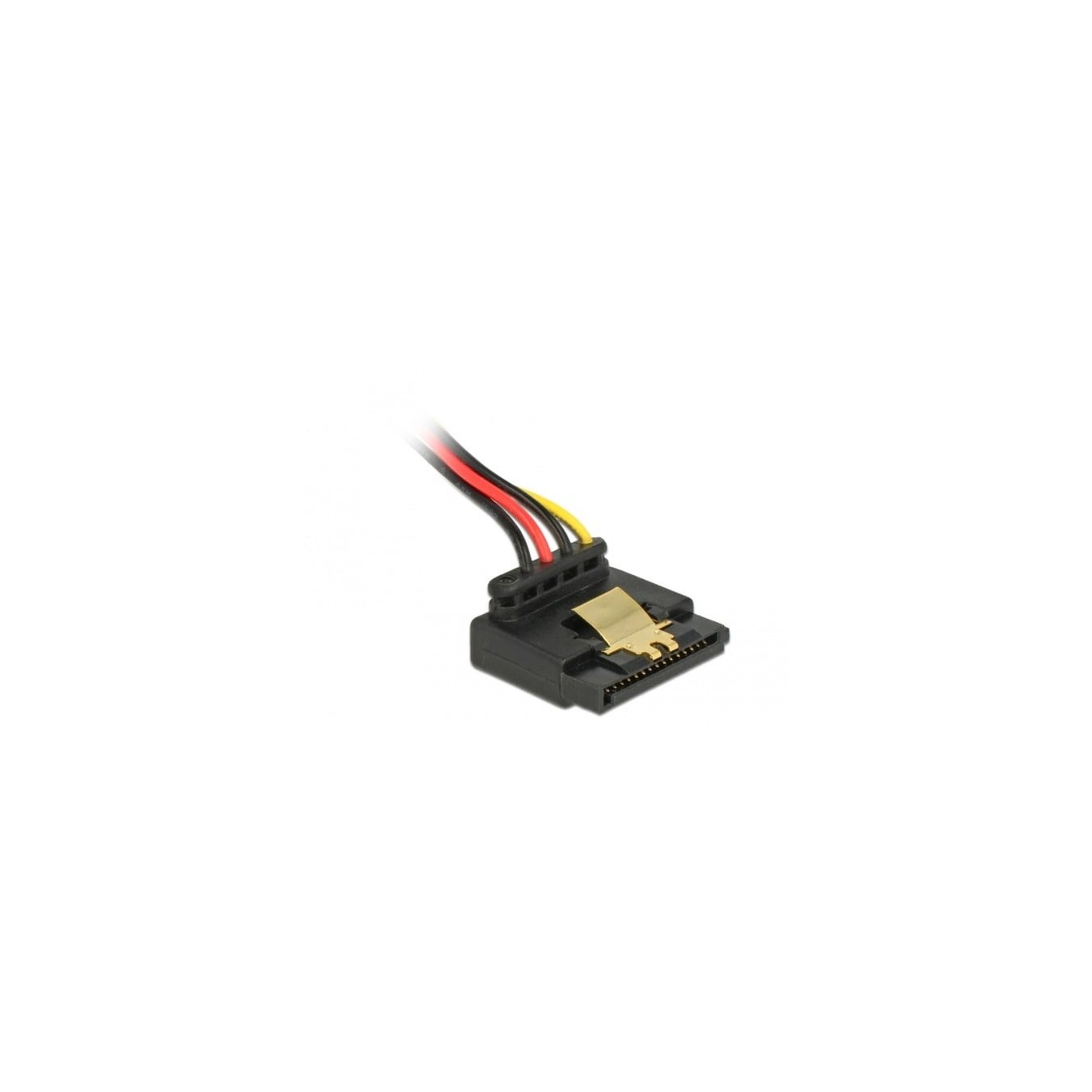

The 60170 cable from Delock is used to power two SATA devices via a free SATA 15-pin power connector on the power supply. The metal clips on the sockets and the metal clip receptacle on the plug enable additional snapping when connecting the cable.
| Typ | Cable |
| EAN | 4043619601707 |
| Manufacturer no. | 60170 |
| Area | Power supply |
| Connection - from | 1x 15-pin SATA (male) |
| Cable cross section | 20 AWG |
| taps | 3 |
| Characteristics | intern |
| Feature | With gold-colored metal clips |
| More information | Variant with 5 power lines (yellow = 12V, black = GND, red = 5V, orange = 3.3V), SATA sockets angled upwards |
| Cable length | 15 cm |
