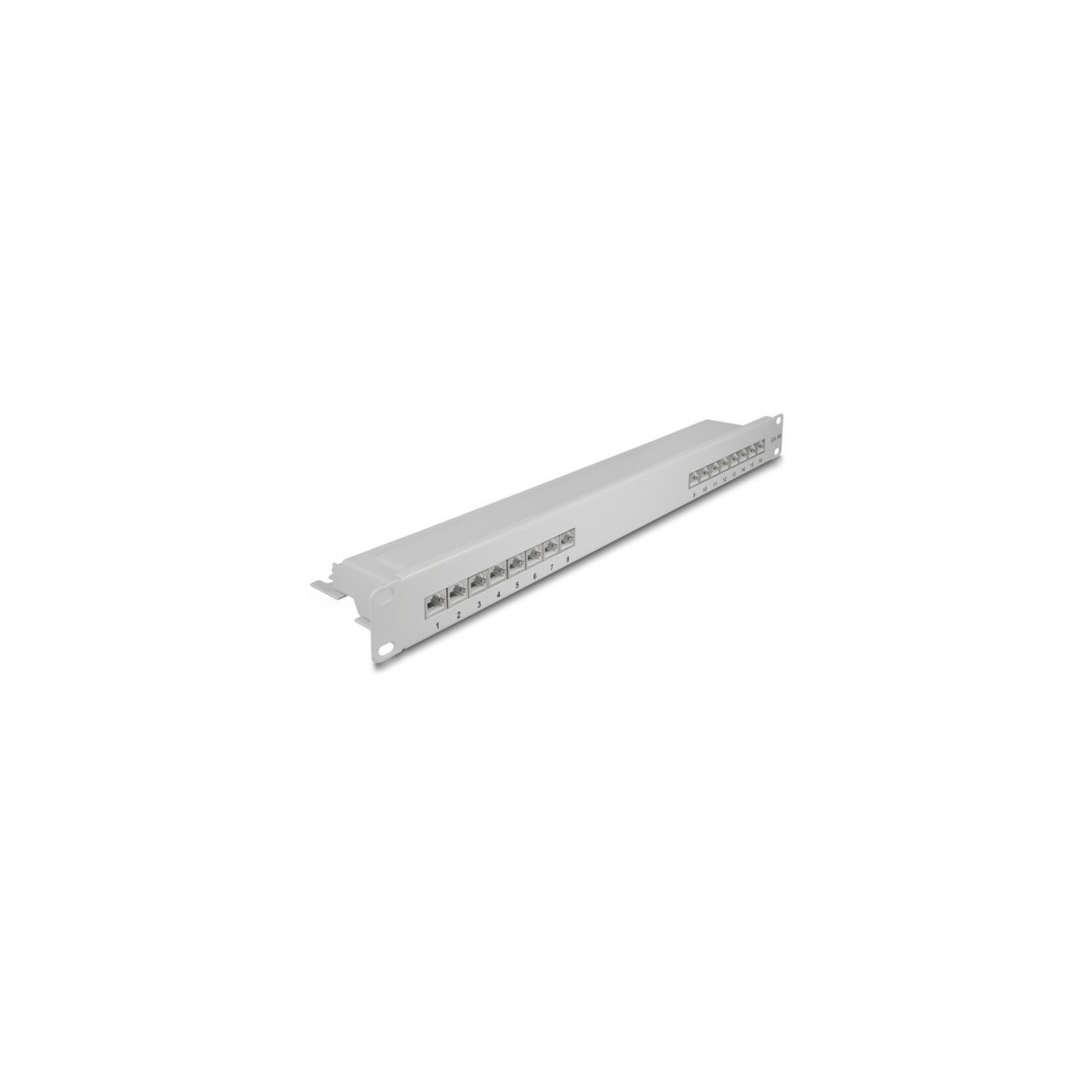

Patch Panel - 19' - 16 Port Cat.6A
Delock 19-inch patch panel for 19-inch cabinets, 16x RJ-45 external, shielded Cat6A with internal LSA strips; metal case.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

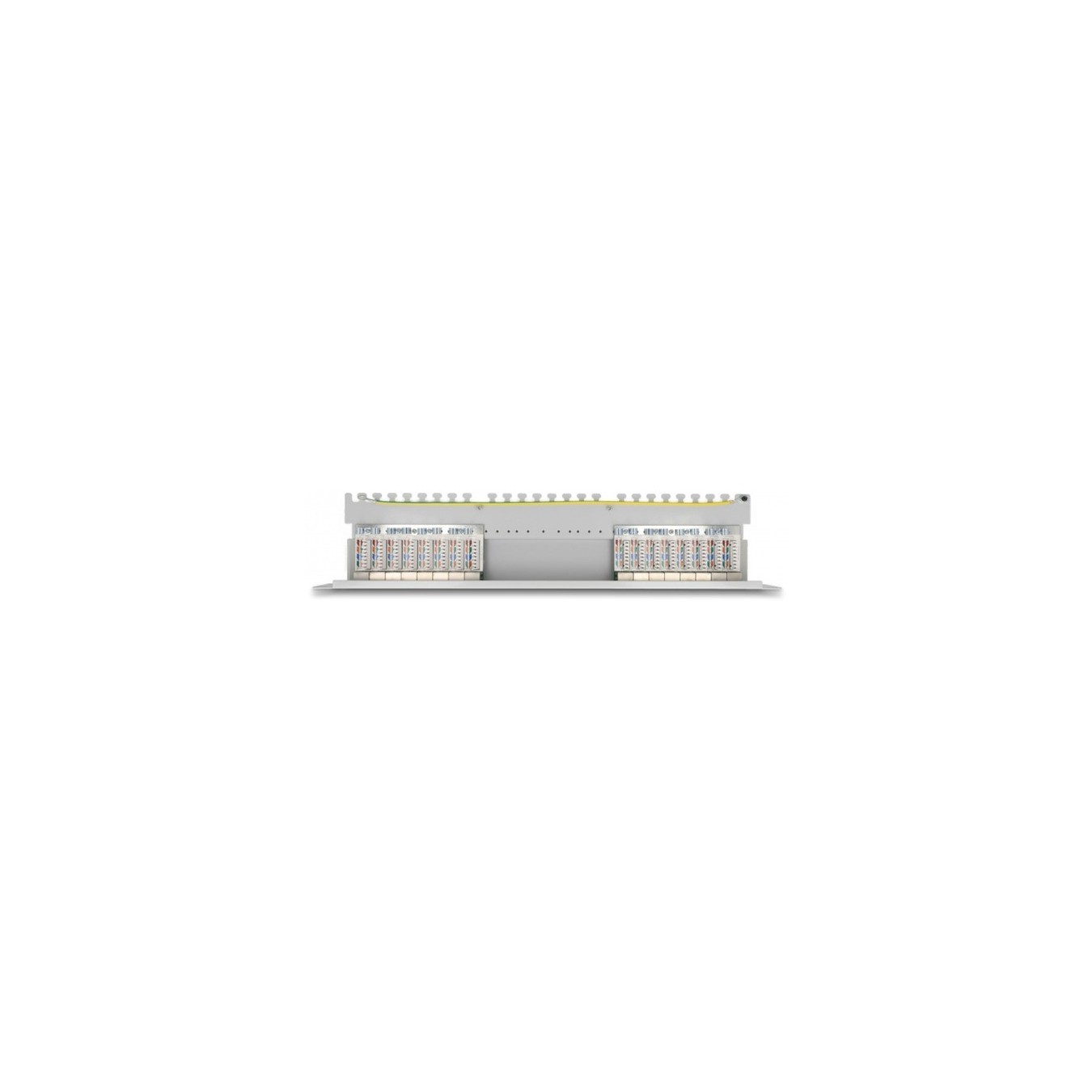

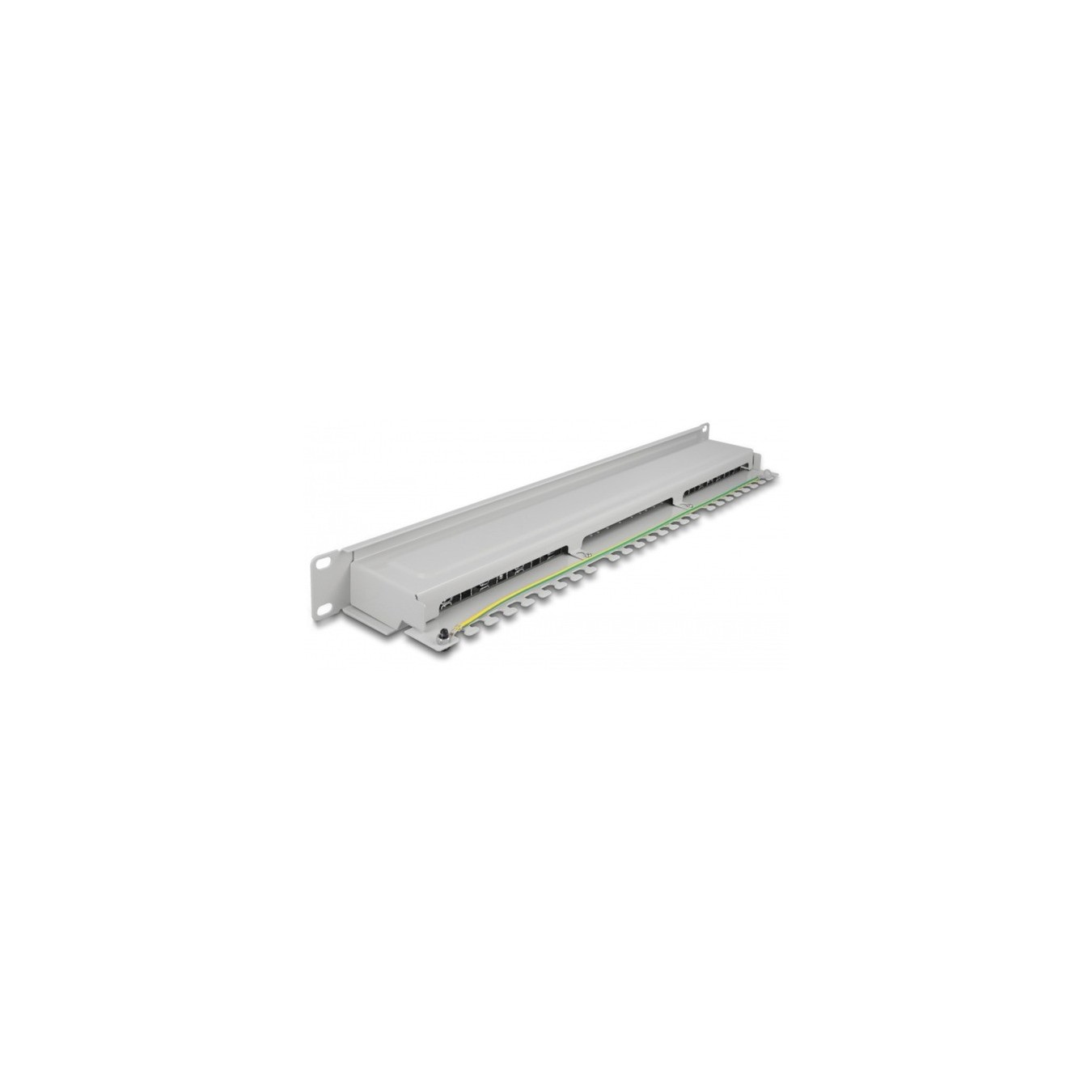

This patch panel from Delock can be used for installation in a 19" network cabinet. Up to 16 network cables can be installed on the LSA strips using a lay-up tool.
| Typ | Patchpanel |
| Color | grau |
| EAN | 4043619668779 |
| Manufacturer no. | 66877 |
| Purpose of use | For mounting in 19" cabinets |
| Transfer speed | 1.000 MBit/s |
| Cable type | Cat. 6 |
| Connections - number | 16x RJ-45 |
| More information | Connections: External: 16x RJ-45 socket - Internal: LSA strips; Shielded (Cat.6A); Assignment according to TIA-568A/B; Suitable for solid and stranded conductors (26 - 22 AWG); Metal case |

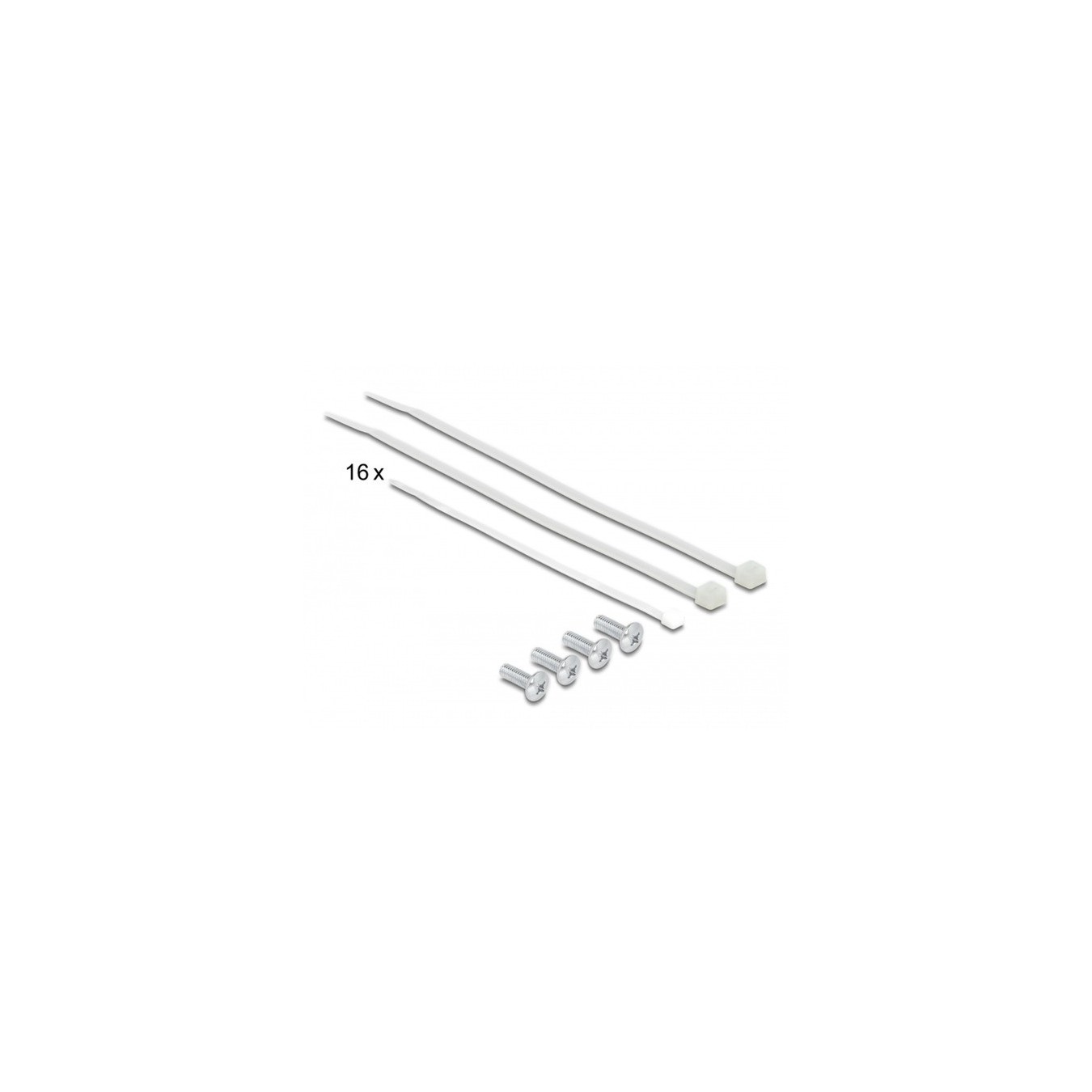

| Accessories - available | 2 cable ties (4.7 x 200 mm), 16 cable ties (2.4 x 100 mm), 4 screws, ground cable |
| Dimensions | Width: 482.6mm x Height: 44.5mm x Depth/Length: 100mm |
