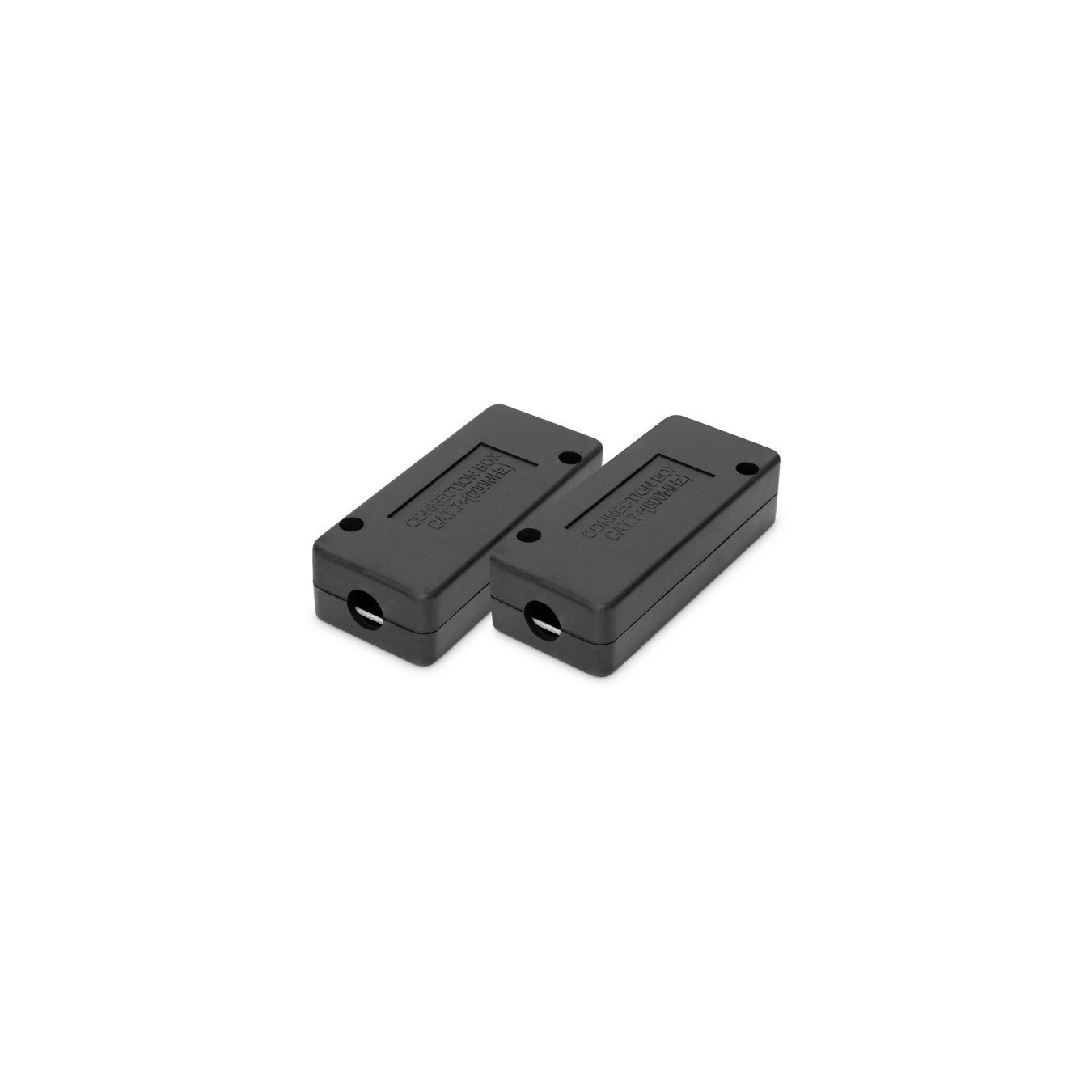

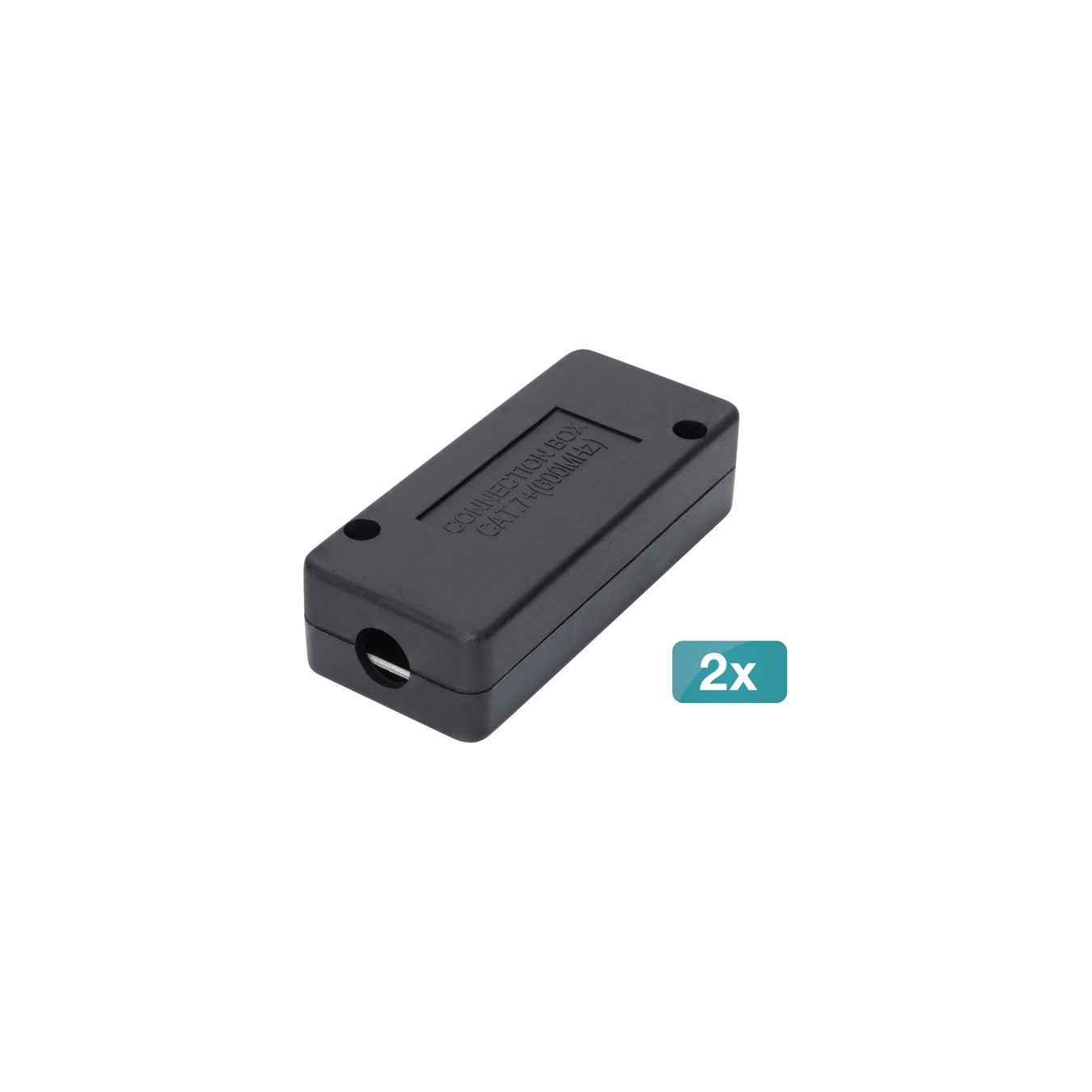

Connection module - CAT 7, shielded, 2 pieces
DIGITUS CAT 7 shielded connection module set for connecting, extending, or replacing shielded cables (2 pieces).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS connection module CAT 7 is used to optimally connect shielded data cables, to extend the cabling or to replace damaged cables with new connections without having to reinstall the entire cabling section. For quick and easy installation, the cable connector uses the proven LSA technology with 45° inclination of the contacts.
| Typ | Connection |
| Color | schwarz |
| EAN | 4016032494874 |
| Manufacturer no. | DN-93907-1-2 |
| Manufactured in | China |
| Number | 2 pieces |
| Application example | Extension of cables, replacement of damaged cable sections |
| Area | network |
| Category - Plugs | Cat.7 |
| Characteristics | Adapter, Set, extern |
| Feature | 600 MHz, shielded, suitable for installation in flush-mounted and surface-mounted parapet ducts, integrated strain relief for installation cables, 0.5μ gold-plated contacts |
| More information | Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B, for AWG 22-26 solid and stranded conductors, ABS UL-94V-0 housing, operating temperature -20°C to +70°C |
| Notice | ISO/IEC 11801 2nd Ed., IN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ |
| Dimensions | Width: 35mm x Height: 26mm x Depth/Length: 80mm |
