Rack Enclosure - 2U-2724 - Rack, Server Enclosure

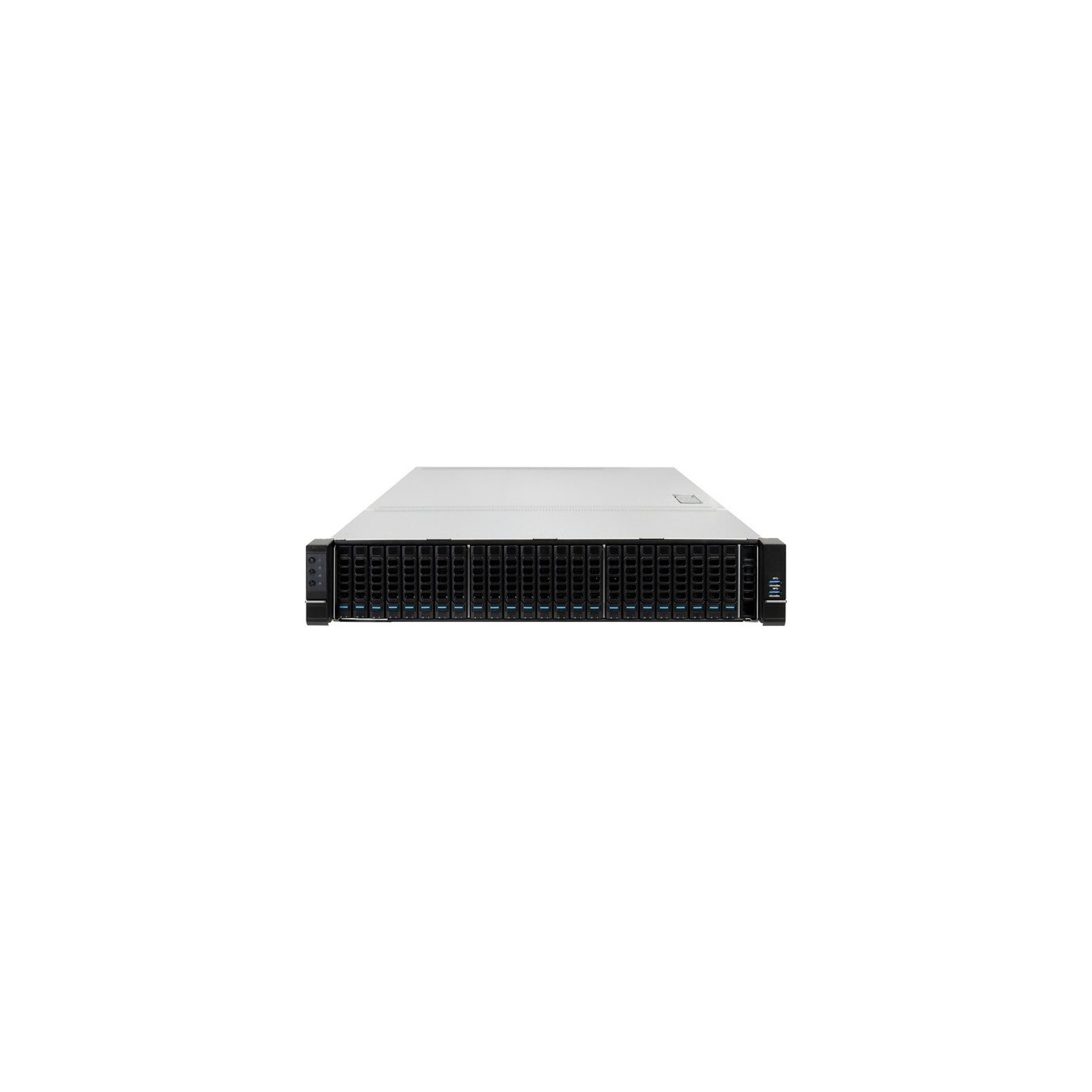

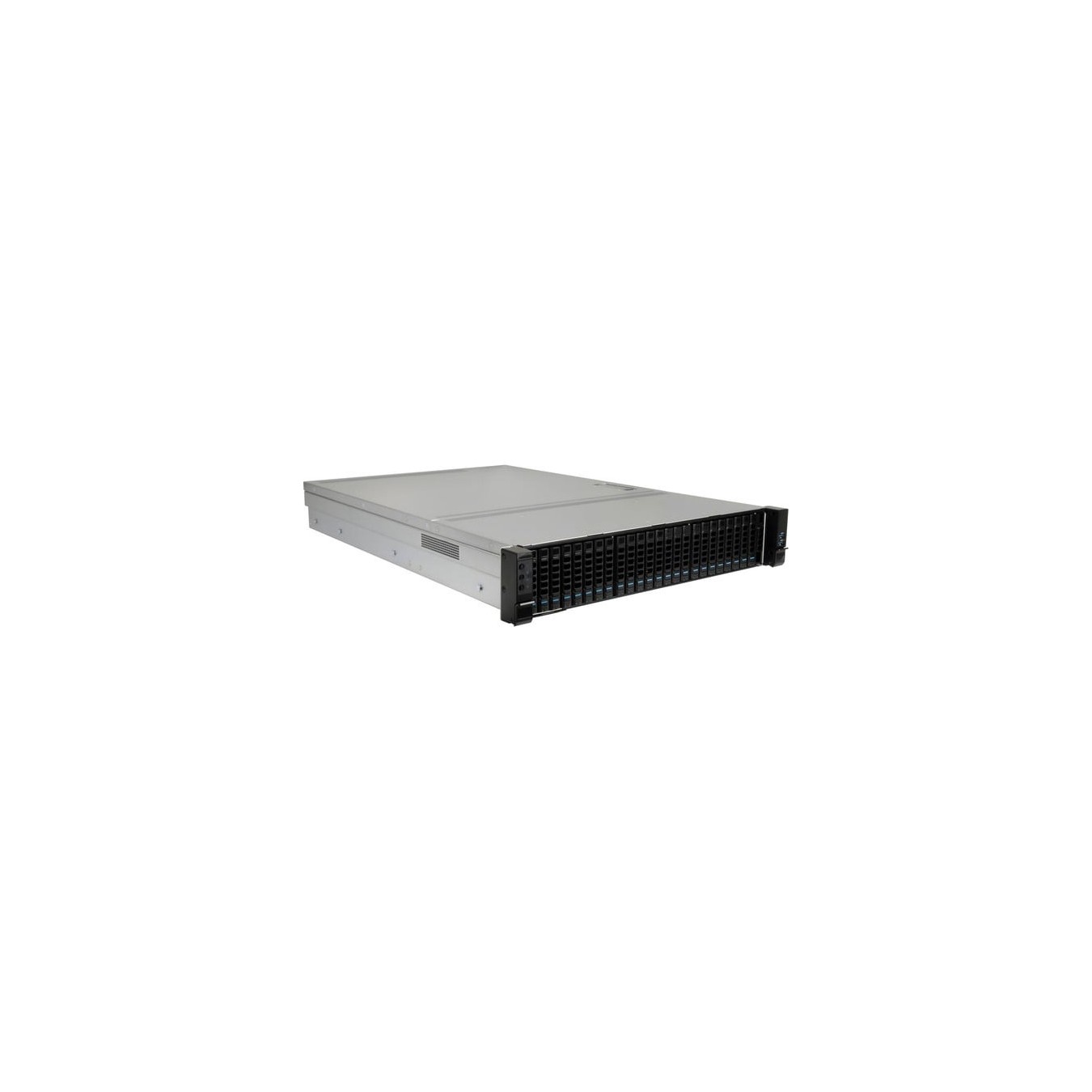

2U rack server enclosure delivering high-density storage for demanding applications, including 3x 80mm hot-plug fans, UUID features, 2x 2.5" drive bays, and front USB-A 3.2 Gen 1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Included Fans | 3 |
|---|

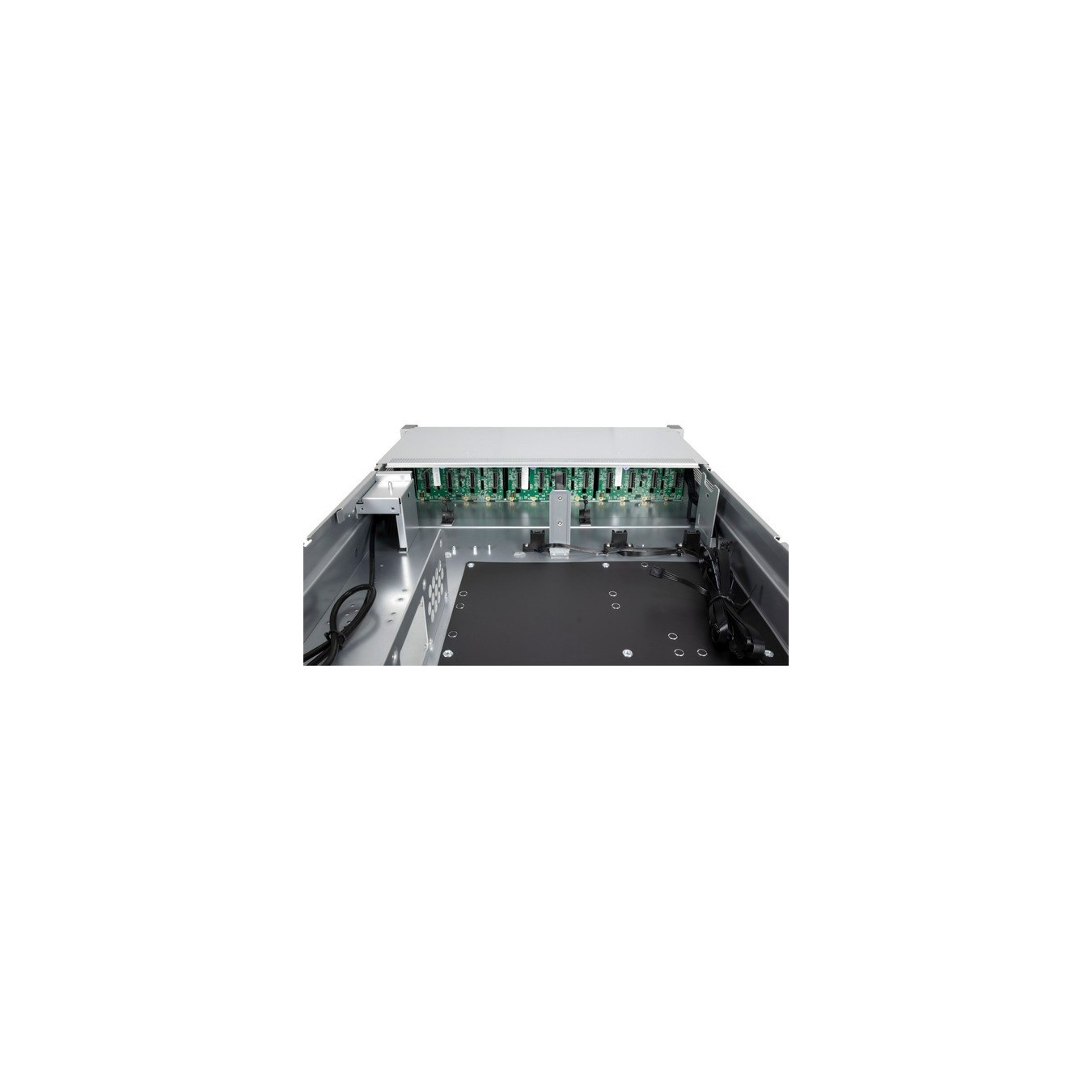

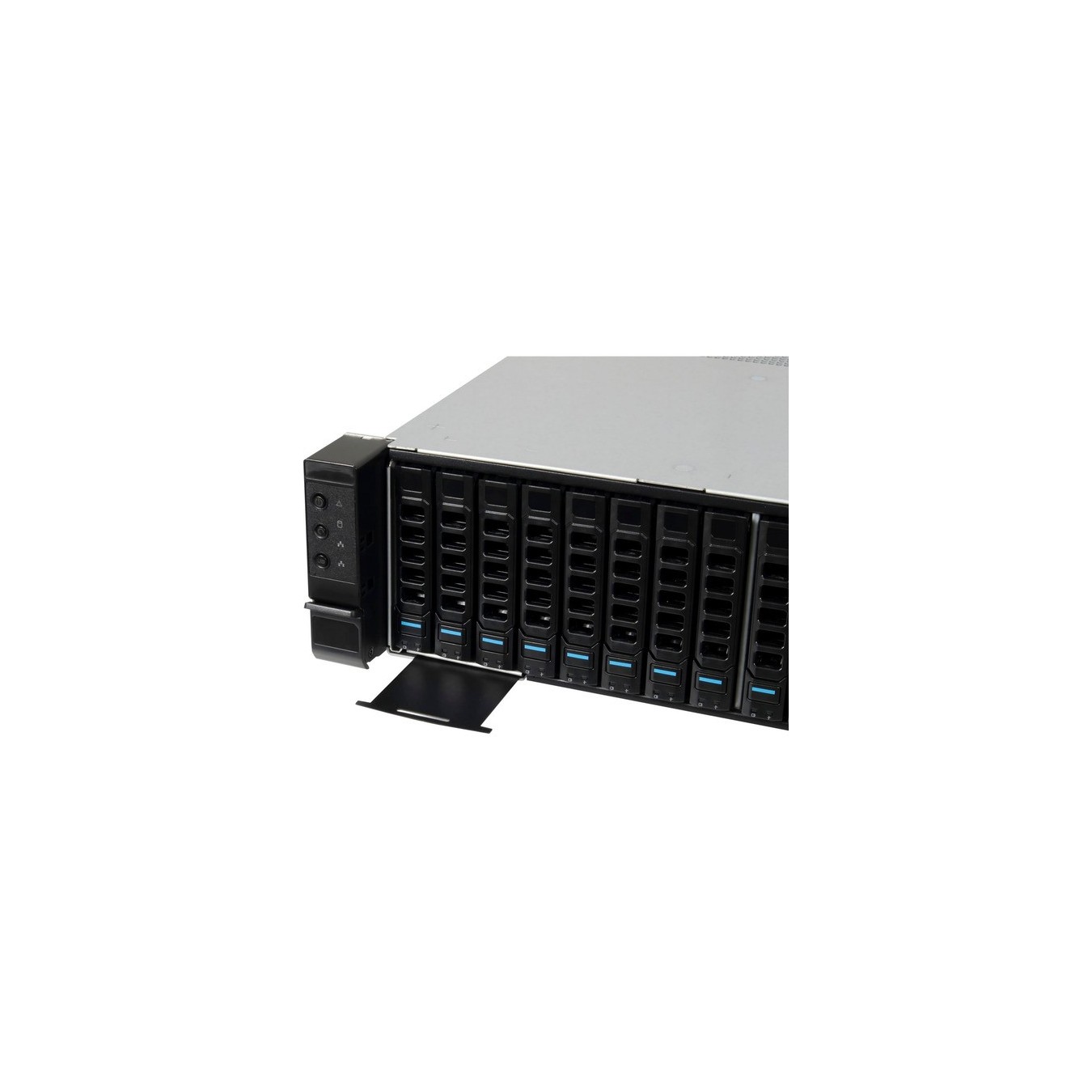

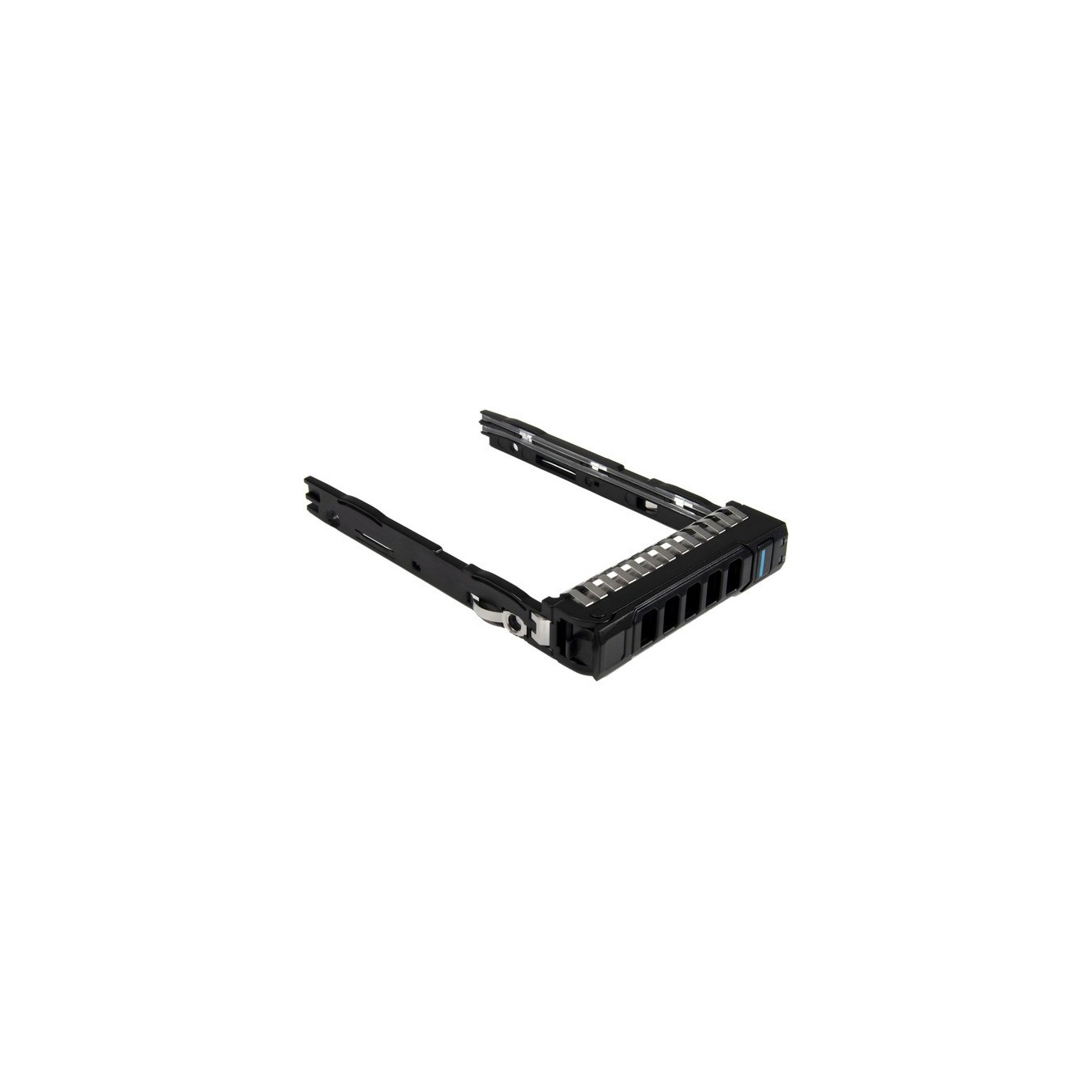

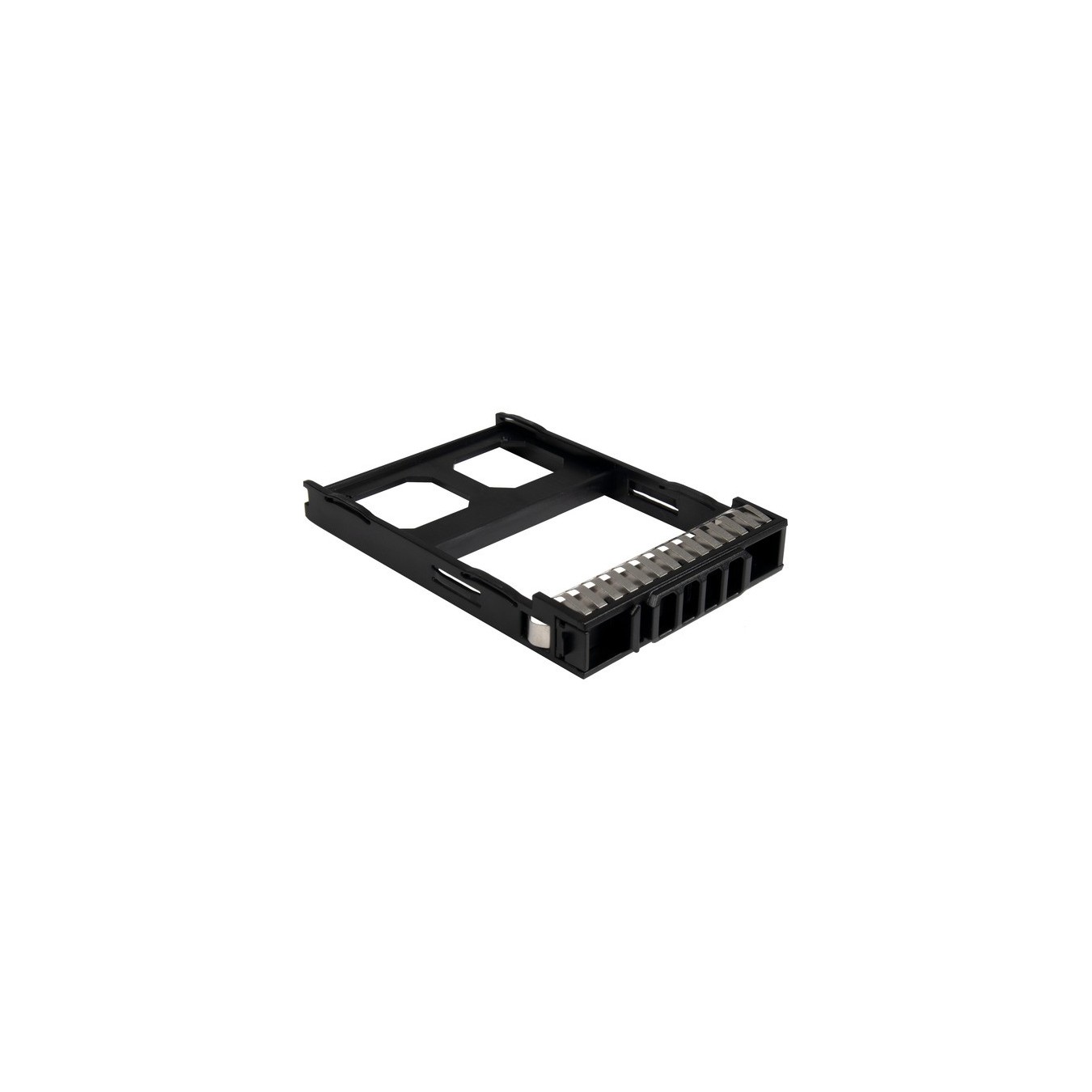

Maximum storage density in the smallest space: This 2U high-performance storage housing was specially developed for demanding server and storage applications. With 24 hot-swap slots for 2.5" drives and support for SAS3, SATA and NVMe, it combines maximum flexibility with outstanding performance and is therefore ideal for modern data center and enterprise environments. The housing offers broad compatibility with common motherboard formats from Mini-ITX to Micro-ATX and ATX to E-ATX. An optimized cooling design with three powerful ones ensures reliable continuous operation 80 mm hot-plug fans that provide a constant airflow and ensure maximum operational reliability, especially for NVMe SSDs with high heat generation. The 24 hot-swap removable frames allow drives to be replaced during operation, significantly reducing maintenance times and increasing system availability. Two internal 2.5" drive bays are also available, which are ideal for operating system or cache drives. For professional use in the rack, the storage housing offers practical management functions such as a UUID switch, a UUID alarm LED and an integrated ID card holder. These features facilitate clear system identification and provide a better overview in complex server environments. The sturdy steel housing is designed for 24/7 continuous operation in the data center and impresses with its robust construction and future-proof architecture. It is the ideal solution for businesses that require the highest storage density, reliability and scalability in a compact 2U form factor.
| Typ | Rack, server enclosure |
| Color | schwarz |
| EAN | 4260455648172 |
| Manufacturer no. | 88887383 |
| Manufactured in | China |
| Design | Rack |
| Mainboard Formfaktor | ATX, E-ATX, µATX, Mini-ITX |
| Material | Stahl |
| Internal dimensions - plug-in card length | maximal 330 mm |
| Drive bays - 2.5 inches | internally 2 pieces |

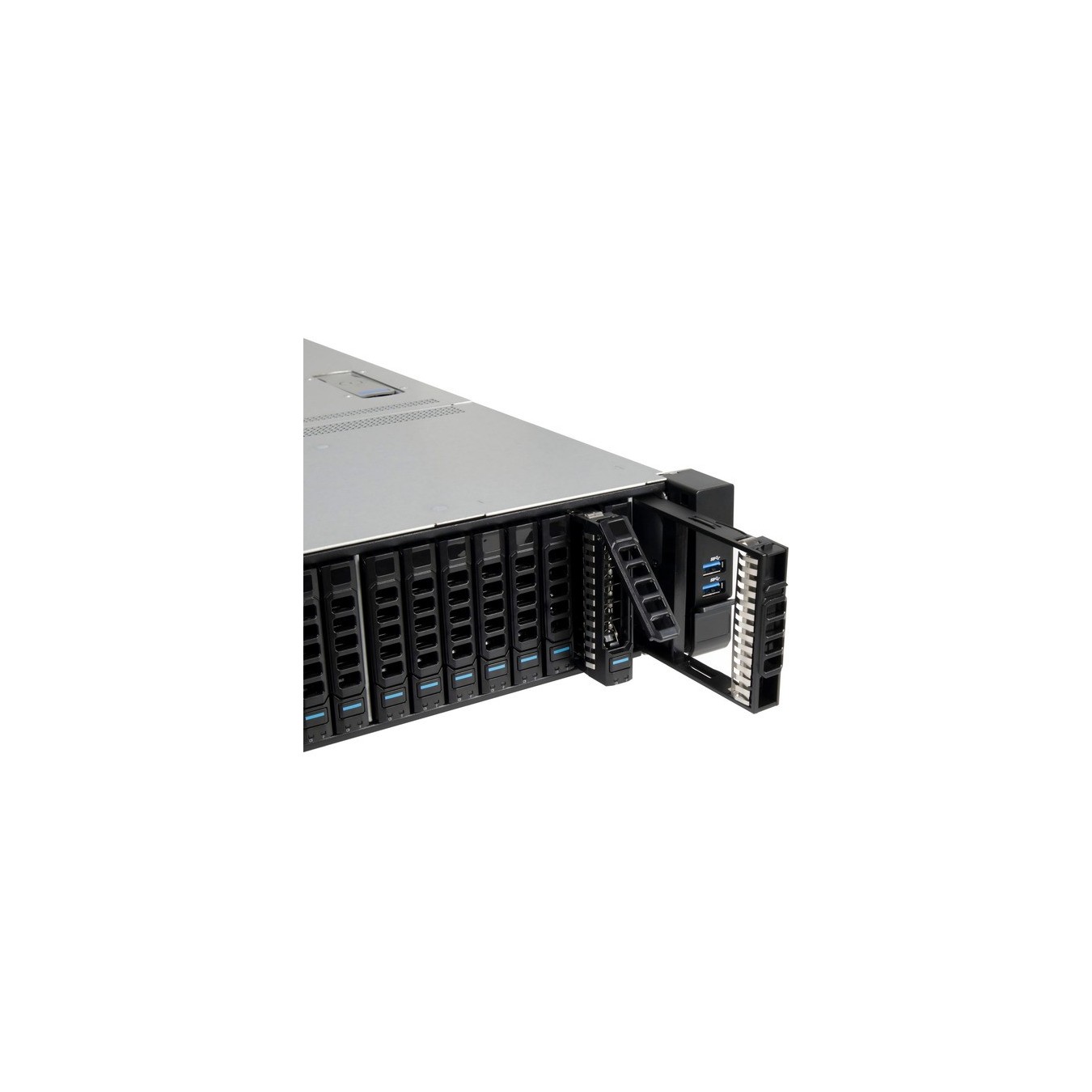

| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |
| Notes | Internal: 3x powerful 80mm hot-plug fans included, UUID switch, UUID alarm LED and ID card holder for professional rack organization, power connection: 1x 4-pin/backplane |
| Rear connection of the mainboard | No |

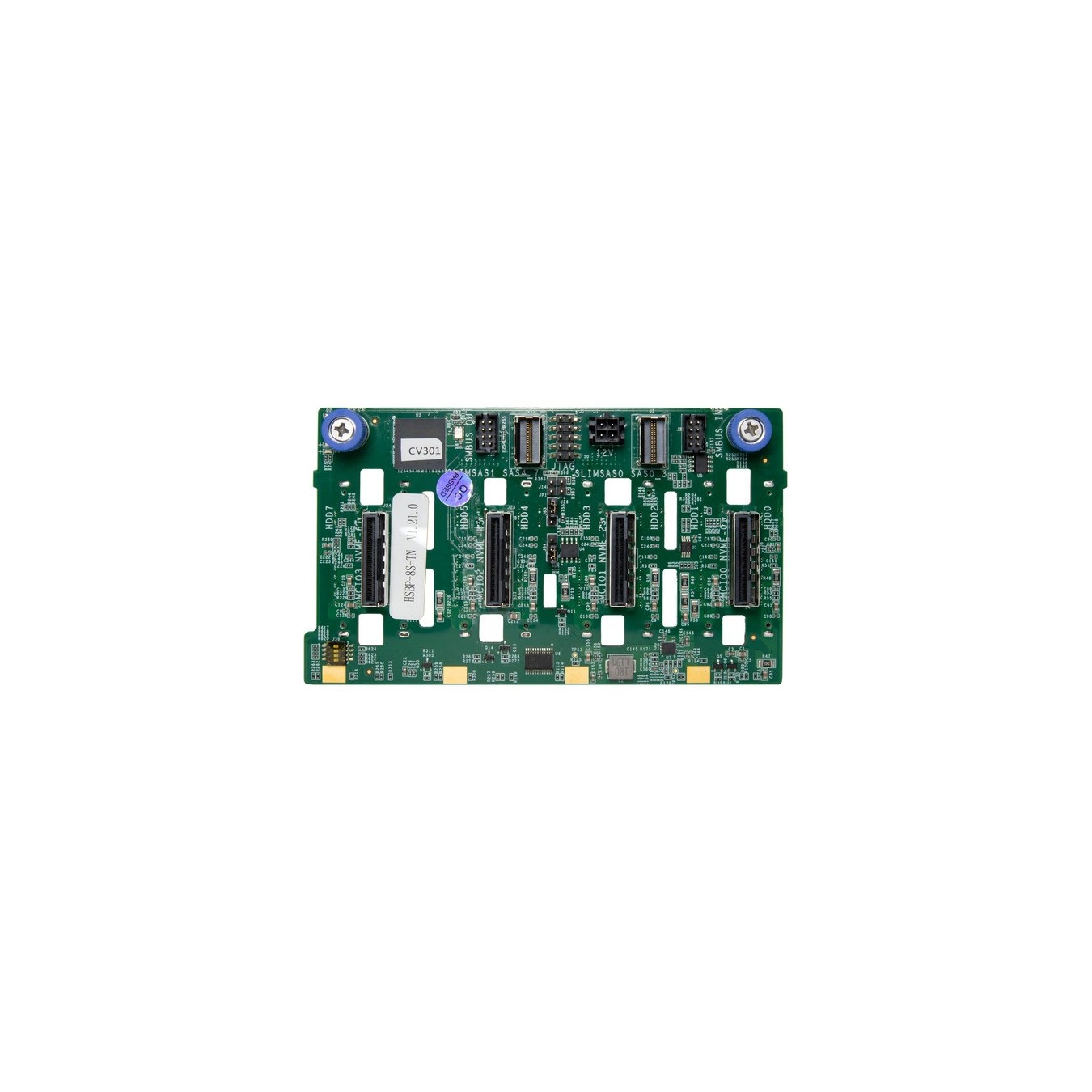

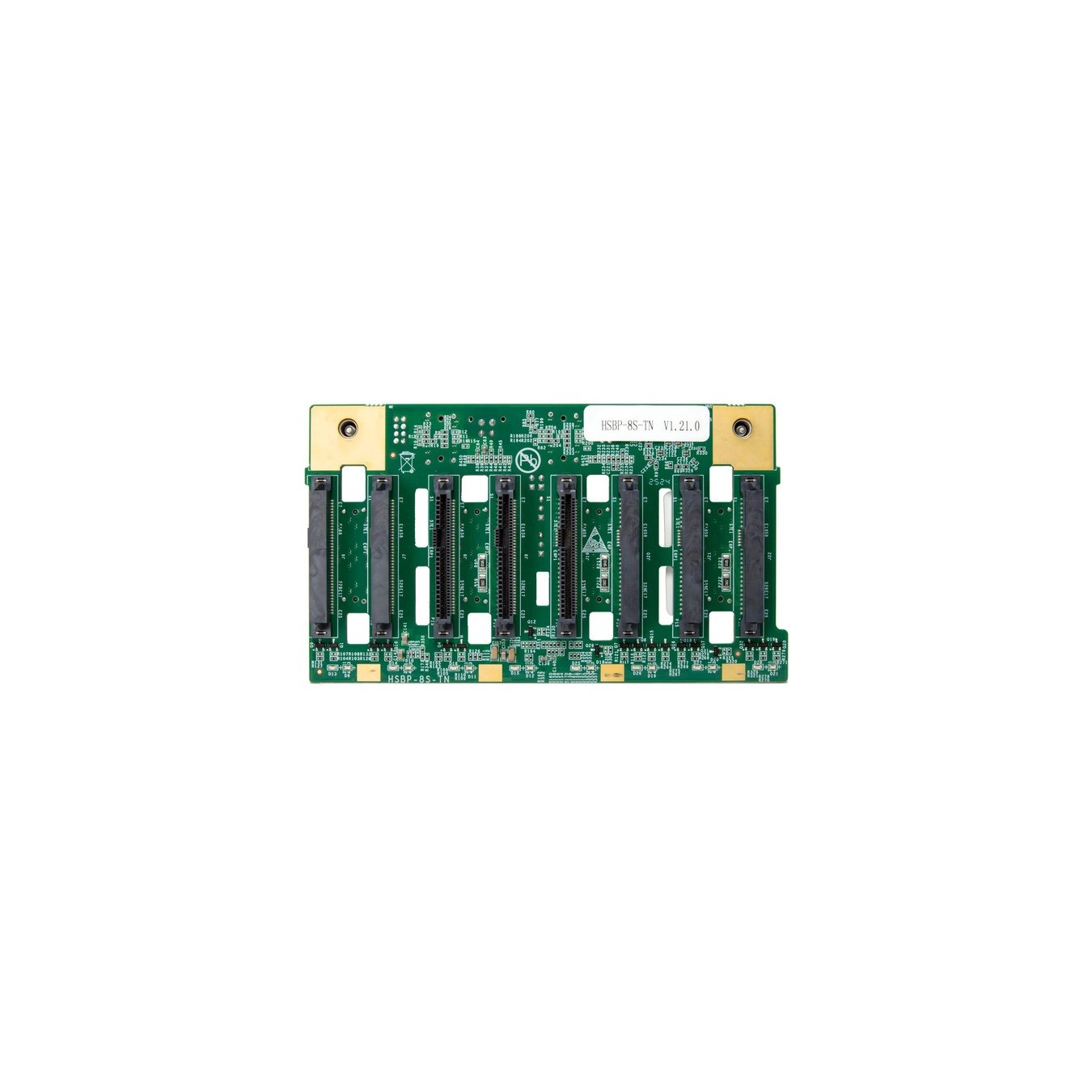

| More information | Speed: SATA 6 Gb/s, SAS 12 Gb/s, NVMe 16 Gb/s, number of backplanes: 3 |
| Notice | Cage dimensions: 447 x 670 x 87mm (WxDxH) |
| Accessories - available | Mounting frame for 2U power supplies, screw assortment, adapter cable for backplane power connection (12V 4pin) |
| Volume | 29 l |
| Dimensions | Width: 481mm x Height: 87mm x Depth/Length: 700mm |
| Weight | 10,2 kg |
