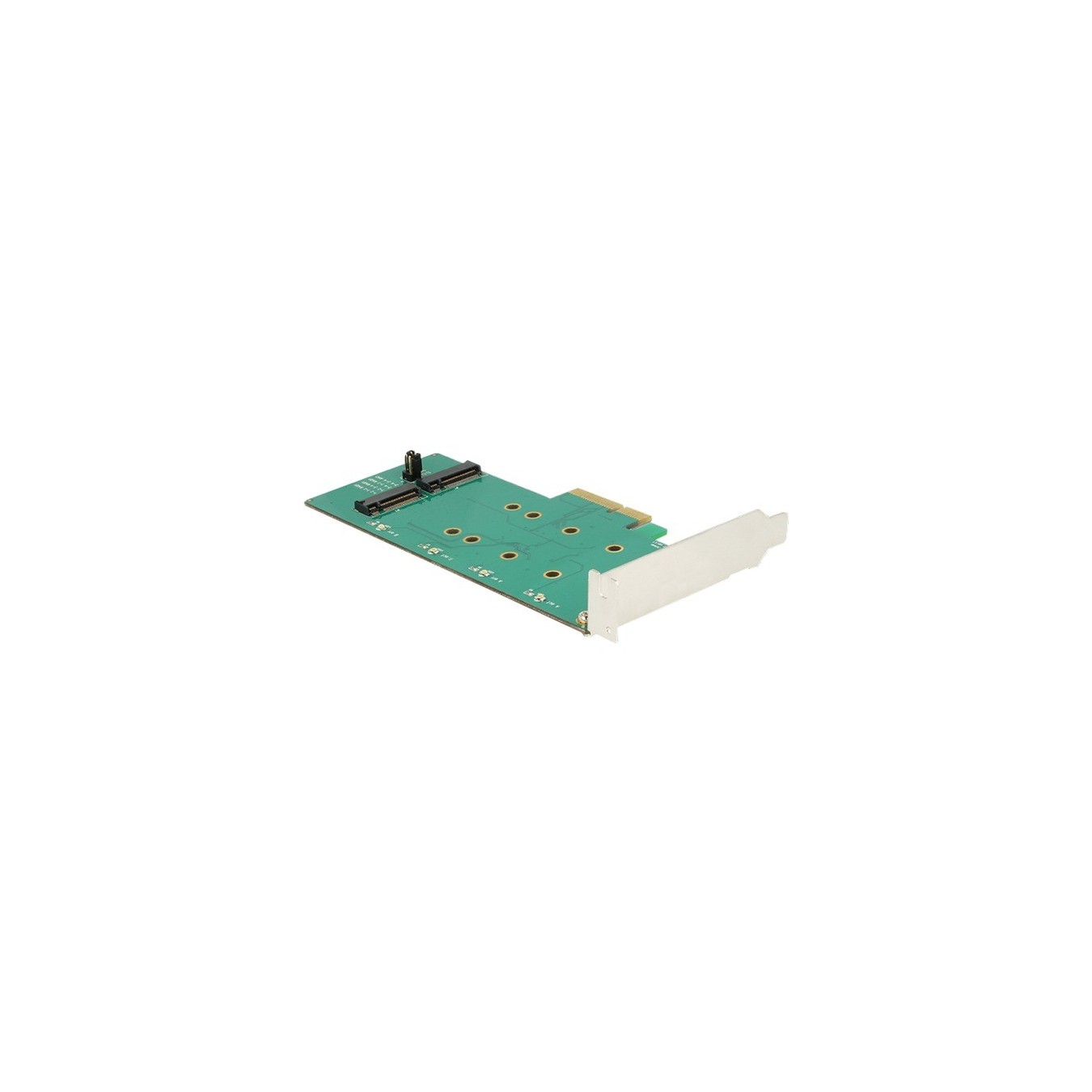

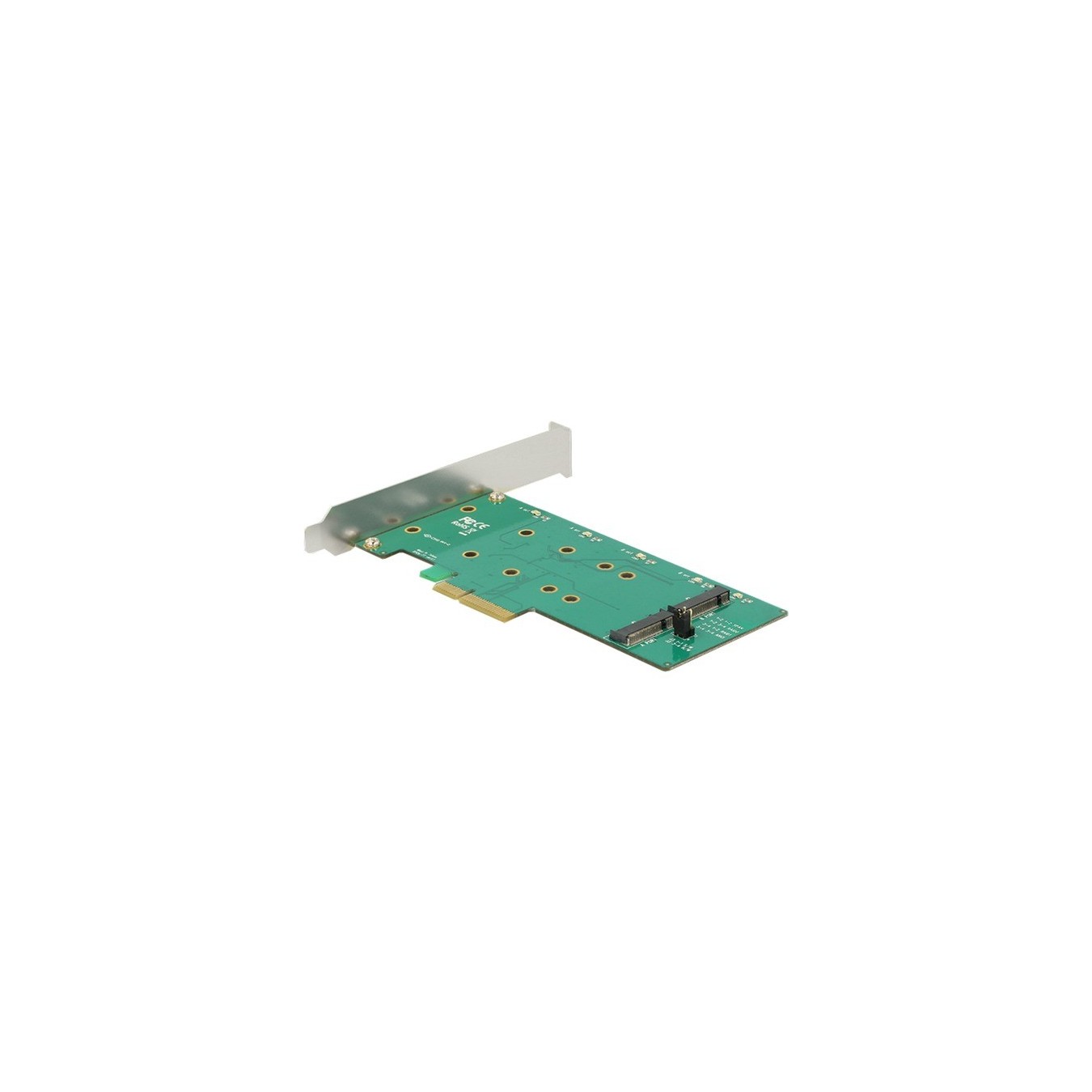

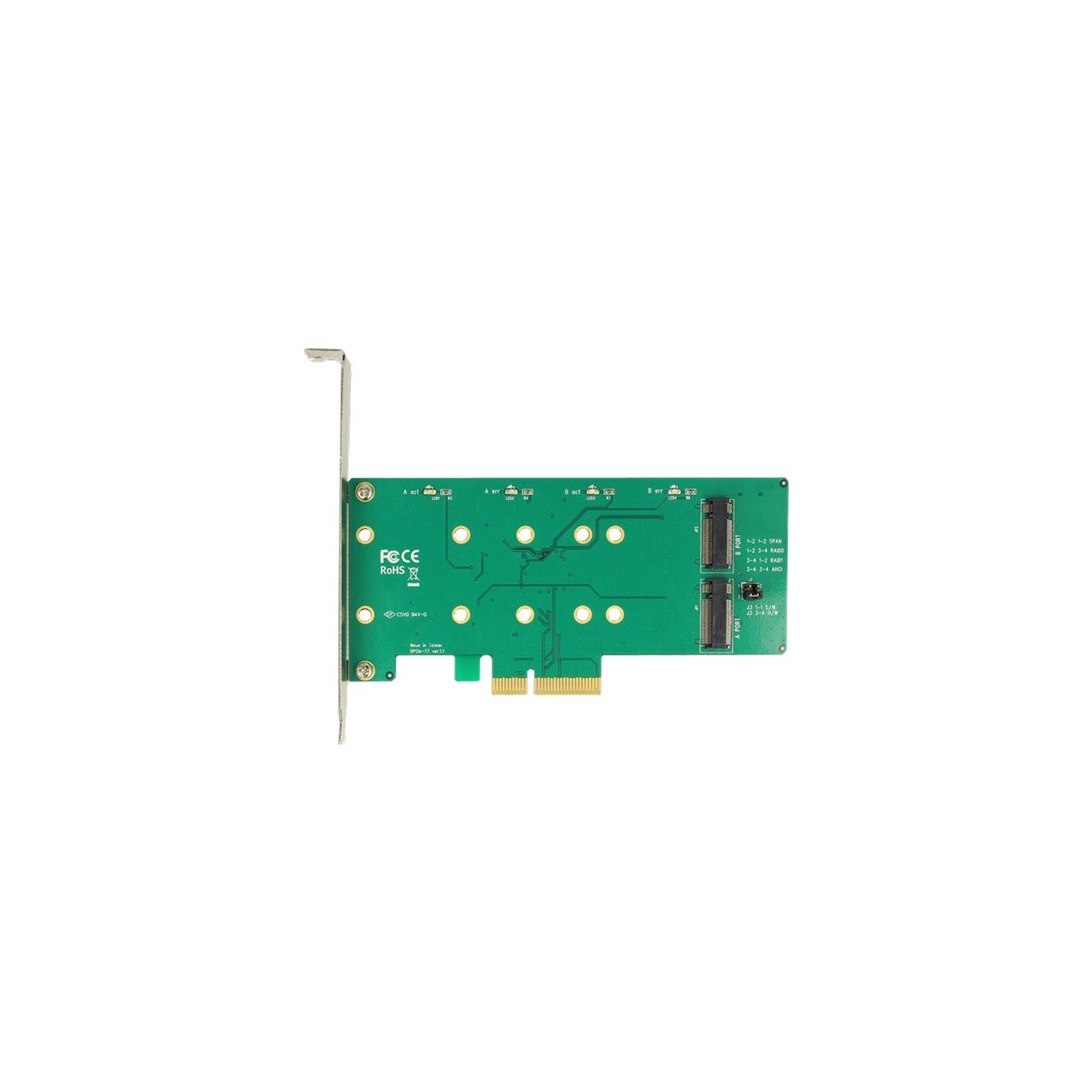

PCIe x1 to 2 x M.2 Key B - Serial ATA-Controller
Delock PCIe card with two M.2 SATA slots (Key B or B+M) supporting 22110/2280/2260/2242/2230 modules; up to 6 Gbit/s; Low Profile optional.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
This PCI Express card from Delock expands the PC with two M.2 slots. Up to two M.2 SATA modules in 22110, 2280, 2260, 2242, 2230 format can be connected to the card. When using more than one SSD, it is possible to use different RAID levels.
| Typ | Serial ATA-Controller |
| EAN | 4043619895366 |
| Manufacturer no. | 89536 |
| Controller Art | Serial-ATA |
| Data throughput | 6 GBit/s |
| Connections - internal | 2x M.2 |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| Raid-Level - direct | 0, 1, SPAN |
| Low Profile | optional |
| More information | Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with Key B or Key B+M on SATA basis |
| Weight | 162 Gramm |
