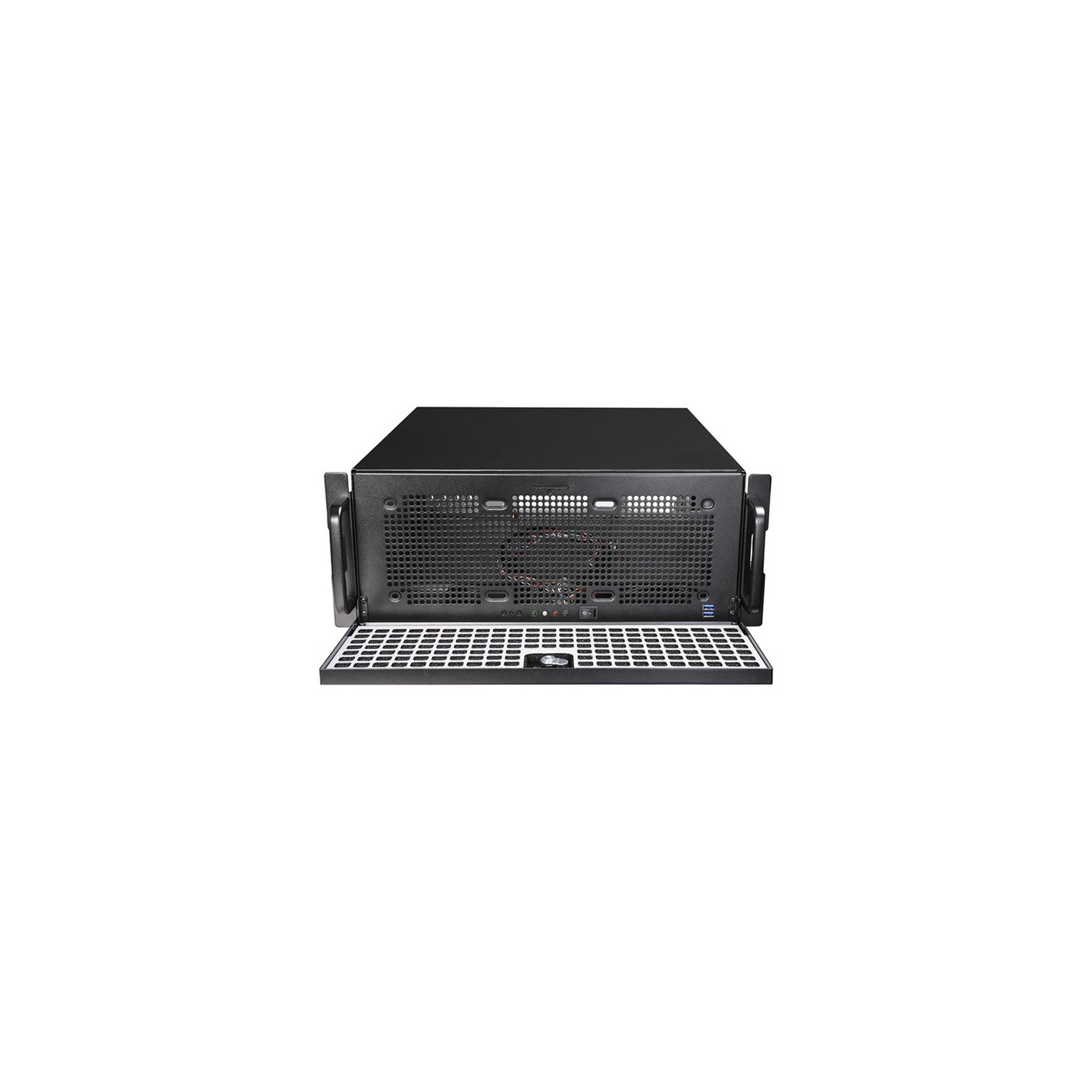

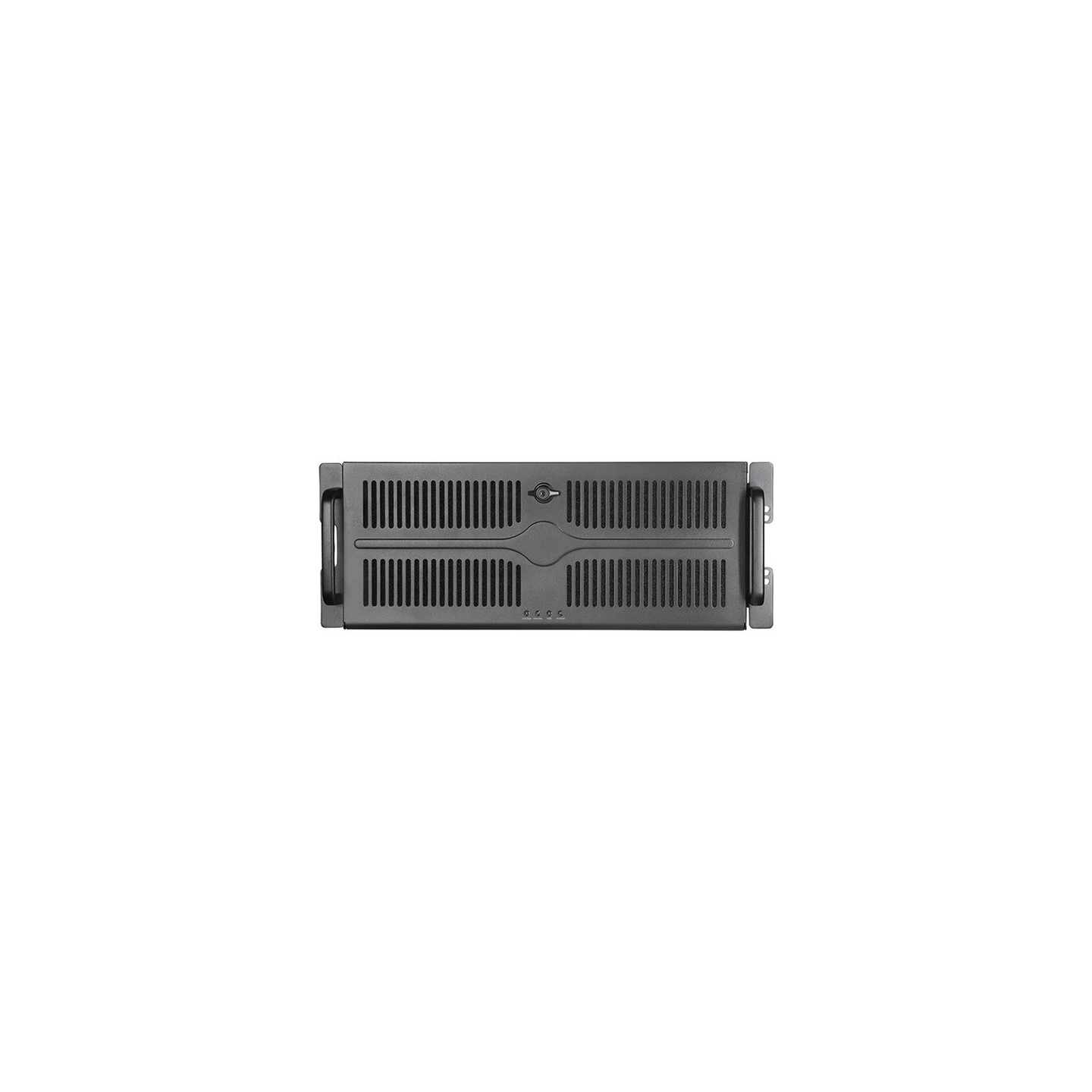

Chieftec UNC-409S-AIO-OP 4U Rackmount Server Enclosure (Boxed)
Chieftec UNC-409S-AIO-OP is a 4U rackmount server chassis in 1.2mm SGCC steel. Supports 360mm AIO cooler, SSI-EEB motherboards, ATX/redundant PSU. 7 slots, 2x3.5"+2x2.5" bays, optional fans.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 360 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | USB A |
| PC Cases - Form Factor | Rackmount 4U |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | Up to 150 mm |

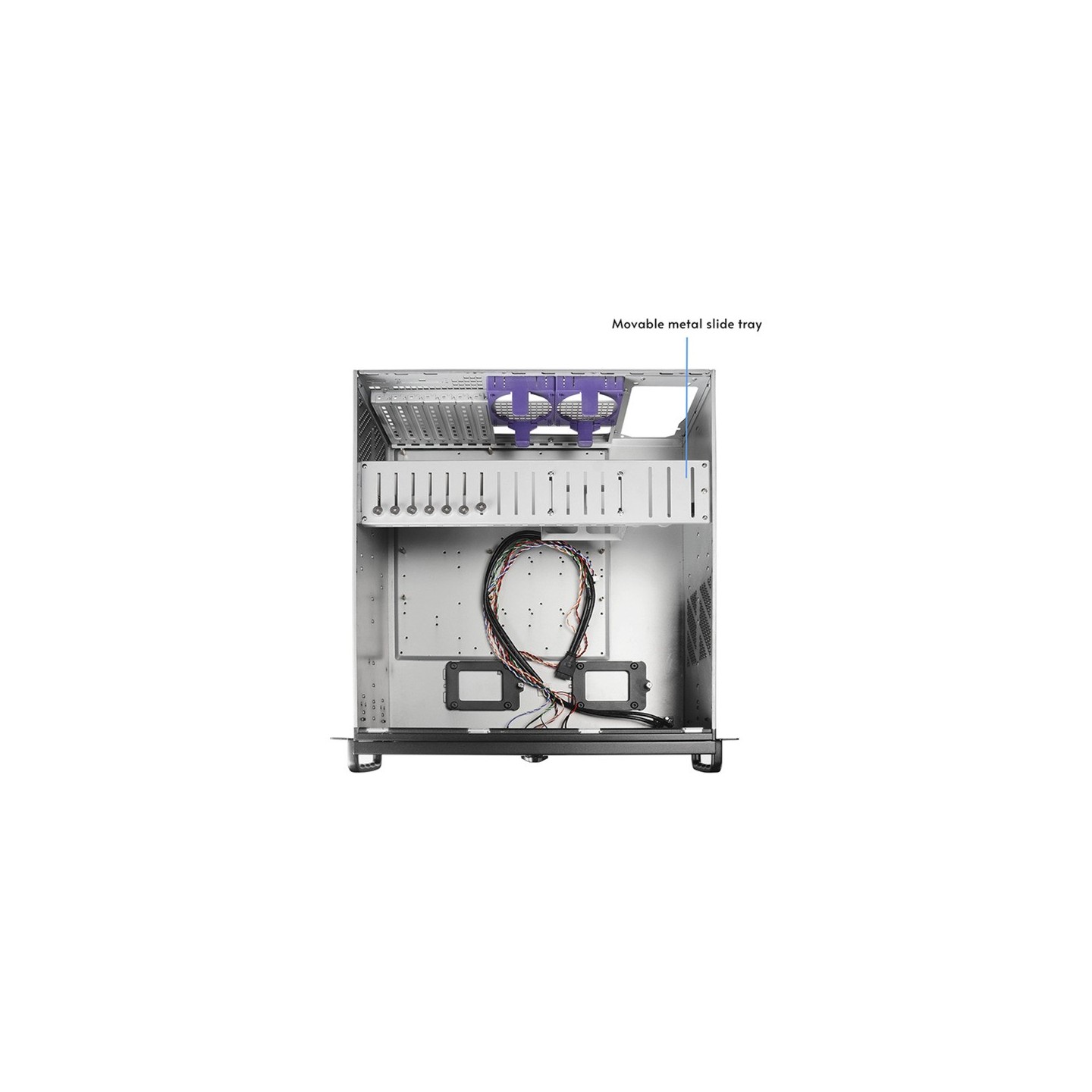

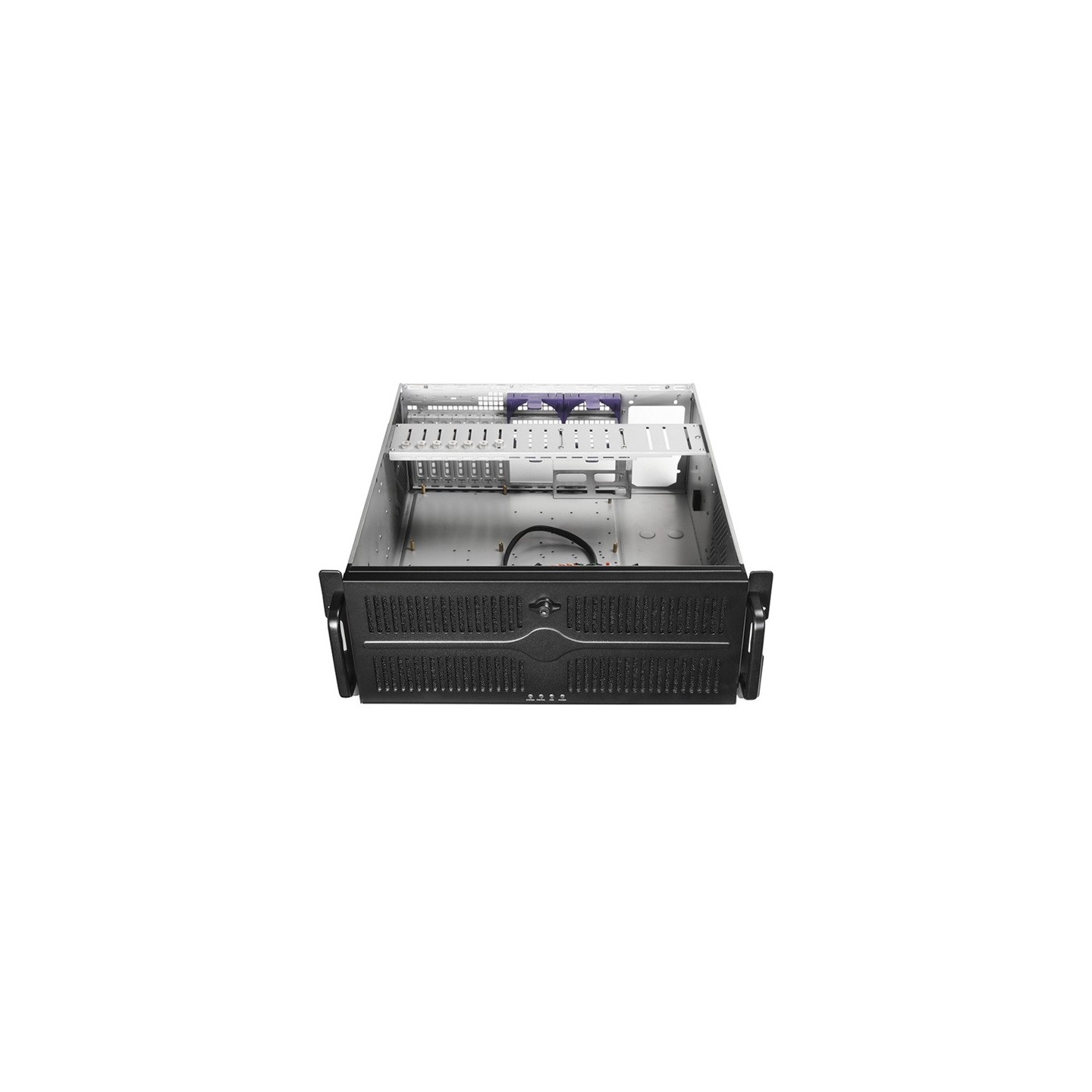

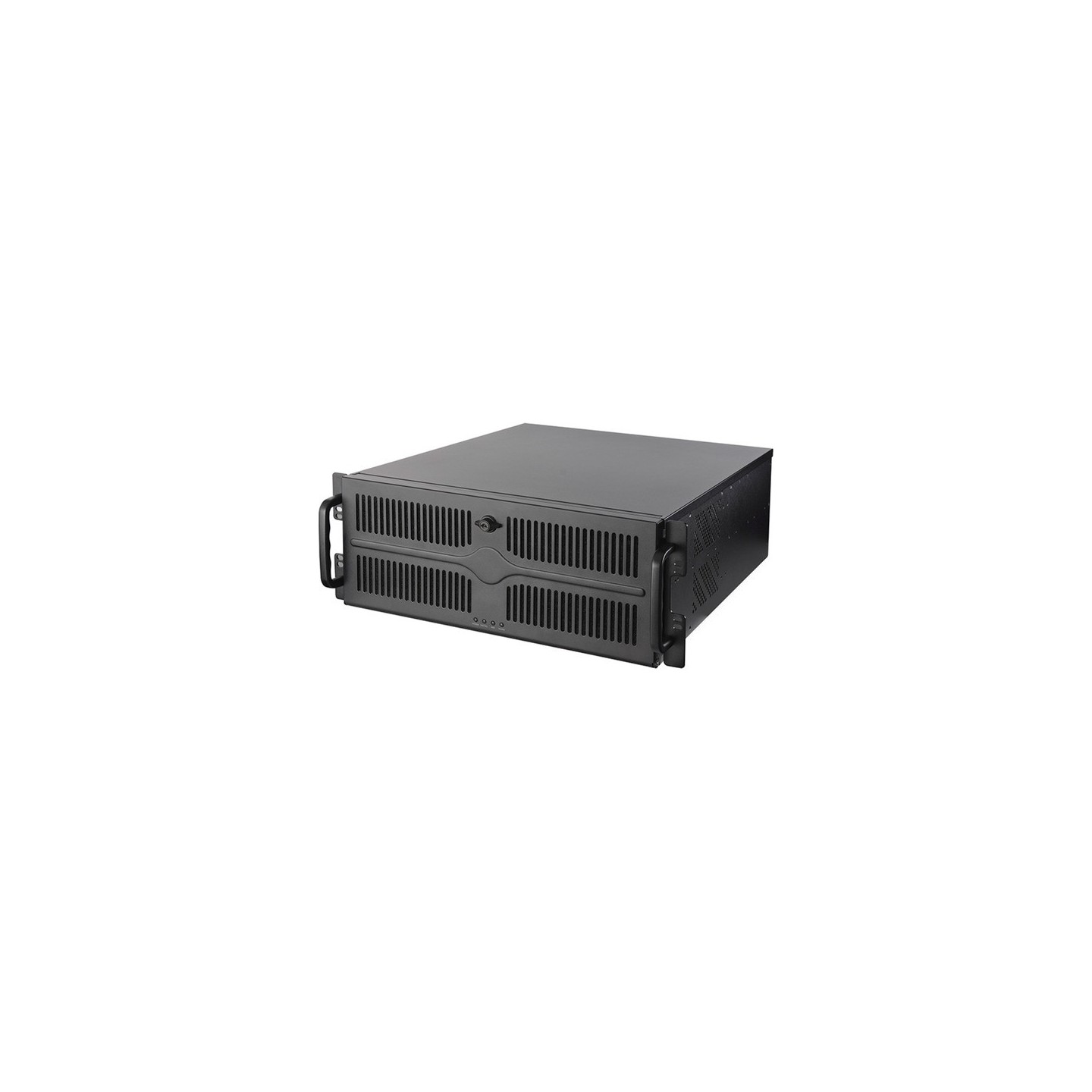

The Chieftec UNC-409S-AIO-OP 4U rackmount chassis delivers reliable performance in industrial environments. Constructed from durable 1.2mm SGCC steel, it provides robust hardware protection and flexibility for diverse configurations.

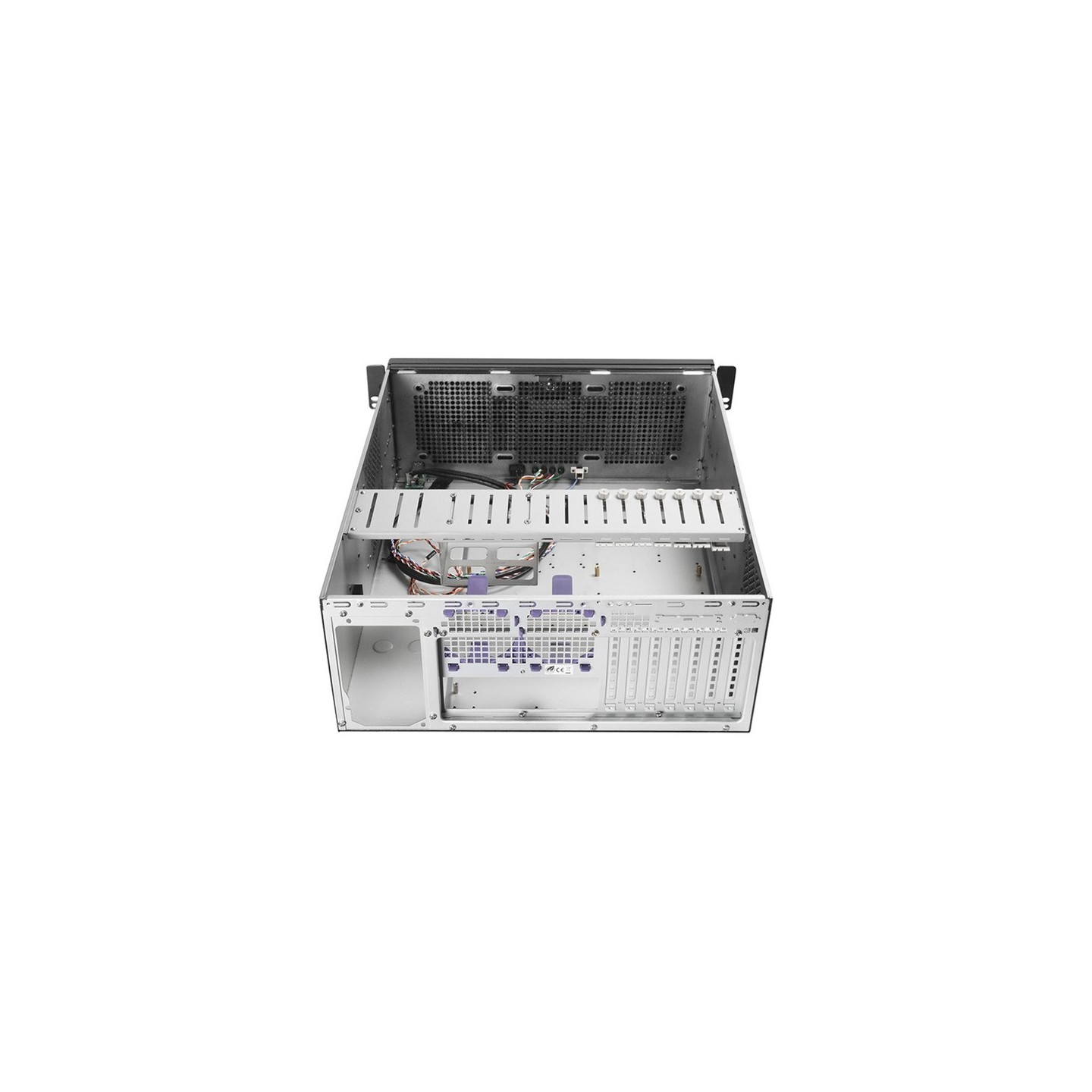

Key features include support for a 360mm AIO water cooling system for superior CPU cooling, compatibility with SSI-EEB and other motherboard form factors, and options for standard ATX or mini-redundant PSUs. It offers 7 full-size expansion slots, internal drive bays for 2x 3.5" and 2x 2.5" drives, and front I/O with 2x USB 3.2 Gen 1 ports. Cooling is enhanced by mounts for 3x 120mm front fans or 360mm radiator and 2x 80mm rear fans (fans optional).
- Motherboard support: ATX, E-ATX, µATX, Mini-ITX, SSI-CEB, SSI-EEB
- Max GPU length: 450mm
- CPU cooler height: 70mm (with 3.5" drives)
- Includes: Screw set, 7x PCI-E guide rails, PCI-E card holder
- Power supply: Optional ATX or 1+1 redundant (kit not included)
| Type | Rack, server enclosure |
| Color | Black |
| EAN | 0753263079213 |
| Manufacturer no. | UNC-409S-AIO-OP |
| Manufactured in | Taiwan |
| Design | Rack |
| Motherboard Form Factor | ATX, E-ATX, µATX, Mini-ITX, SSI-CEB, SSI-EEB |
| Material | 1.2mm SGCC Steel |
| Internal dimensions - plug-in card length | maximal 450 mm |

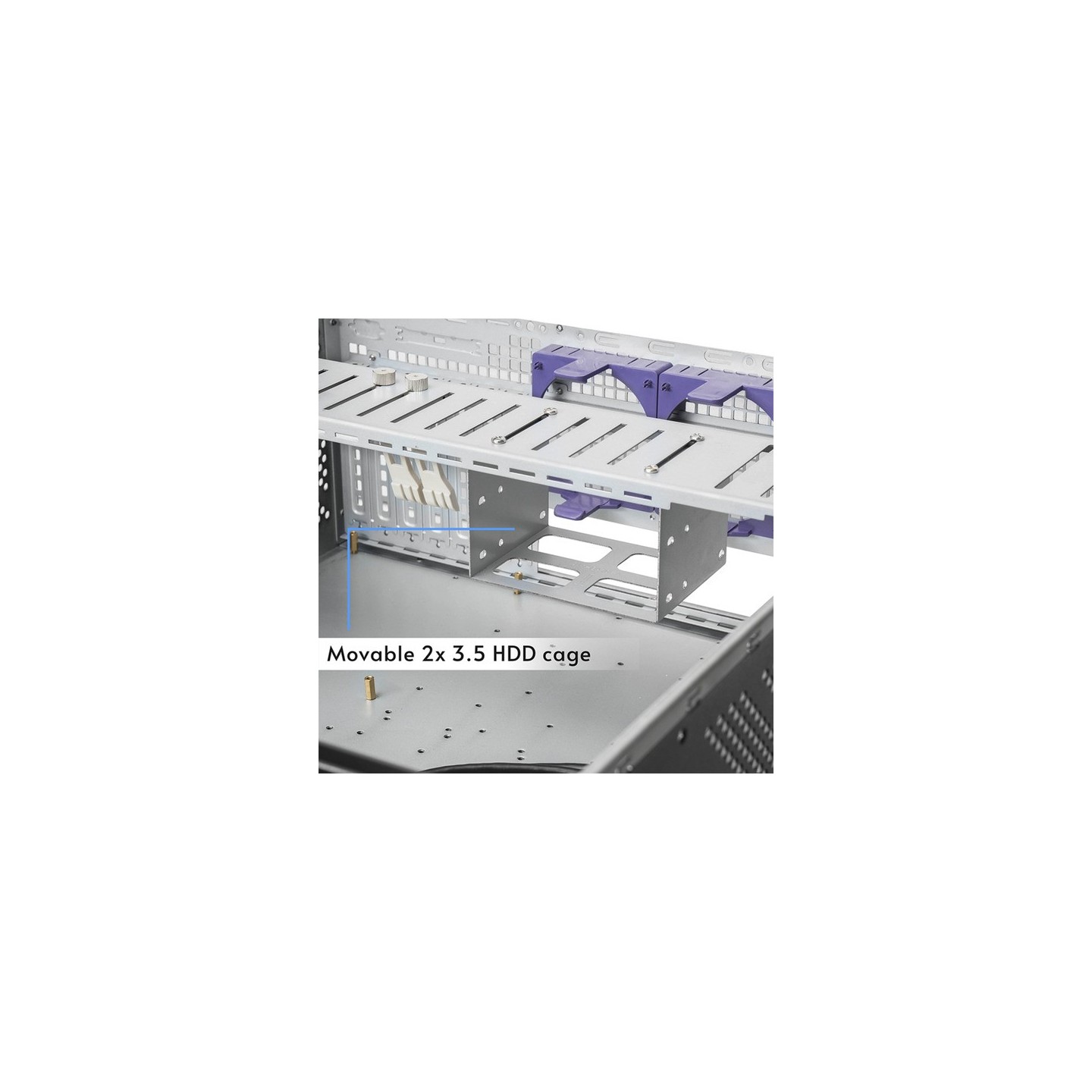

| Drive bays - 3.5 inches | internally 2 pieces |

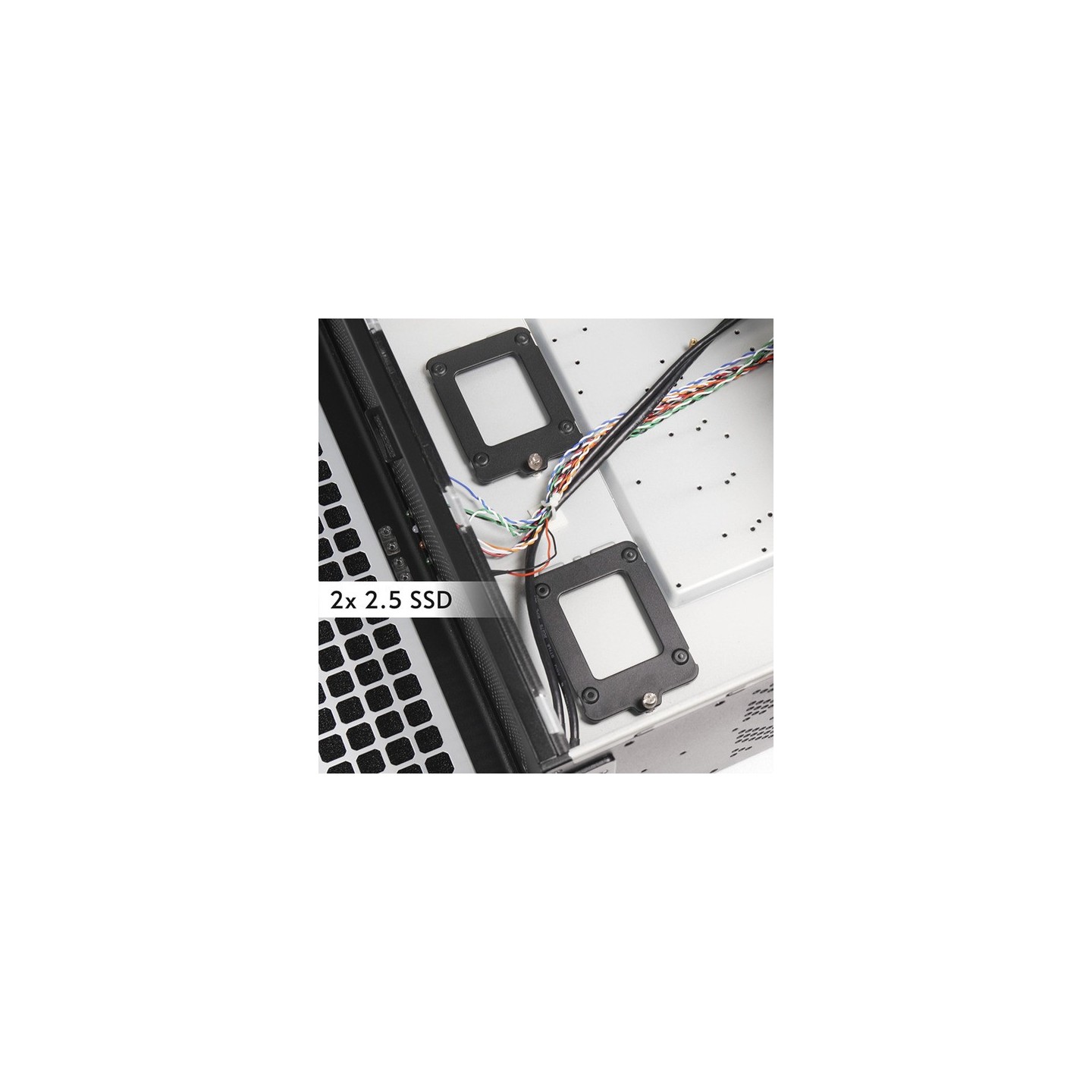

| Drive bays - 2.5 inches | internally 2 pieces |
| Slots - Full-Size | 7 pieces |
| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |
| Front fan mounts | 3 x 120 mm fans can be installed |

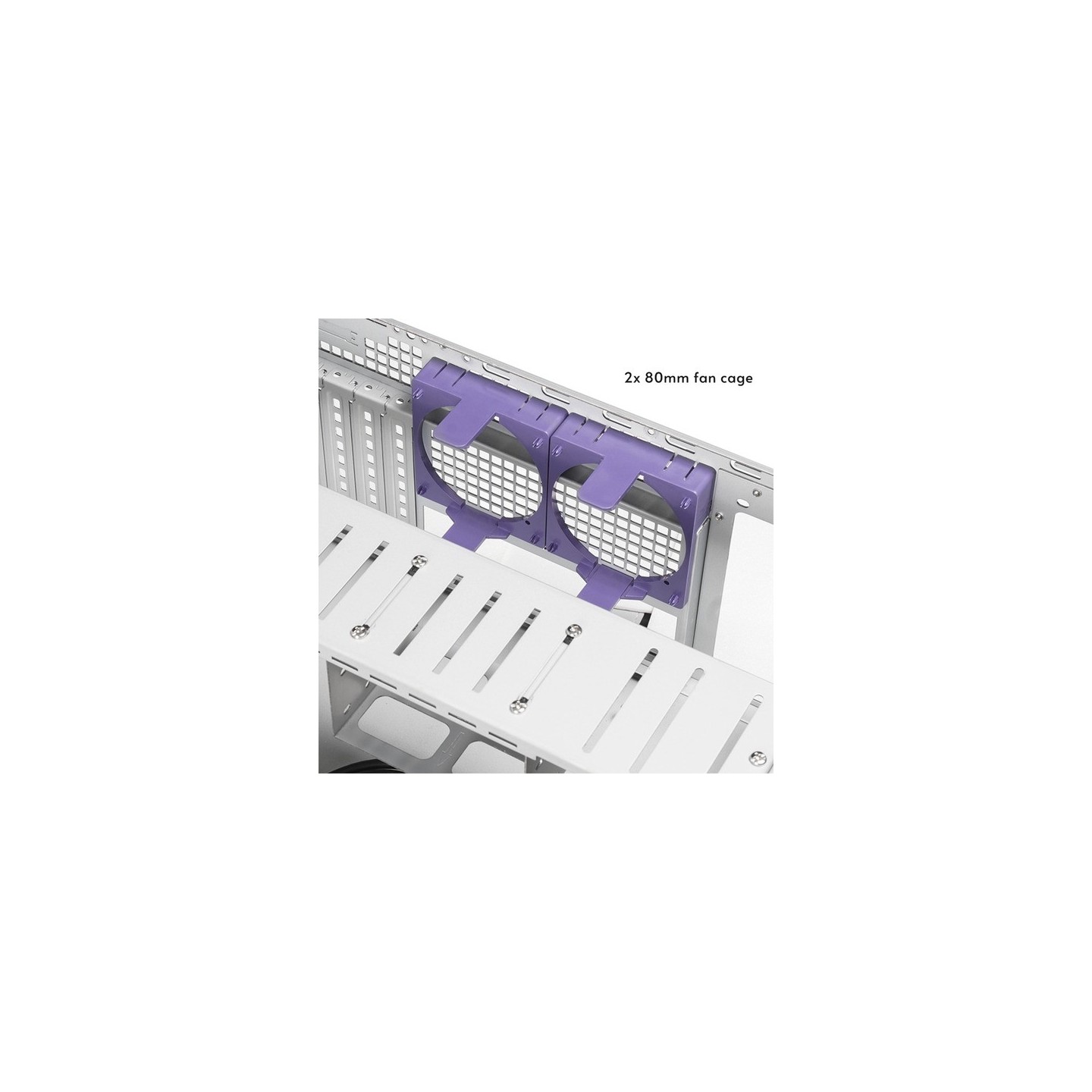

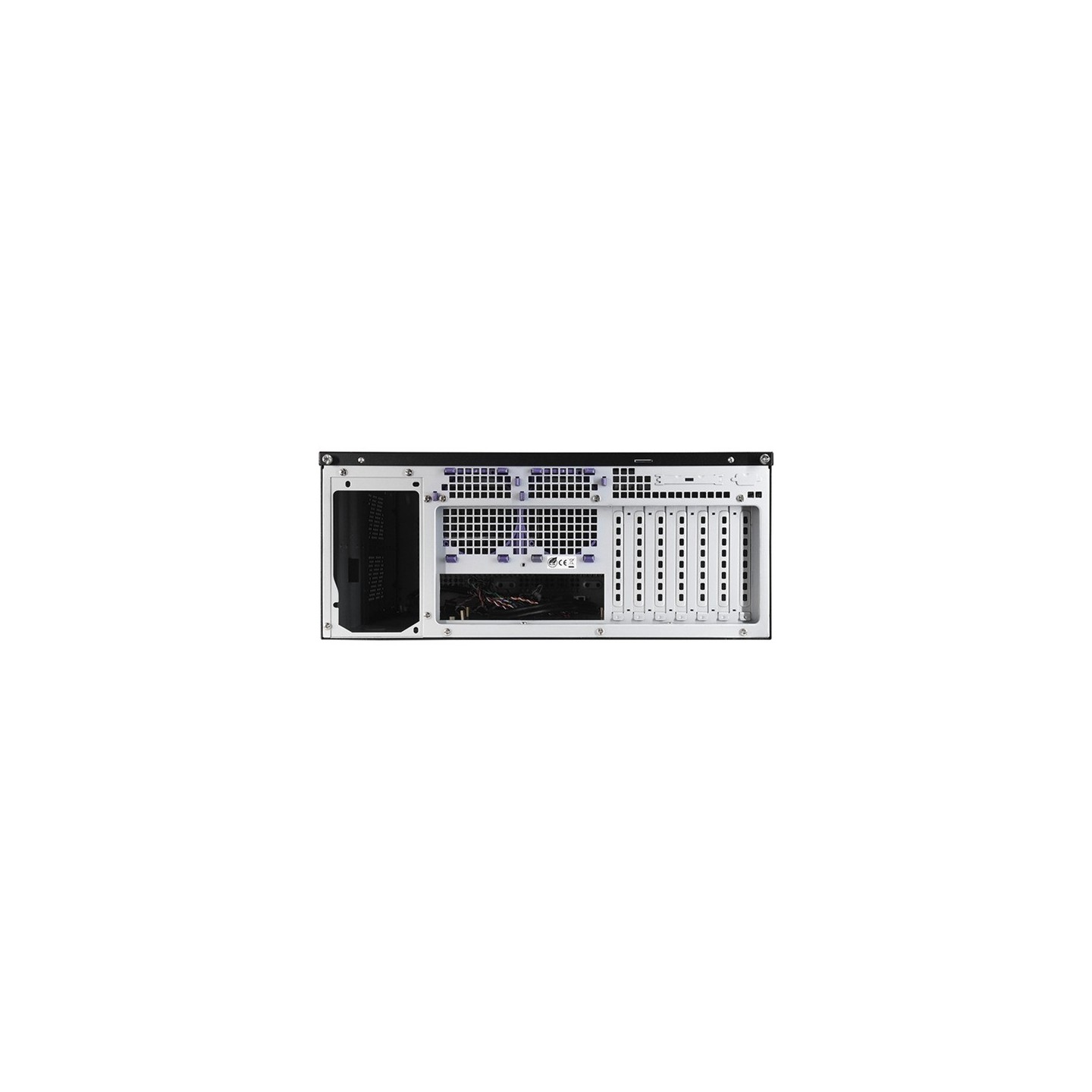

| Rear fan mounts | 2 x 80 mm fans can be installed |
| Included Fans | 0 |
| CPU cooler height (max.) | 70 mm with 3.5 |
| Water cooling possible | 360 mm radiator |
| Rear connection of the mainboard | No |
| Power supply | Optional standard ATX power supply or 1+1 redundant power supply (mounting kit not included) |

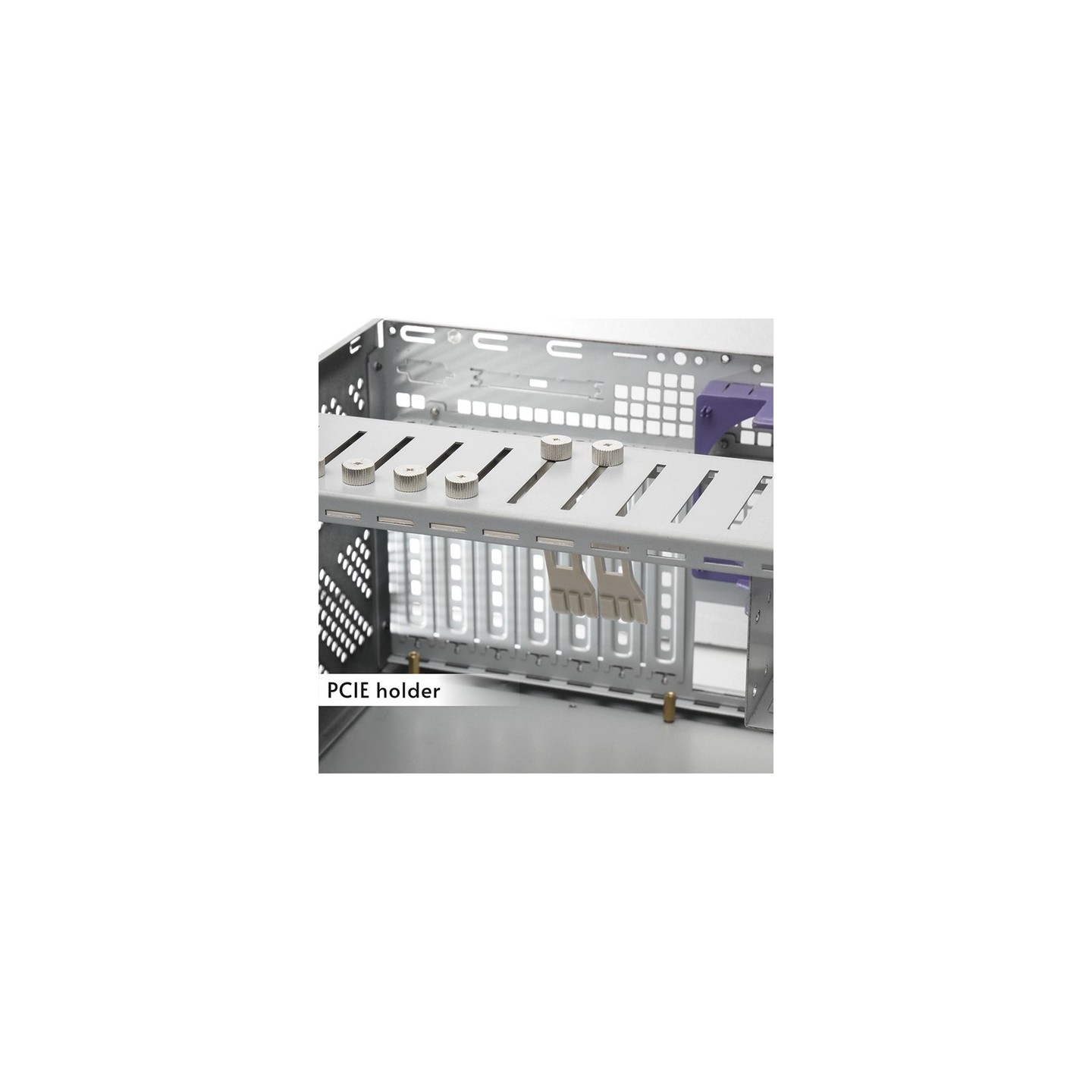

| Accessories - available | Screw set, 7× PCI-E guide rails, PCI-E card holder |
| Volume | 36 l |
| Dimensions | Width: 42.7 cm x Height: 17.68 cm x Depth/Length: 48 cm |
| Weight | 9.7 kg |
