IPC Server Enclosure - 2U-K-240L - Server Enclosure (Boxed)
The Inter-Tech 2U-K-240L is a robust 2U rackmount server enclosure with steel construction, removable drive cages for up to 4x 3.5in + 2x 2.5in HDDs, 1x 5.25in bay, 2x pre-installed 80mm front fans, Micro-ATX support, and 2x USB 3.2 Gen1 ports.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Rack Shelves & Drawers - Product Type | Other |
|---|---|
| Rack Shelves & Drawers - Size (U) | 2U |
| Rack Shelves & Drawers - Mounting Depth | Other |
| Rack Shelves & Drawers - Vented | Yes |
| Rack Shelves & Drawers - Weight Capacity | Up to 50 kg |

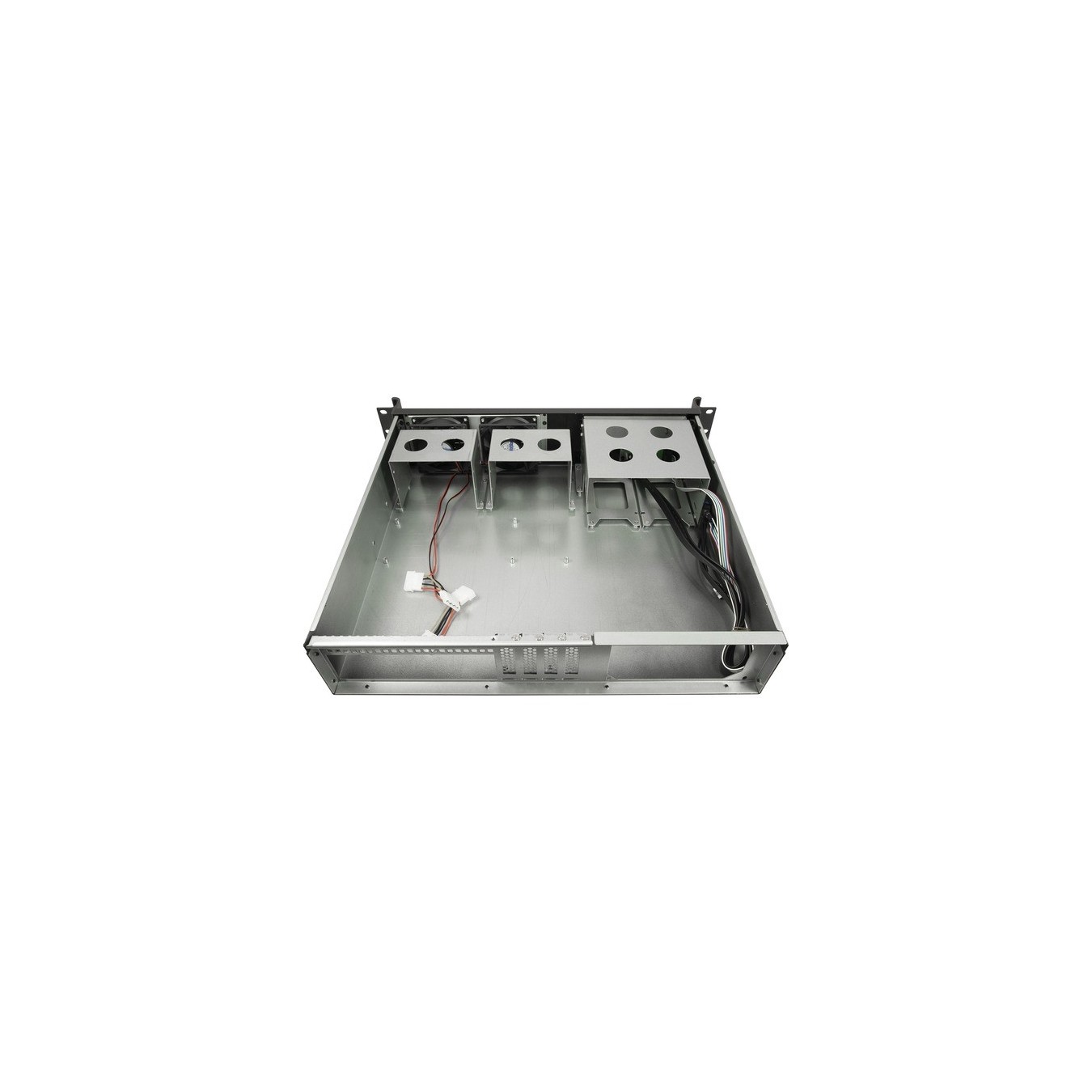

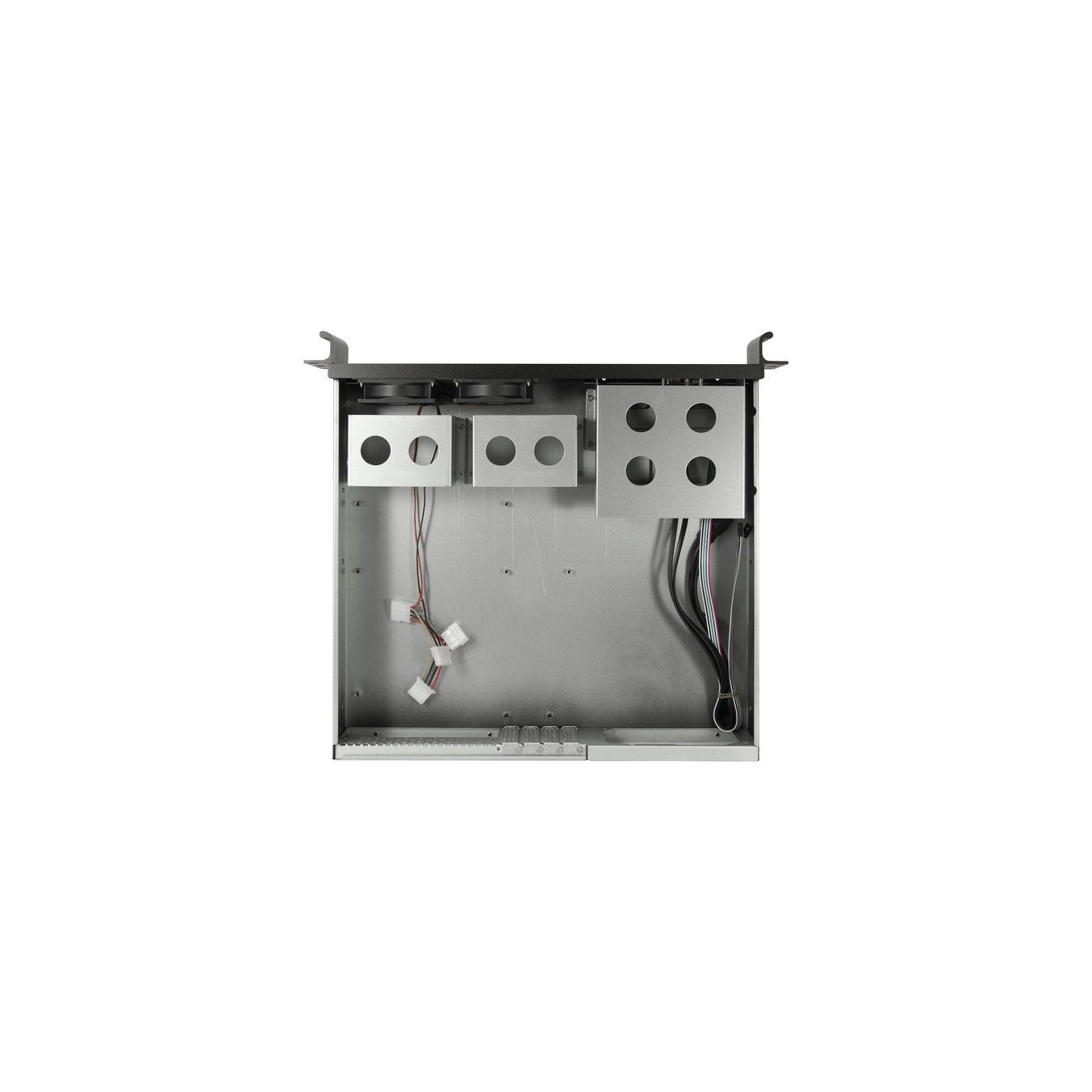

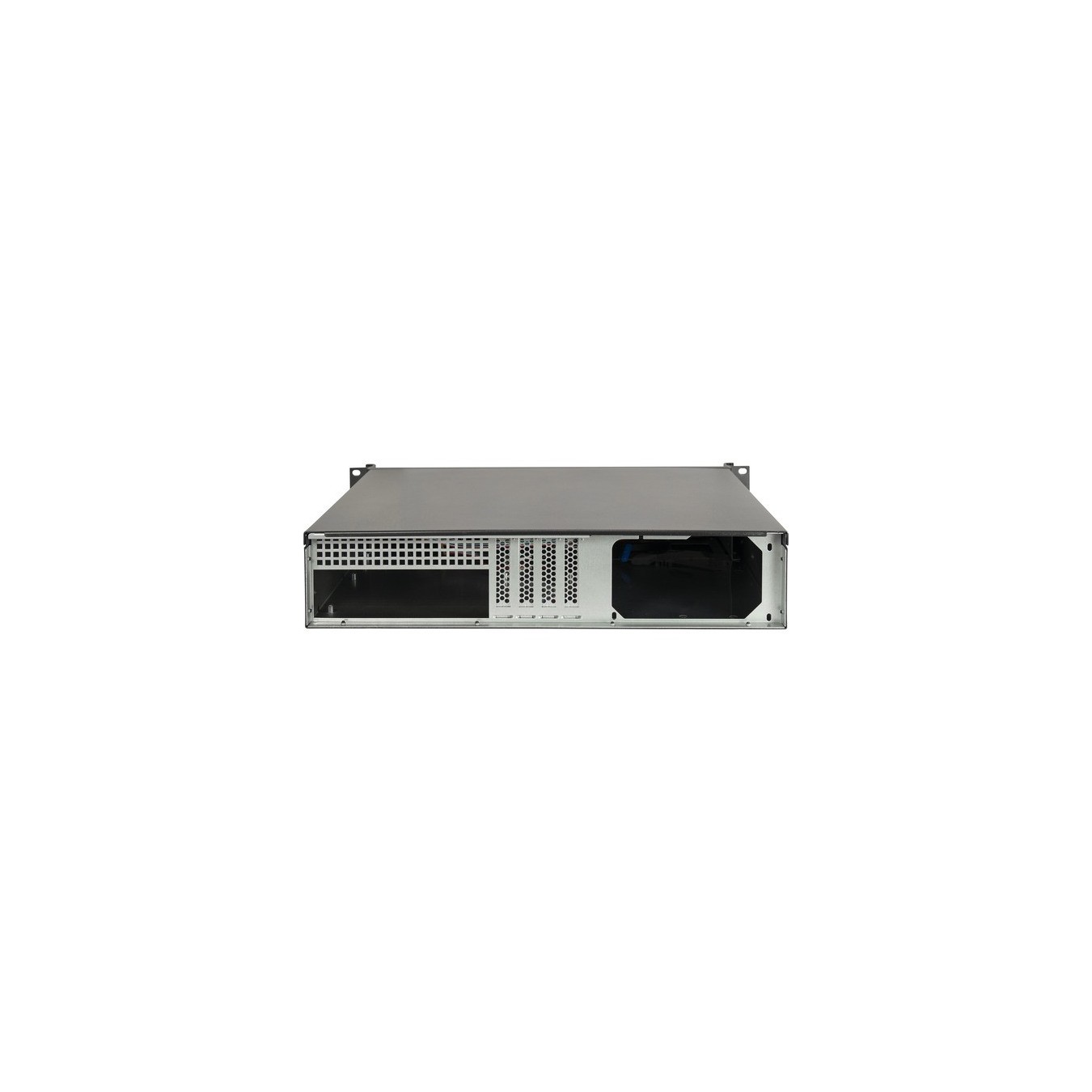

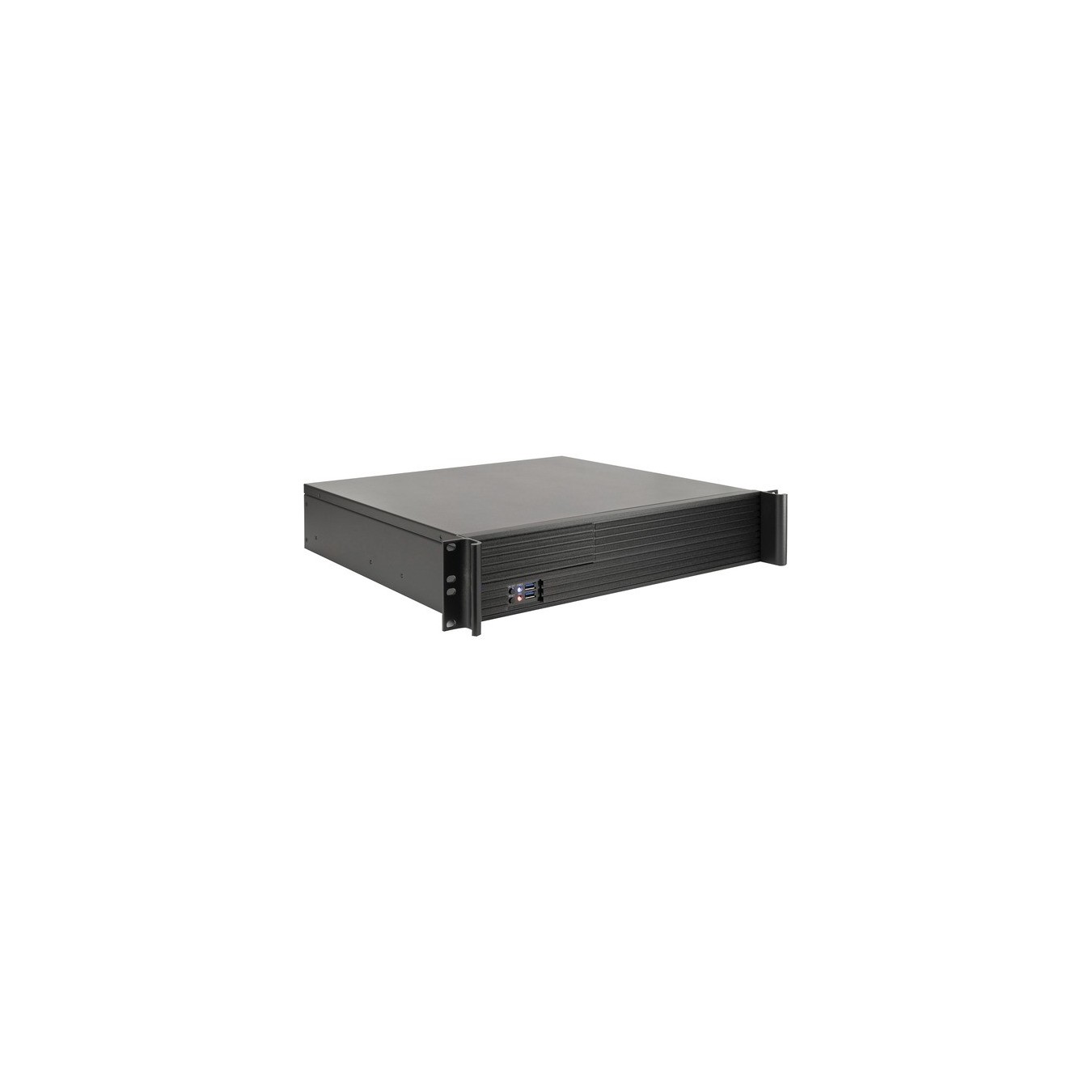

The Inter-Tech 2U-K-240L IPC server enclosure provides cost-effective rack housing for mini server systems. Built with high-quality 1.0-1.2mm steel and an aluminum front panel, it supports Micro-ATX or Mini-ITX mainboards up to 244x244mm, ATX power supplies with 80mm fans, and low-profile expansion cards up to 244mm.
It features removable internal drive cages for flexibility: up to four 3.5-inch HDDs, two 2.5-inch drives, and one external 5.25-inch bay. Cooling is handled by two pre-installed 80mm front fans (Molex), with space for two 60mm rear fans. Front I/O includes two USB 3.2 Gen1 ports, and it comes with four perforated low-profile slot brackets.
Ideal for 19-inch racks or desktop use, this compact 19L chassis measures 482 x 433 x 89mm and weighs 5.35kg net. Includes screw assortment for easy assembly.
- Mainboard: Micro-ATX / Mini-ITX (max 244mm)
- Drives: 1x 5.25in external, 4x 3.5in internal, 2x 2.5in internal
- Cooling: 2x 80mm front fans pre-installed

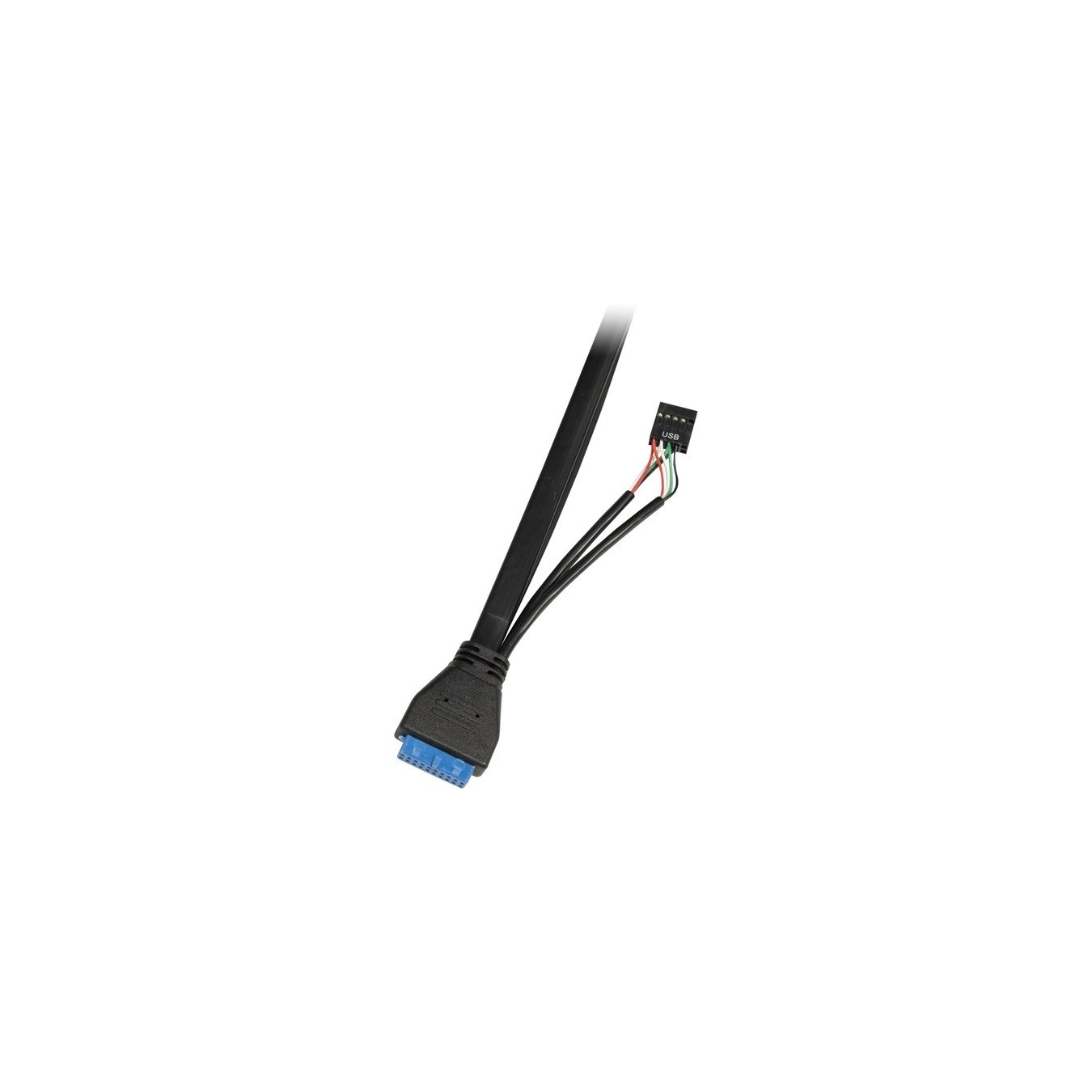

- Front I/O: 2x USB-A 3.2 Gen1
- Expansion: 4x low-profile slots
| Type | Server enclosure |
| Color | Black |
| EAN | 4260455646383 |
| Manufacturer no. | 88887331 |
| Design | Rack |
| Mainboard Form Factor | Micro-ATX / Mini-ITX (max. 244 x 244 mm) |
| Material | 1.0-1.2mm steel, aluminum front |
| Internal dimensions - plug-in card length | maximal 244 mm |
| Drive bays - 5.25 inches | external 1 piece |
| Drive bays - 3.5 inches internal | 4 |
| Drive bays - 2.5 inches internal | 2 |
| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |
| Front fans | 2 x 80mm fans pre-installed |
| Rear fans | 2 x 60 mm can be installed |
| Notes | Removable drive cages, 4 perforated low-profile slot plates |
| CPU cooler max height | 60 mm |
| Volume | 19 l |
| Dimensions (WxHxD) | 482 x 89 x 433 mm |
| Weight (net) | 5.35 kg |
