airMAX - 5 GHz, 90°, 17 dBi Sector Antenna
Ubiquiti airMax 5 GHz sector antenna for PtMP networks, 90° beam with 17 dBi gain and 2x2 dual polarity performance.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Ubiquiti airMax is a 5 GHz, 90°, 17 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks with 2x2 dual polarity performance.
| Typ | Antenna |
| Color | silber |
| EAN | 0810354020902 |
| Manufacturer no. | AM-5G17-90 |
| Execution | Sector Antenna |
| Antenna type | WLAN |
| Area of application | Outside |
| Antenna - reception frequency | 5.1 GHz - 5.85 GHz |
| WLAN - Art | (5 GHz) |
| More information | HPOL beamwidth: 137° (6 dB), VPOL beamwidth: 118° (6 dB), Gain: 15 - 16 dBi, Max. VSWR: 1.5:1, Polarization: Dual-Linear, Cross-Pole Isolation: 22 dB Min. |
| Notice | Compatible with Rocket Prism 5AC |

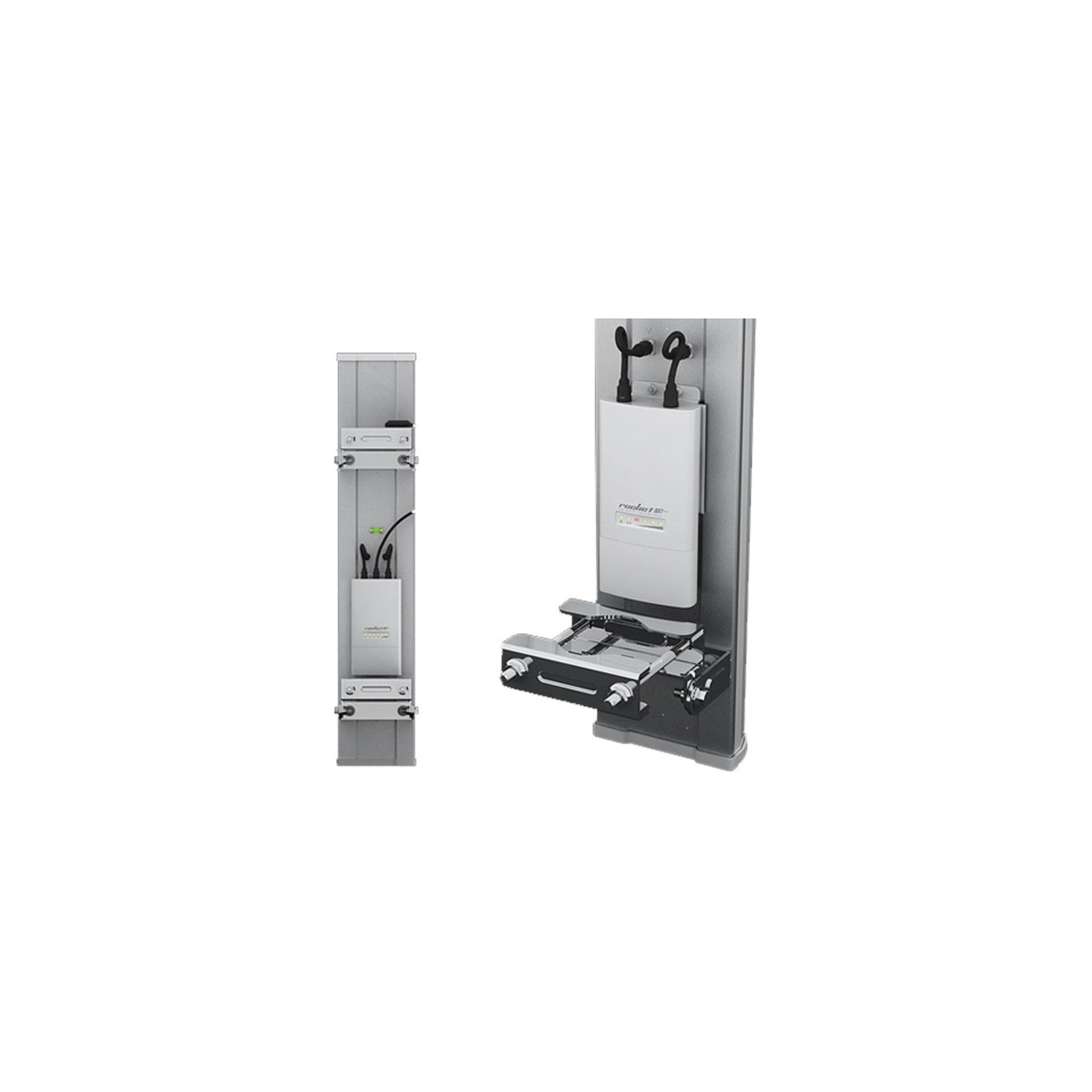

| Accessories - available | Universal Pole Mount, RocketM Mount, Weatherproof RF Jumpers |
| dimension | Width: 63mm x Height: 367mm x Depth/Length: 41mm |
| Weight | 1100 Gramm |
