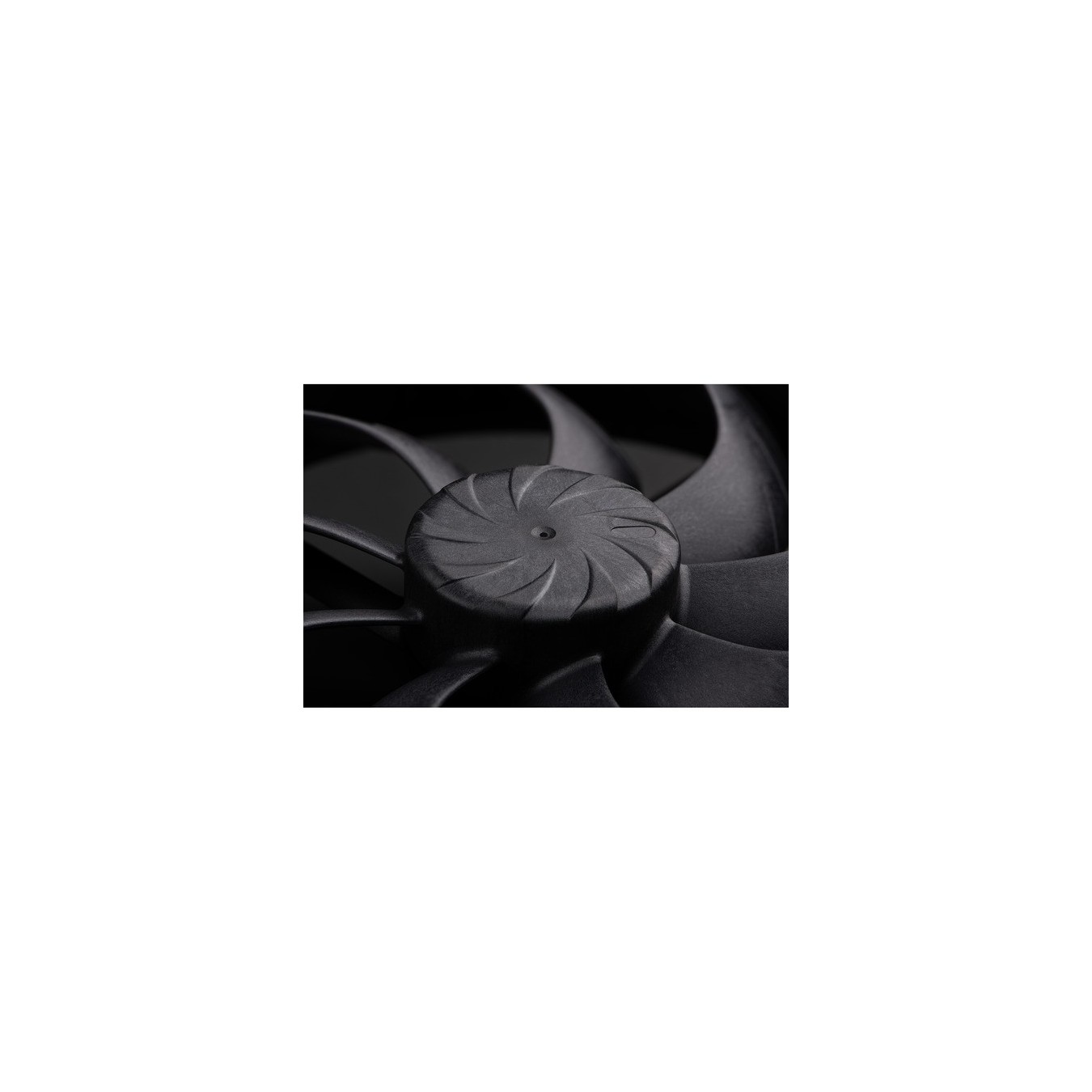

Case Fan - NF-A14x25r G2 PWM Sx2-PP - chromax.black

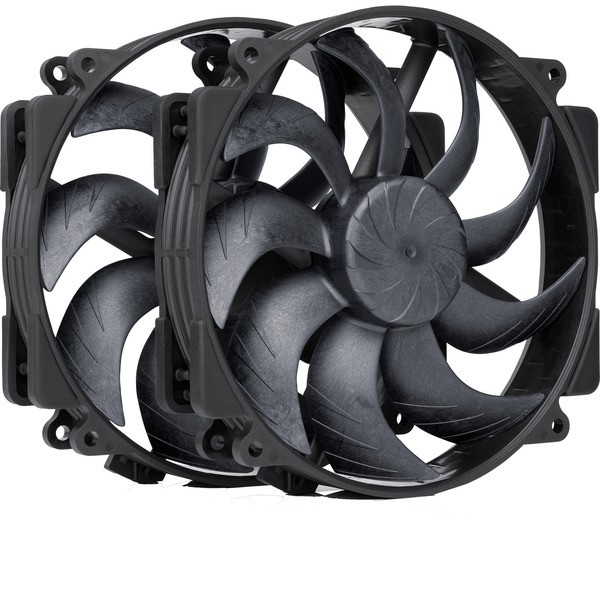

Two NF-A14x25r G2 PWM Sx2-PP chromax.black 140mm case fans delivering silent cooling with advanced aerodynamics; ideal for push-pull CPU coolers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Fan Size | 140 mm |
|---|---|
| Cooling (CPU & Case) - Lightning | None |

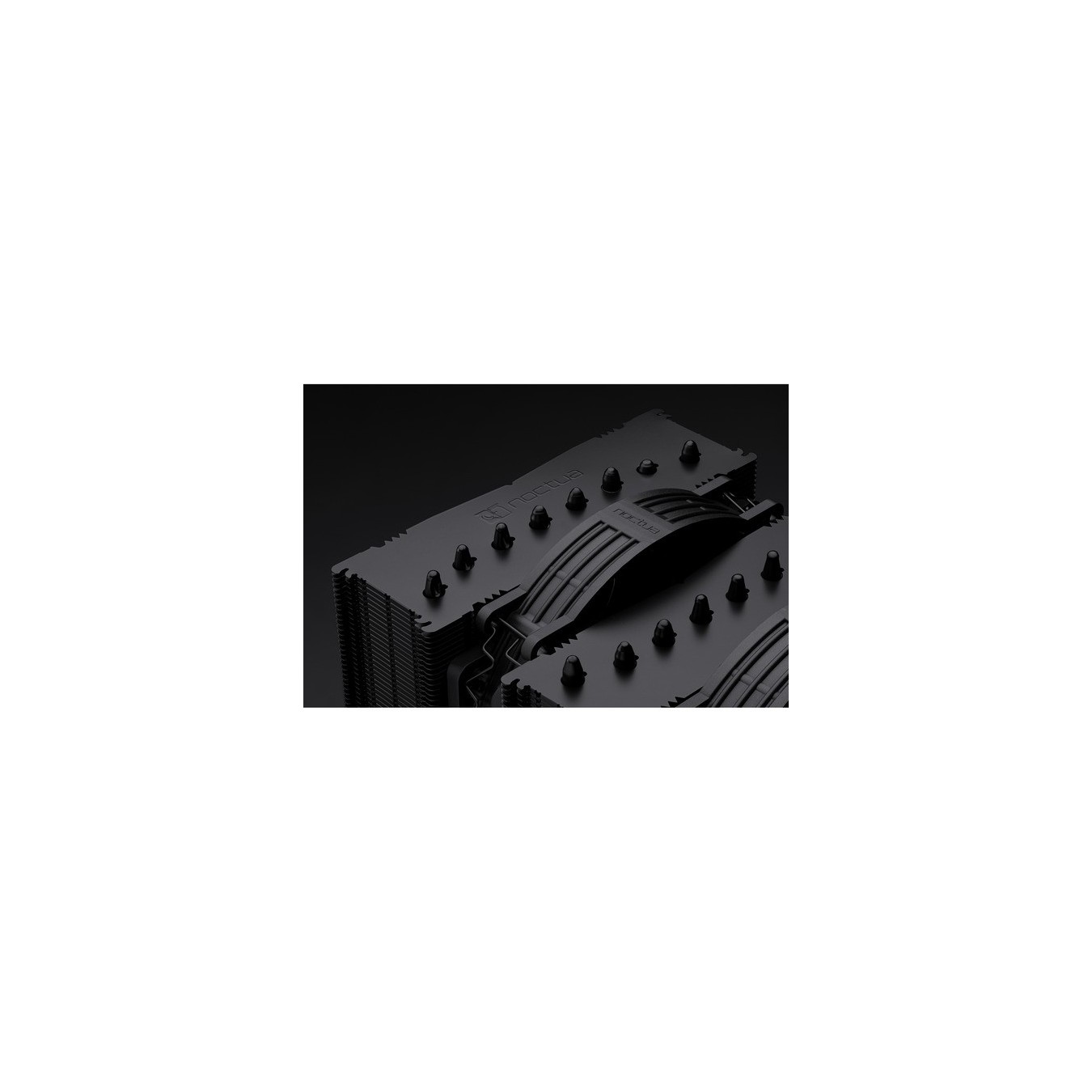

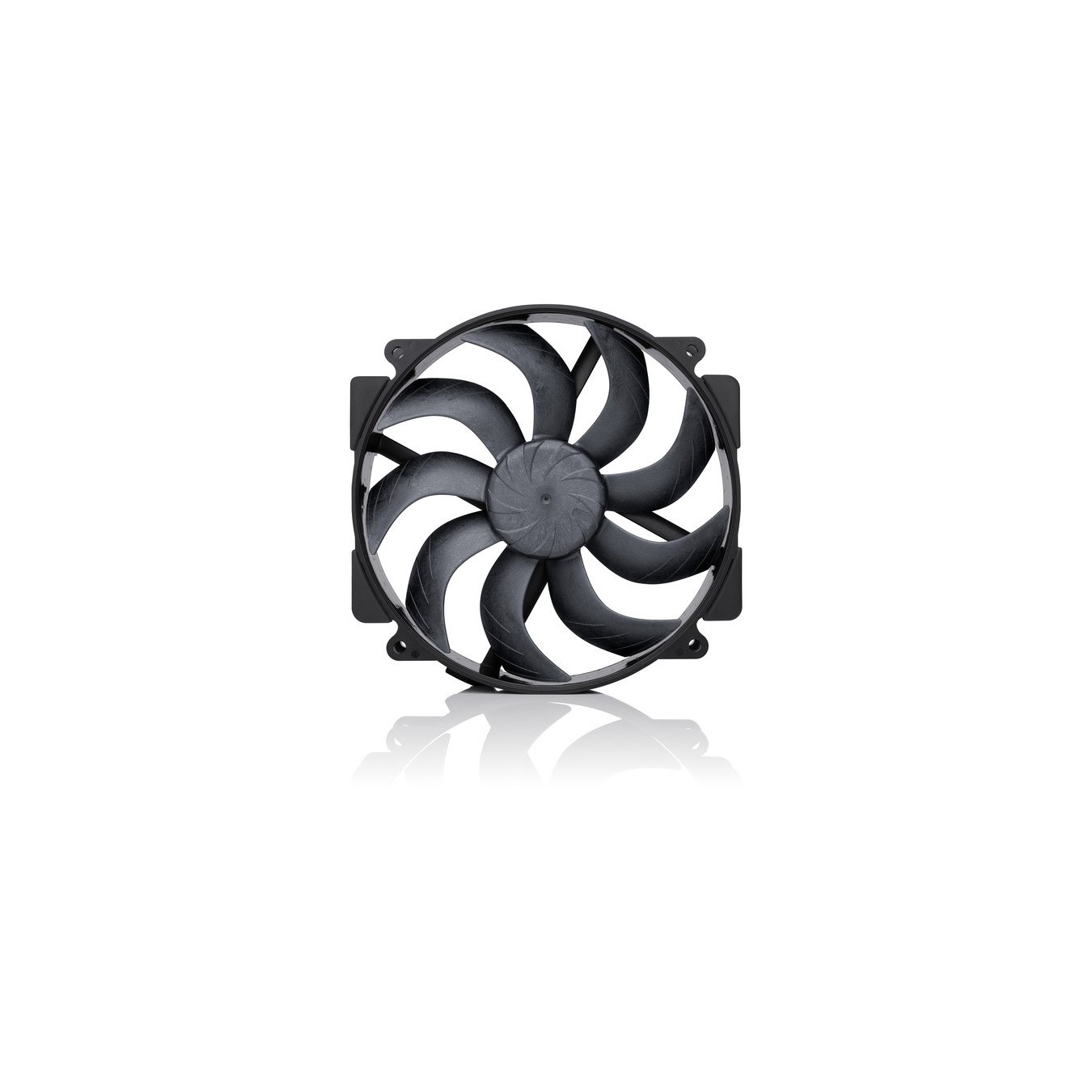

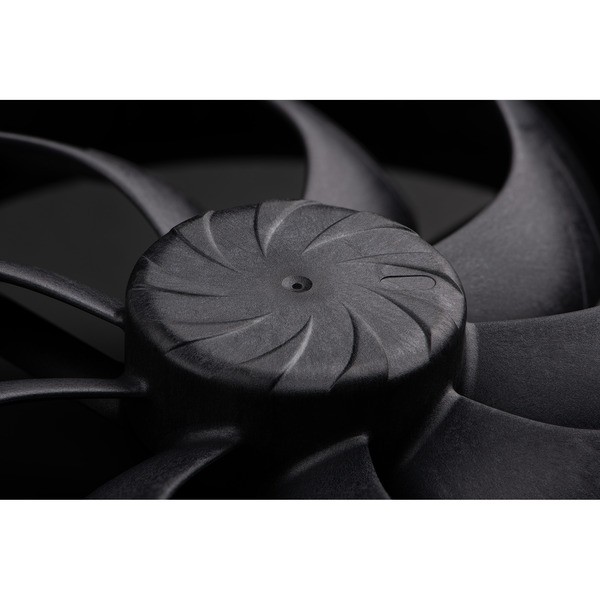

The NF-A14x25r G2 is a set of two highly optimized next-generation 140mm fans that set new records in silent cooling performance thanks to innovative aerodynamic design measures. This not only makes them the perfect choice for Noctua's next generation 140mm cooler, but also an excellent upgrade for existing models such as the NH-NH-D15(S) or NH-U14S (Sx2-PP set recommended for push/pull configurations). The 4-pin PWM version supports fully automatic speed control via PWM connections and is supplied with a low-noise adapter, which allows the maximum speed in PWM operation to be reduced from 1500 to 1250rpm. The overall package of the NF-A14x25r G2 PWM is rounded off by Noctua's reference class bearing SSO2 and a comprehensive accessory package.
| Typ | fan |
| Color | schwarz |
| EAN | 9010018100754 |
| Manufacturer no. | NF-A14x25r G2 PWM Sx2-PP chromax.black |
| Art | Case fan |
| Crowd | 2 pieces |
| Fastening | screwed |
| volume | 19.7dB to 24.8dB |
| speed | 1,250 bis 1,500 U/min |
| Fan storage | SSO 2 |
| Volume flow | 127,1 m³/h - 155,6 m³/h |
| Air pressure | From 1.3 mm/H2O to 2.56 mm/H2O |
| Power connection | 4-Pin-PWM |
| Voltage range | 12 Volt |
| Power consumption | 2,28 Watt |

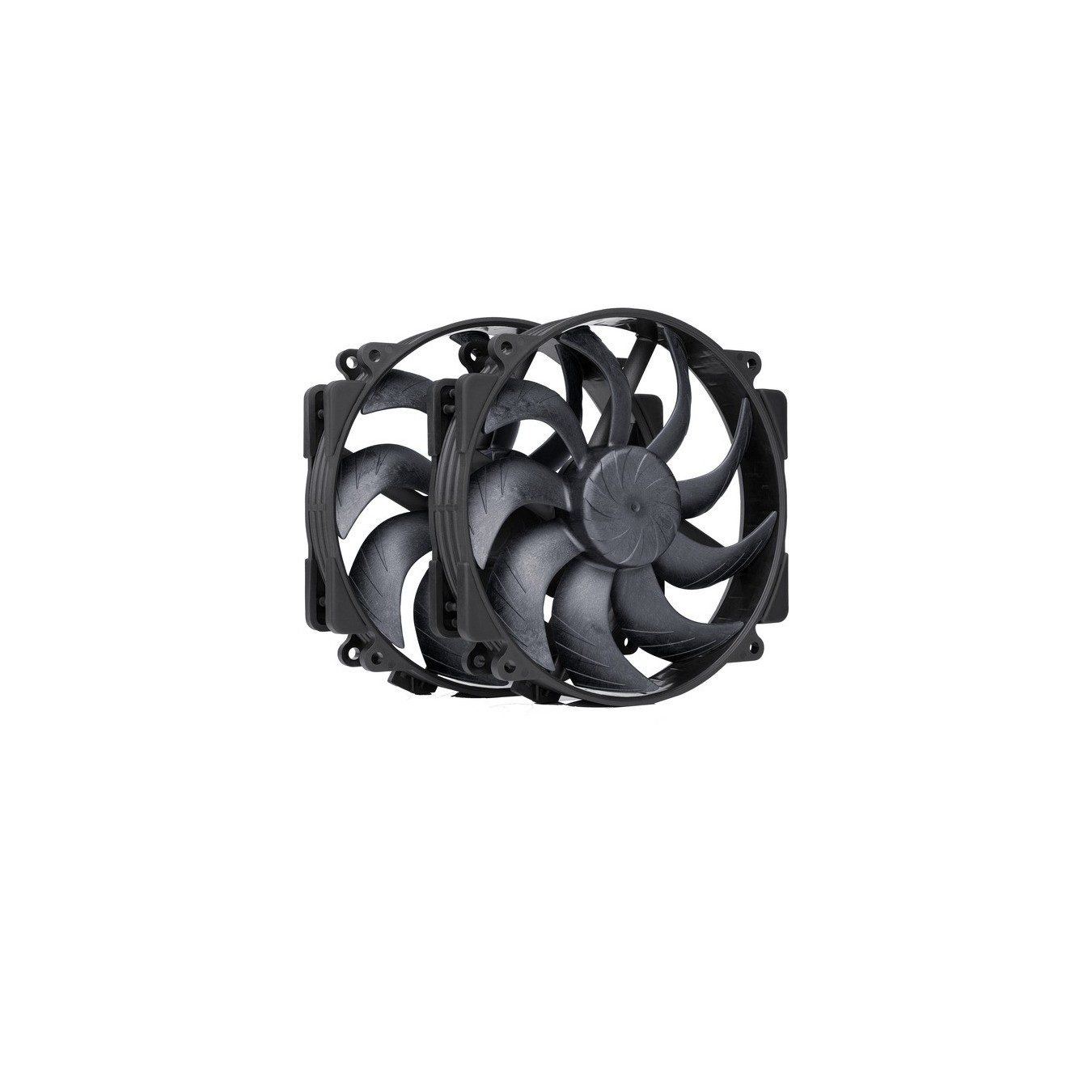

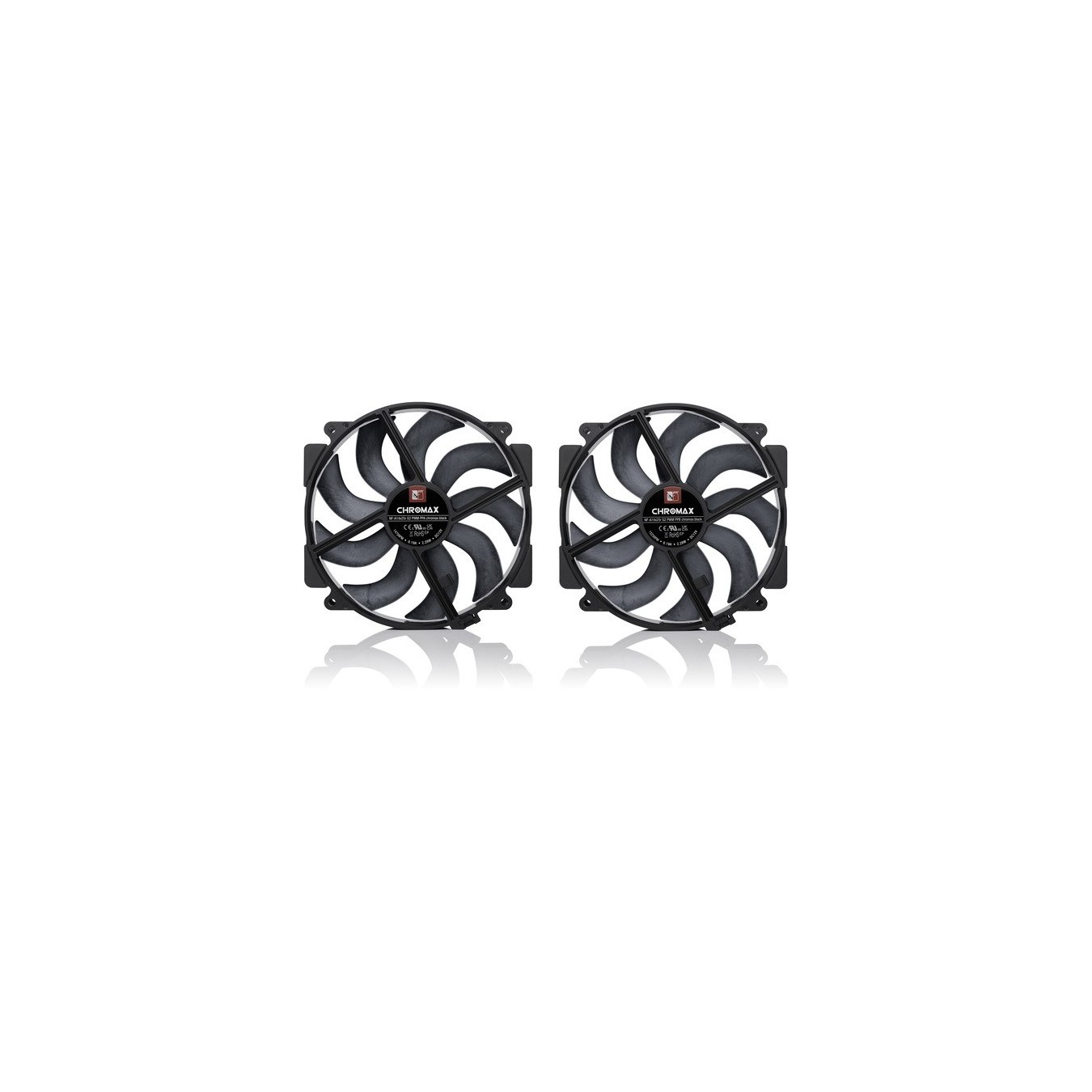

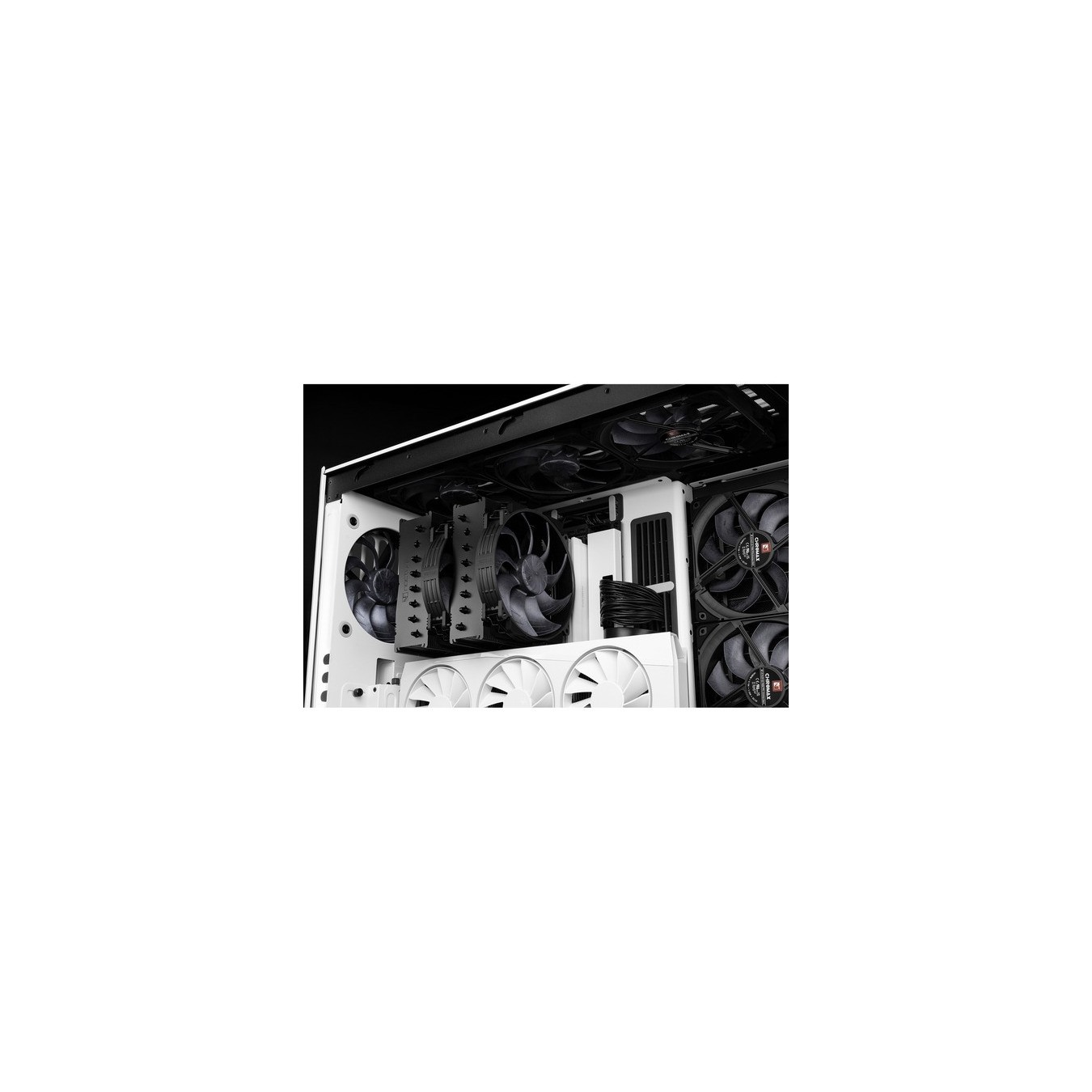

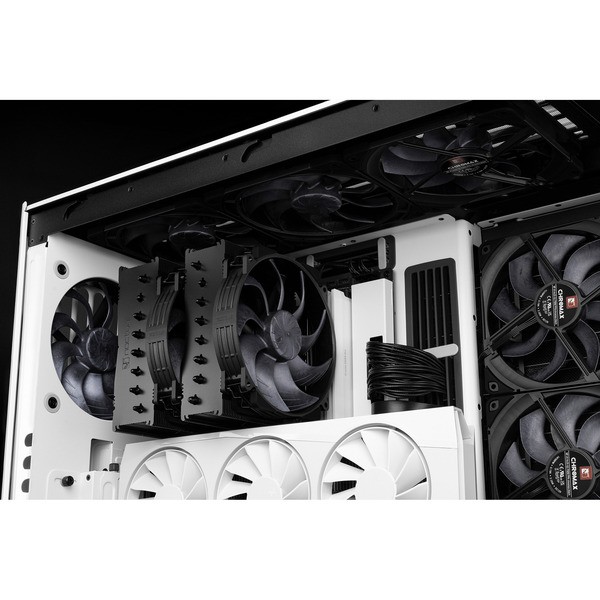

| More information | The Sx2-PP set includes two NF-A14x25r G2 PWM fans, the speed of which is offset by approx. +/- 25rpm to avoid unwanted acoustic interaction phenomena. This makes the set ideal for push-pull operation on 140mm CPU coolers such as the NH-D15(S) and NH-U14S. |
| Notice | A-Serie mit Flow Acceleration Channels |

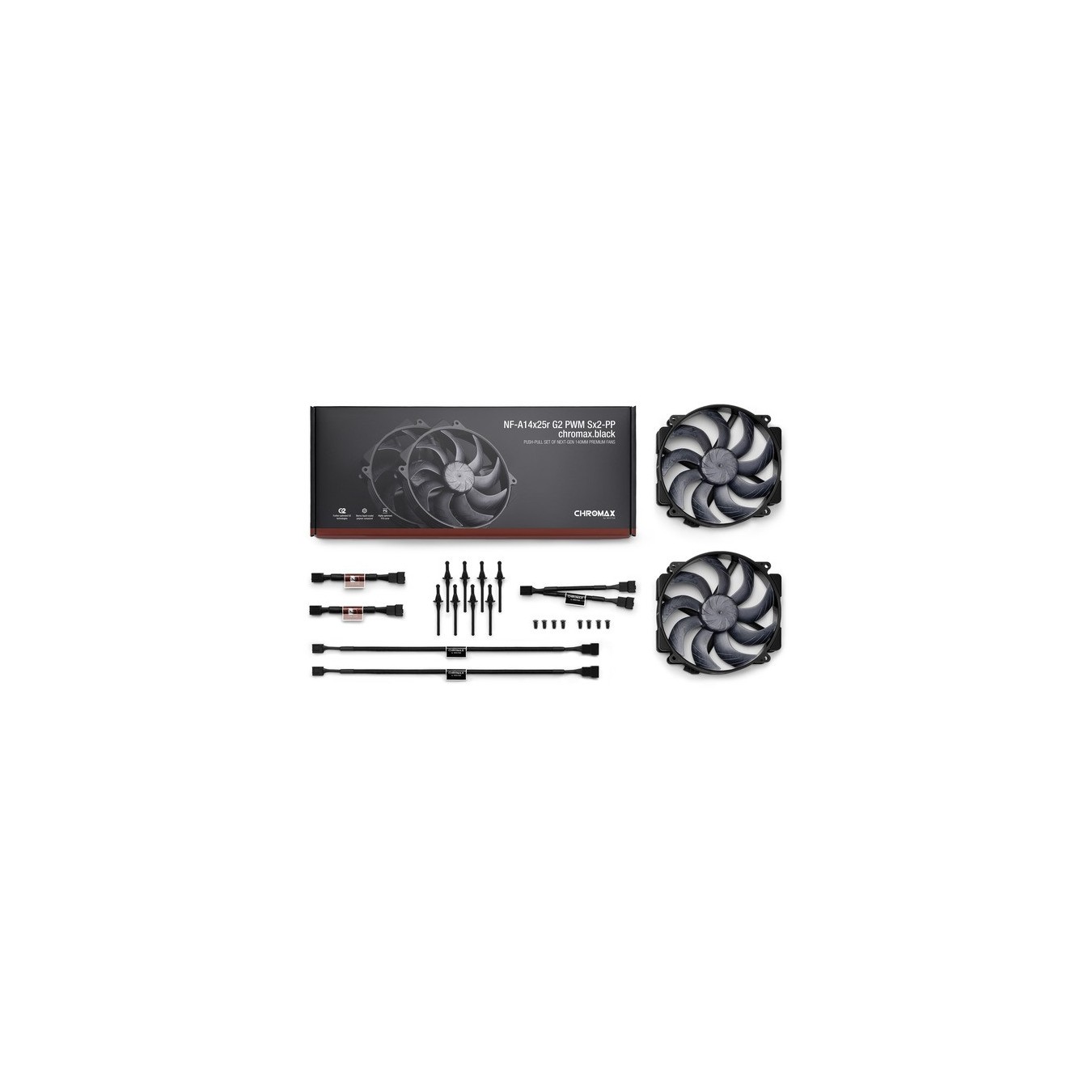

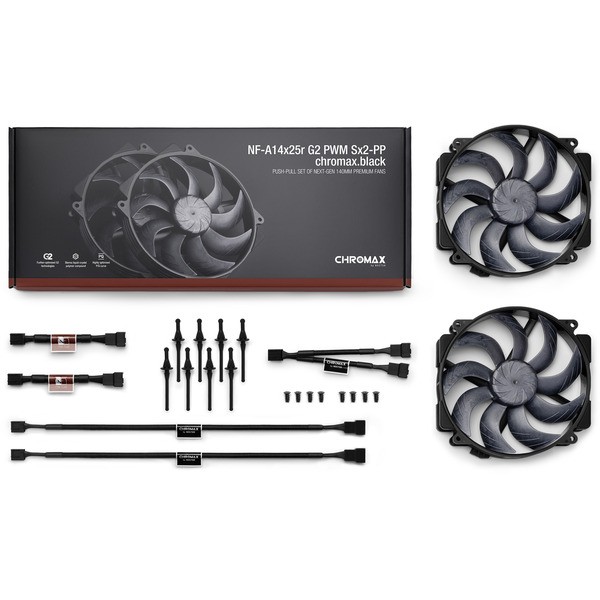

| Accessories - available | NF-A14x25r G2 PWM PPA, NF-A14x25r G2 PWM PPB, 2x Low-Naise-Adapter (L.N.A.), NA-YC1 4-The PWM Y-Cable Pin, 2x NA-EC1 Anti-Befestigungen, Lüfterschrauben |
| Dimensions - Fan1 | Quantity: 2 pieces, width: 140 mm, height: 140 mm, depth: 25 mm |
