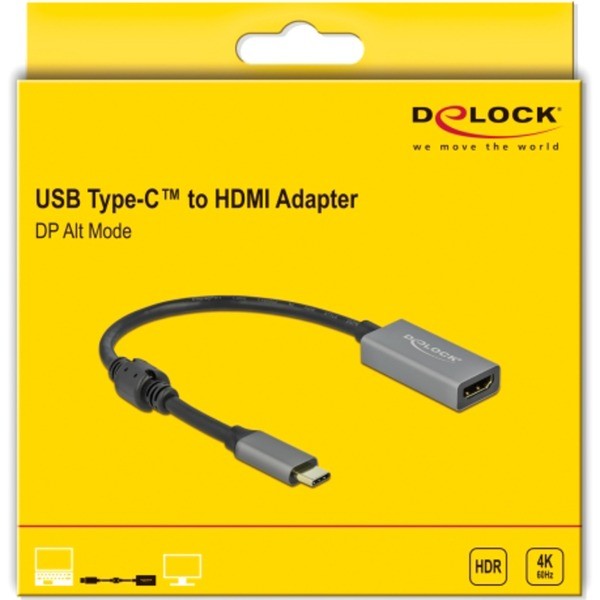

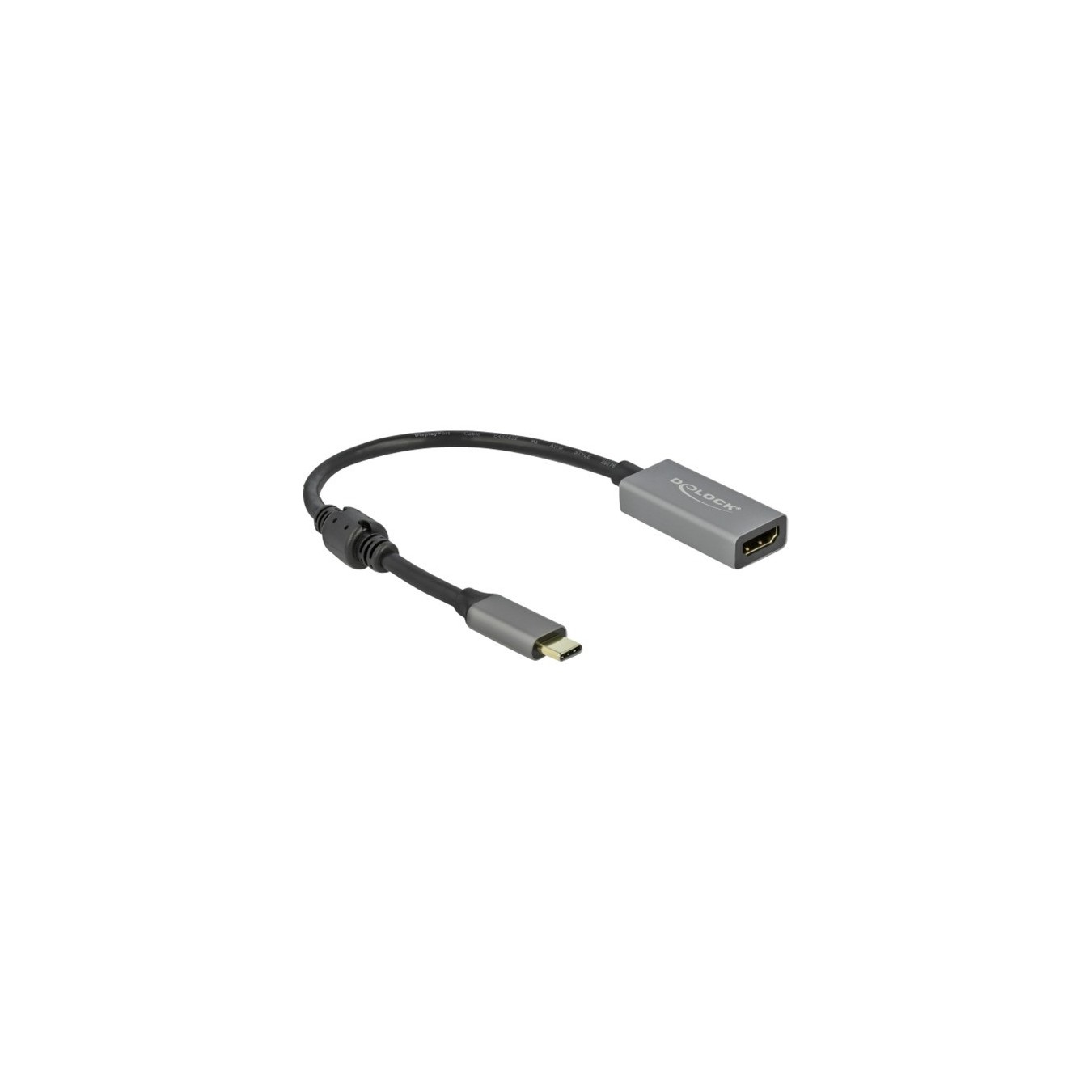

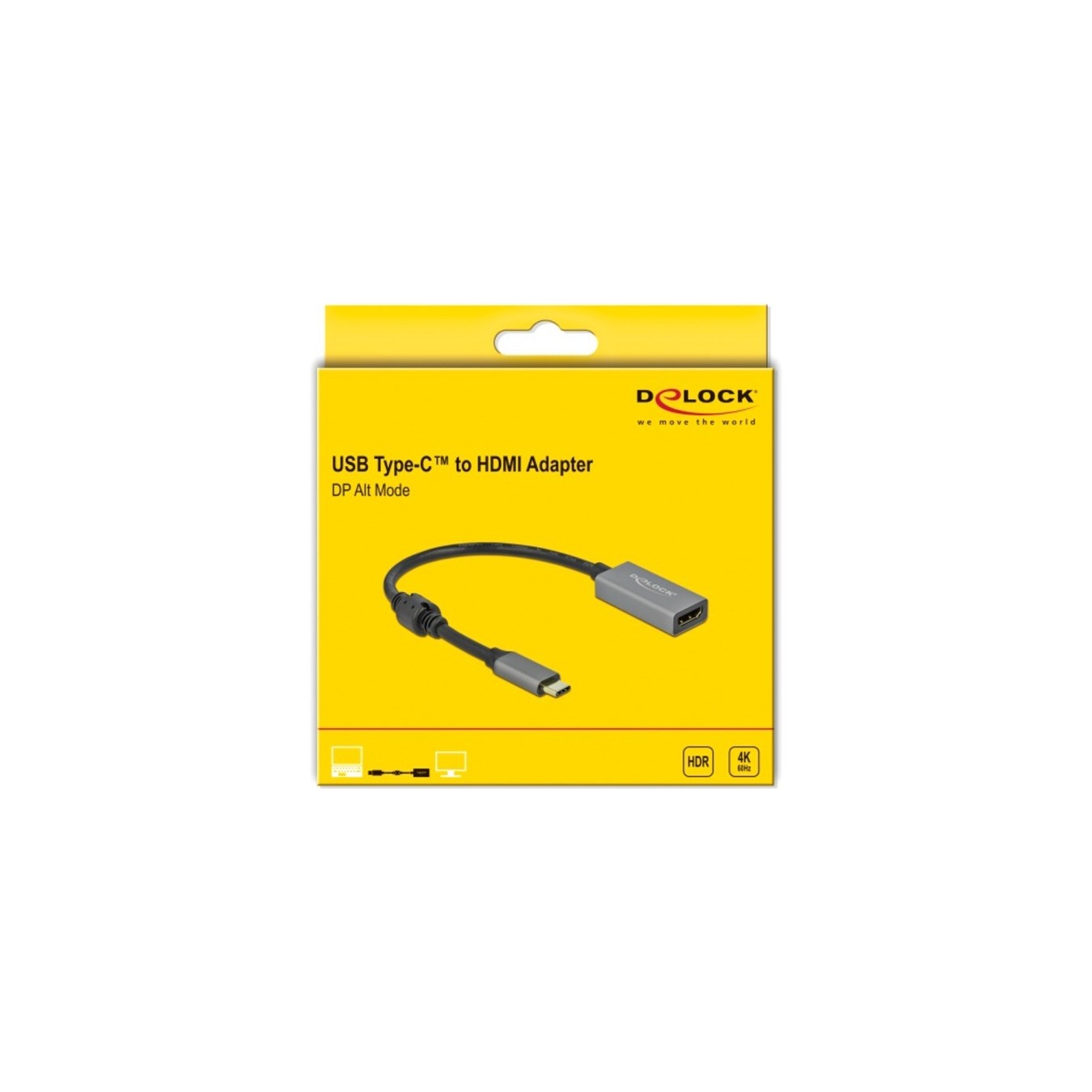

Active USB adapter - USB-C male to HDMI female
Active Delock adapter 66571 for connecting an HDMI monitor to a USB-C device with DisplayPort Alt Mode support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The active Delock adapter 66571 is suitable for connecting an HDMI monitor to a computer with a USB-C interface and DisplayPort (Alternate Mode) support. The adapter can be connected to various notebooks such as the Macbook, Chromebook and similar. The adapter can also be operated on a Thunderbolt 3 interface.
| Typ | Adapter |
| Color | grey/black |
| EAN | 4043619665716 |
| Manufacturer no. | 66571 |
| Manufactured in | China |
| Application example | For connecting an HDMI monitor to a notebook with a USB-C interface |
| Area | Audio / Video |
| Connection - from | 1x USB-C (Stecker) |
| Video classification | HDMI High Speed mit Ethernet |
| Cable cross section | 28 AWG |
| taps | 2 |
| Characteristics | Adapter, external, USB C connector can be used on both sides |
| Feature | Metal housing, USB bus power, plug & play, gold-plated contacts, 1x ferrite core |
| More information | Chipset: Parade PS186, DisplayPort 1.4 and High Speed HDMI specification, signal direction: USB-C input > HDMI output, wire cross section: 32 AWG data line, 28 AWG power line, transmission of audio and video signals, data transfer rate up to 18 Gbps, resolution up to 3,840 x 2,160 @ 60Hz (depending on the system and the connected hardware), supports HDR, HDCP 1.4 and 2.3 |
| Notice | System requirements: Android 6.0 or higher, iPad Pro (2018), Linux Kernel 4.6.4 or higher, Mac OS 10.15 or higher, Windows 8.1 / 8.1-64 / 10 / 10-64, Windows 10 Mobile |
| Cable length | 20 cm |
