PRIME Mainboard - B760M-A II-CSM - Mainboard
ASUS PRIME B760M-A II-CSM motherboard based on the Intel B760 chipset; supports Socket 1700 CPUs; features four DDR5 DIMM slots in dual-channel.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - SATA Ports | 4 |

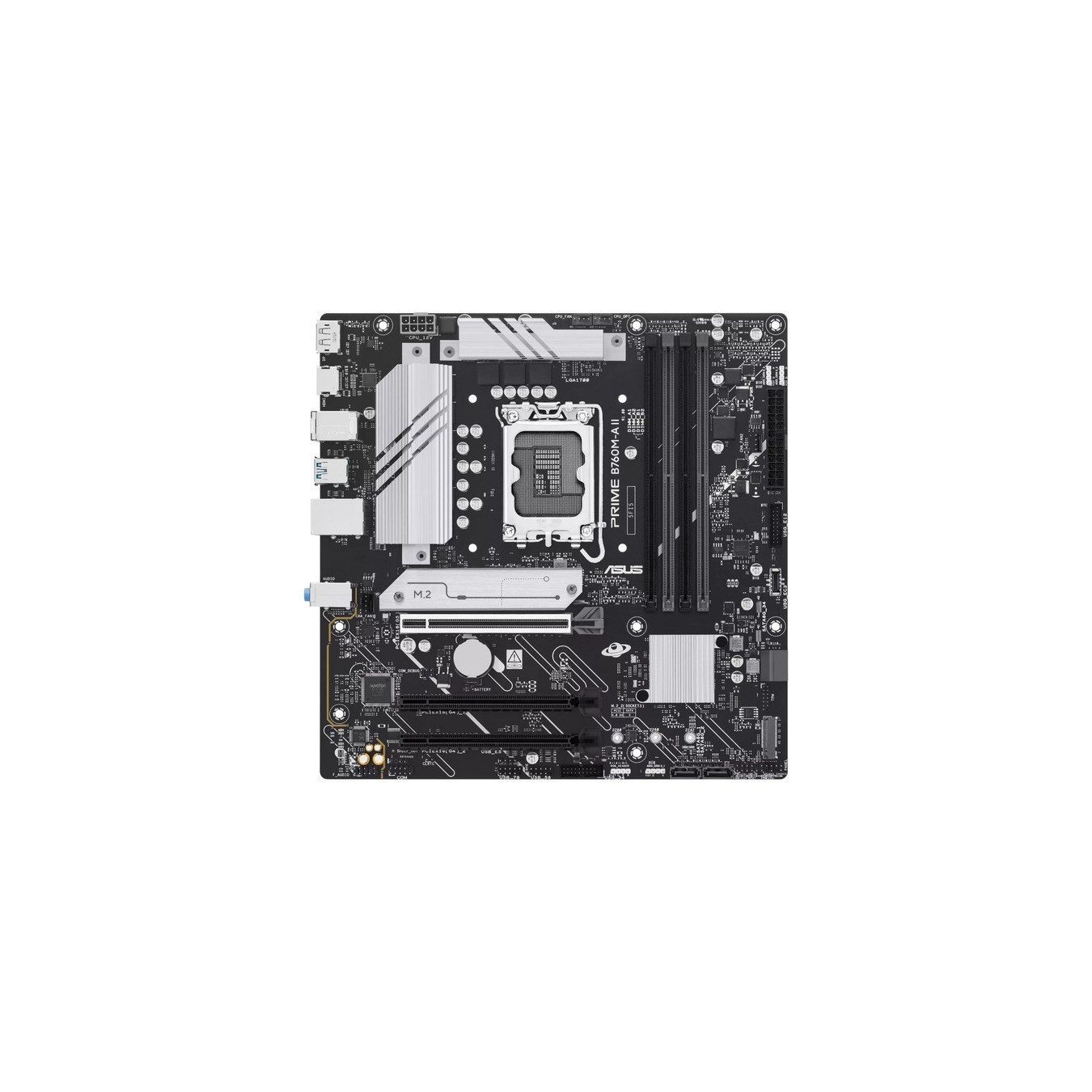

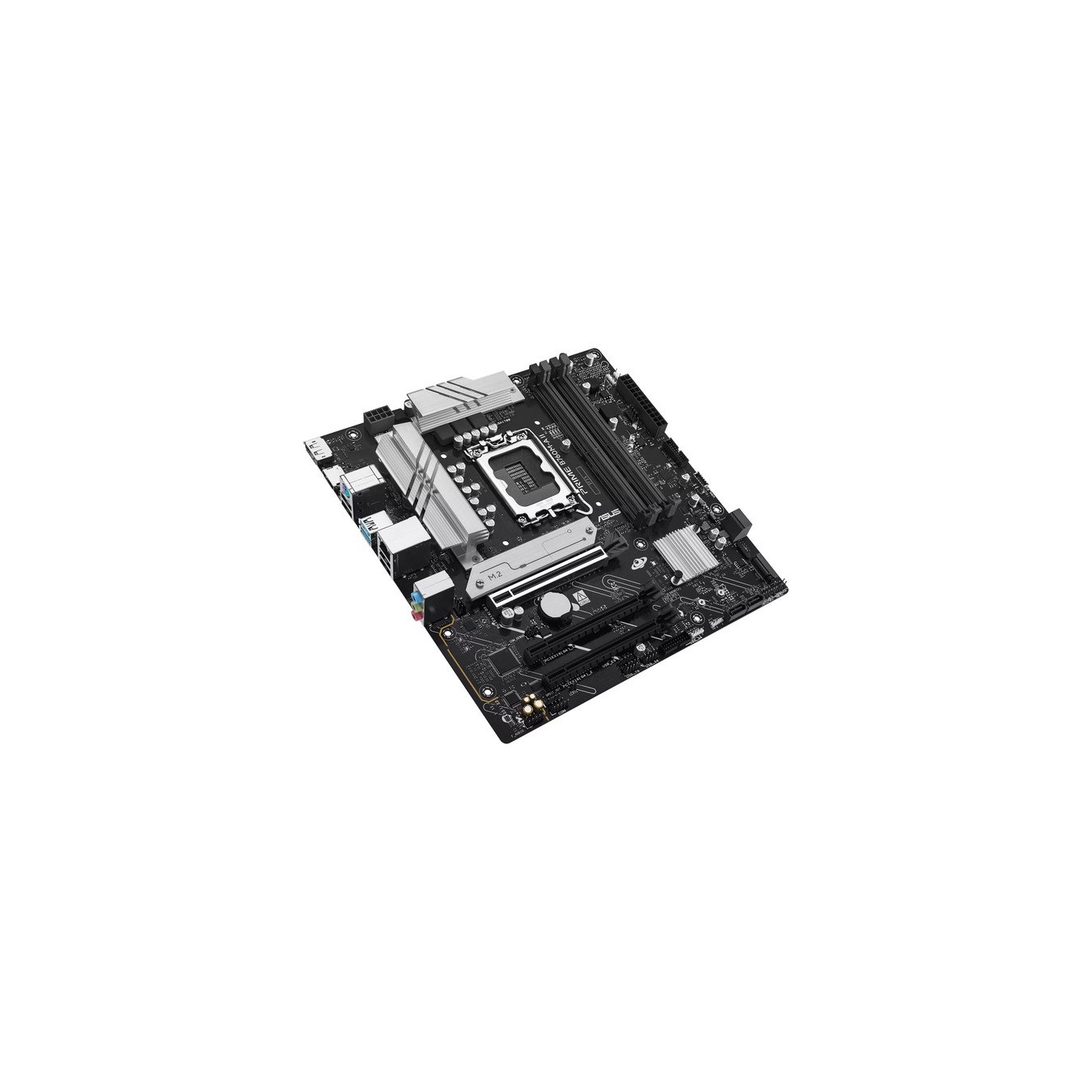

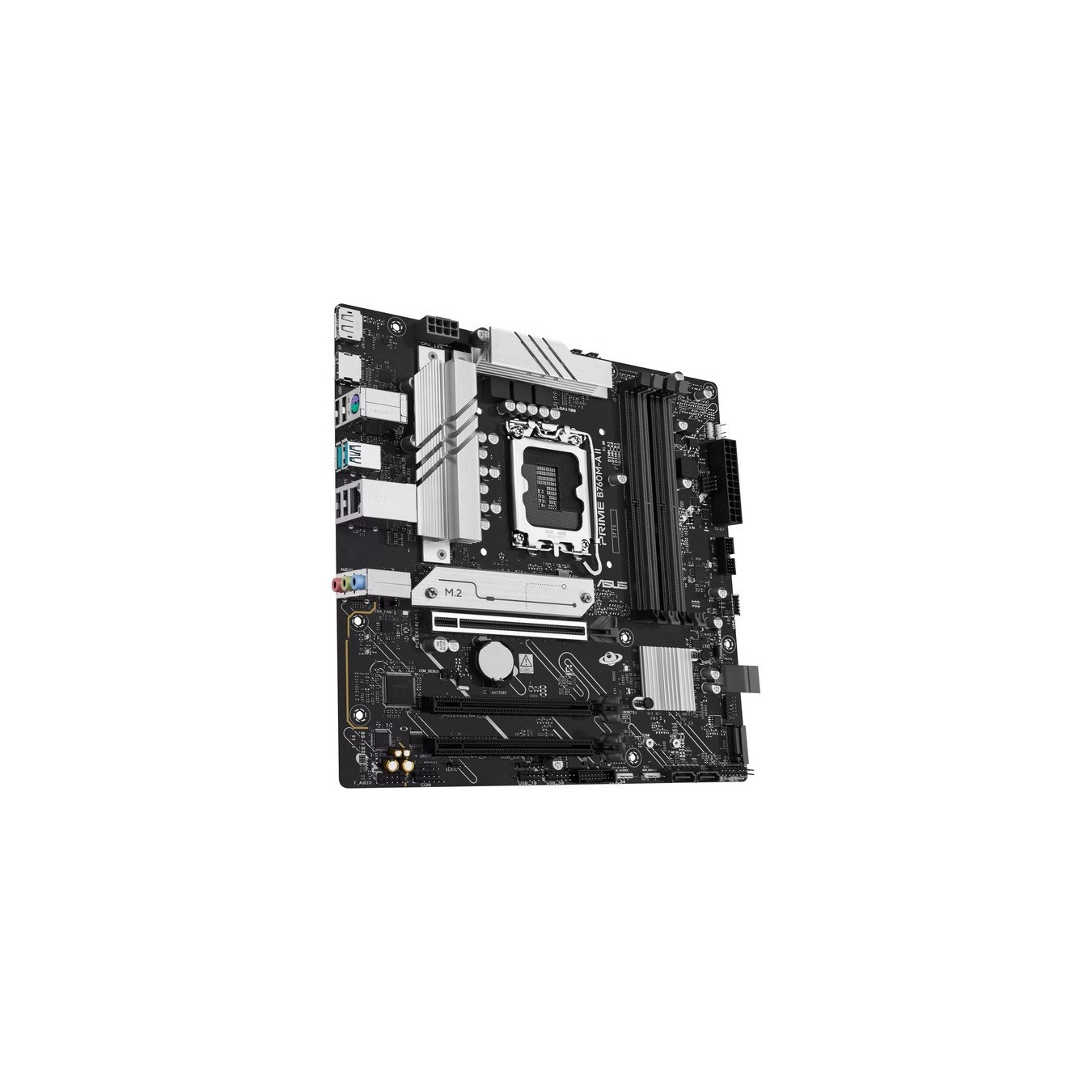

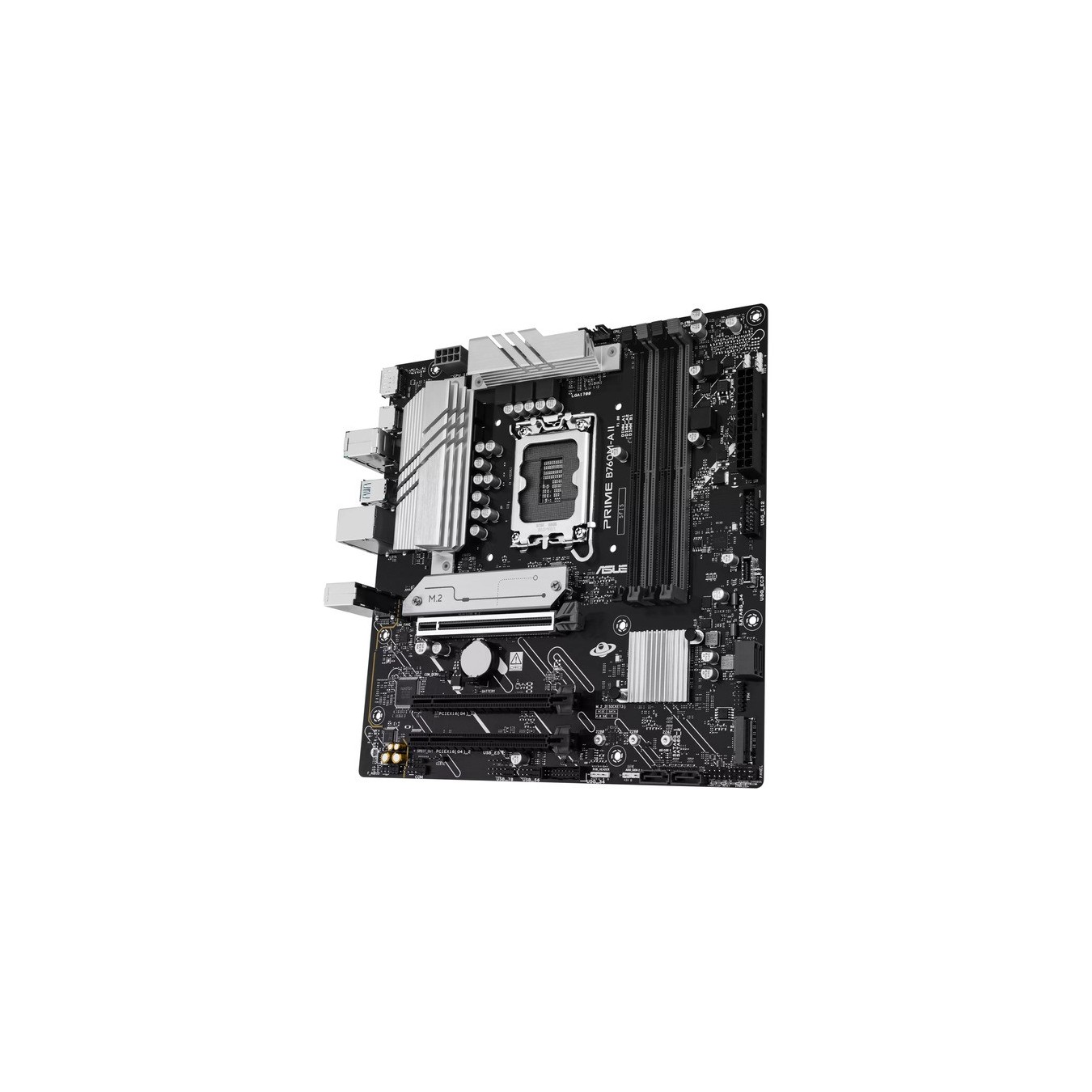

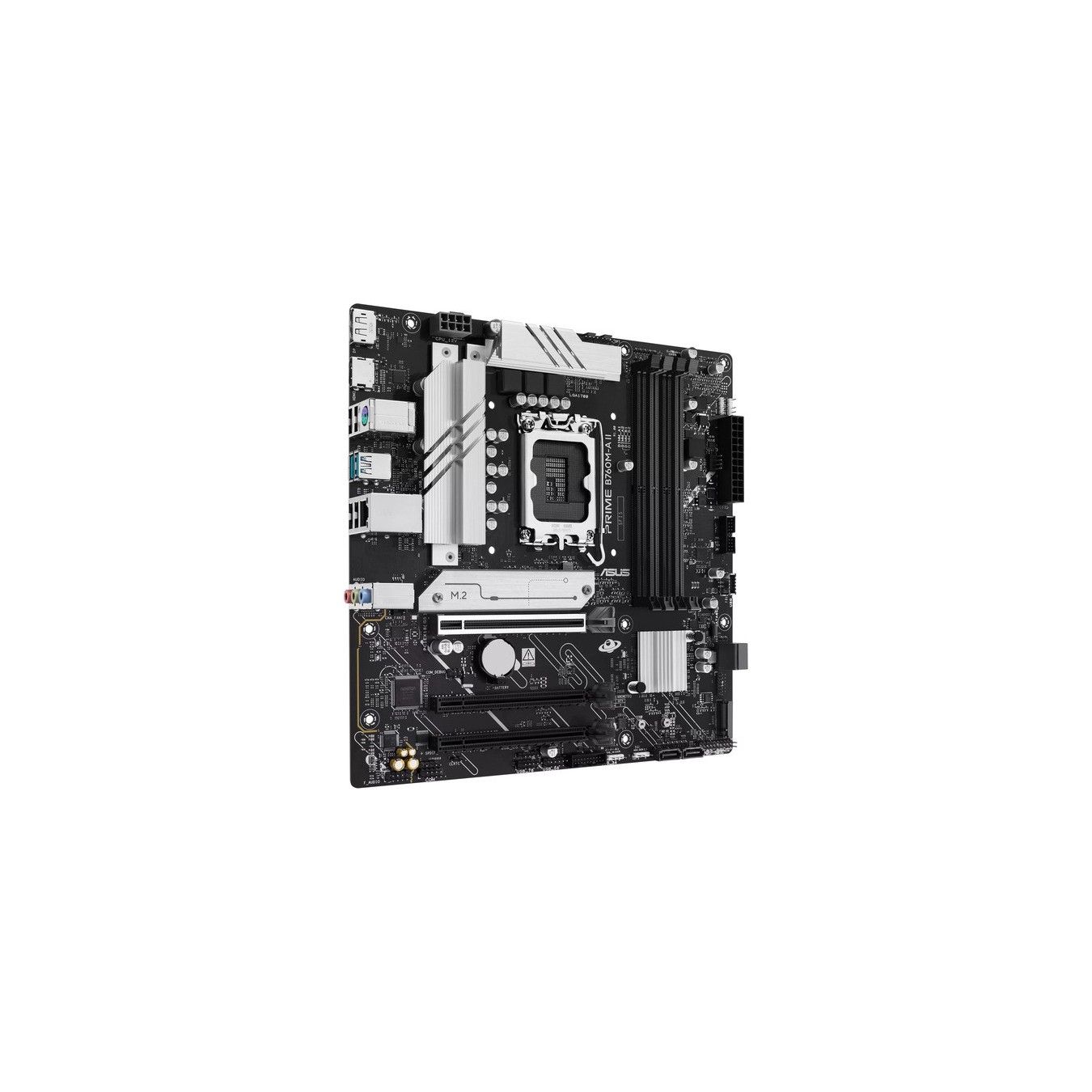

The ASUS PRIME B760M-A II-CSM motherboard is based on the Intel® B760 chipset and supports Intel® processors for Socket 1700. It has four DDR5 DIMM slots in dual-channel operation for up to 256 GB of RAM. The ASUS PRIME B760M-A II-CSM also features three PCIe 4.0 x16 slots. The ASUS PRIME B760M-A II-CSM also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports and a number of USB interfaces.
| Typ | Mainboard |
| Color | black/silver |
| EAN | 4711636273619 |
| Manufacturer no. | 90MB1NG0-M0EAYC |
| base | 1700 |
| Max. supported CPUs | 1 |
| Processor - Supported Models | Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i3 14xxx (Raptor Lake-S), Core i3 14xxxF (Raptor Lake-S), Core i3 14xxxT (Raptor Lake-S), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S), Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) |
| Chipset | Intel® B760 |
| Slots - PCIe x16 | 3x (davon: 1x PCIe x16, 1x PCIe x4, 1x PCIe x1) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 256 GB |

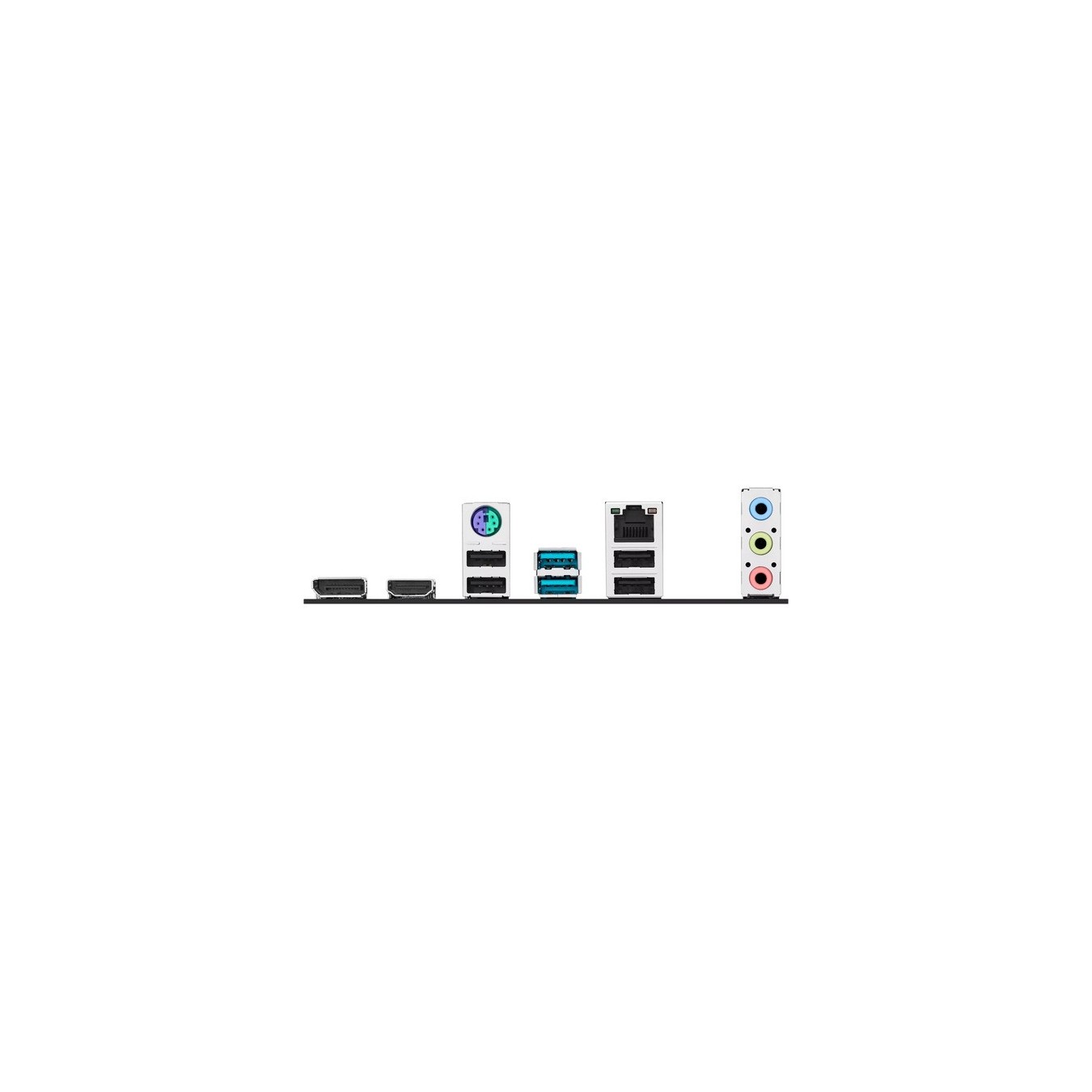

| Connections (external) - Mouse/Keyboard Combo (PS/2) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 4 |
| RGB Standard | AURA Sync |
| SATA Controller | Intel® B760 |
| directly usable RAID levels | 0, 1, 10, 5 |
| USB-Controller | Intel® B760 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek 7.1 Surround Sound High Definition |
| LAN | Realtek 2.5Gb Ethernet |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Dimensions | Width: 244mm x Height: 244mm x Depth/Length: 36mm |
| Weight | 690 Gramm |
