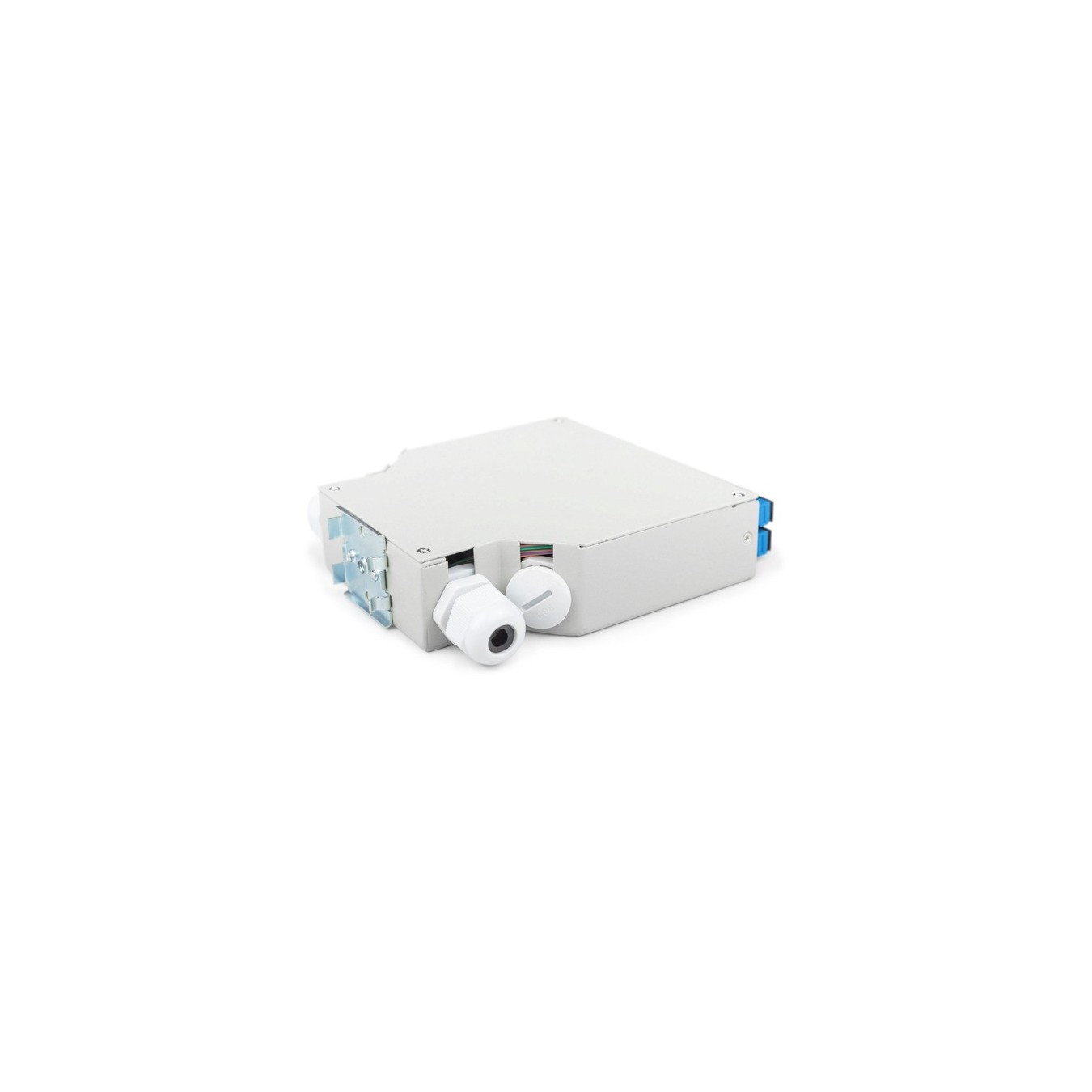

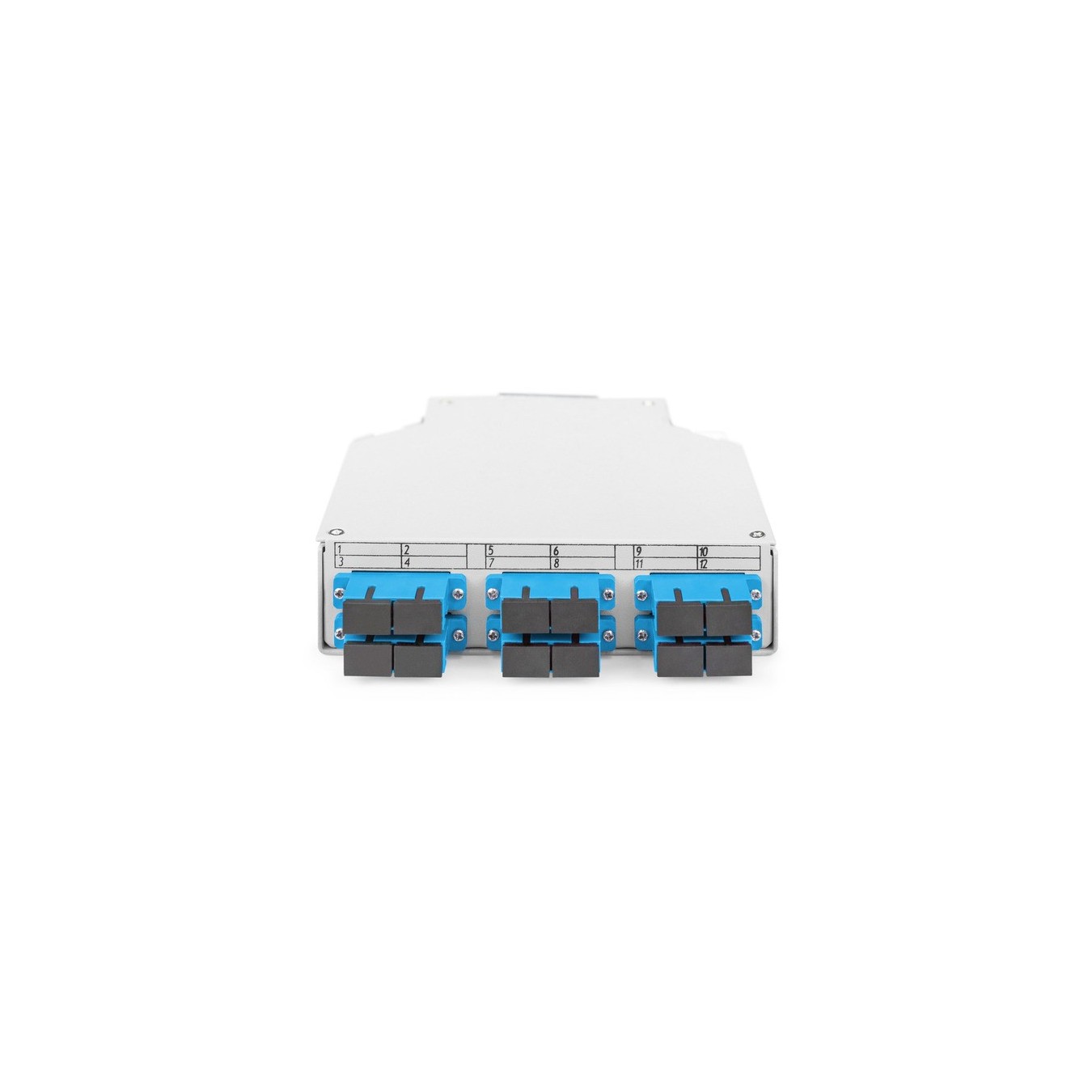

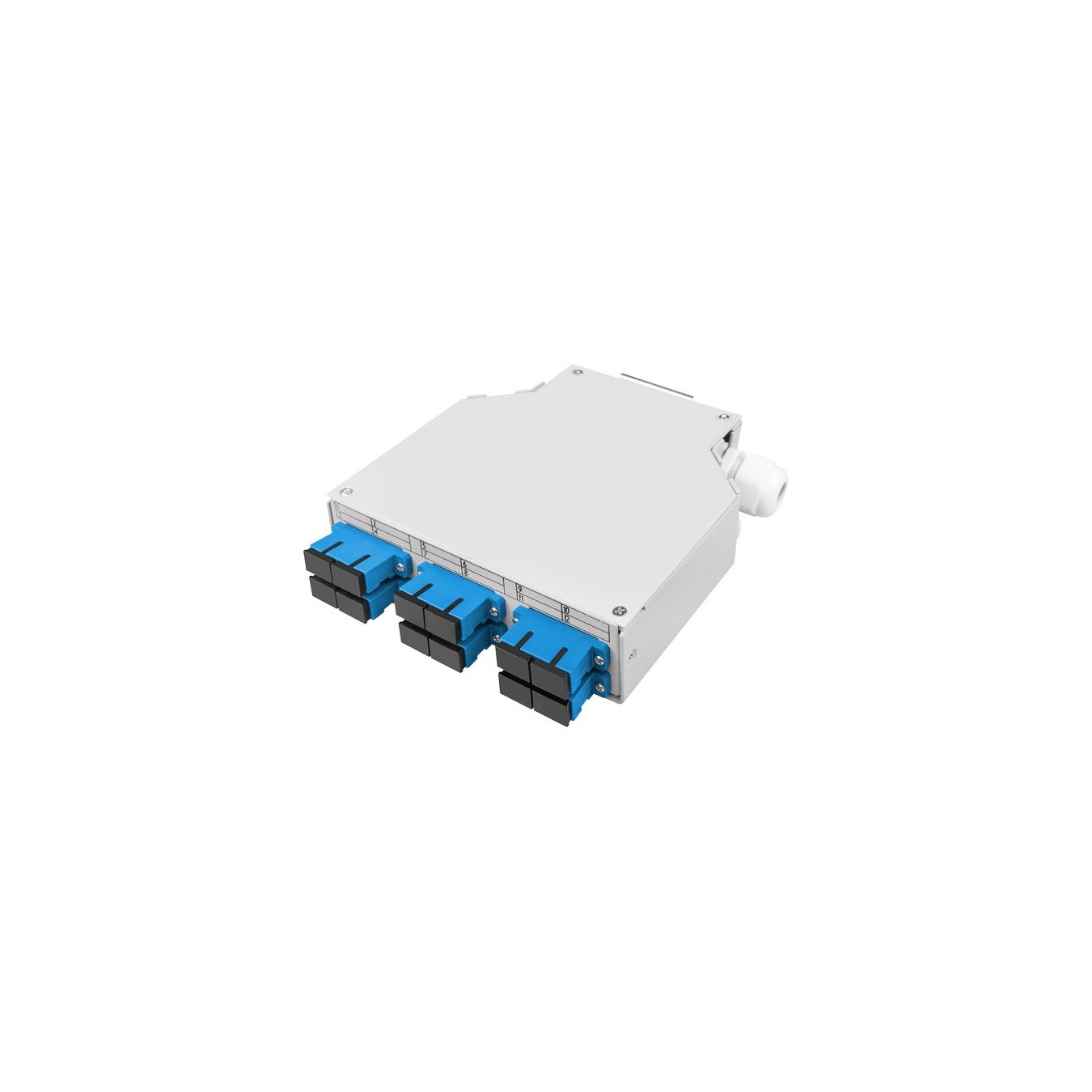

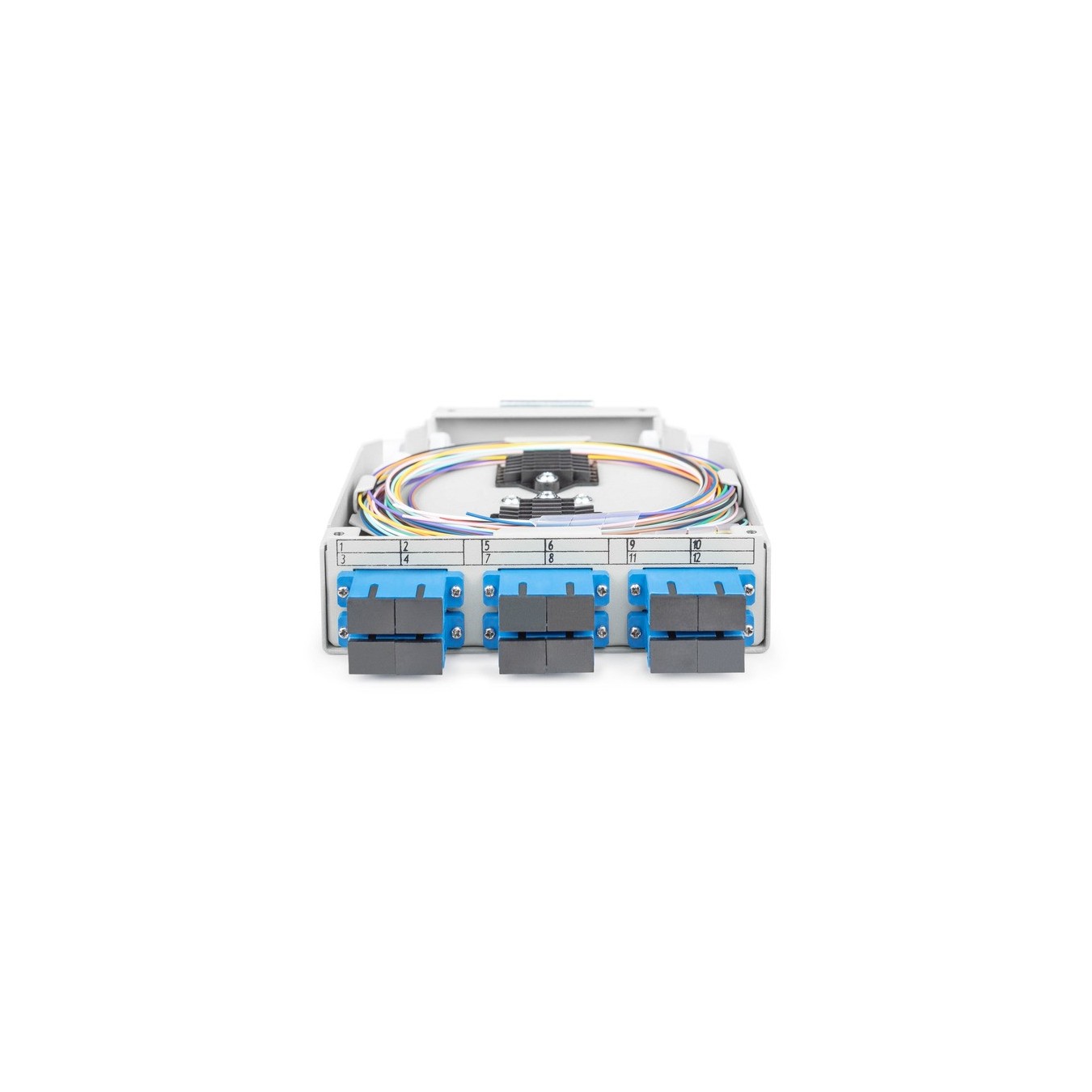

Fiber optic DIN rail box - OS2 equipped with SC adapter and pigtail, splice box
DIN-rail fiber splice box OS2, equipped with SC adapter and pigtail.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

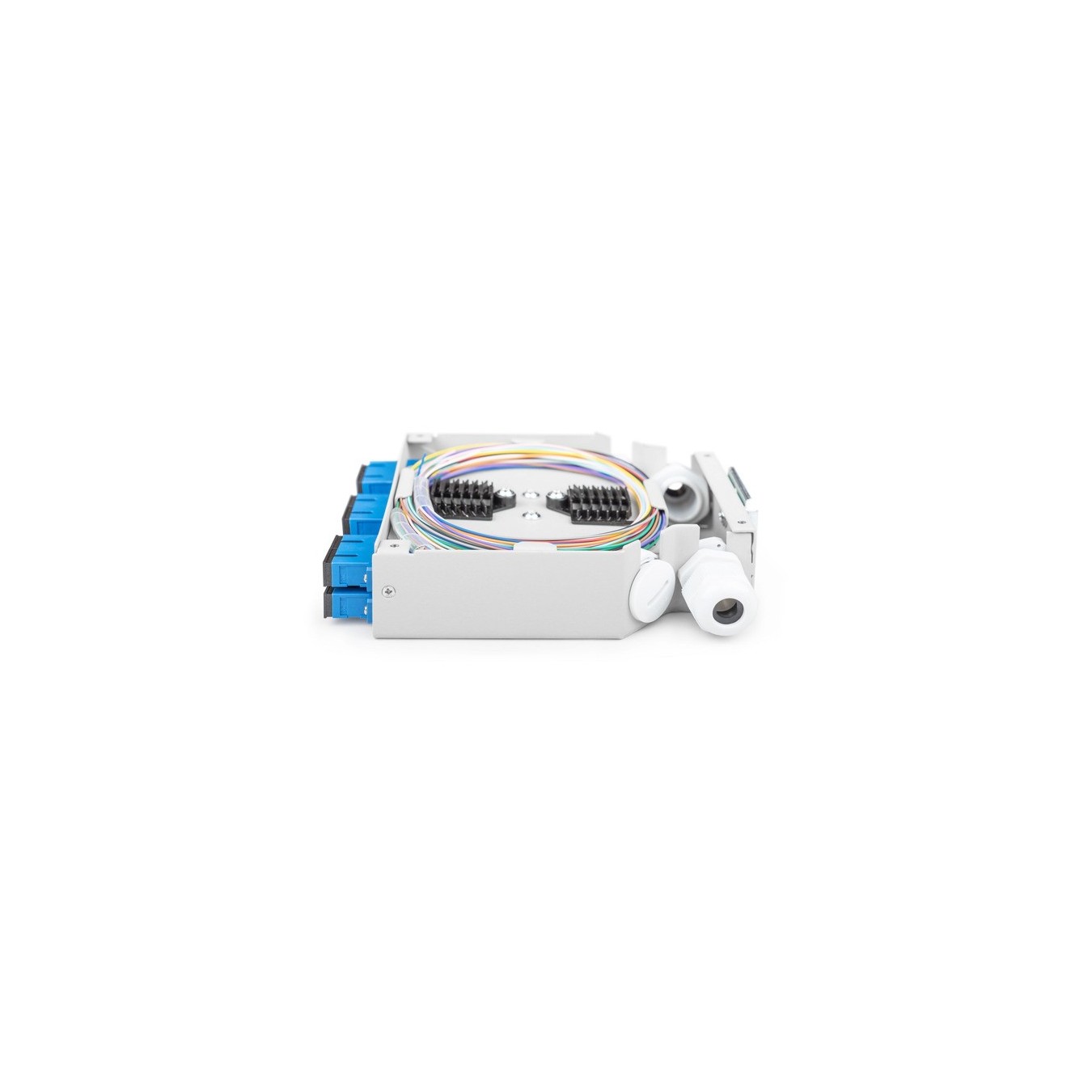

The fiber optic DIN rail box is a special, compact housing for the efficient management, distribution and protection of fiber optic cables in industrial and telecommunications environments. It is designed to be mounted on a DIN rail, making it ideal for installation in control cabinets, control panels and distribution boxes. The box comes pre-configured with key fiber components, including adapters, pigtails and splice trays, providing a ready-to-use solution that enables quick installation and ensures reliable connectivity. The space-saving design ensures that it can be neatly mounted next to other devices without crowding the installation space. Cable management features help maintain the integrity of fiber optic connections and prevent signal degradation.
| Typ | Fiber optic splice box |
| EAN | 4016032493112 |
| Manufacturer no. | DN-963890 |

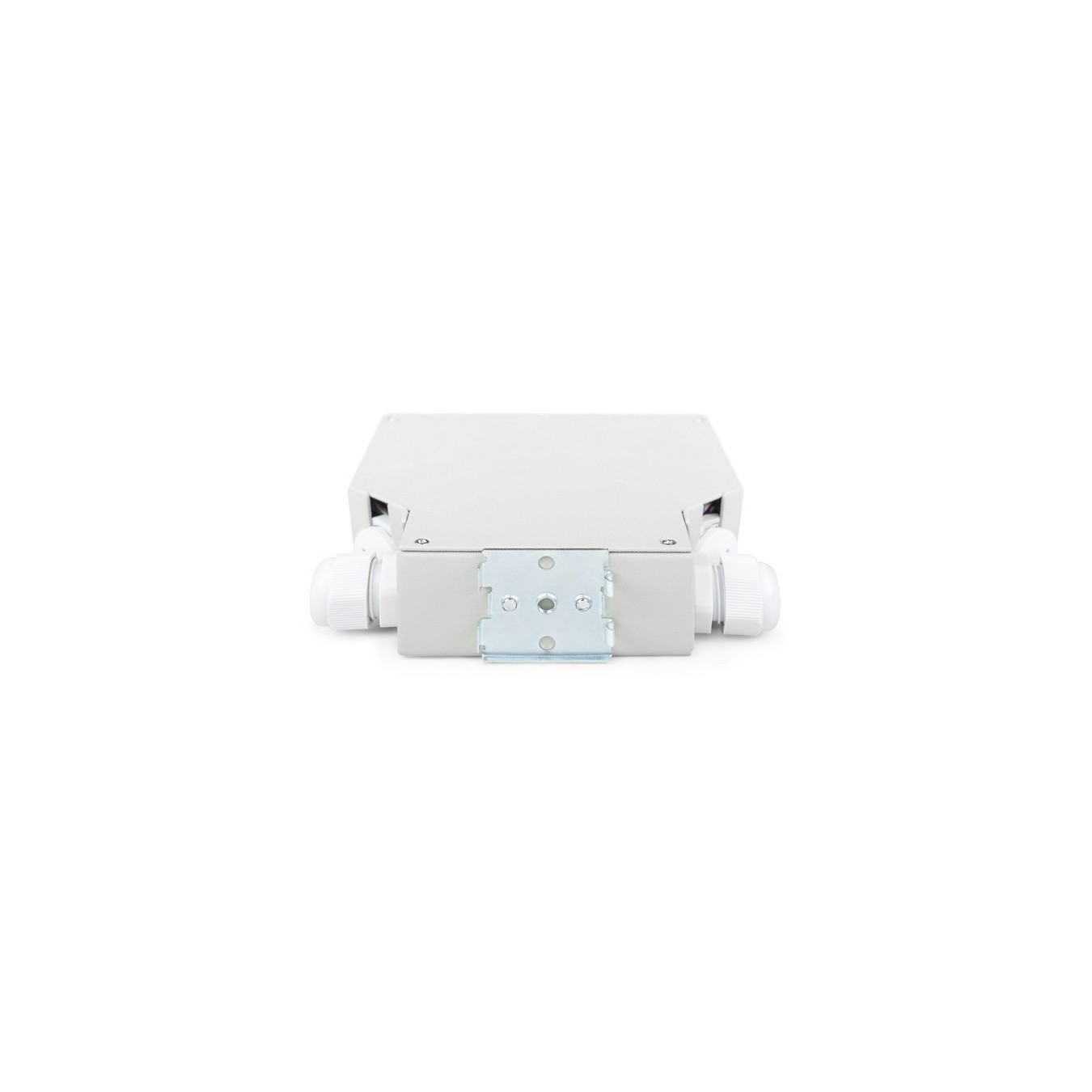

| Design | DIN-Rails |
| Area of application | Business |
| Feature | Suitable for splicing installation cables | Capacity: up to 12 fibers | Fiber Type: Singlemode | Fiber class: OS2 |
| More information | Fiber structure: 9/125 μm | Equipped with SC-Dx adapter and SC Pigtail | Adapter: SC Duplex with ceramic sleeves | Fiber pigtail length: 2 m | Fiber pigtail diameter: 0.9 mm | Case: steel | Cable entry: Two cable entry openings and one M20 screw connection Strain relief: through cable gland |
| Dimensions | Width: 135mm x Height: 38mm x Depth/Length: 141mm |
