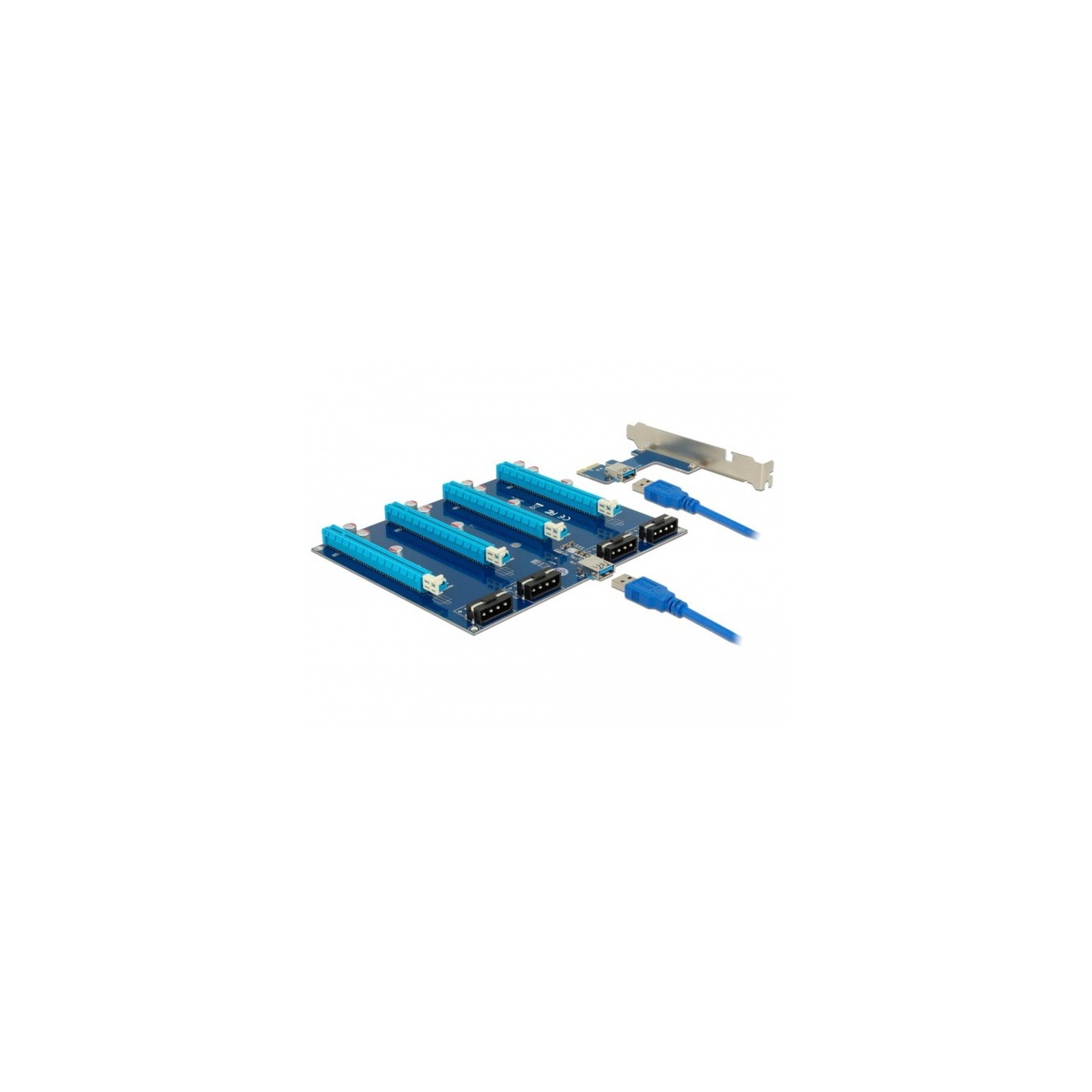

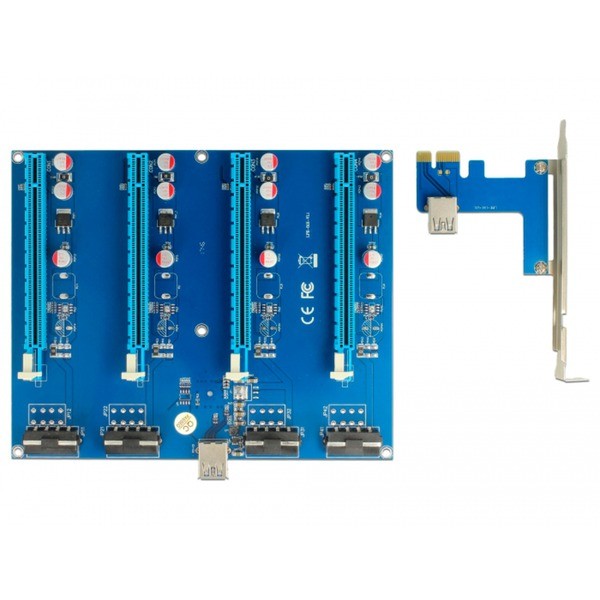

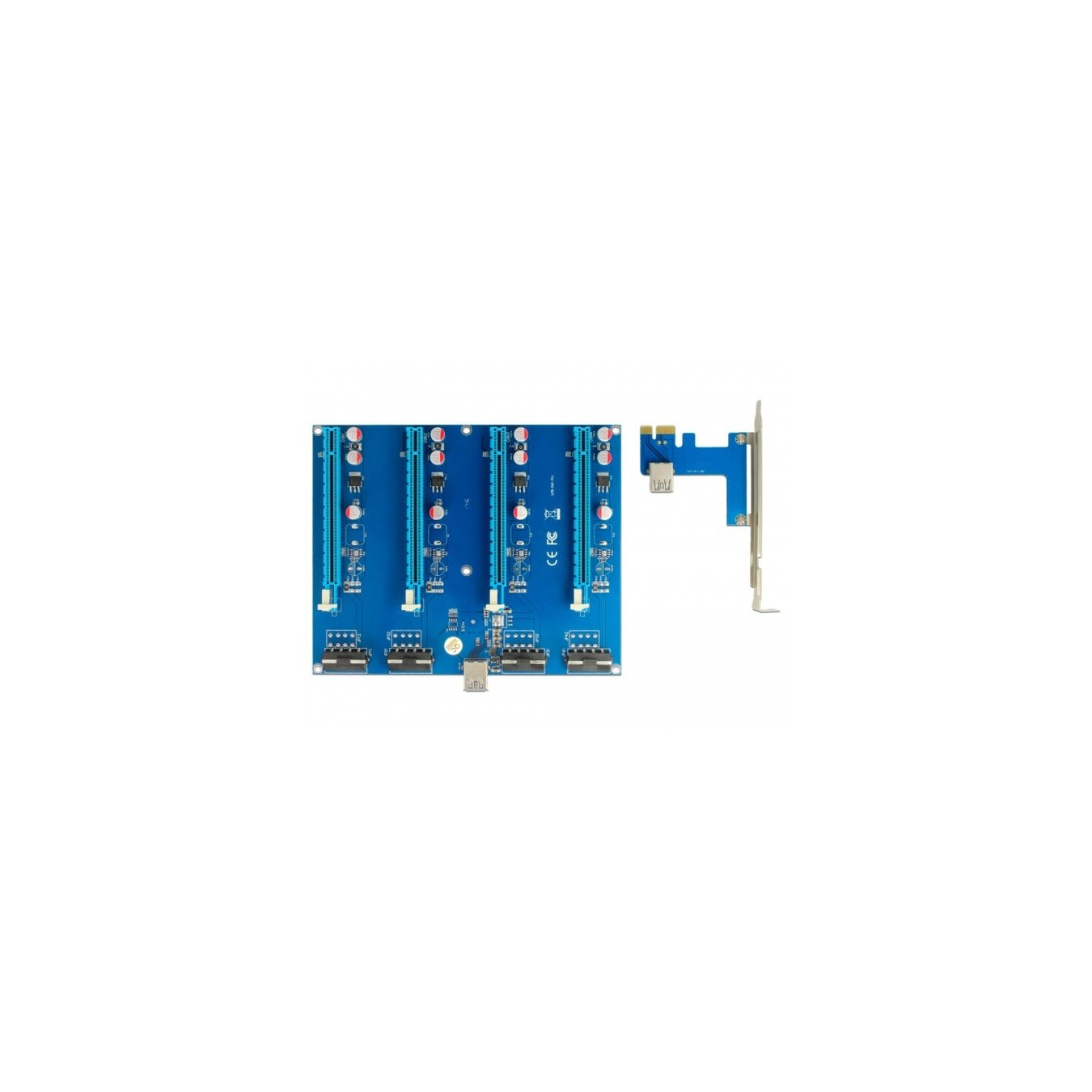

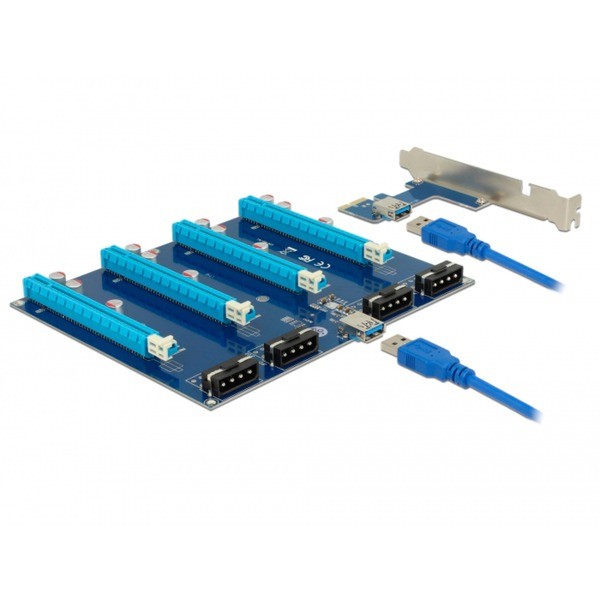

PCI Express Riser Card - x1 to 4 x PCIe x16
Delock PCI Express riser card converts one PCIe x1 slot into four PCIe x16 slots; 60 cm cable included; allows mounting in a different housing position.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Delock PCI Express riser card can be inserted into any PCI Express x1 slot on the mainboard. The PCI Express board can be mounted in a different position in the housing. This means that up to four graphics cards can be operated in a single PCIe slot on a motherboard, even if the graphics cards are wider than a single slot. By using multiple riser cards, multiple graphics cards can be operated on one motherboard at the same time, e.g. B. for mining cryptocurrencies such as Bitcoin, Ethereum or Zcash.
| Typ | Riser Card |
| EAN | 4043619414277 |
| Manufacturer no. | 41427 |
| slot | PCIe x1 |
| use | Four PCIe x16 graphics cards can be used in one PCIe x1 slot. |
| Cable length | 60 cm |
| Feature | Connections: Mainboard side: 1x PCI Express x1, 1x USB 3.0 Type-A socket, riser side: 4x PCI Express x16 slot, 1x USB 3.0 Type-A socket, 4x 4-pin power connector, chipset: Asmedia ASM1184e, data transfer rate up to 800 MB/s, FP solid capacitors, ensure secure power supply for the graphics cards, 6x mounting holes on the Riser card |
| More information | System requirements: PC with a free PCI Express x1 / x4 / x8 / x16 / x32 slot, power supply with free SATA power connectors |
| Notice | The scope of delivery includes a USB 3.0 riser cable with a length of 60 cm. No USB signals are transmitted via this cable, so exchanging it for another or a longer cable is not possible. |
| Dimensions | Width: 142mm x Height: 14mm x Depth/Length: 175mm |
| Weight | 288 Gramm |
