Active Optical USB-C 8K Video + Data + PD Cable
Delock 84257 Active Optical USB-C Cable, 10 m, Black. USB 3.2 Gen 2 (10 Gbit/s), DP Alt Mode with DSC, DisplayPort 2.1 up to 7680×4320 @60Hz, PD 60W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

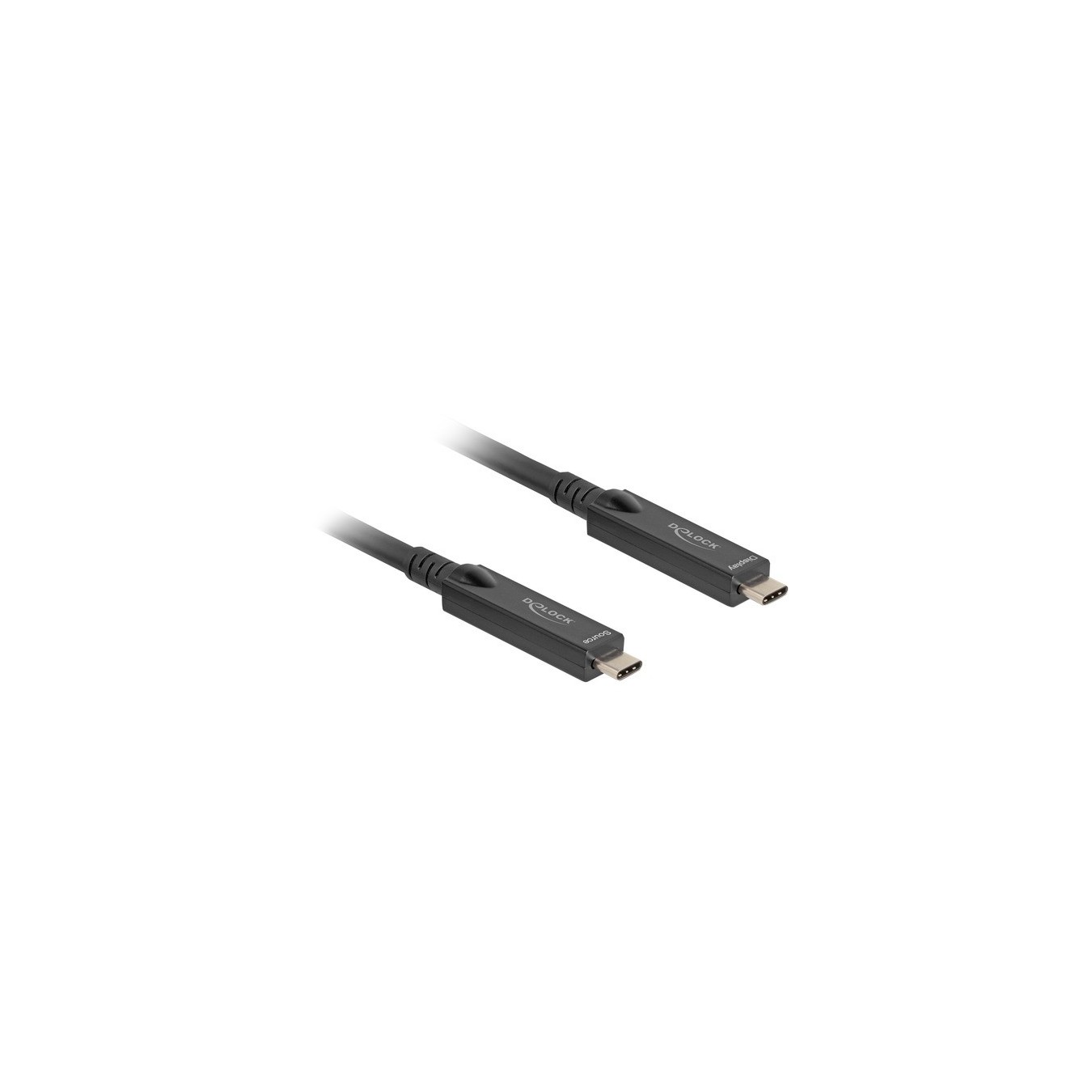

The 10 meter long USB cable 84257 from Delock establishes a connection between devices with a USB-C port and a PC or notebook with a free USB-C port. The active optical cable uses fiber optic cables to transmit high-speed signals. Compared to the traditional copper cable, it is softer, thinner, lighter and can transmit signals over longer distances without loss. The cable is suitable for connecting a USB-C monitor with a resolution of up to 8K Ultra HD (7,680 x 4,320 @ 60Hz) to a computer with a USB-C interface and DisplayPort Alternate Mode support. When connected to a docking station with simultaneous operation of DisplayPort and USB at 10 Gbps, a resolution of 3,840 x 2,160 @ 120Hz is possible. The active optical cable enables data transfer rates up to 10 Gbps when connecting USB 10 Gbps compatible devices. Of course, USB 2.0 devices can also be connected. By supporting the USB Power Delivery standard, connected devices can be charged and powered with up to 60 watts (20V / 3A).
| Typ | Cable |
| Color | schwarz |
| EAN | 4043619842575 |
| Manufacturer no. | 84257 |
| Manufactured in | China |
| Charging function | USB Power Delivery (PD) 60 Watt |
| Area | Data transfer |
| Connection - from | 1x USB-C (Stecker) |
| Protocol | USB 3.2 Gen 2 (10 Gbit/s) |
| Video classification | DisplayPort 2.1 |
| taps | 2 |
| Characteristics | external, USB C connector can be used on both sides |
| Feature | Transmission of audio and video signals, maximum resolution (depending on the system and the connected hardware): DisplayPort 2.1 with DSC: up to 7,680 x 4,320 @ 60Hz (4 lanes), DisplayPort 1.4 with DSC: up to 3,840 x 2,160 @ 120Hz (2 lanes) |
| More information | Active optical fiber / copper hybrid cable, supports 2 / 4 lanes with DisplayPort 1.4, Display Stream Compression 1.2 (DSC) and DP Alt Mode, HDR (High Dynamic Range), HDCP 1.4 and 2.2, backwards compatible with USB 2.0, output current up to 3A, cable jacket material TPE, cable diameter approx. 6.5mm |
| Notice | This cable is only compatible with DisplayPort (DP Alt-Mode) devices, not with Thunderbolt devices! Fixed signal direction for video (source/display), unspecified signal direction for data |
| Cable length | 10 Meter |
