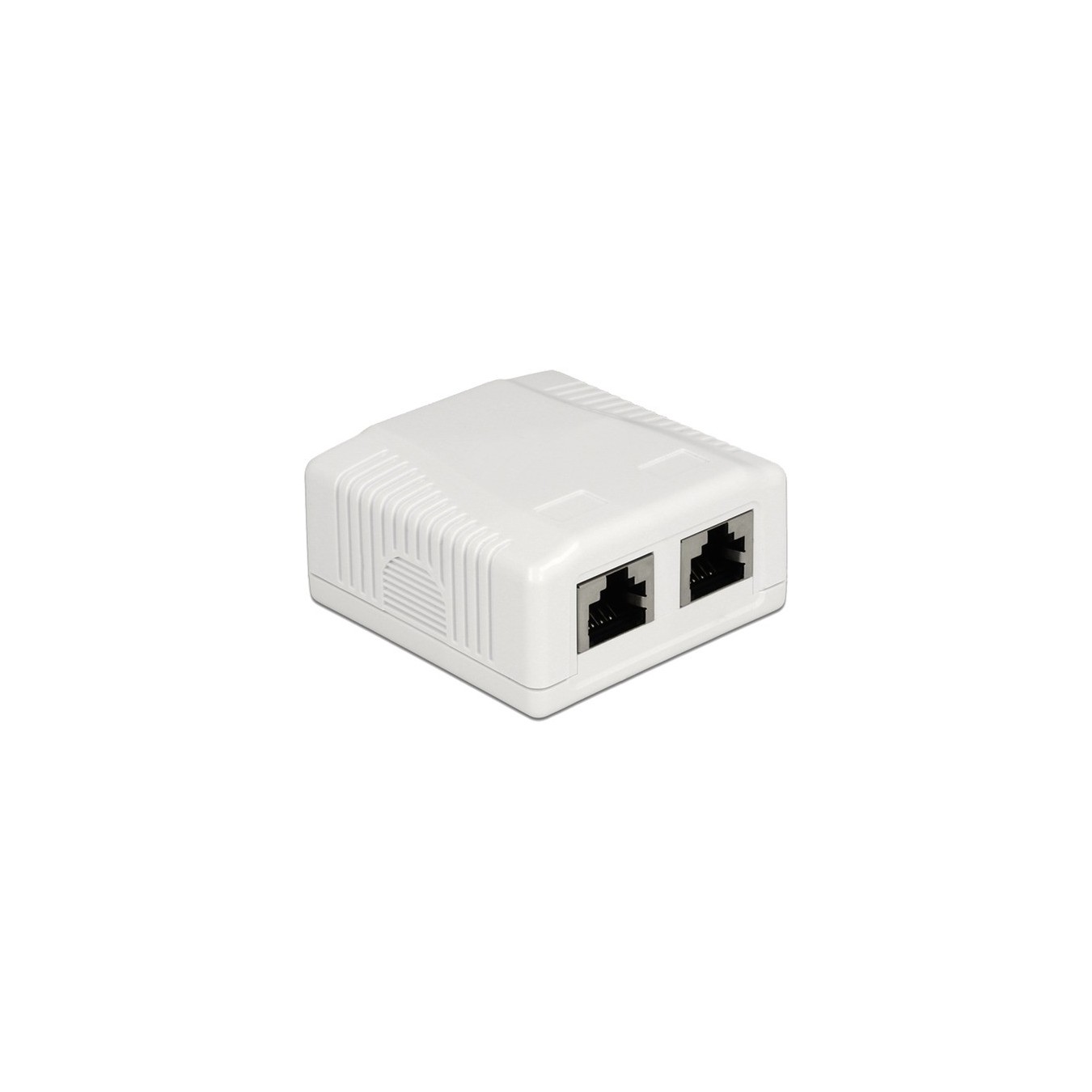

RJ-45 Junction Box - 2 Port Cat.6a LSA
Delock 86197 RJ-45 2-port Cat.6a LSA junction box for wall mounting or in enclosures; includes adhesive pad and screws.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Delock 86197 junction box can be used as a network socket on the wall or in housings. An adhesive pad and screws for attachment are included.
| Typ | Junction box |
| Color | white |
| EAN | 4043619861972 |
| Manufacturer no. | 86197 |
| Manufactured in | China |
| Purpose of use | Wall mounting or in enclosures |
| Area of application | Interiors |
| Montage | Surface mounting |
| Material | plastic |
| Connections | 2 pieces |
| Category RJ-45 | Cat.6a |
| container | bag |
| More information | Internal connection 2x LSA strip, cable routing 180°, shielded (STP), assignment according to TIA-568A/B |
| Accessories - available | Adhesive pad 45 x 45mm, 3x screws, 2x cable ties |
| Dimensions | Width: 59mm x Height: 30mm x Depth/Length: 61mm |
