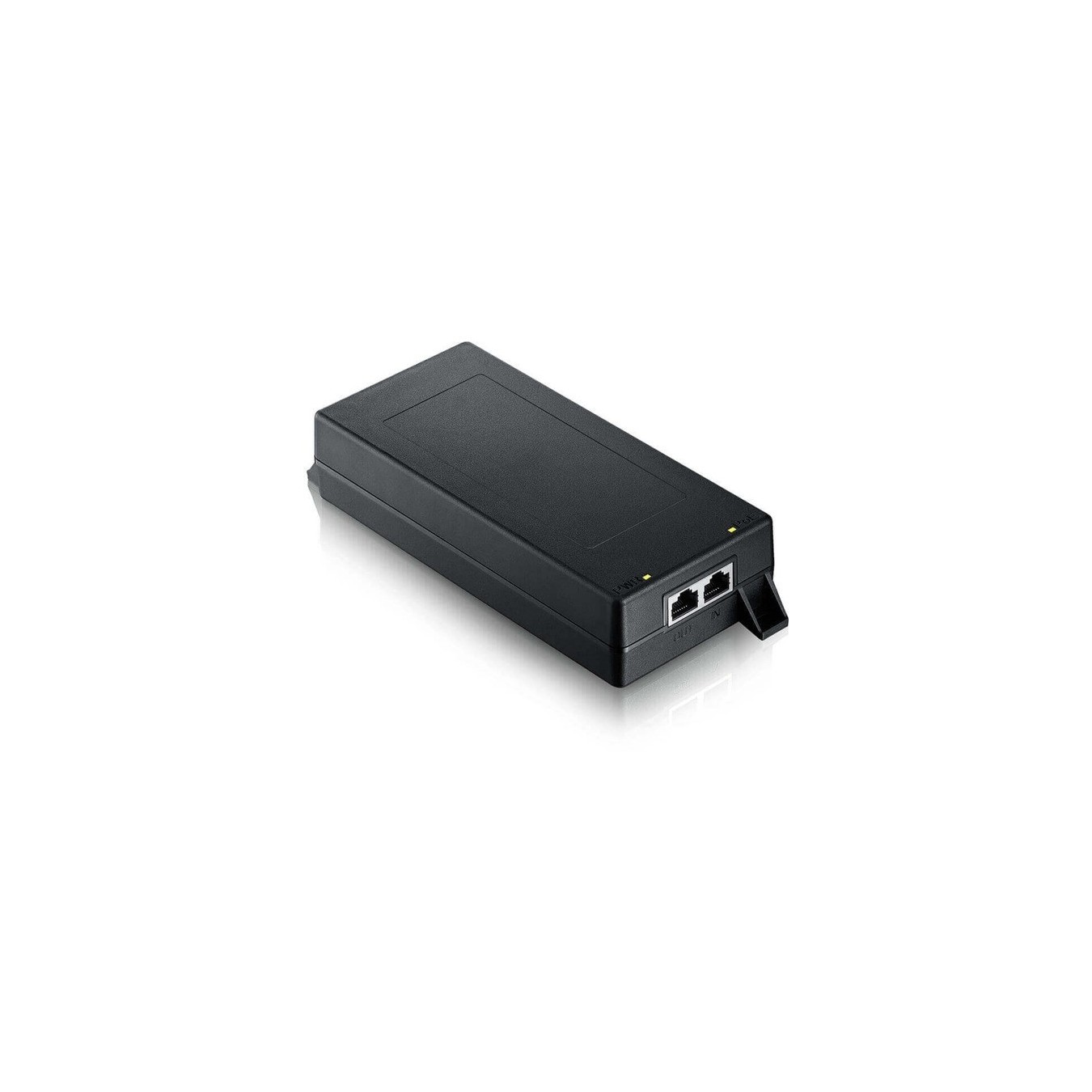

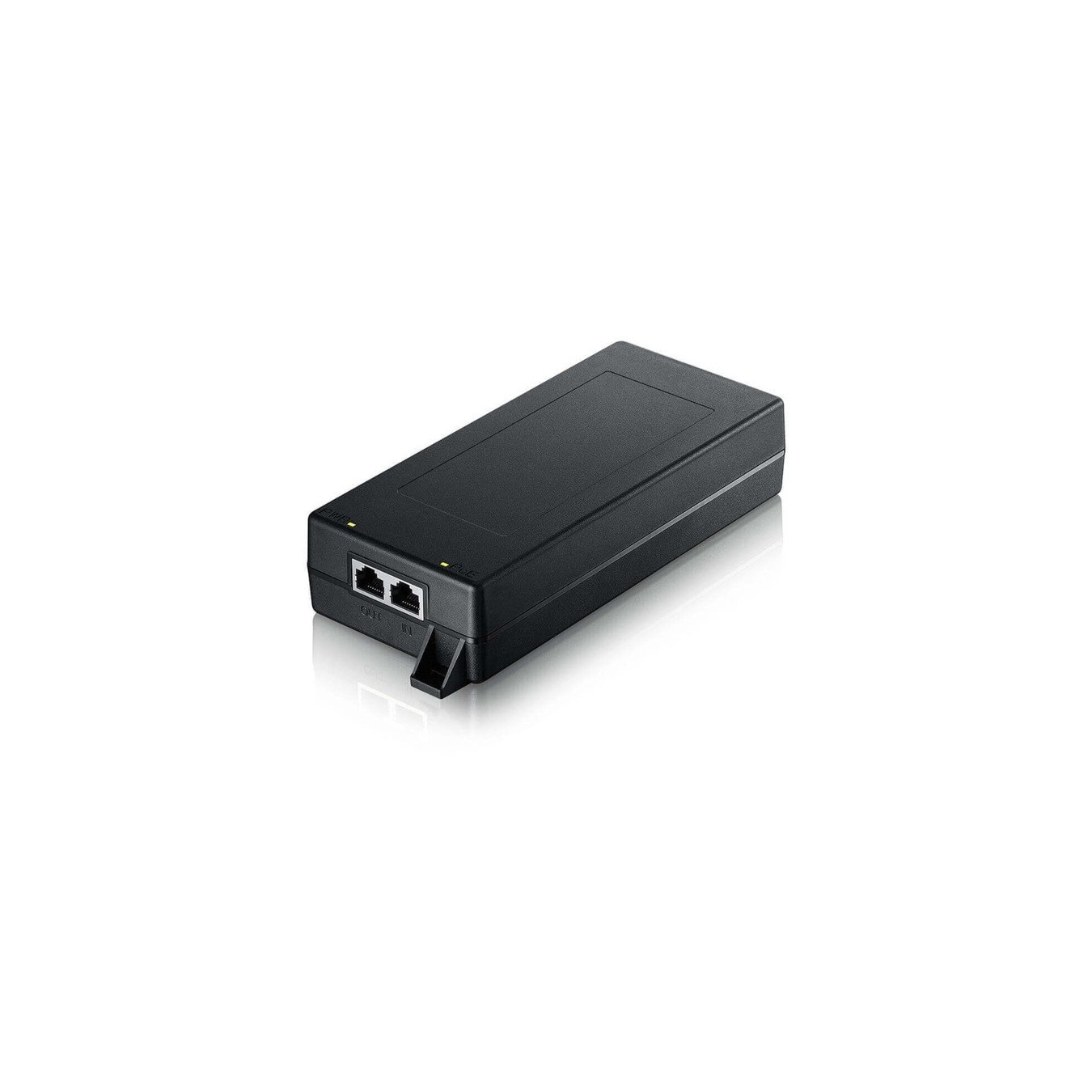

PoE-Injector - POE12-90W (Boxed)
Zyxel POE12-90W is a 10G PoE++ injector delivering up to 90W power for WiFi 7/6 APs, PTZ cameras, and POS terminals. IEEE 802.3bt compliant, plug-and-play with overload/short-circuit protection and wall/desk mount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PoE Injectors & Splitters - Device Function | PoE Injector |
|---|---|
| PoE Injectors & Splitters - PoE Standard | PoE++ (802.3bt Type 3) PoE++ (802.3bt Type 4) |
| PoE Injectors & Splitters - Power | 90W - 100W |
| PoE Injectors & Splitters - Output Voltage | Auto-Negotiated (Active) |
| PoE Injectors & Splitters - Environment | Indoor Desktop Indoor Wall-Mount |
| PoE Injectors & Splitters - Port Count | 1 Port |
Zyxel's PoE12-90W meets the growing demand for high-power connections to devices like WiFi 7/6 access points, surveillance PTZ cameras, and advanced POS terminals. Supporting network speeds up to 10Gbps, it complies with IEEE 802.3bt PoE++ standard, providing a 90W power budget for demanding powered devices (PD).
This injector ensures seamless interoperability with other standards-based PoE devices. Plug-and-play installation requires no configuration—just connect data-in from switch and power/data-out to PD. Desktop or wall-mount design fits most setups, with built-in overload and short-circuit protection to safeguard equipment.
Ideal for modern networks, it powers high-wattage IoT and AV-over-IP applications over single Cat6a+ cables up to 100m.
- PoE Power: 90W (802.3bt PoE++)
- Data Rate: 100M/1/2.5/5/10Gbps

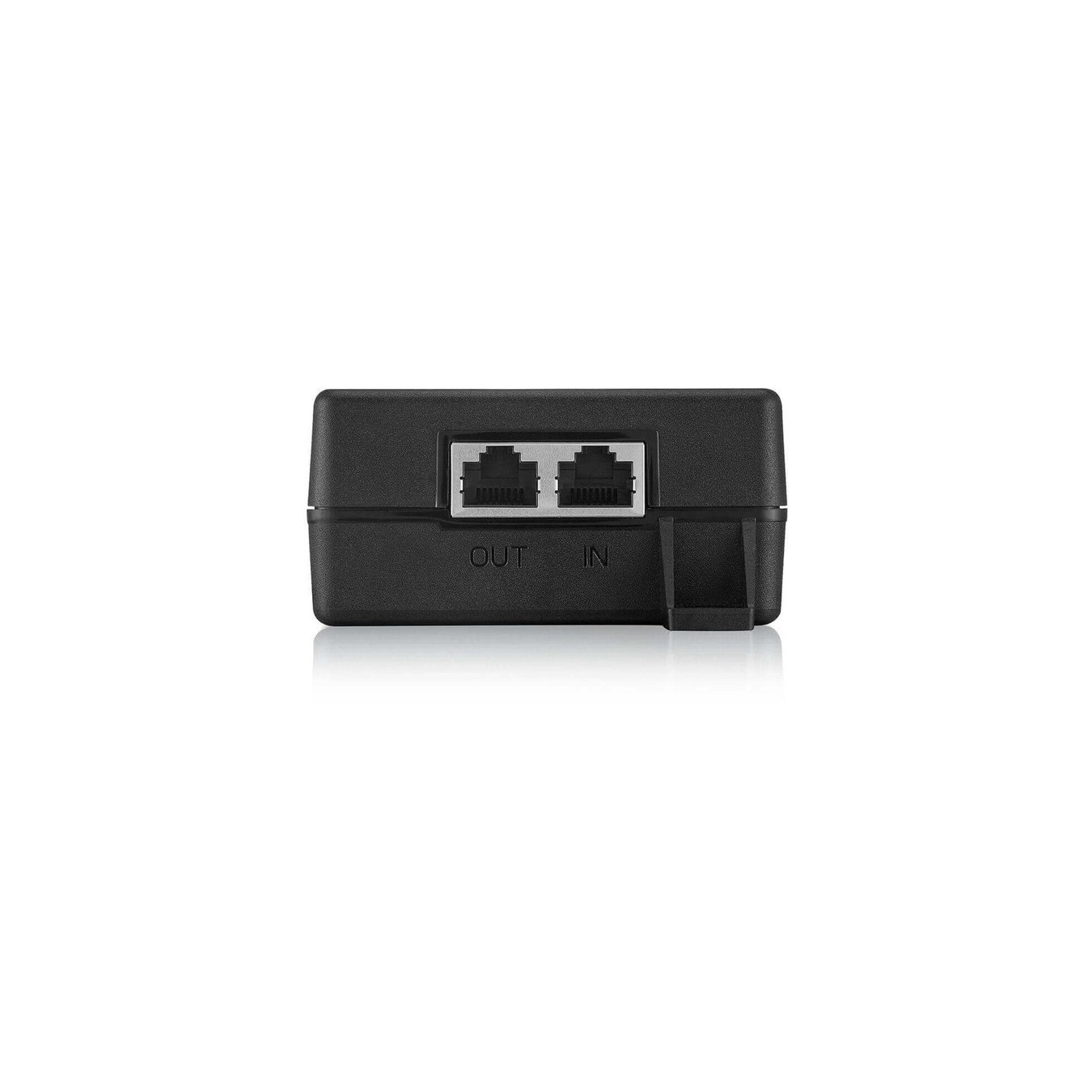

- Ports: 1x RJ-45 Data In, 1x RJ-45 PoE Out
- Input: 100-240V AC
- Protections: Overload, short-circuit
| Type | PoE-Injector |
| Color | Black |
| EAN | 4718937638178 |
| Manufacturer no. | POE12-90W-EU0101F |
| Manufactured in | China |
| Connections | 2x RJ-45 |
| Power supply - input voltage | 100 - 240 V |
| Power source | Power outlet |
| IEEE Standards | 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3bz 2.5G/5GBASE-T, 802.3an 10GBASE-T |
| Data Rate | 100 Mbps, 1 / 2.5 / 5 / 10 Gbps |
| PoE Standards | PoE, PoE+, 802.3bt PoE++ |
| PoE Power Budget | 90W |
| Accessories - available | Power cord |
| Dimensions | Width: 80mm x Height: 40mm x Depth/Length: 196.3mm |
| Weight | 456 g |
| Form Factor | Desktop / Wall Mountable |
| Operating Temperature | -10°C to 45°C |
