HDMI IP PoE Extender Set - HDMI extension
Digitus HDMI IP PoE Extender Set enables 4K/60Hz HDMI transmission over CAT6 up to 200 m; transmitter and receiver with IR, wall-mount capable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

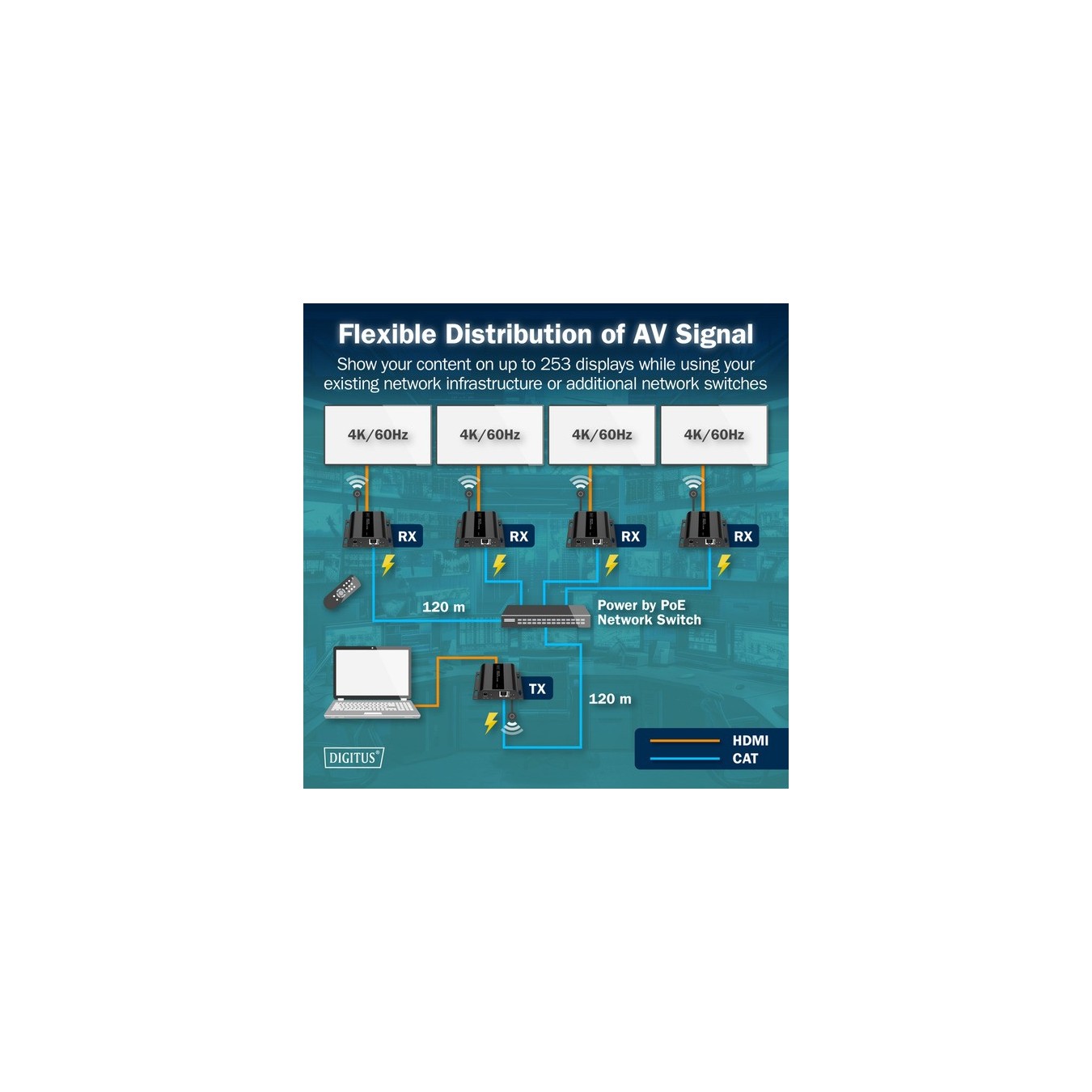

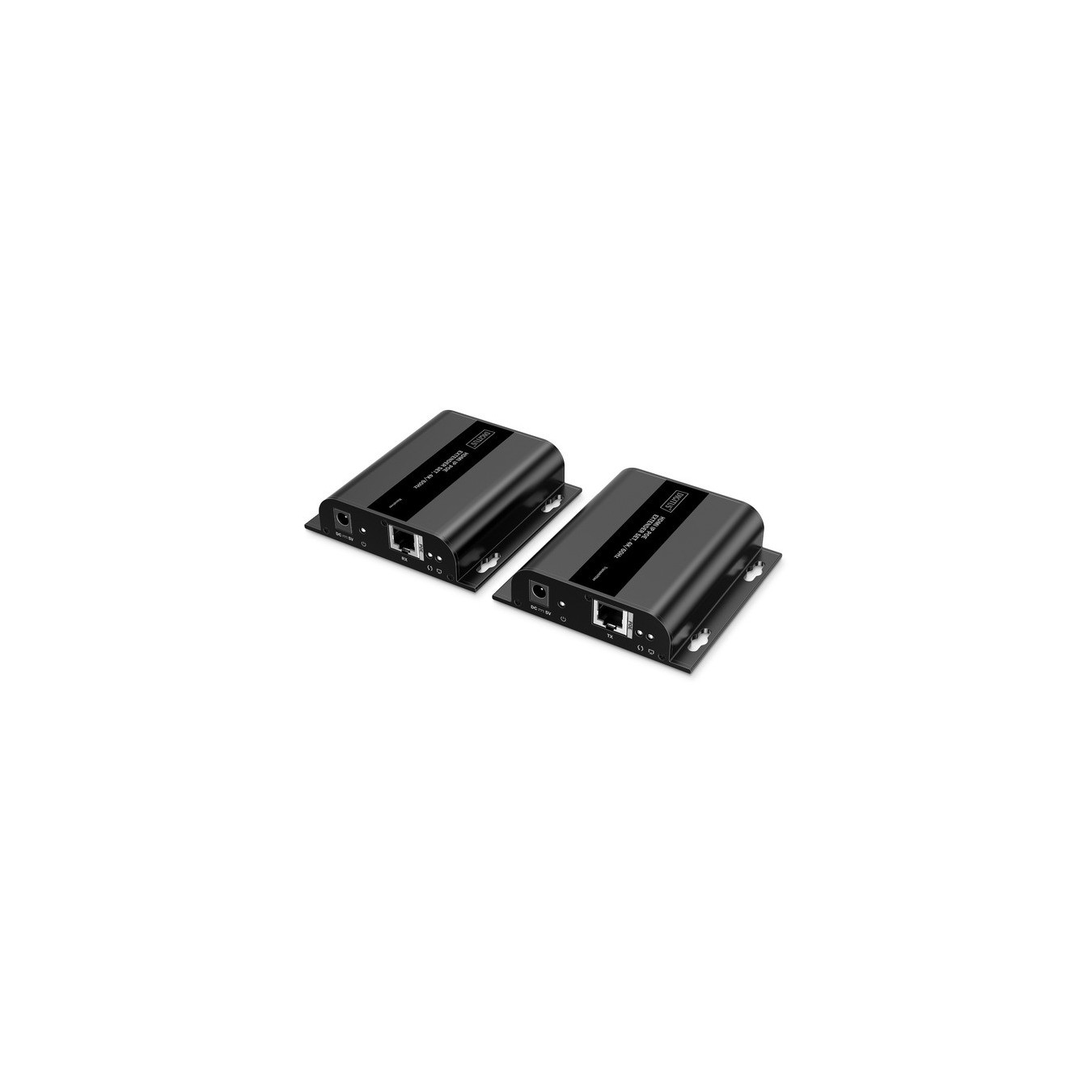

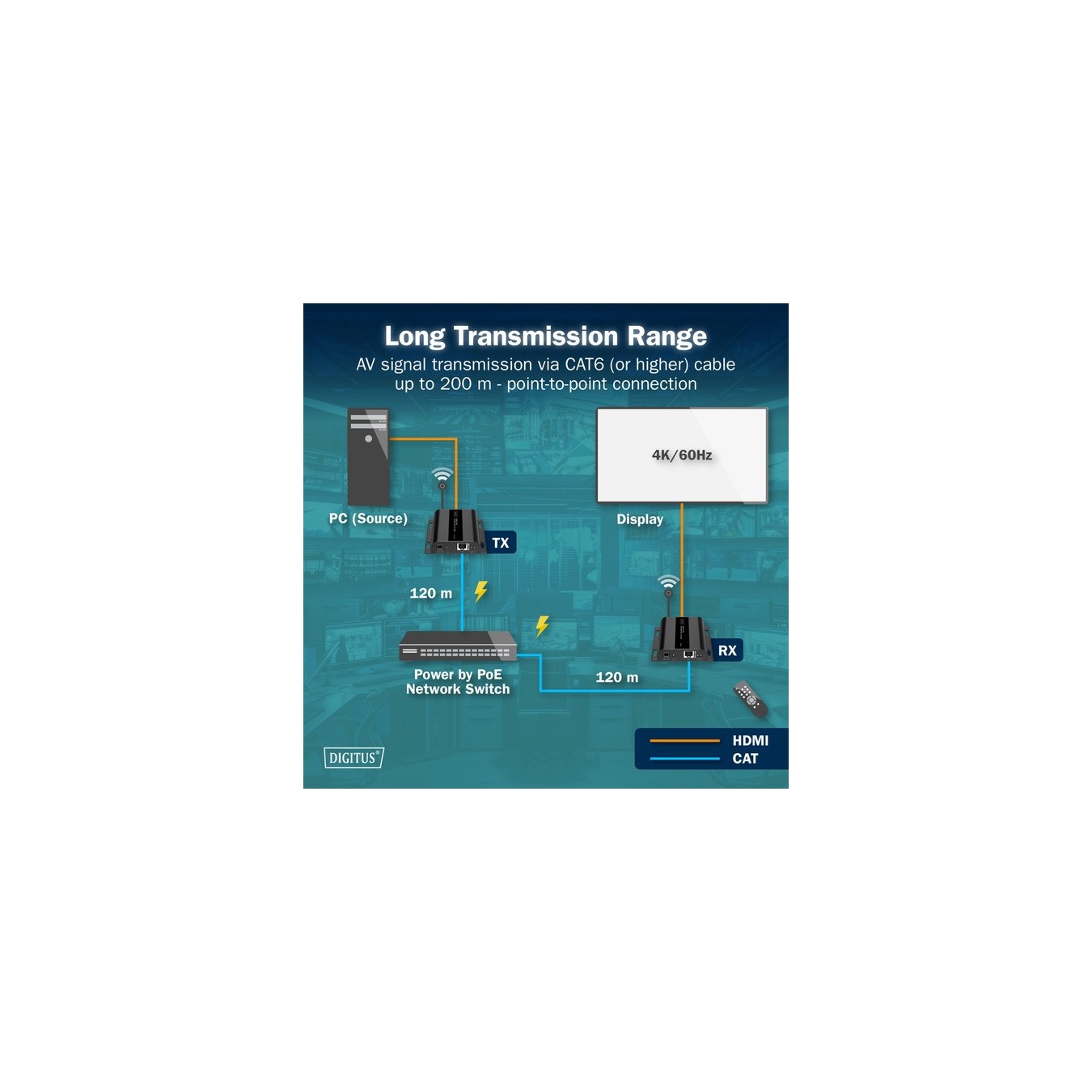

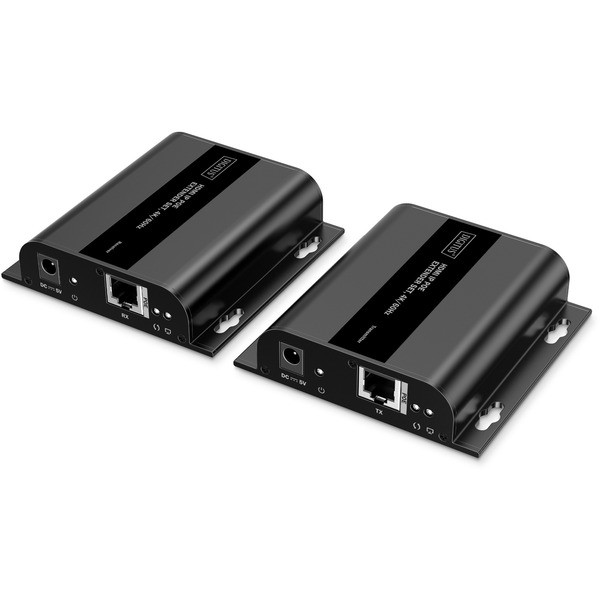

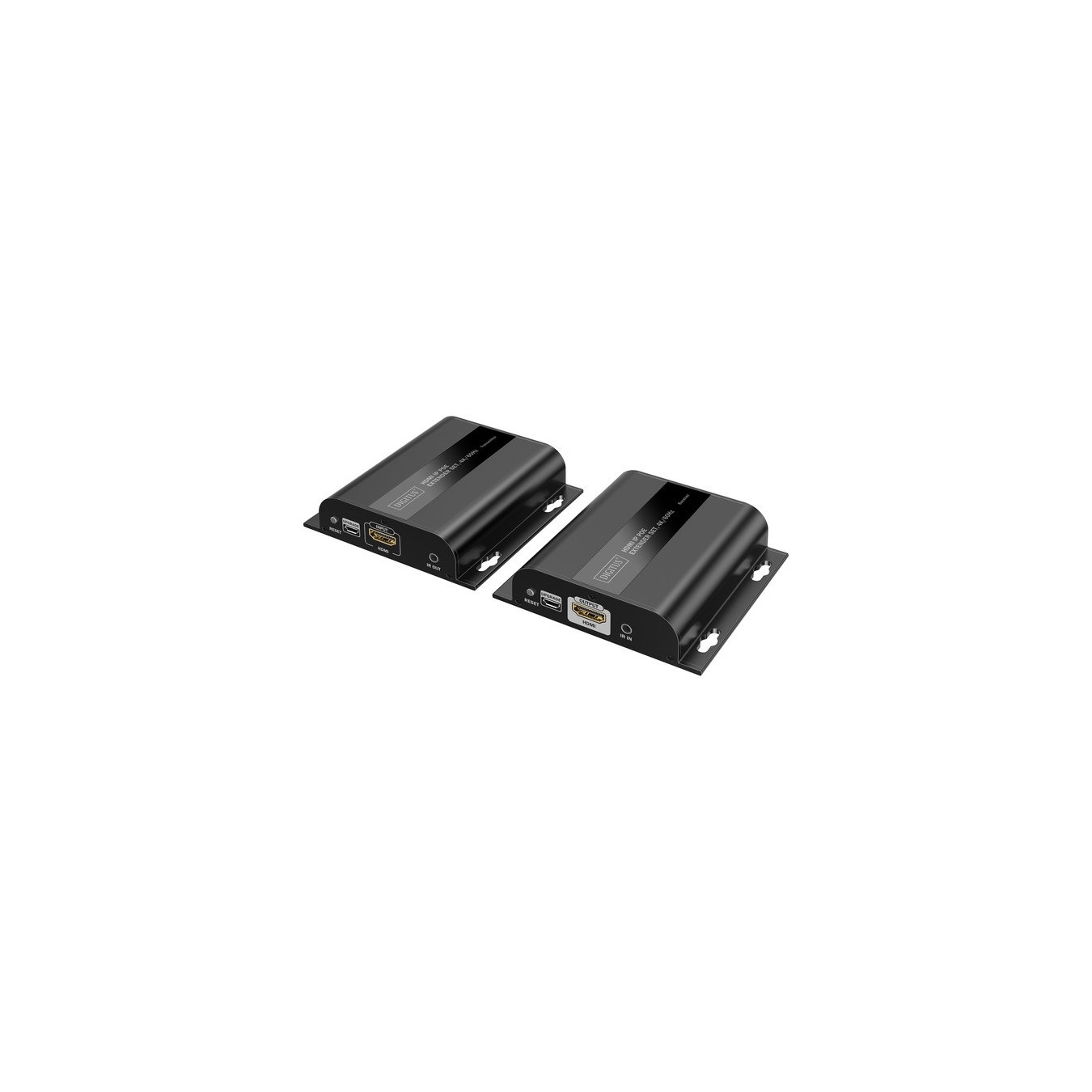

The HDMI IP Extender Set, 4K/60Hz from Digitus enables the transmission of HDMI AV signals in ultra-high resolution 4K quality (4096x2160p at 60Hz) over long distances of up to 200 meters via a CAT6 network cable or higher. The set is fully powered via a PoE network switch; external power supplies are not required. By expanding via IP, the system can be flexibly scaled and supports up to 253 receivers (displays) for point-to-multipoint transmission. For even greater flexibility, additional receivers (RX) are available separately (model: DS-55354). Another practical feature is the integrated IR interface, which allows remote control of the input source directly from the output screen. The device is also suitable for wall mounting, which allows for space-saving installation.
| Typ | HDMI extension |
| Color | schwarz |
| EAN | 4016032501916 |
| Manufacturer no. | DS-55353 |
| max. supported resolution | 4096 x 2160 Pixel |
| Terminal device connections - HDMI | 1 |
| Connections per computer - HDMI | 1 |
| RJ-45-Switch-Ports | 2 |
| Feature | AV signal transmission via CAT6 (or higher) cable up to 200 m, expandable via IP up to 253 receivers, IR interface, suitable for wall mounting |

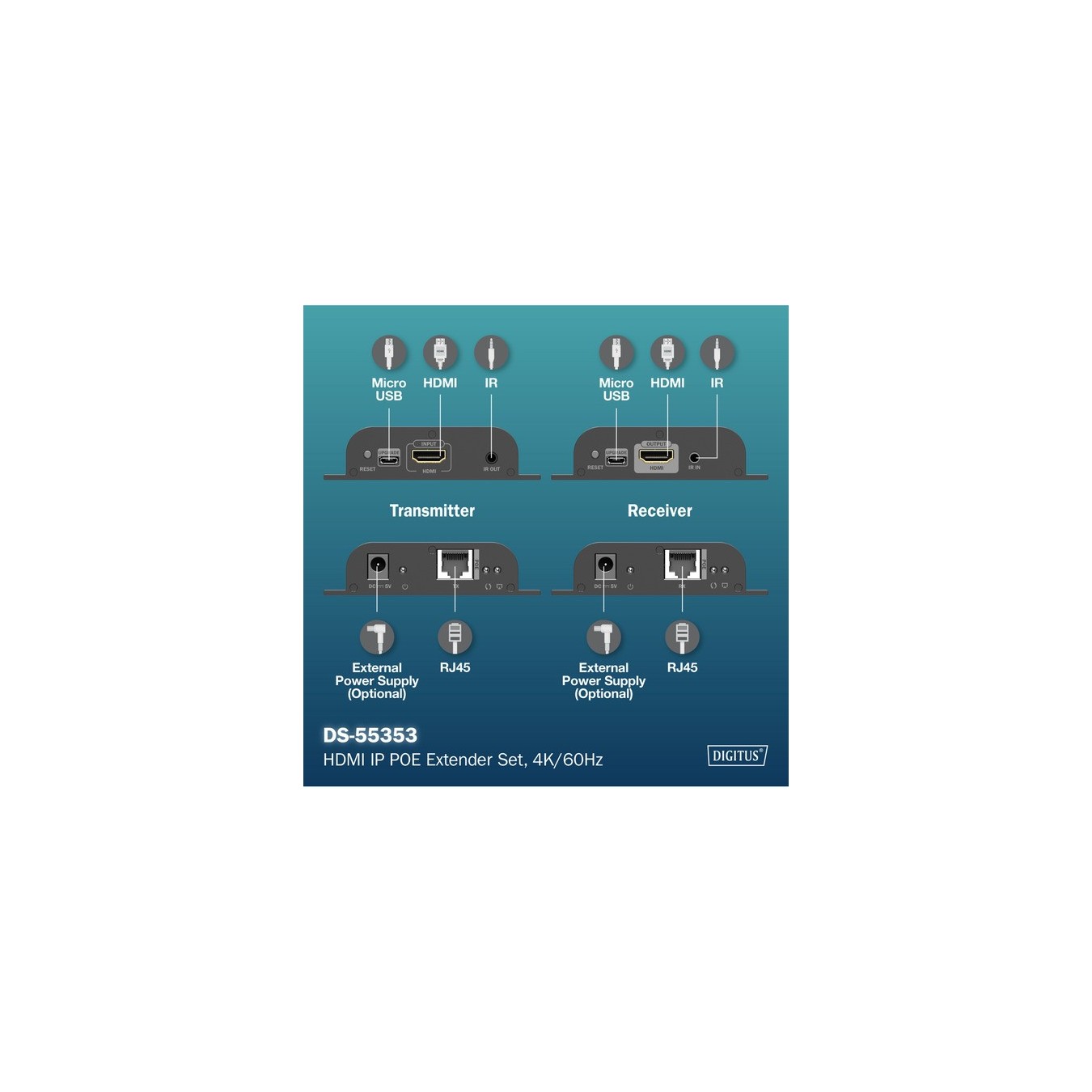

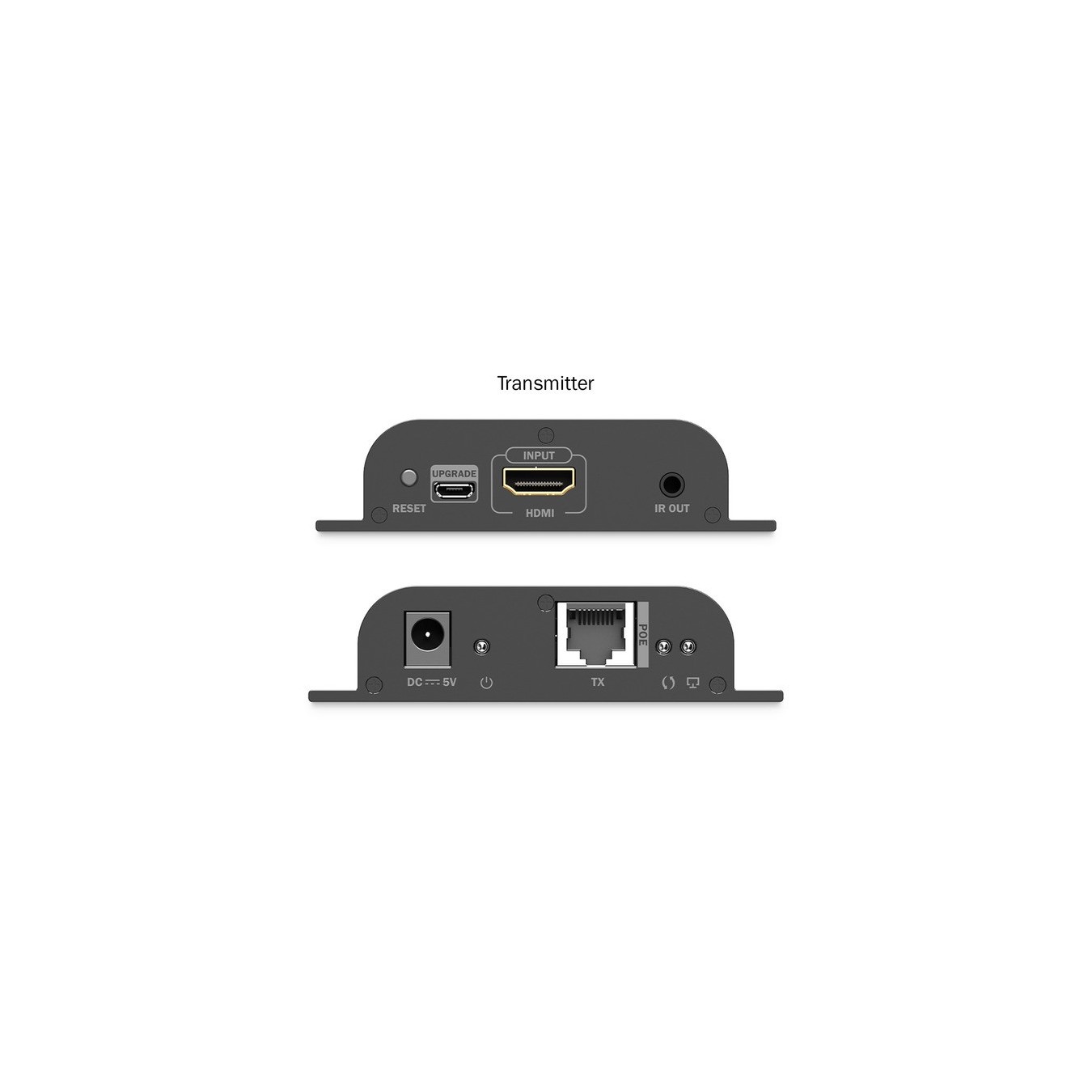

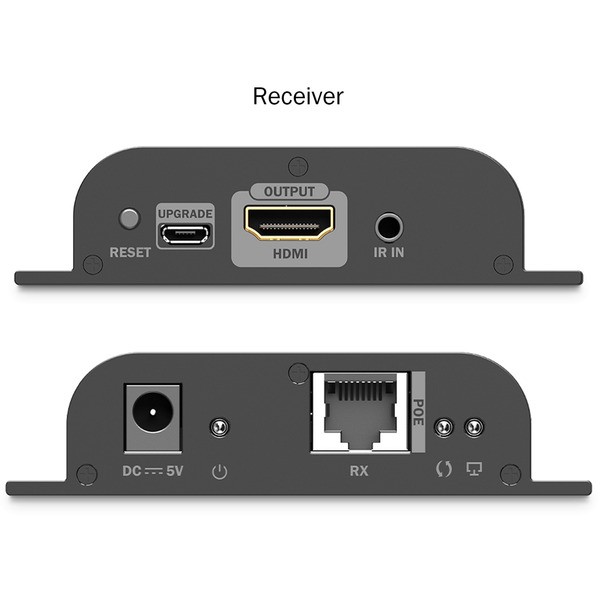

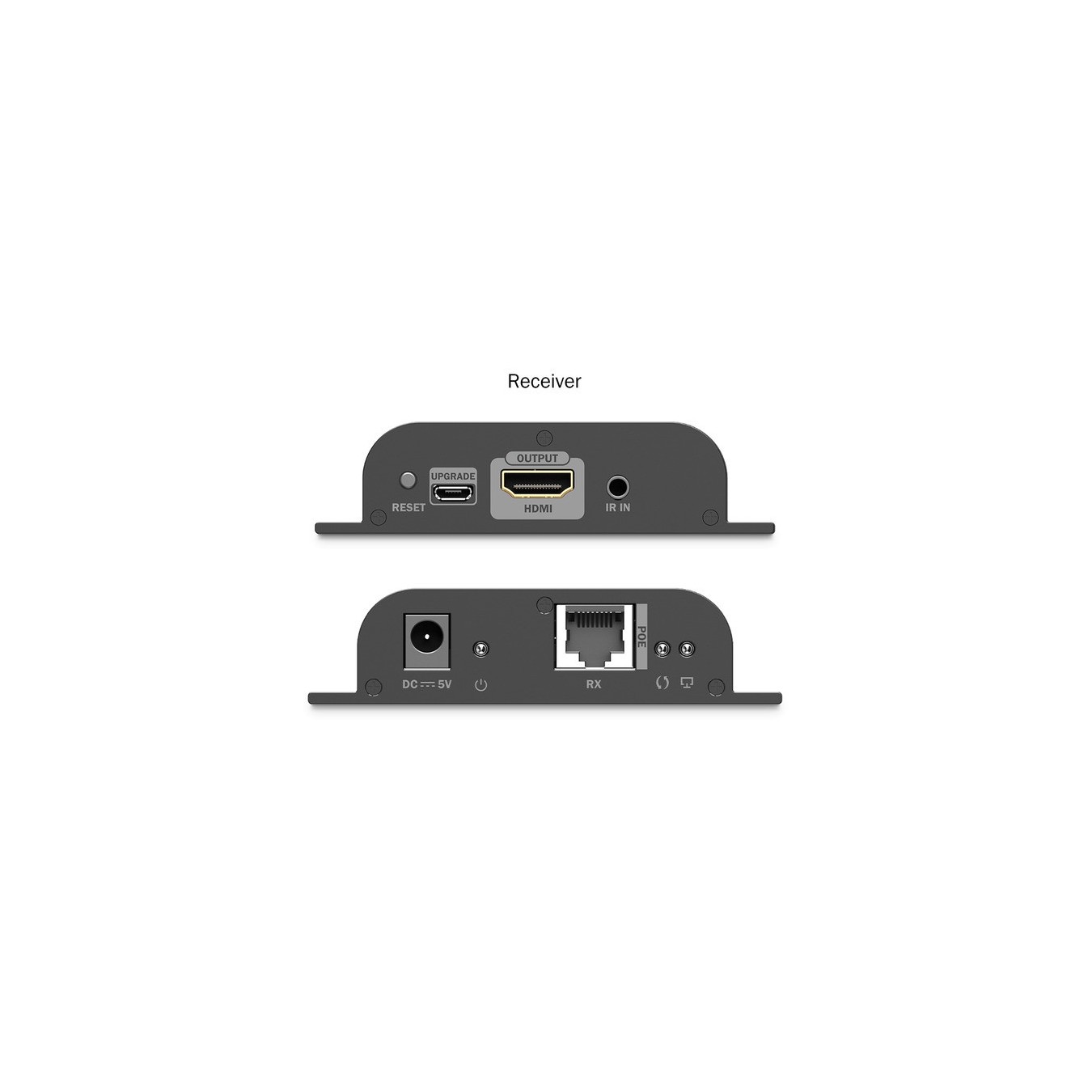

| More information | Connections transmitter unit (TX): 1x HDMI input (4K/60Hz) - signal source connection, 1x RJ45 output (Gigabit Ethernet) - CAT transmission cable connection, 1x IR output - reception of the IR signal, 1x power supply connection (DC 5V/1A) - Only optional: external power supply connection (not included), 1x Micro USB - FW update port, 1x reset button, 3x status LED; Receiver unit (RX) connections: 1x HDMI output (4K/60Hz) - display connection, 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection, 1x IR input - forwarding of the IR signal, 1x power supply connection (DC 5V/1A) - Only optional: external power supply connection (not included), 1x Micro USB - FW update port, 1x reset button, 3x status LED |
| Accessories - available | 1x transmitter unit, 1x receiver unit, 2x IR cable/extension (1.0 m), 1x operating instructions |
| Warnings and safety information | Safety instructions: If the device is powered by a plug-in power supply, make sure that the power adapter is connected correctly and meets the specified requirements (e.g. voltage and current). Only use certified CAT5e or CAT6 cables to ensure stable signal transmission. For particularly long cable routes or in environments prone to interference, it is recommended to use shielded network cables. Please note that all connections are tight and secure to avoid loose connections that could affect signal quality. Make sure the HDMI and Ethernet ports are connected properly. To avoid signal interference, ensure that the CAT cable is not installed near high-voltage power lines or other sources of strong electromagnetic interference. Only operate the device within the specified temperature range. Do not use the device outdoors or in damp or wet environments Regularly check all connections and cables for wear or damage. Especially with frequent use or long installations, cables and connectors can wear out, resulting in poor performance signal quality or system failure. |
