2.5' SATA 22 Pin to M.2 NGFF - Serial ATA-Controller
Delock SATA to M.2 NGFF converter connects M.2 SSDs (2280/2260/2242/2230) to a 2.5" SATA bay; bootable replacement for a 2.5" HDD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

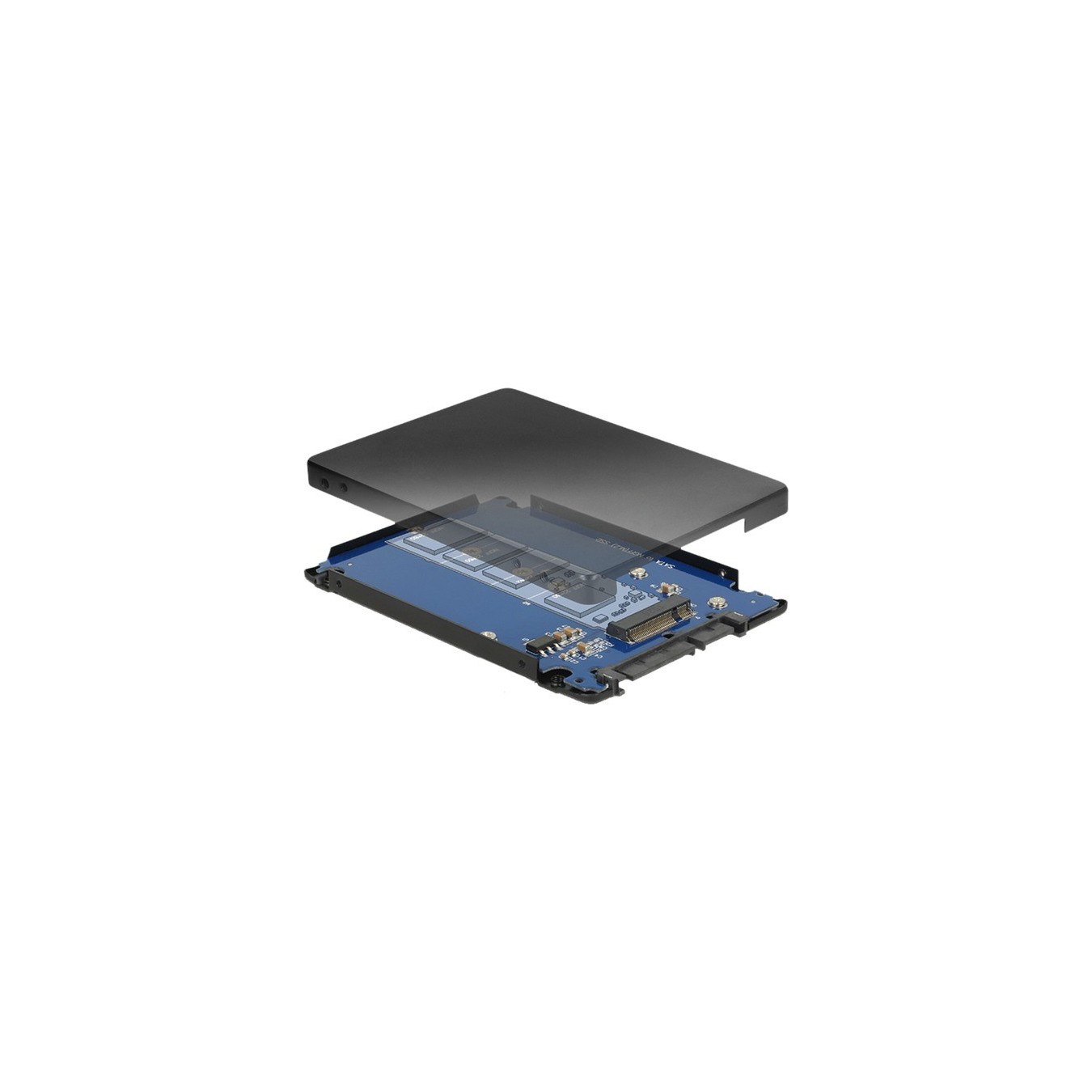

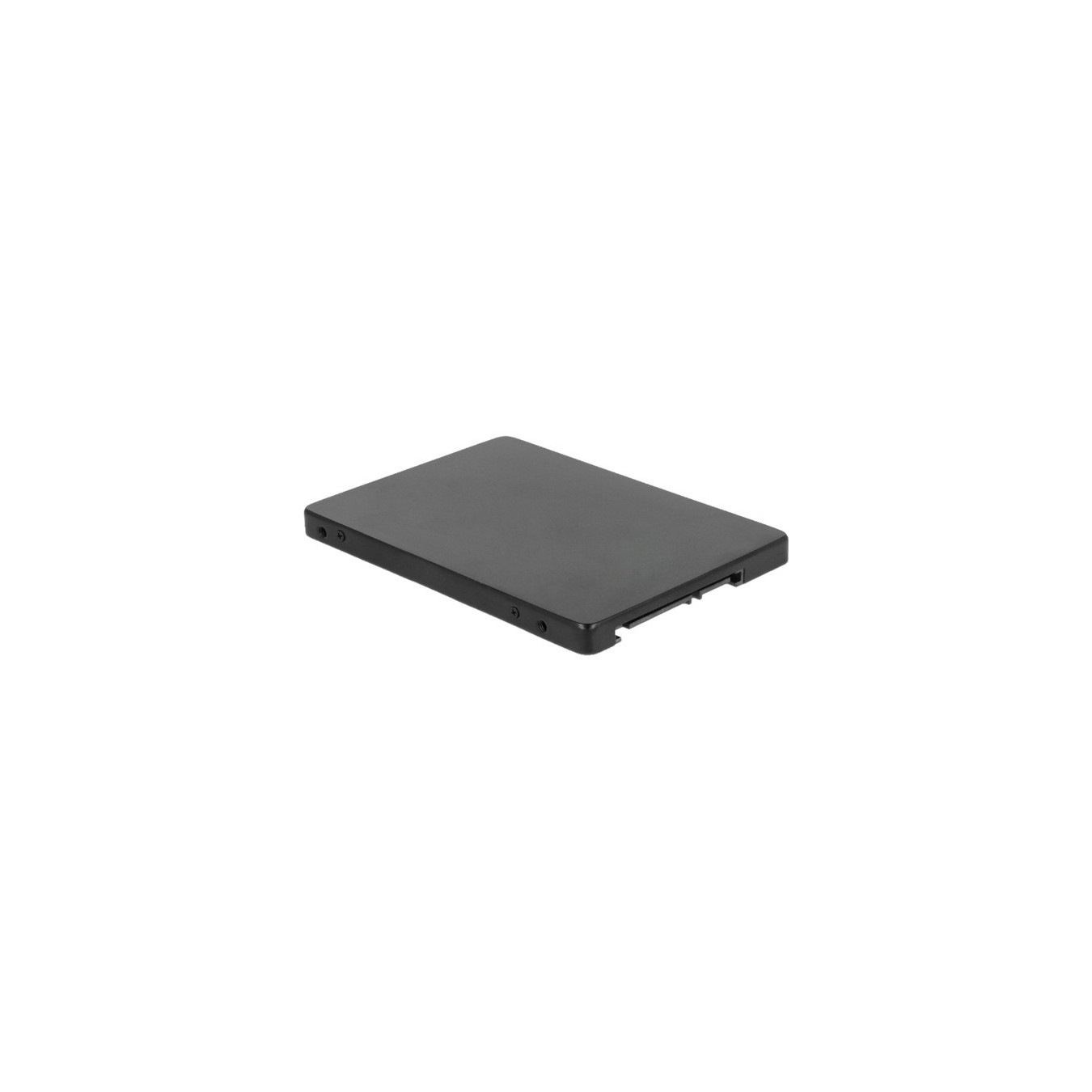

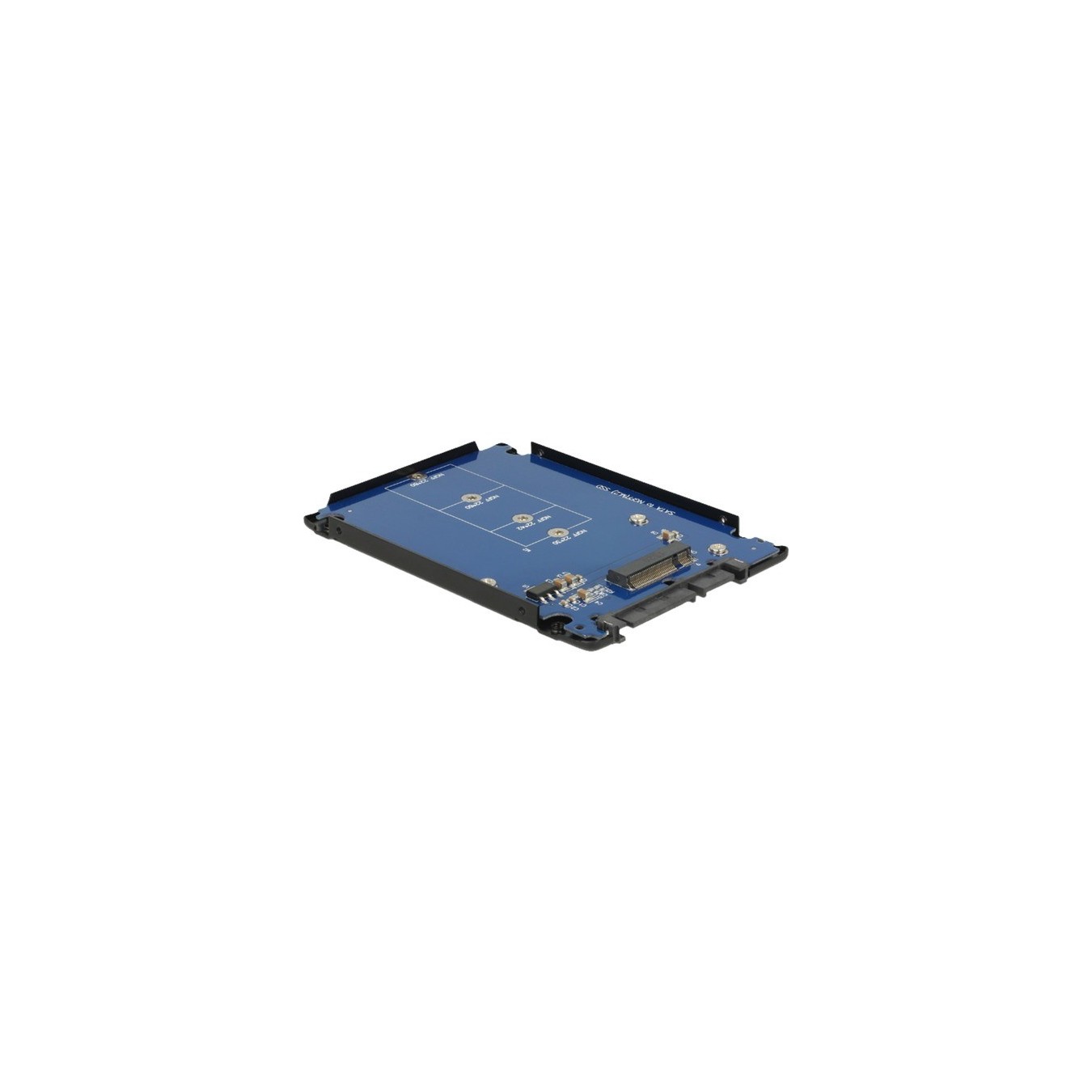

An M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format can be connected to this Delock converter and used as a replacement for a 2.5" hard drive. The converter can be integrated into the system internally via the SATA 22-pin interface.
| Typ | Serial ATA-Controller |
| EAN | 4043619626885 |
| Manufacturer no. | 62688 |
| Controller Art | Serial-ATA |
| slot | SATA (22-Pin) |
| Protocol | Serial-ATA/600 |
| Data throughput | 6 GBit/s |
| Raid-Level - direct | 60 |
| More information | Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with Key B or Key B+M on SATA basis; Maximum height of components on the module: 1.35 mm; Use of modules equipped on both sides possible; bootable |
| Notice | Form factor: 2.5"; with case |
| Weight | 25 Gramm |
