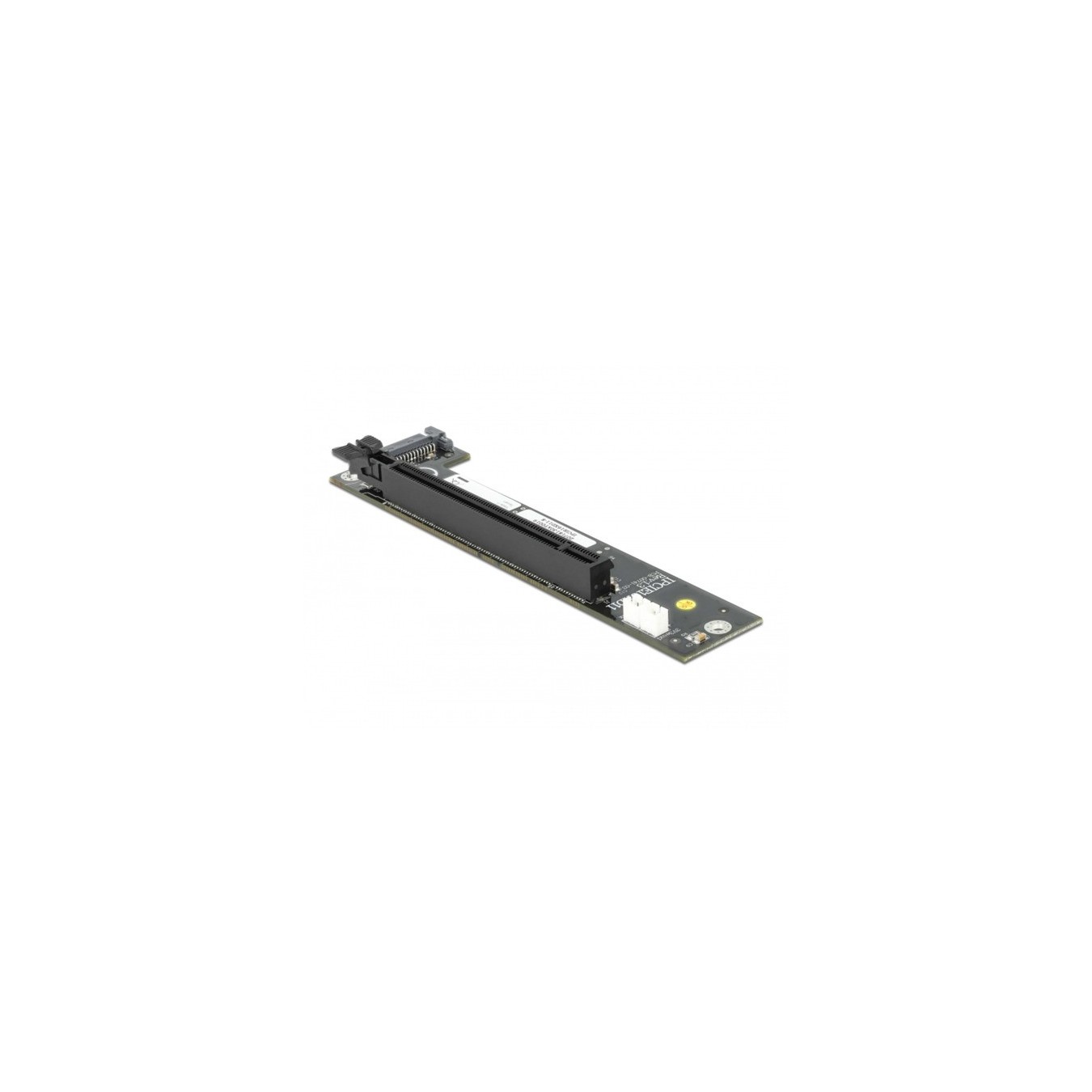

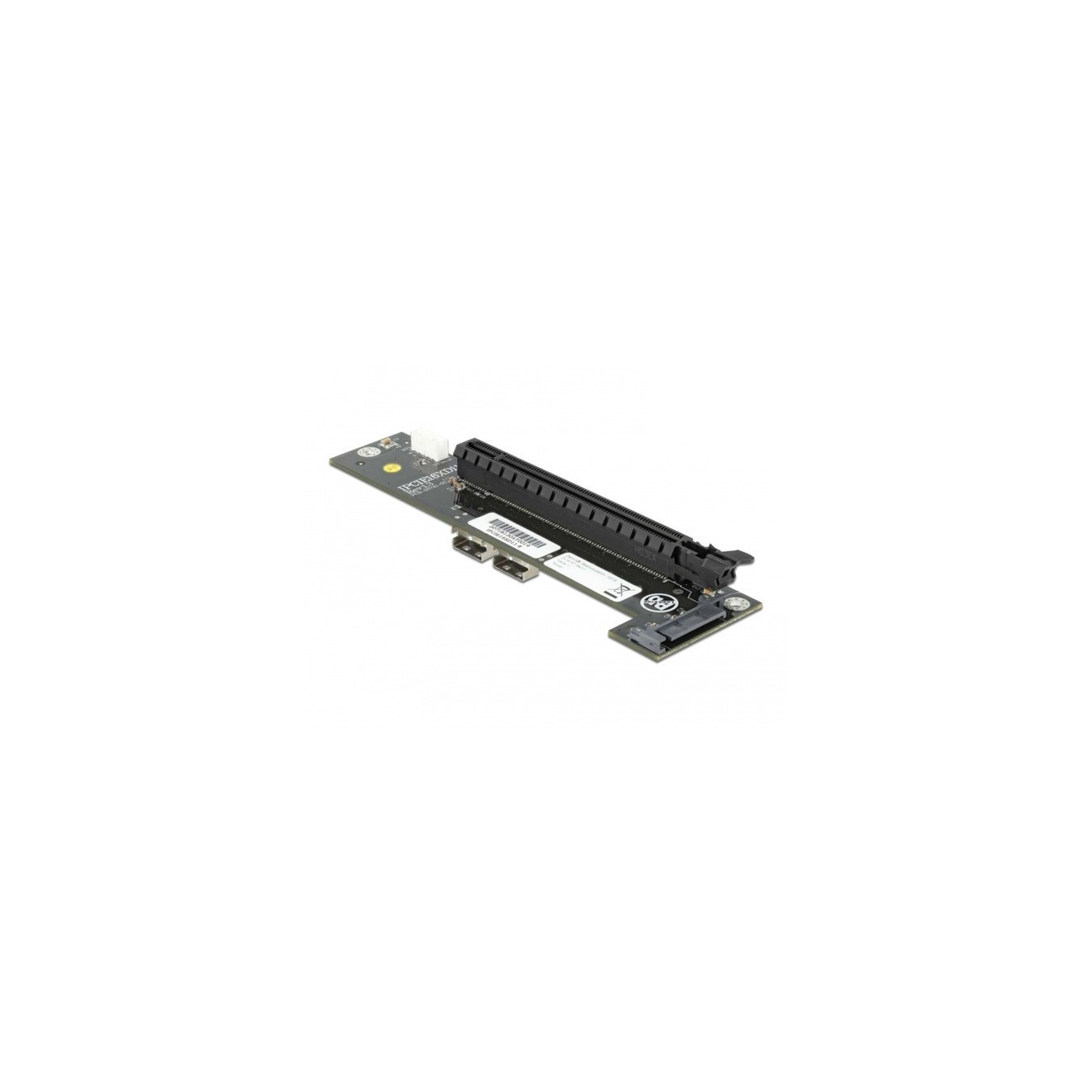

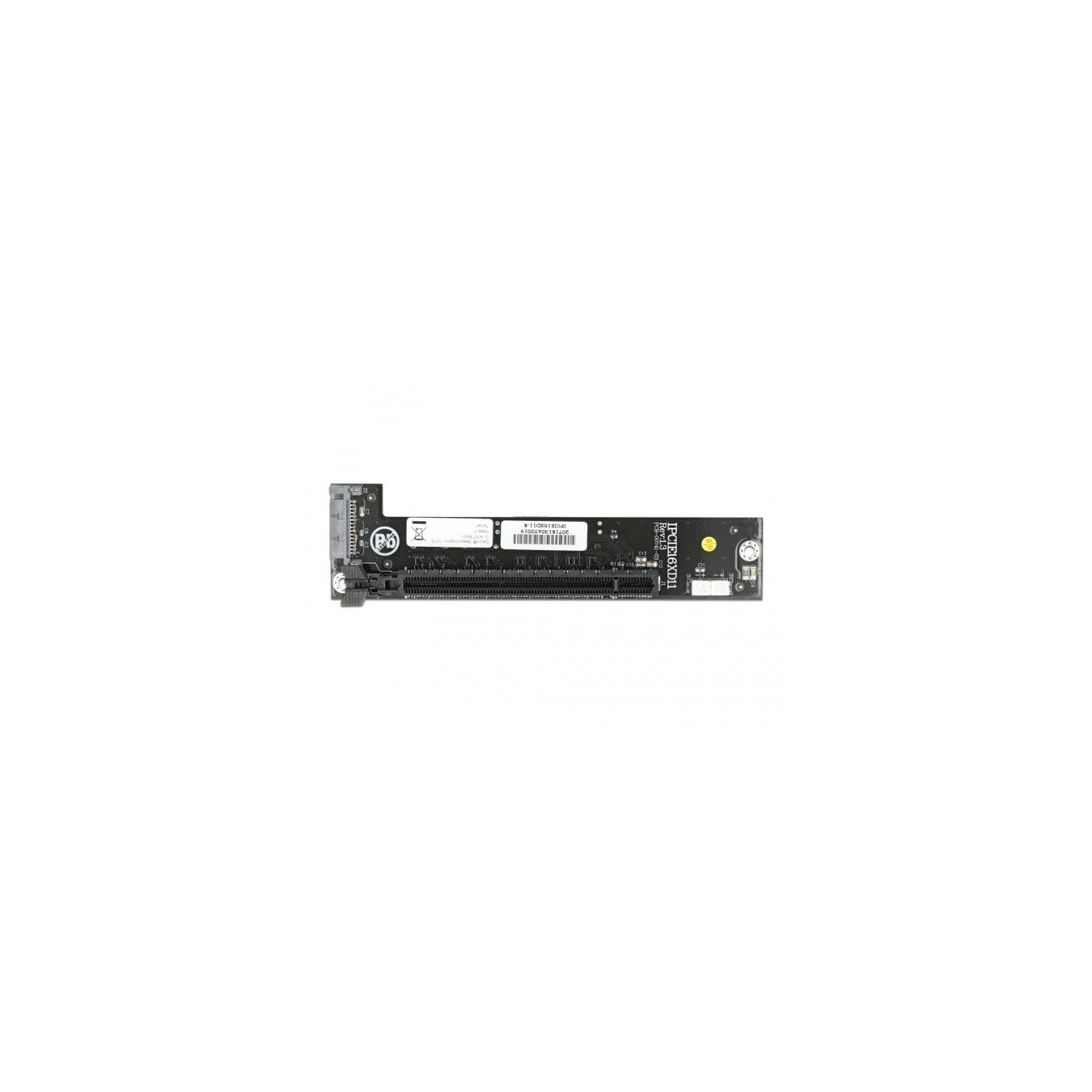

Converter 2 x SFF-8654 to PCIe x16 bifurcation interface card - Interface card
Delock 2x SFF-8654 to PCIe x16 bifurcation interface card; NVMe support; includes 2x 3.3V power connectors; requires bifurcation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The 2 x SFF-8654 to PCIe x16 bifurcation converter from Delock can be integrated into the system via the SFF-8654 interface and provides a PCI Express x16 slot. Various PCI Express cards can be connected to the slot. The converter supports four PCIe lanes per SFF-8654 port and therefore offers a maximum of 8 lanes. This makes it possible to use the converter with just one SFF-8654 connection, as long as the respective PCI Express card only requires a maximum of four PCIe lanes. The converter can be connected to a PCI Express card, which has the PCIe bifurcation function to provide eight lanes (x4 + x4) on the PCIe x16 slot. This means that PCI Express cards with bifurcation function can be connected to the PCI Express slot of the converter, for example. B. connect two M.2 or U.2 SSDs.
| Typ | Interface card |
| EAN | 4043619641482 |
| Manufacturer no. | 64148 |
| slot | PCIe x16 Version 4.0 |
| Connections - internal | 2x SFF-8654 |
| Feature | Supports NVM Express (NVMe) |
| More information | 2 x 2 pin 3.3V power connector for PCIe slot |
| Notice | System requirements: A free SFF-8654 interface (4-lane) | Two free SFF-8654 interfaces (4-lane + 4-lane) with bifurcation |
| Dimensions | Width: 40mm x Height: 21mm x Depth/Length: 150mm |
