2.5' HDD SSD expansion frame - Installation frame
Delock 2.5' HDD/SSD expansion frame attaches to a drive with a back 3M adhesive pad to adjust height; includes compact dimensions.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

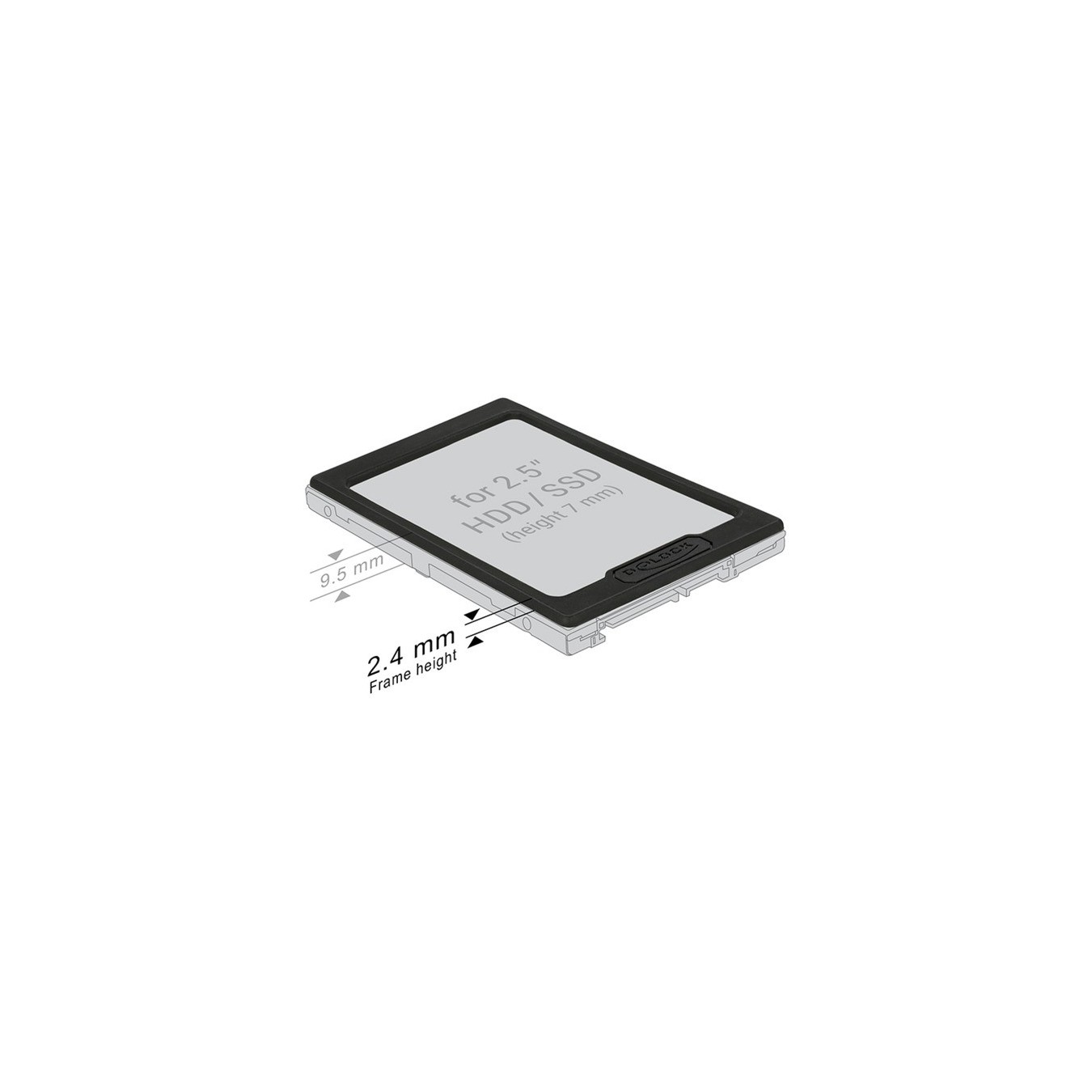

This expansion frame from Delock can be glued to an HDD / SSD hard drive to adjust the height. This means that the hard drive can be adjusted so that it can be used, for example, in external housings or in removable frames that require a different height. For removable frames that require a height of 9.5 mm, the frame can be used together with an SSD with a height of 7 mm, thus ensuring that the SDD can be inserted correctly into the guide of the removable frame. Otherwise there may be problems with the mechanism of the removable frame.
| Typ | Installation frame |
| Color | schwarz |
| EAN | 4043619182169 |
| Manufacturer no. | 18216 |
| Purpose | Expansion frame |
| use | Drive frame |
| Suitable for | Height change from 7 mm to approx. 9.5 mm |
| Material | plastic |
| More information | Change in height e.g. E.g.: from 7 mm to approx. 9.5 mm, from 9.5 mm to approx. 12 mm, from 12.5 mm to approx. 15 mm; Attachment: 3M adhesive pad on the back; Dimensions (LxWxH): approx. 99.55 x 69.45 x 2.40 mm |
| Dimensions | Width: 69mm x Height: 2mm x Depth/Length: 100mm |
| Weight | 20 Gramm |
