DisplayPort Splitter - 1x mini DisplayPort 1.2 to 4x DisplayPort 4K
Delock DisplayPort 1.2 Splitter 87693 distributes one DP signal from a PC/notebook to four displays.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

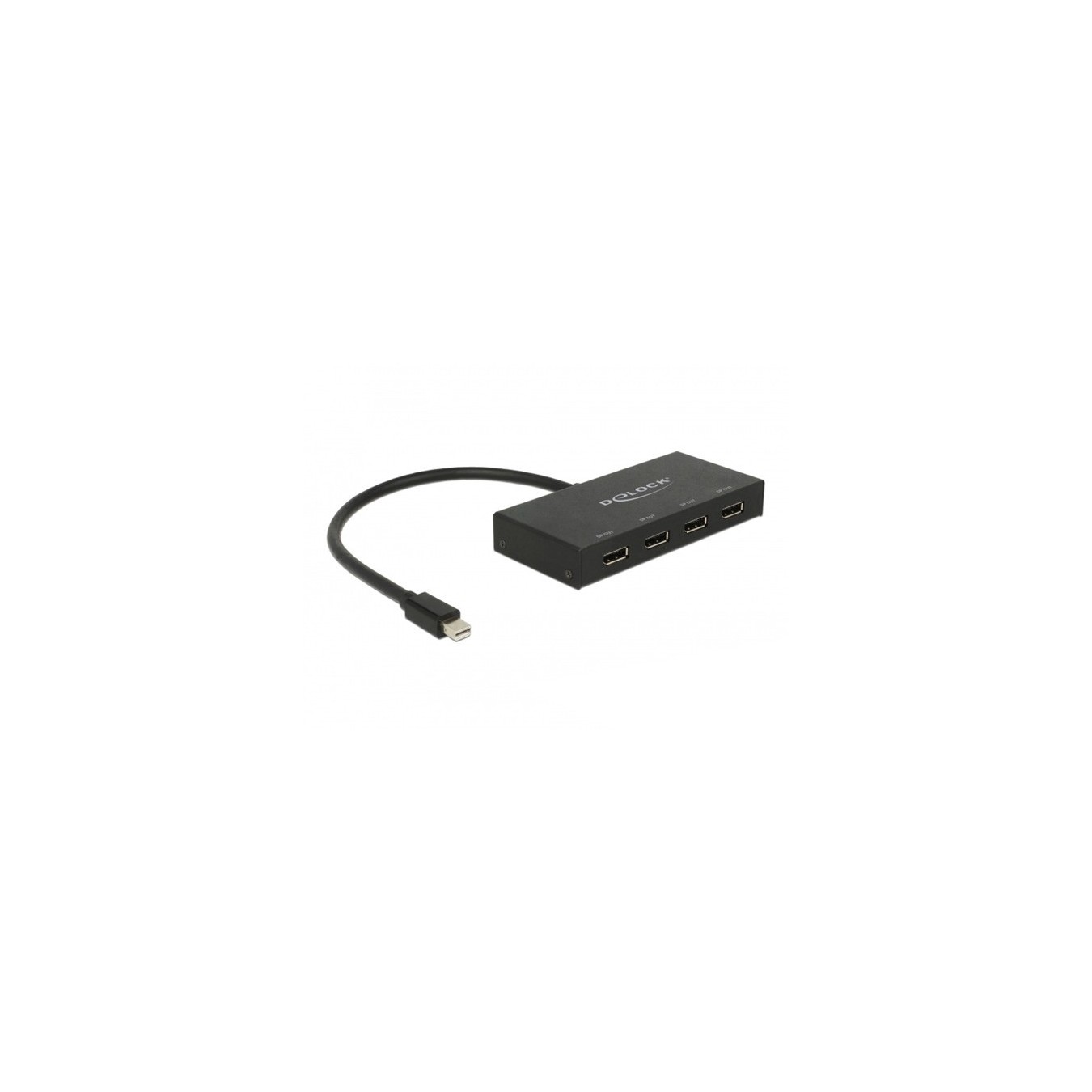

The DisplayPort 1.2 Splitter 87693 from Delock receives a DisplayPort signal from a PC or notebook and splits it between four connected screens. This means that four DisplayPort monitors can be operated on one DisplayPort connection. The outputs are dual mode capable (DP++), so HDMI or DVI monitors can also be connected with appropriate adapters.
| Typ | DisplayPort Splitter |
| Color | schwarz |
| EAN | 4043619876938 |
| Manufacturer no. | 87693 |
| Application example | Divides the video signal between four connected screens |
| Area | Audio / Video |
| Connection - from | 1x Mini DisplayPort (male) |
| Video classification | Displayport 1.2a |
| taps | 5 |
| Characteristics | extern |
| Feature | Metal housing, supports audio and video signals, DisplayPort output supports dual mode DP++ |
| More information | Chipset: STDP4320, active converter, Single / Multi Stream Transport Hub (SST / MST), maximum resolution (depending on the system and connected hardware): DisplayPort 1.1 or 1.2 Single Stream Transport (SST) up to 1,920 x 1,080 @ 60Hz (mirrored), DisplayPort 1.2 Multi Stream Transport (MST) up to 2,560 x 1,440 @ 60Hz or 3,840 x 2,160 @ 30Hz (mirrored or extended), max. 4x 1,920 x 1,080 @ 60Hz, supports Eyefinity / Single Large Surface (SLS), audio input formats: 7.1 channel with a sampling rate up to 192 kHz |
| Notice | OS independent, no driver installation required |

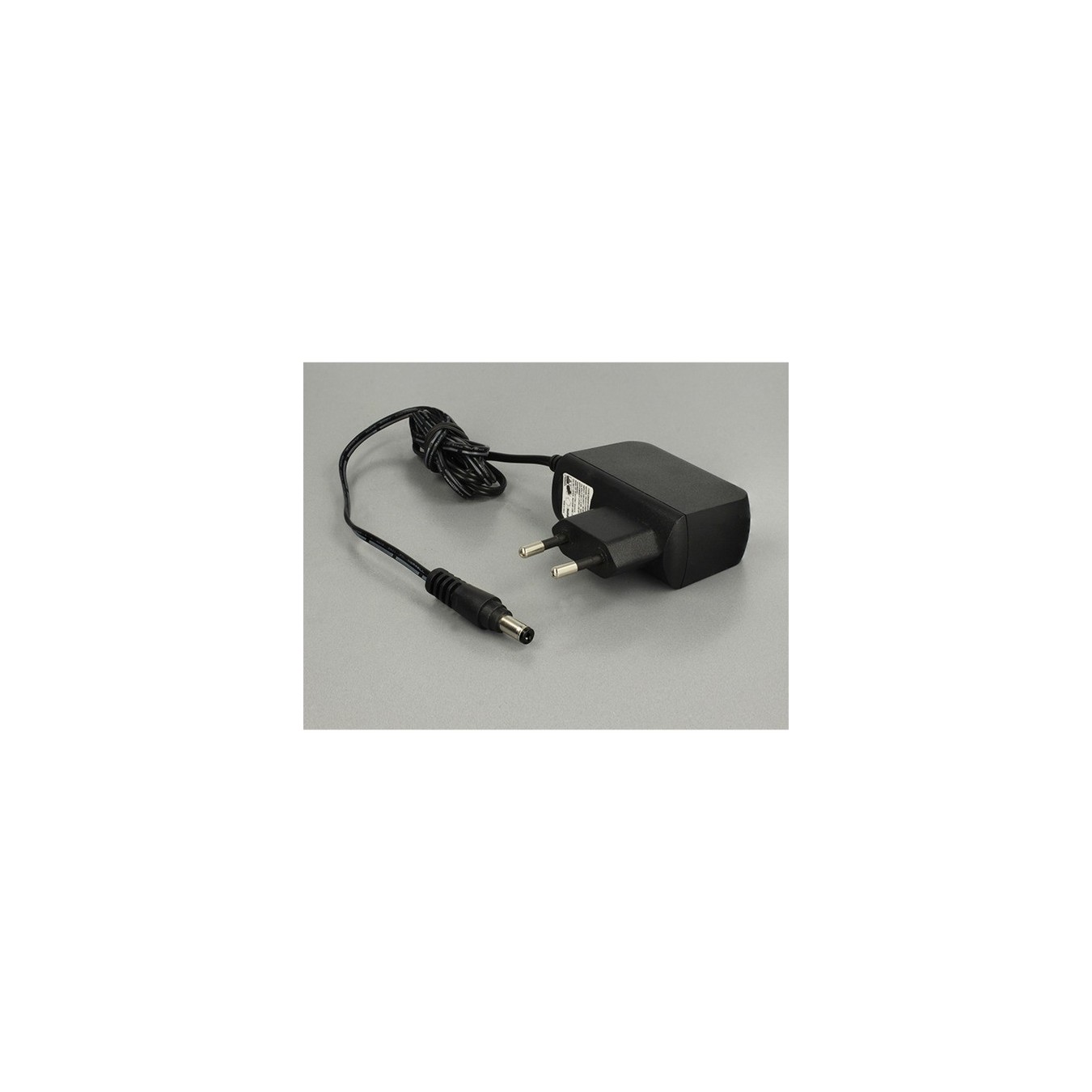

| Accessories - available | User manual, external power supply |
| Dimensions | Width: 67mm x Height: 23mm x Depth/Length: 143mm |
| Cable length | 30 cm |
