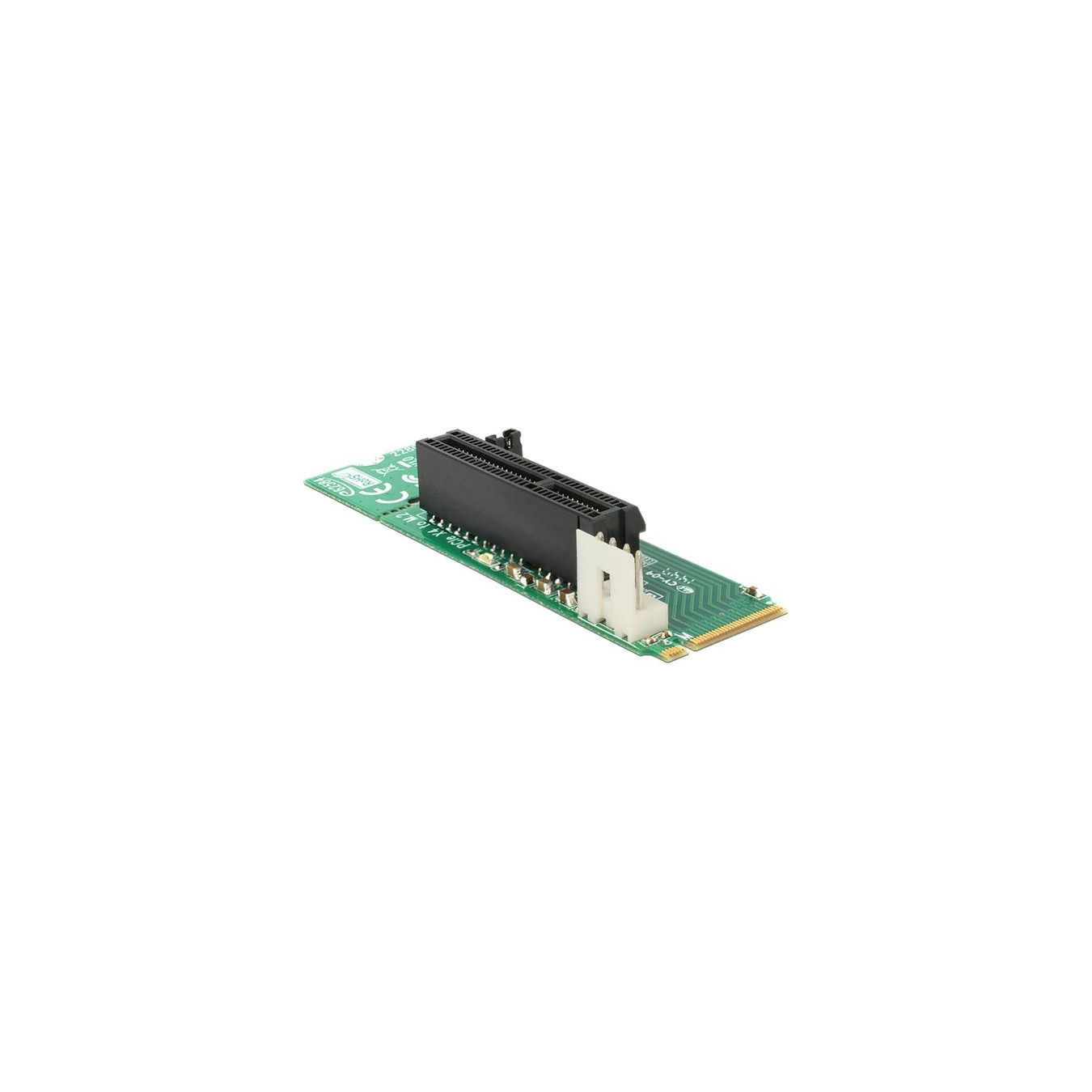

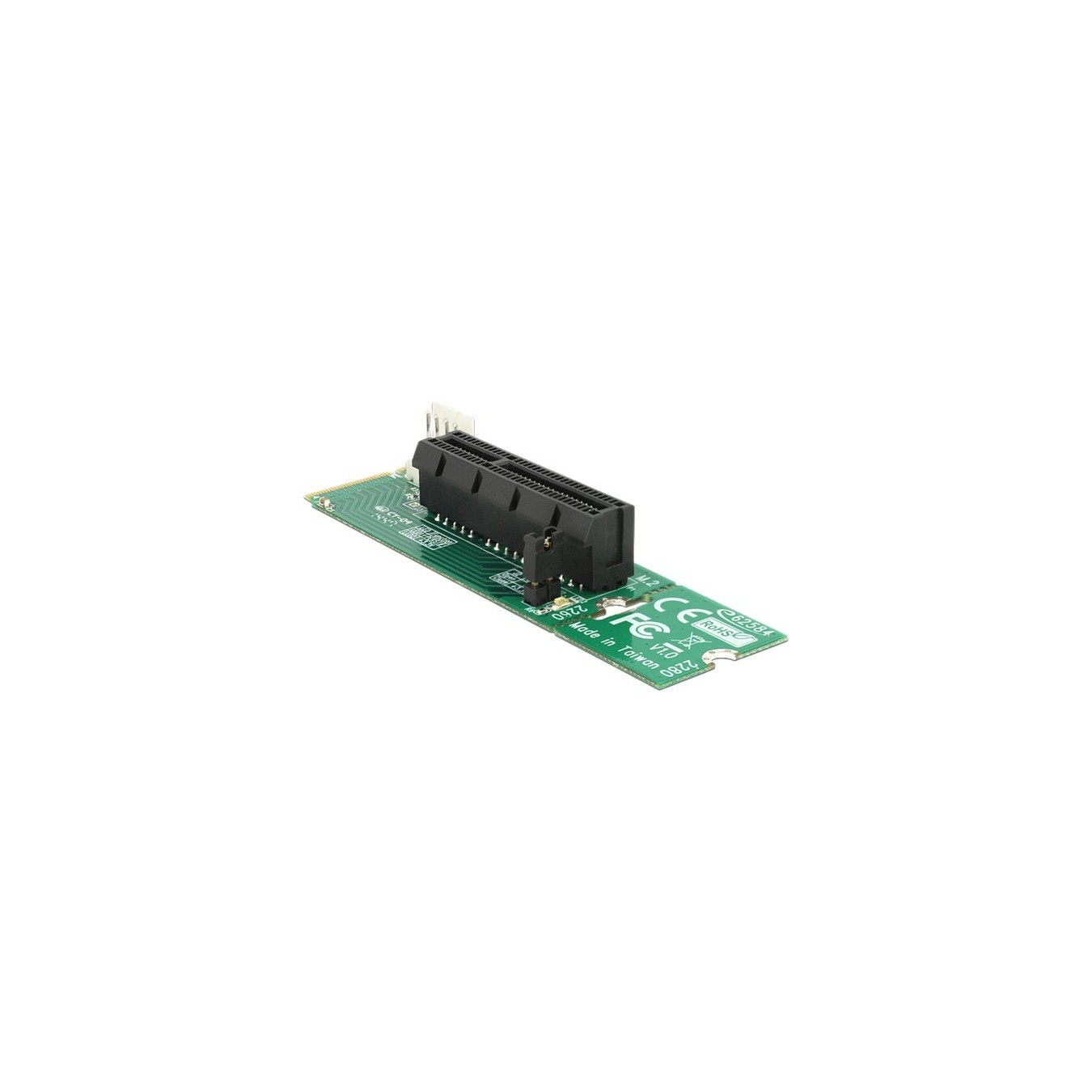

Adapter M.2 NGFF - PCIe x4, Controller
Delock Adapter: M.2 NGFF to PCIe x4 controller; connects PCIe cards via M.2 NGFF Key M; internal 1x M.2 connection; requires free M.2 interface.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

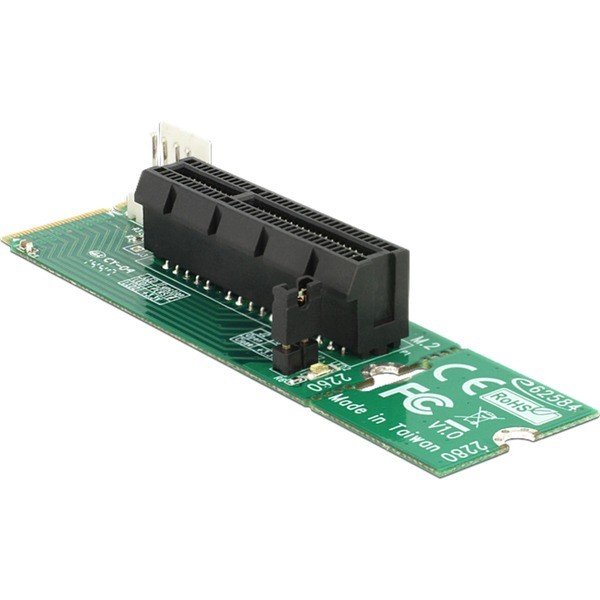

You can connect a PCI Express card to this Delock adapter. The adapter is connected to the system via the M.2 NGFF interface. The predetermined breaking point allows the adapter to be shortened from 80 mm to 60 mm in length.
| Typ | Controller |
| EAN | 4043619625840 |
| Manufacturer no. | 62584 |
| Controller Art | M.2 |
| slot | M.2 (NGFF 2242), PCIe x4, M.2 (NGFF 2242) |
| Connections - internal | 1x M.2 |
| More information | Connections: 1x 59 pin M.2 NGFF Key M connector (PCI Express); 1x PCI Express x4 slot, rev. 2.0; 1x 4 pin power connector form factor: 2280 or 2260 |
| Notice | A free M.2 NGFF interface with Key M required |
| Weight | 29 Gramm |
