DeLOCK USB Expansion Card - PCIe x4 to 4x ext. USB 3.0 Quad C.LP
DeLOCK PCIe x4 USB 3.0 expansion card with four external USB 3.0 ports; powered by 4 x Renesas uPD720202 controllers for high data transfer.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Delock PCI Express card expands the PC with four external USB 3.0 ports. Each port is powered by a single Renesas chipset, enabling a high data transfer rate. Various USB devices can be used, such as: B. docking stations, card readers, external housings, etc., can be connected. Due to the vertical arrangement of the USB 3.0 ports, installation in a low profile slot is possible. Due to the on-board 5 V DC power supply regulation, the PCIe card does not require any additional power supply. Using the four jumpers, the current can be limited to 900 mA or 1.5 A on each USB port.
| EAN | 4043619890484 |
| Manufacturer no. | 89048 |
| Controller Art | USB 3.2 (10 Gbit/s) |
| slot | PCIe x4 Version 2.0 |
| Chip | 4 x Renesas uPD720202 |
| Protocol | USB 1.1, USB 2.0, USB 3.2 Gen 1 (5 Gbit/s), USB 3.2 Gen 2 (10 Gbit/s) |
| Data throughput | 10 GBit/s |
| Connections - external | 4x USB A |
| directly usable devices | 4 |
| Operating System - Supported | Linux, Windows 8, Windows 10, Windows Server 2016 |
| Low Profile | optional |

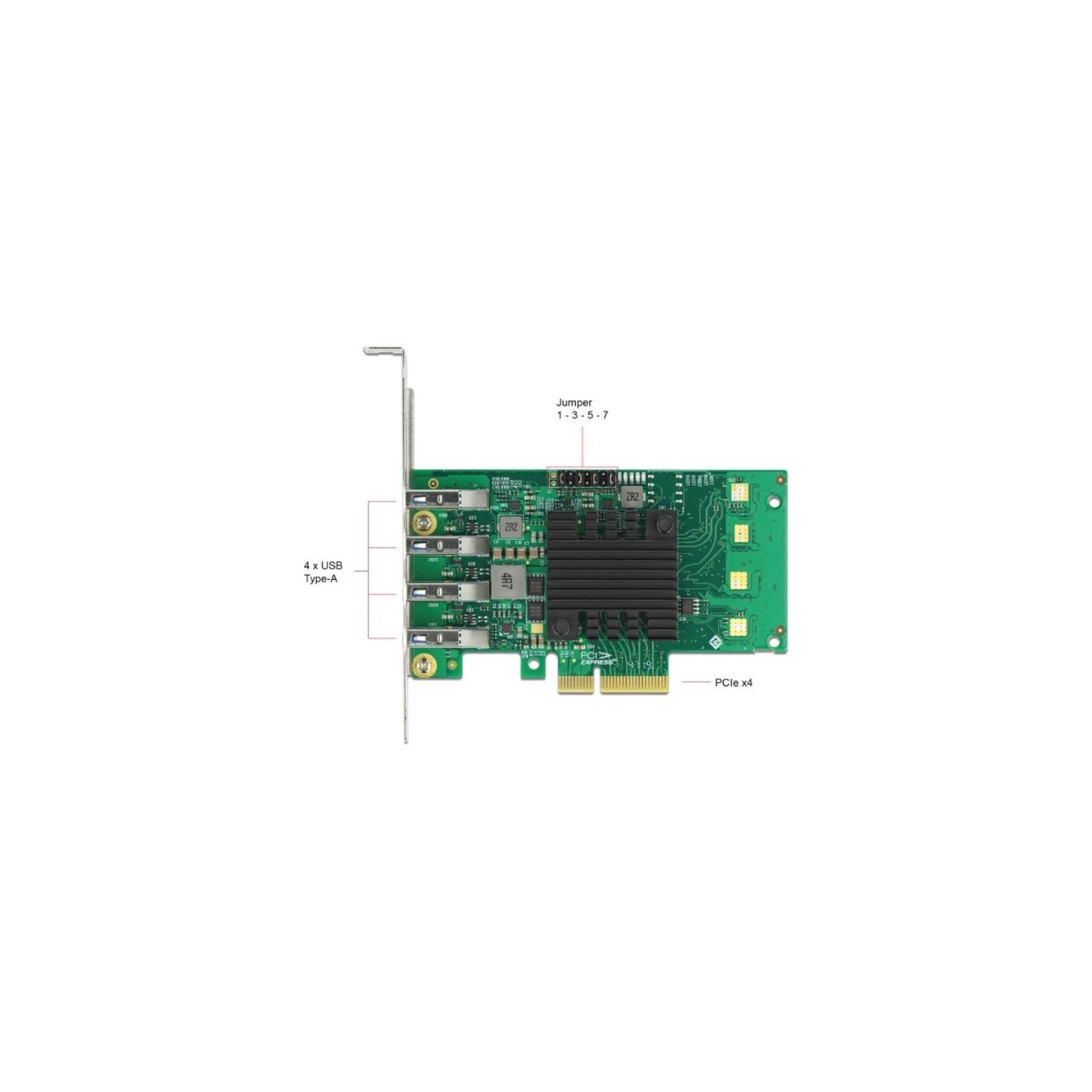

| Feature | 4 x jumpers for setting 0.9 or 1.5 A output, 9 x LED display |
| Accessories - available | Low profile bezel, instruction manual |
