Patch Panel - 24 Port Cat6 - 19\"
Delock 24-port Cat6 patch panel for 19-inch cabinets; shielded, 24 RJ-45 sockets, internal LSA strips, 180° cable routing, metal enclosure.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

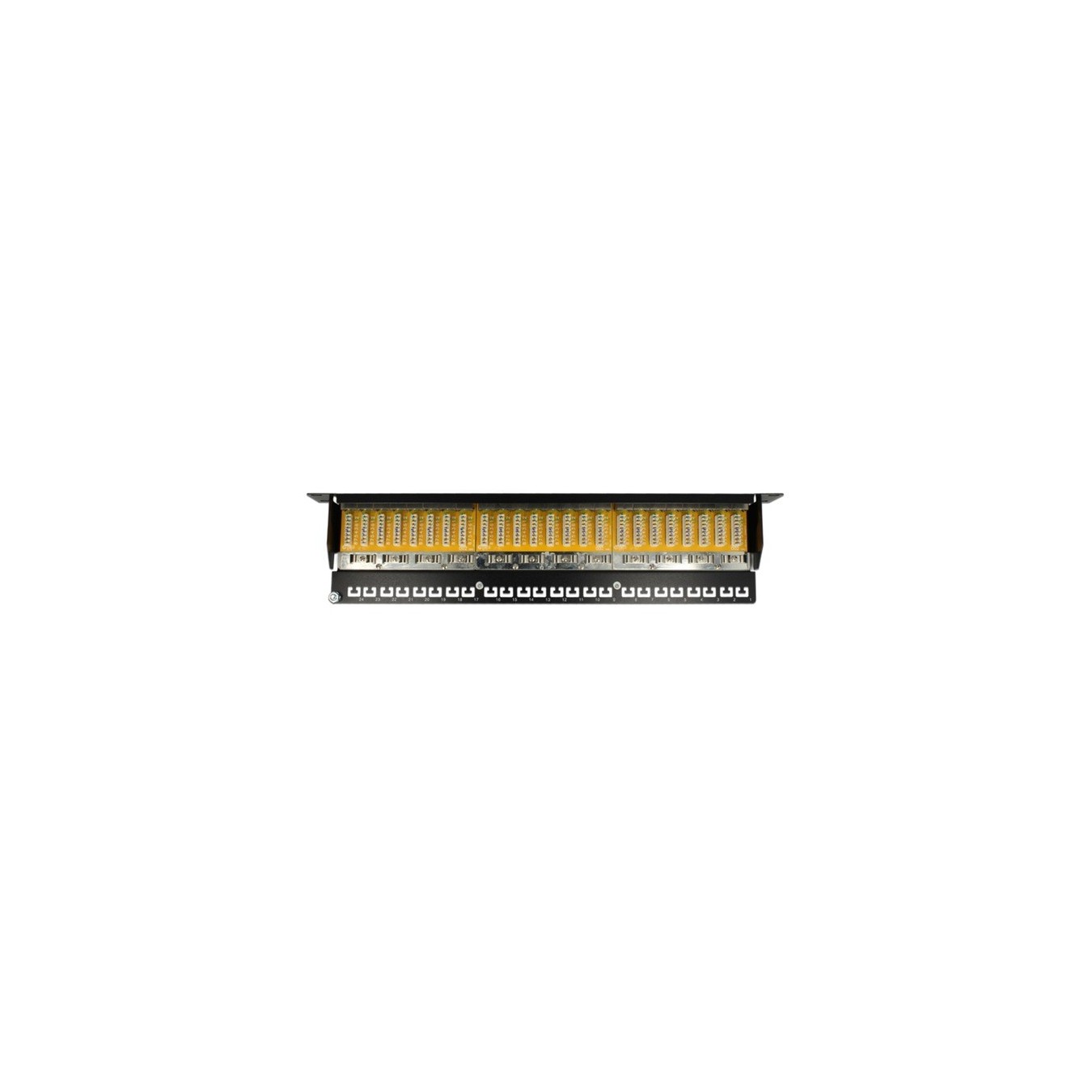

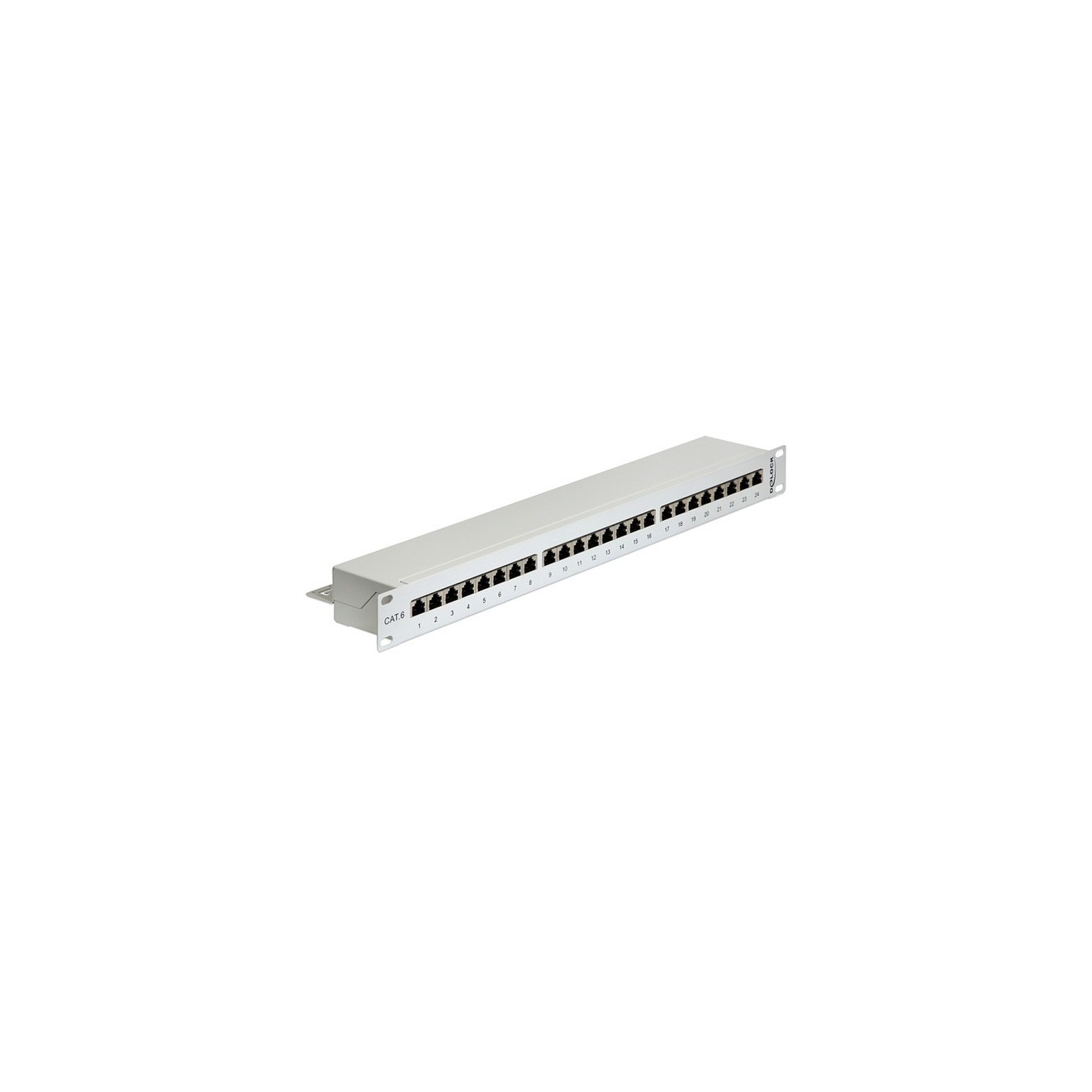

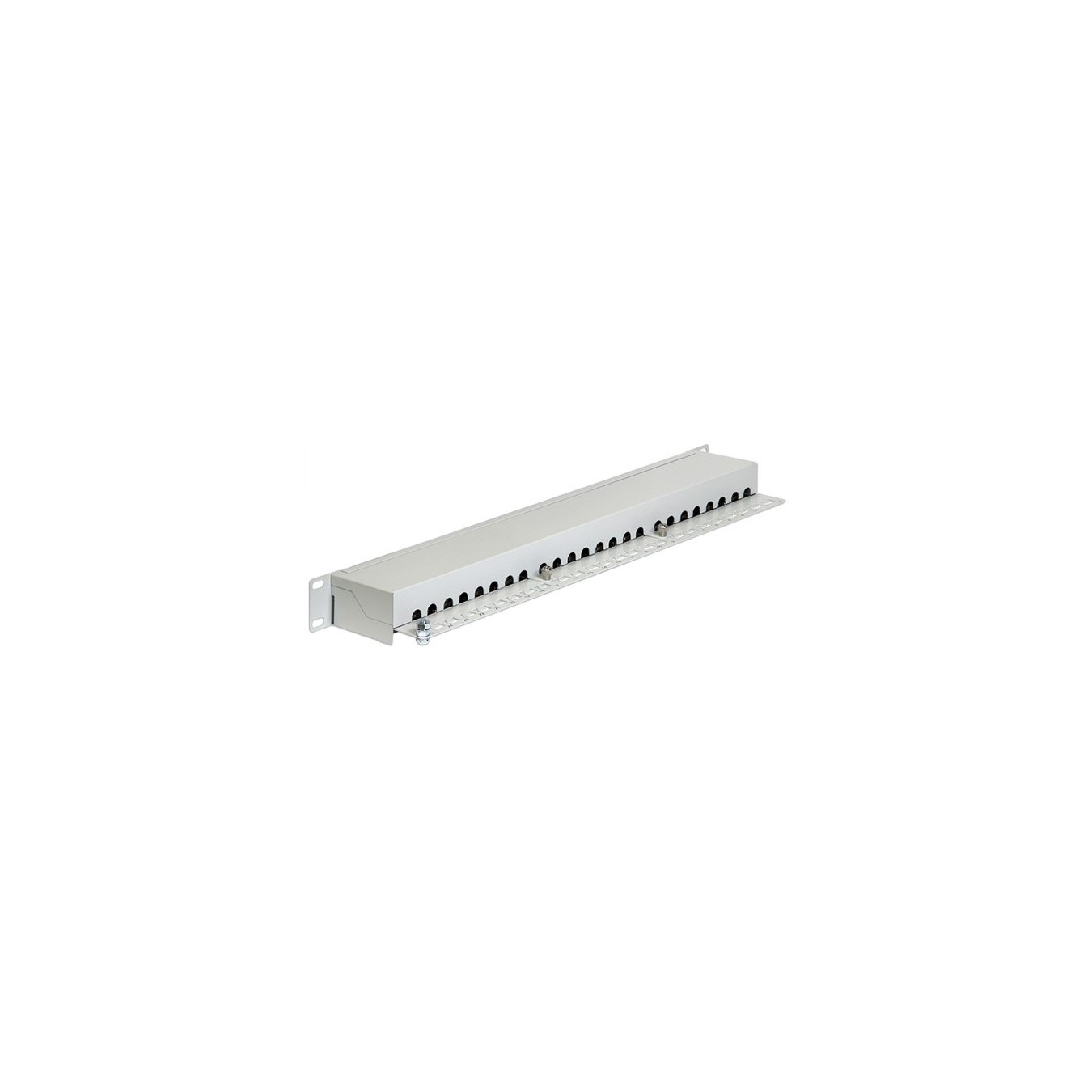

This patch panel from Delock can be used for installation in a 19" equipment cabinet. Up to 24 network cables can be installed on the LSA strips using a lay-up tool.
| Typ | Patchpanel |
| Color | grau |
| EAN | 4043619433001 |
| Manufacturer no. | 43300 |
| Purpose of use | For mounting in 19" cabinets |
| Transfer speed | 1.000 MBit/s |
| Cable type | Cat. 6 |
| Connections - number | 24x RJ-45 |
| More information | Connections: External: 24x RJ-45 sockets - Internal: LSA strips; Cable routing 180°; Shielded (Cat.6); Assignment according to TIA-568A/B; For cable diameters up to 0.644 mm (22 ~ 24 AWG); Suitable for solid and stranded conductors; metal casing; Color: light gray RAL 7035 |
| Accessories - available | Cable ties |
| Dimensions | Width: 483mm x Height: 44mm x Depth/Length: 109mm |
| Weight | 1,8 kg |
