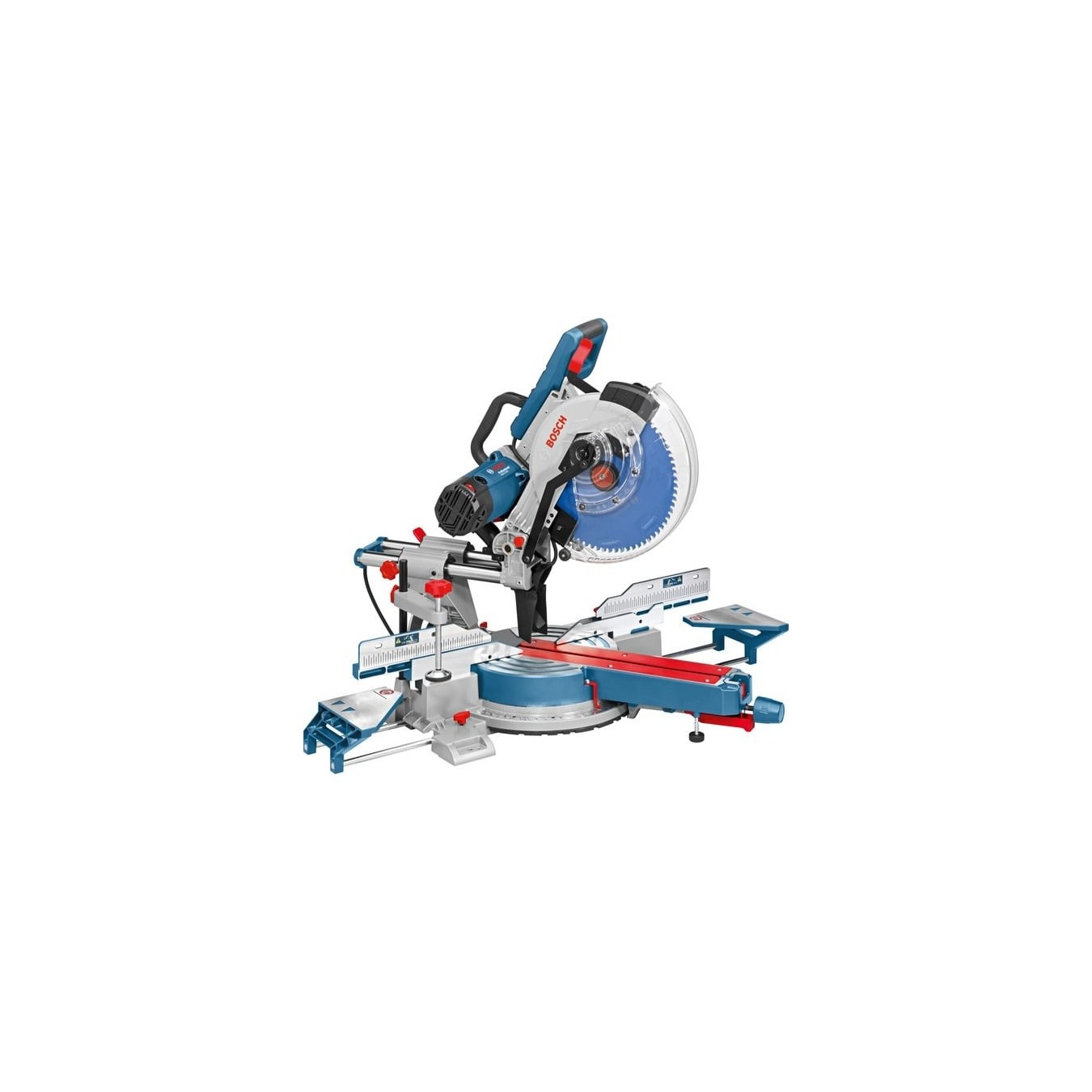

Panel saw - GCM 12 SDE - Professional, Cross-cut and Miter Saw
Bosch GCM 12 SDE Professional panel saw with high cutting capacity and variable speed for versatile applications.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Bosch panel saw GCM 12 SDE Professional offers a high cutting capacity and a variable speed, which makes it suitable for a wide range of applications. The horizontal cutting capacity is max. 400mm, the vertical cutting capacity is max. 120mm. The GCM 12 SDE Professional panel saw offers the highest precision thanks to laser projection of the cutting line onto the workpiece and a high-quality saw blade. The Click & Clean system offers a clear view of the work surface thanks to the removal of annoying dust.
| Typ | Cross-cut and miter saw |
| Color | blau |
| EAN | 3165140769648 |
| Manufacturer no. | 0601B23100 |
| Purpose of use | For sawing panels, caps, miter sawing |
| Operating mode | Mains connection |
| Service | Variable speed, speed preselection, SDS saw blade change |
| Pull function | No |
| lighting | Laser projection of the cutting line |
| Security | Motor brake, soft start |
| Dust extraction | Connection for external suction |
| Performance | Input power: 1,800 watts |
| Saw blade size | Ø 305 mm |
| Attitude - Tilt | Right 47°, left 47° |
| Cutting performance - at 0° / 90° | Length 370 mm, depth 85 mm |
| Speed - idle speed | 4,000 U/min |
| Operating noise - sound pressure level | 92 dB(A) |
| Vibration information - vibration emission value ah | 2,5 m/s² |
| Power supply | 220 Volt - 240 Volt |
| Feature | Intuitive tilt angle adjustment with preset angle stops |
| More information | Cutting capacity 0° with spacer (horizontal) 70 x 400mm, cutting capacity 0° with spacer (vertical) 120 x 200mm |
| Accessories - available | 1x circular saw blade Expert for Wood, 305 x 30 x 2.4mm, 72 |
| Dimensions | Width: 86 cm x Height: 53 cm x Depth/Length: 60 cm |
| Weight | 28,6 kg |
