HDMI KVM Extender Set - HDMI extension
HDMI KVM Extender Set supports 4K/30Hz, extends AV signals up to 40 m with low latency (10–20 ms).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

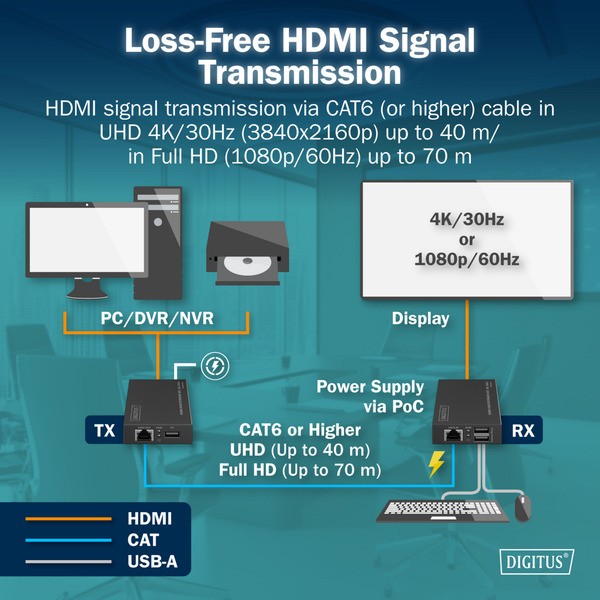

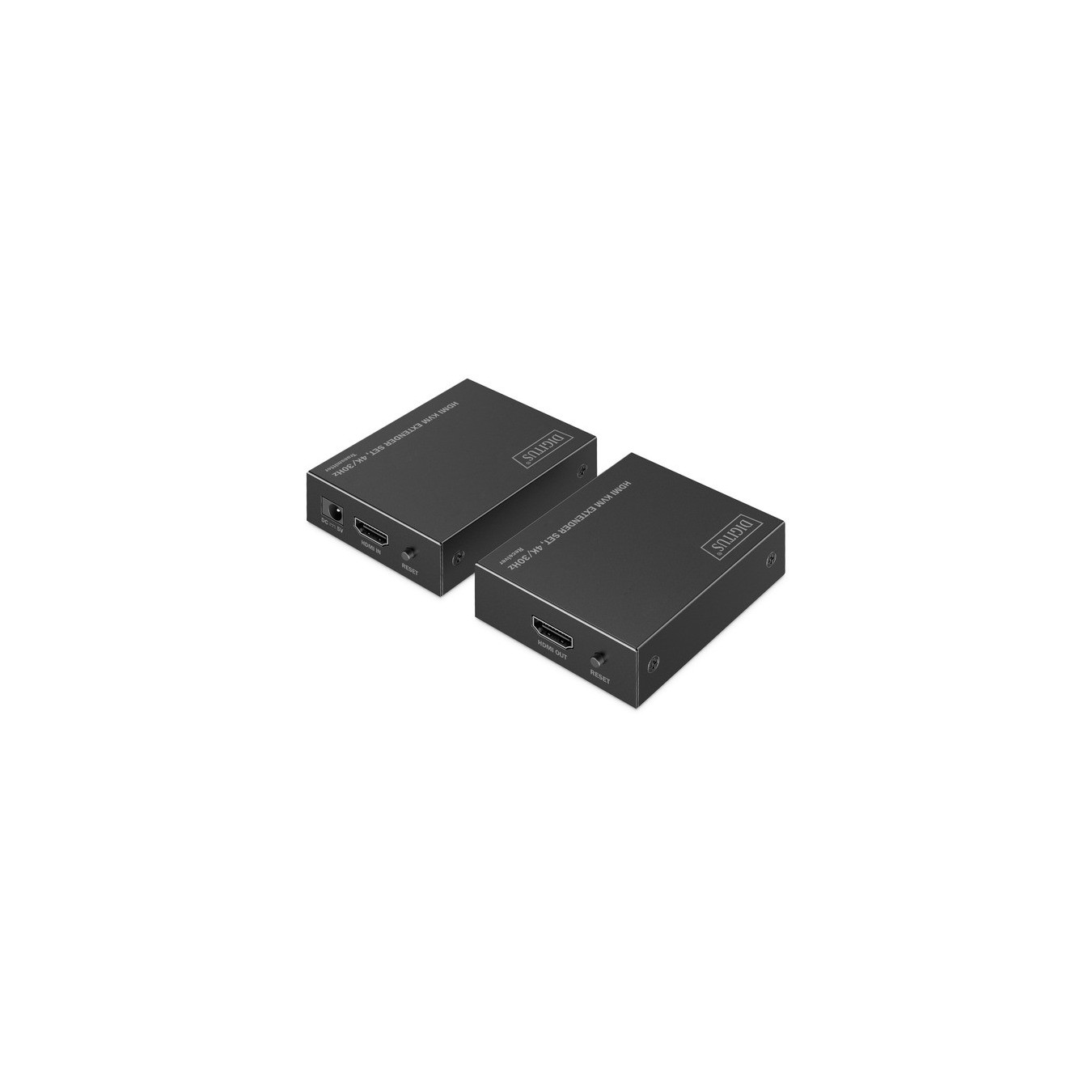

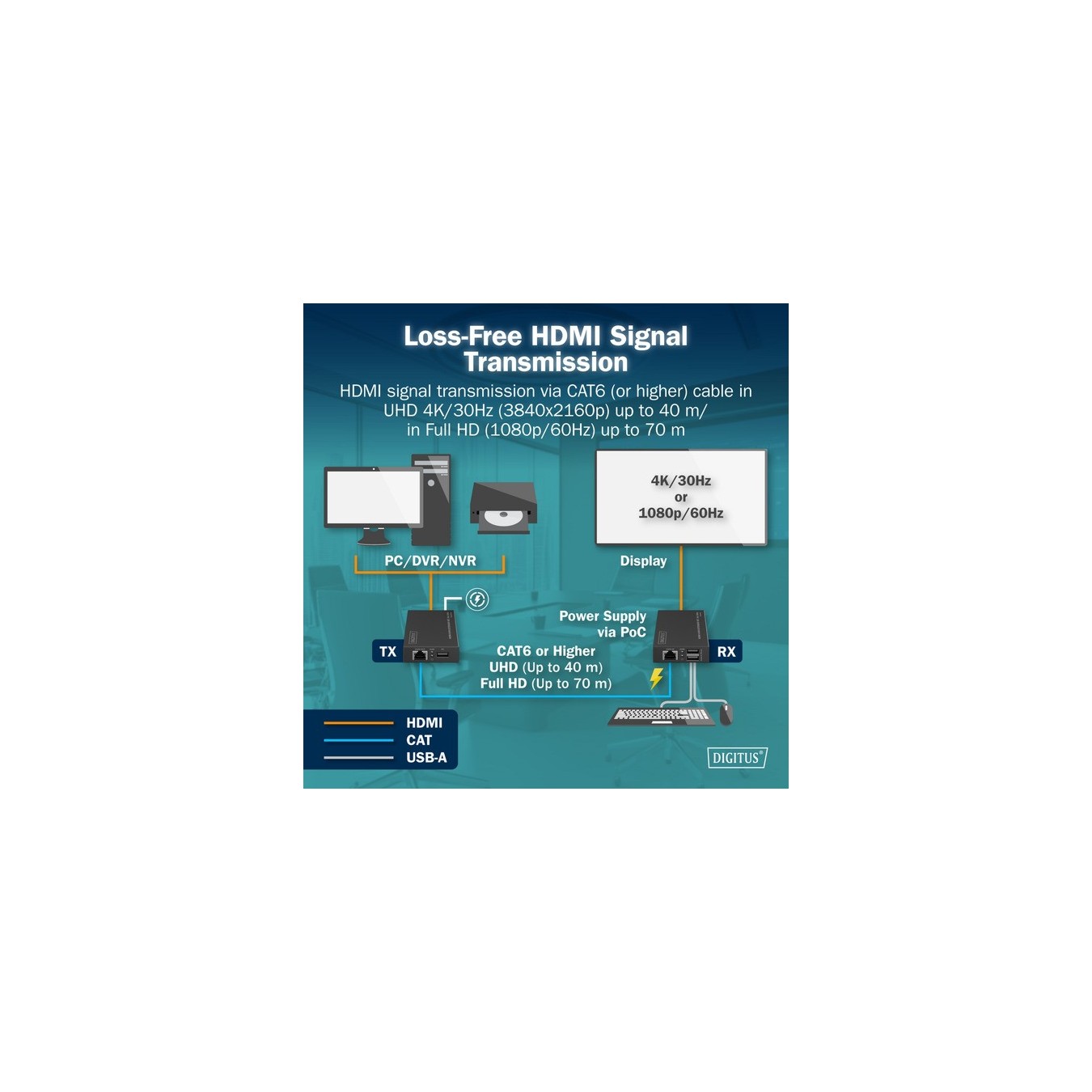

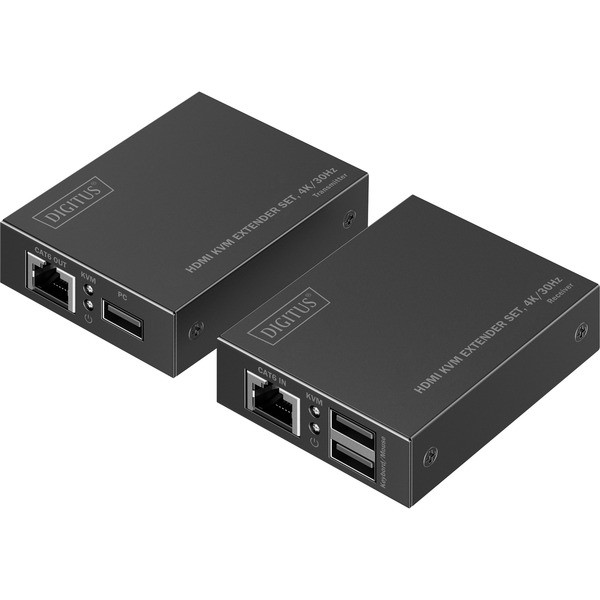

The HDMI KVM Extender Set (4K/30Hz) enables lossless and virtually latency-free (10-20 ms) transmission of AV signals in Ultra HD resolution (4K/30Hz) over a distance of up to 40 meters using a CAT6 or higher quality network cable. Thanks to the integrated KVM function, the mouse and keyboard can be connected directly to the receiver side, making convenient remote control possible. The system supports both uncompressed HDMI signal transmission in 4K/30Hz over 40 meters and Full HD (1080p/60Hz) transmissions over a distance of up to 70 meters. For easy and flexible installation, the set offers PoC support (Power over Cable), so that only the transmitter unit needs to be supplied with a power supply.
| Typ | HDMI extension |
| Color | schwarz |
| EAN | 4016032501954 |
| Manufacturer no. | DS-55357 |
| max. supported resolution | 3840 x 2160 Pixel |

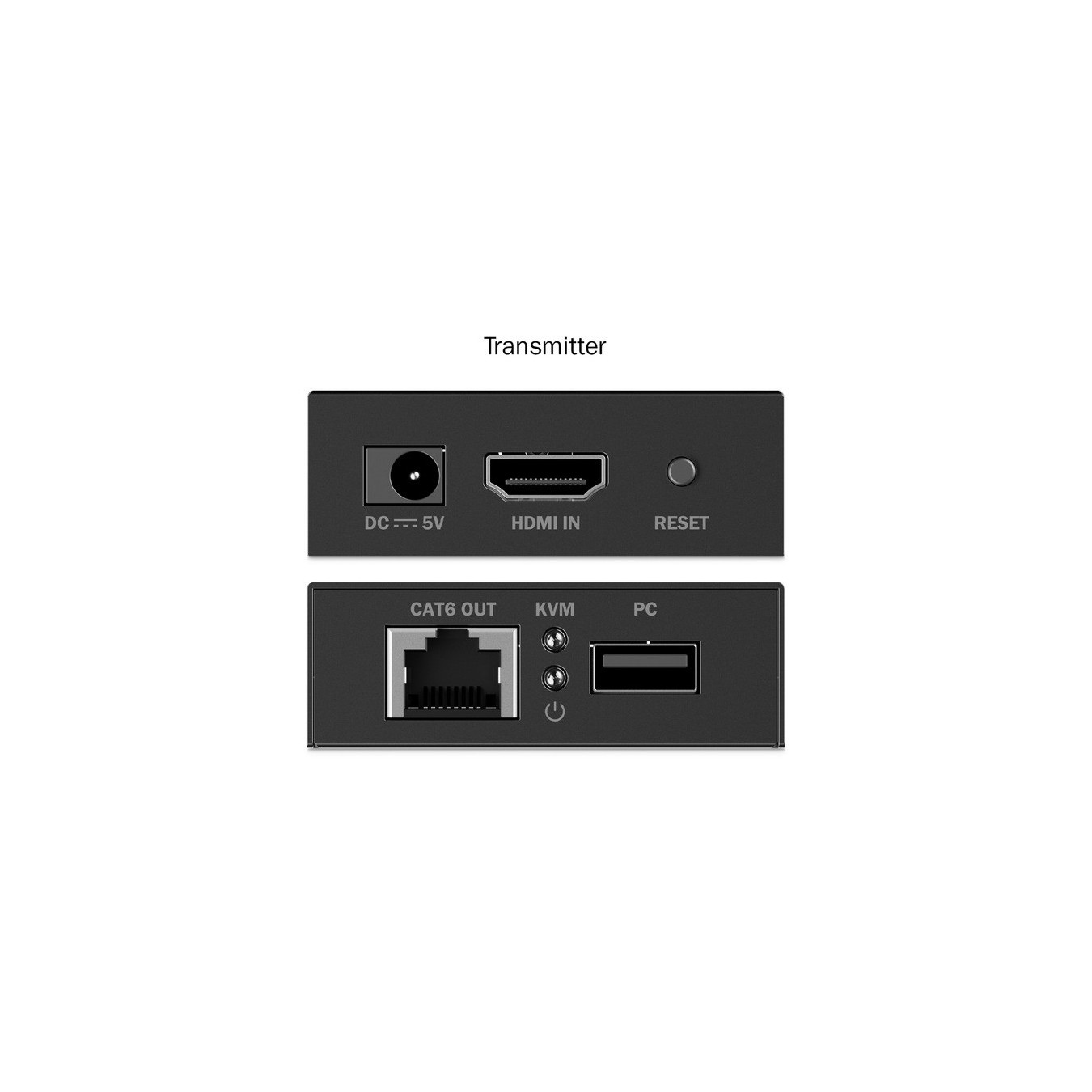

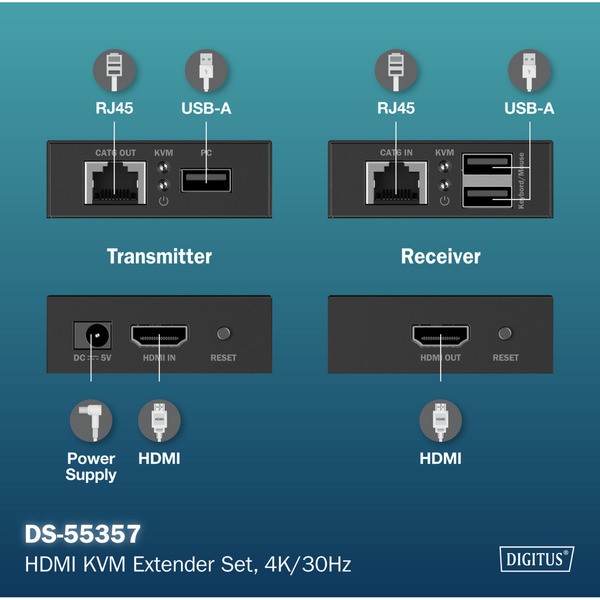

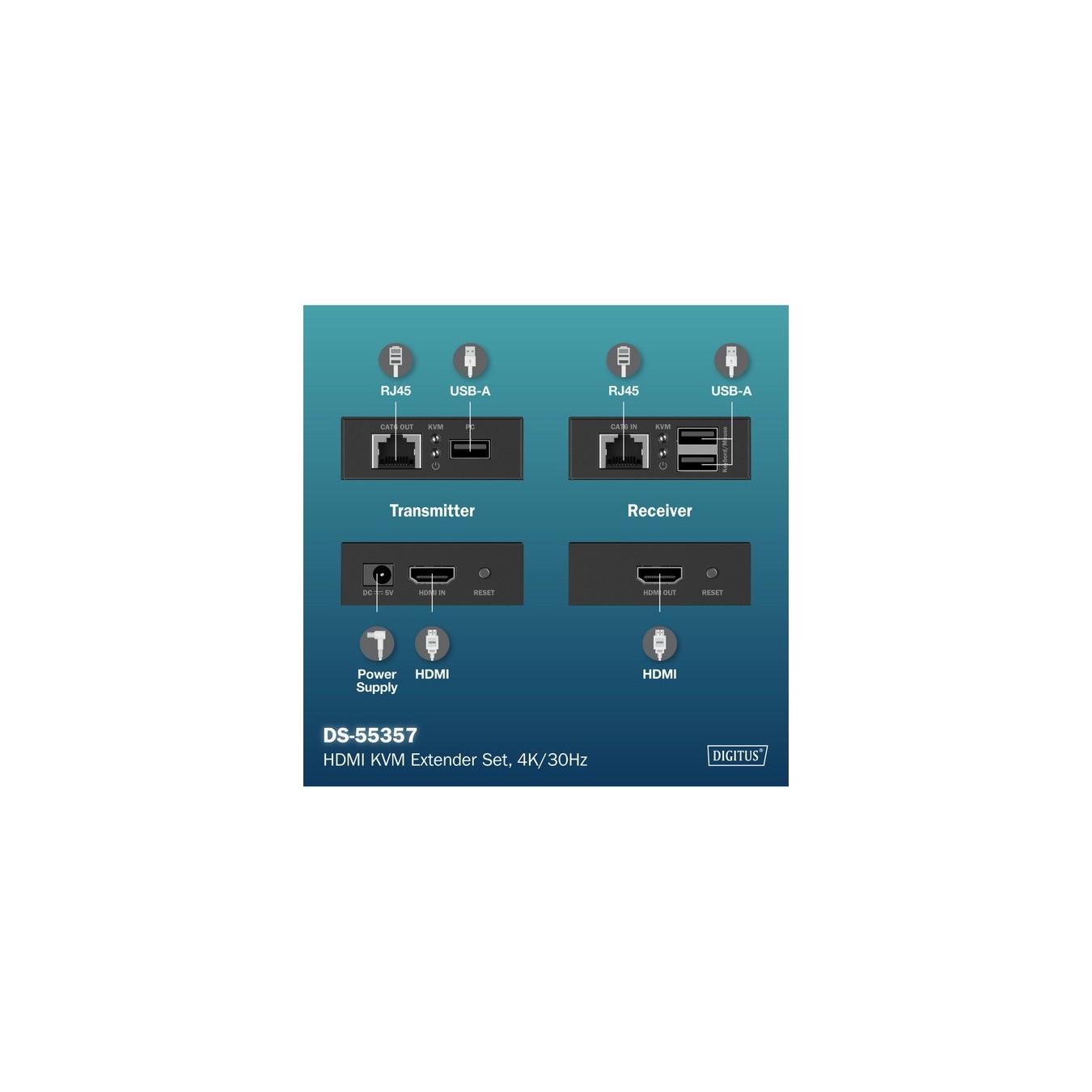

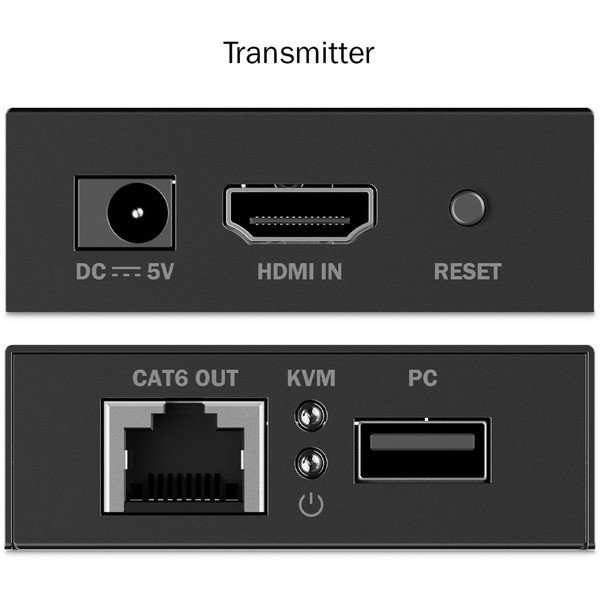

| More information | Connections for transmitter unit (TX): 1x HDMI input (4K/30Hz) - signal source connection, 1x RJ45 output (Gigabit Ethernet) - CAT transmission cable connection, 1x USB-A (1.1) - signal source connection (PC), 1x power supply connection (DC 5V/2A) - external power supply connection, 1x reset button, 2x status LED; Receiver unit (RX) connections: 1x HDMI output (4K/30Hz) - display connection, 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection, 2x USB-A (1.1) - mouse & keyboard connection, 1x reset button, 2x status LED |
| Notice | Dimensions (1 unit): L 7.5 x W 6.0 x H 2.0 cm; Weight (1 unit): 123g |
| Accessories - available | 1x power supply, EU plug (DC 5V/2A, 1.2 m), 1x USB cable (1.2 m), 1x user manual |
| Warnings and safety information | Safety instructions: If the device is powered by a plug-in power supply, make sure that the power adapter is connected correctly and meets the specified requirements (e.g. voltage and current). Only use certified CAT5e or CAT6 cables to ensure stable signal transmission. For particularly long cable routes or in environments prone to interference, it is recommended to use shielded network cables. Please note that all connections are tight and secure to avoid loose connections that could affect signal quality. Make sure the HDMI and Ethernet ports are connected properly. To avoid signal interference, ensure that the CAT cable is not installed near high-voltage power lines or other sources of strong electromagnetic interference. Only operate the device within the specified temperature range. Do not use the device outdoors or in damp or wet environments Regularly check all connections and cables for wear or damage. Especially with frequent use or long installations, cables and connectors can wear out, resulting in poor performance signal quality or system failure. |
