2.5" SATA Converter - 22 Pin to M.2 mSATA

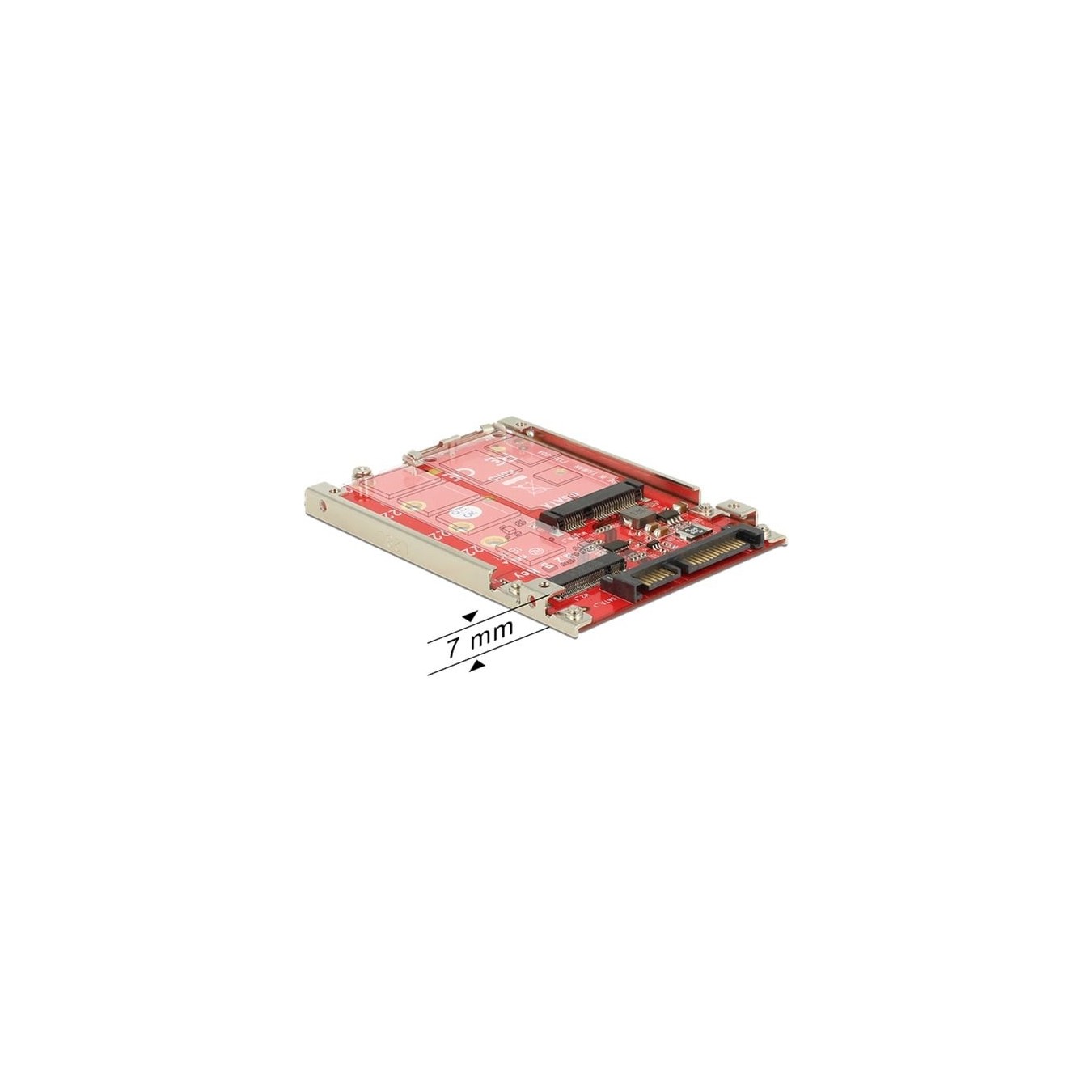

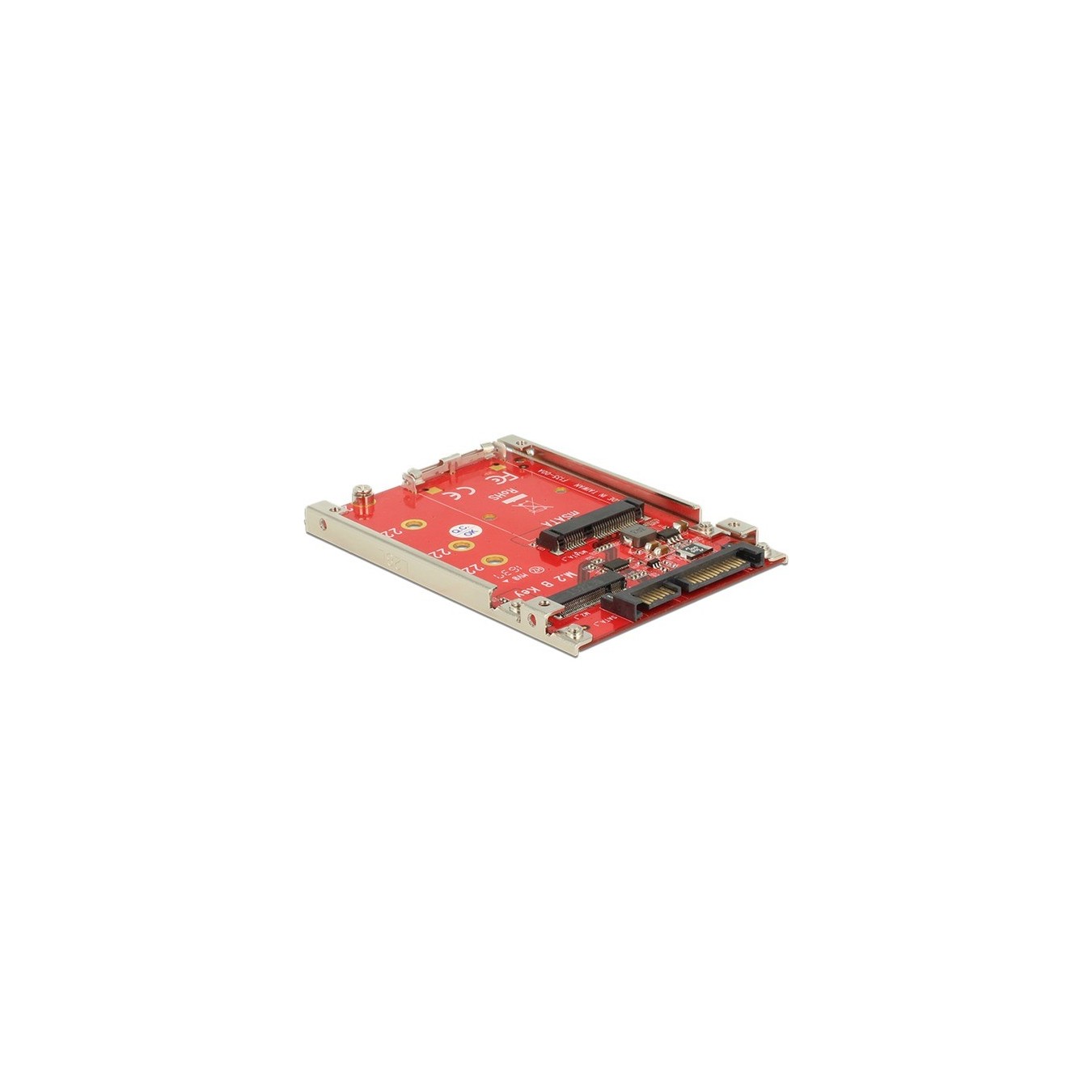

Delock 2.5" SATA converter connects M.2 (2280/2260/2242/2230) Key B/B+M and mSATA to a SATA 22-pin interface; bootable; approx. 100 x 70 x 7 mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
An M.2 SSD in 2280, 2260, 2242 and 2230 format or an mSATA SSD in half size or full size format can be connected to this converter from Delock. If both slots are occupied, only the M.2 SSD can be used. The converter is integrated into the system via the SATA interface.
| Typ | Converter |
| EAN | 4043619628599 |
| Manufacturer no. | 62859 |
| Connections - internal | 1x M.2 |
| More information | Connections: 1x SATA 6 Gb/s 22 pin connector > 1 x 67 pin M.2 Key B slot, 1x mSATA slot (half size / full size), interface: SATA, form factor: 2.5?, supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key B or Key B+M on, SATA basis, maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible, maximum current for modules: 4 A, bootable, dimensions (LxWxH): approx. 100 x 70 x 7 mm, system requirements Windows 7/7-64/8.1/8.1-64/10/10-64, Linux from kernel 2.6.x / kernel 4.x.x, a free SATA 22 pin interface |
| Notice | Converter SATA 22 pin to M.2 / mSATA |

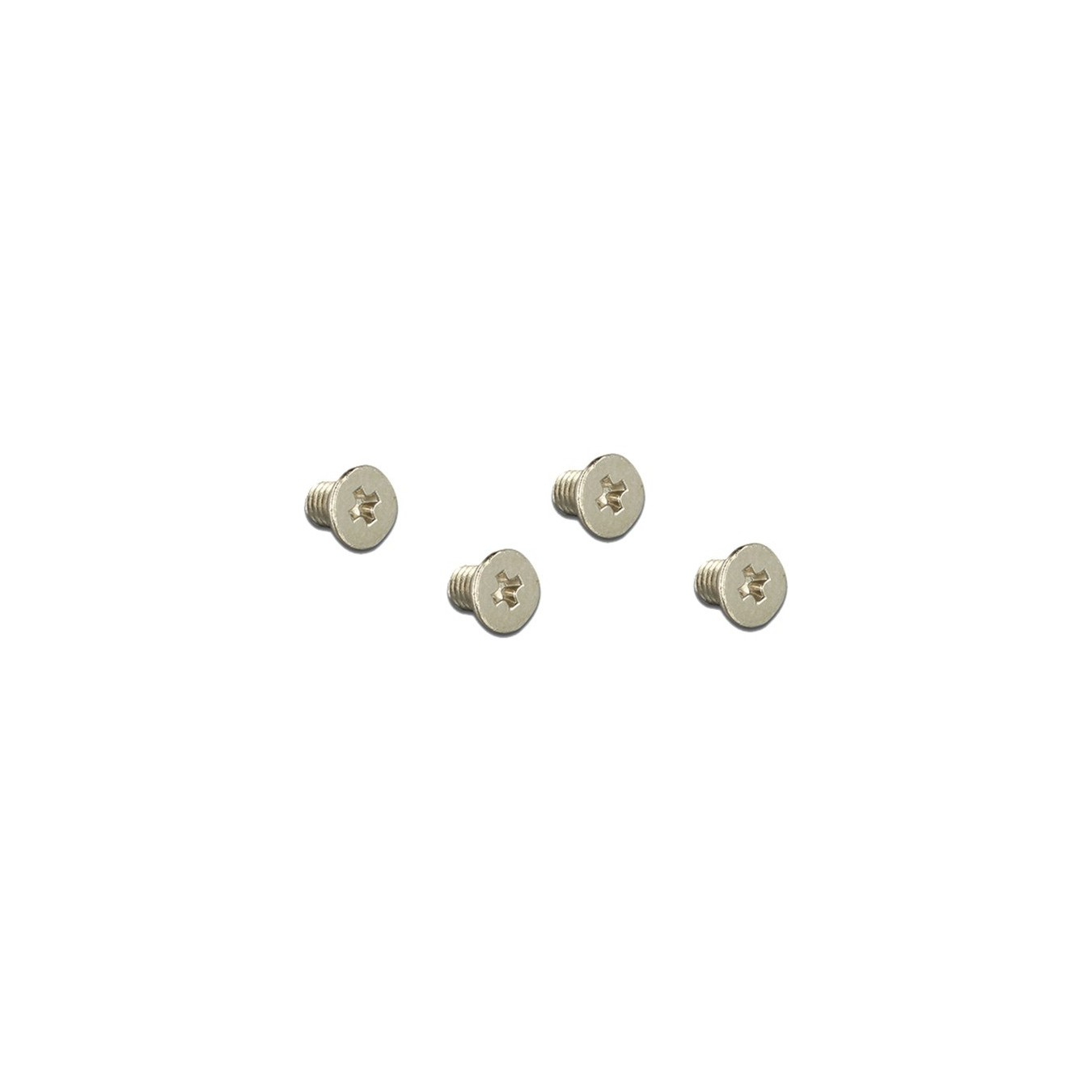

| Accessories - available | Instructions, 2.5" frame, mounting material |
| Weight | 80 Gramm |
