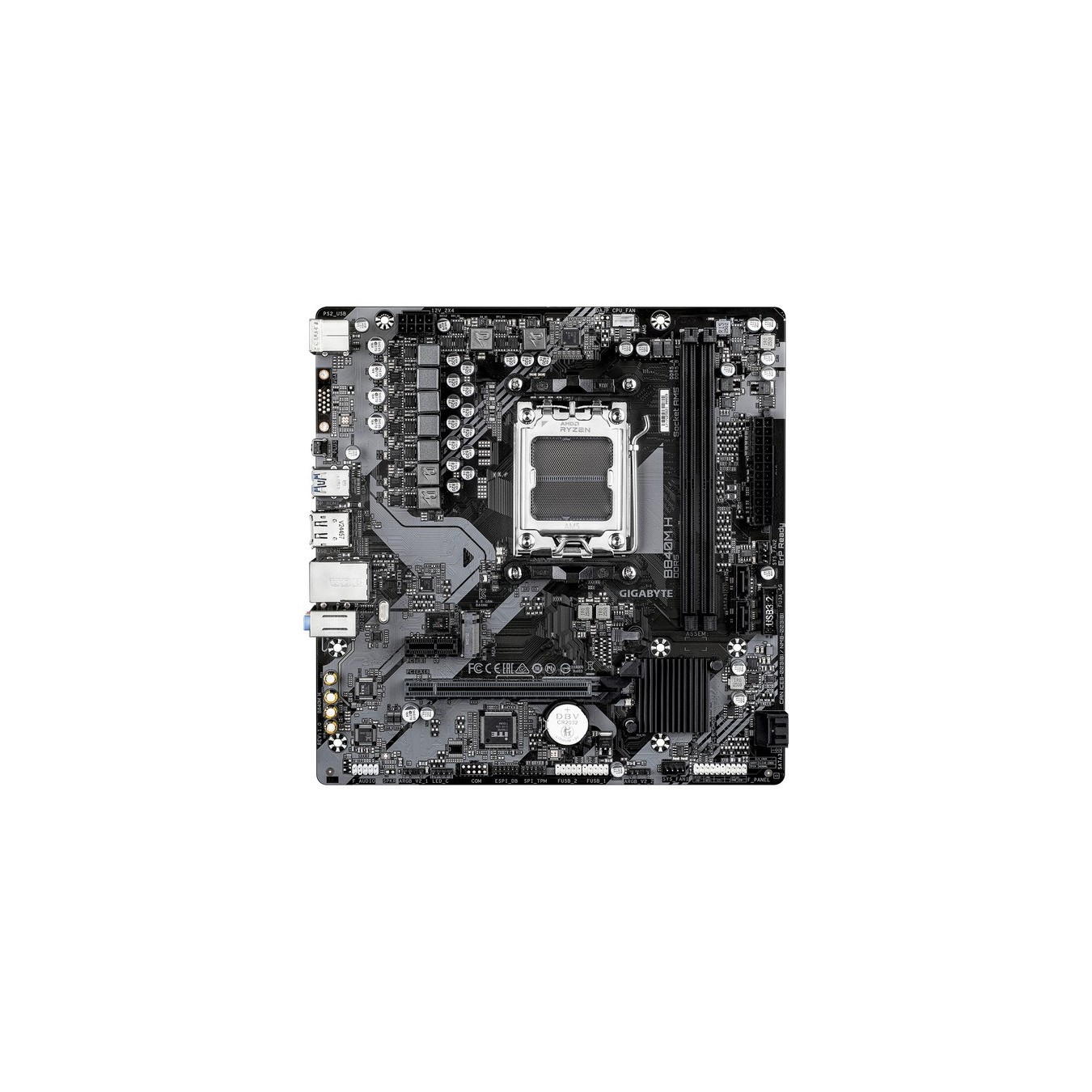

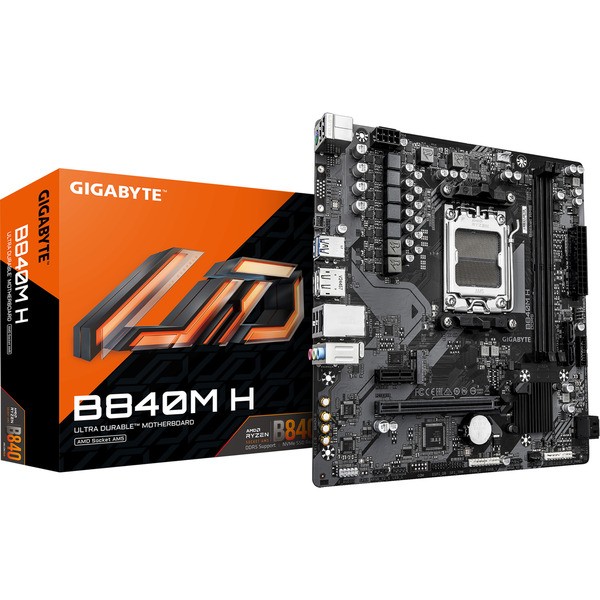

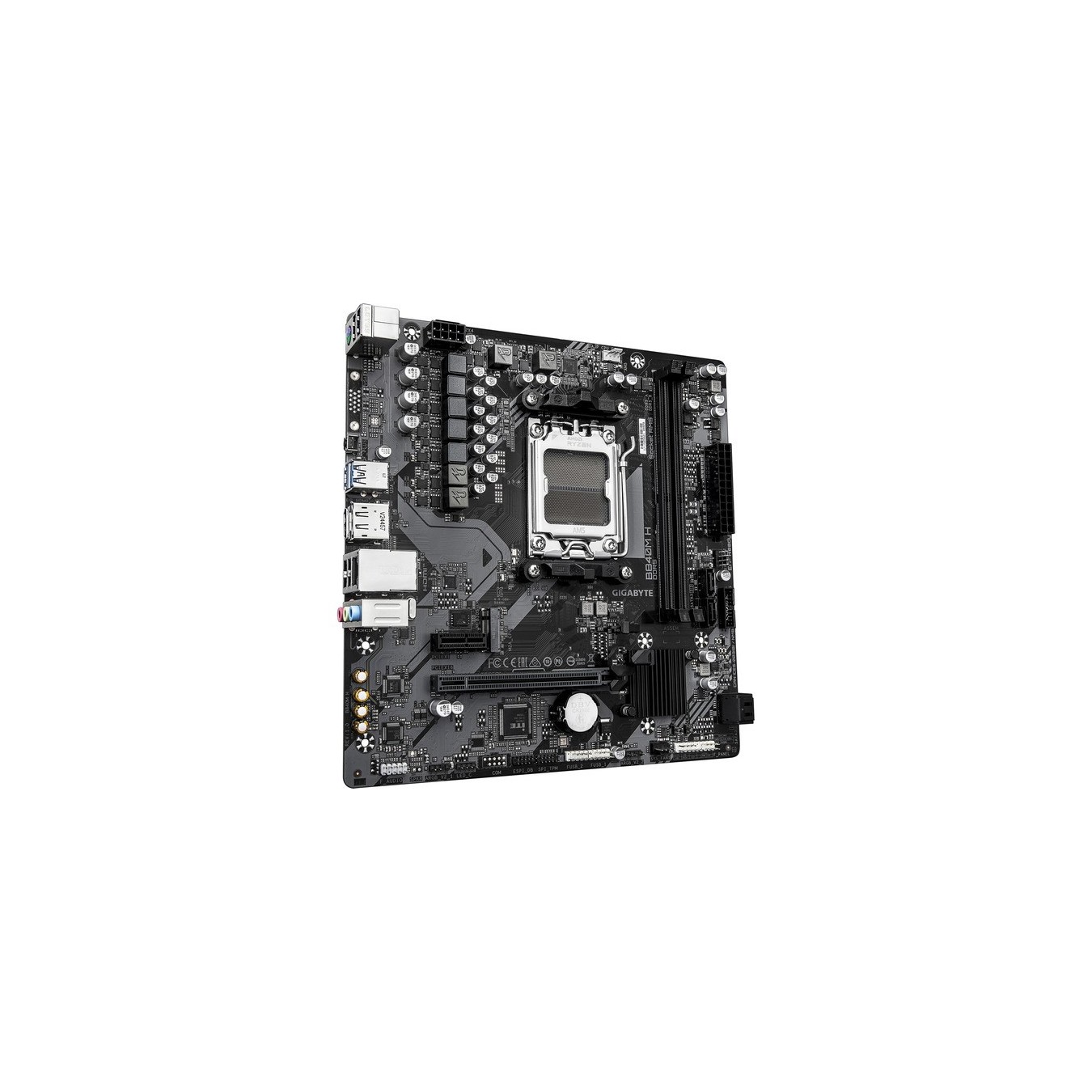

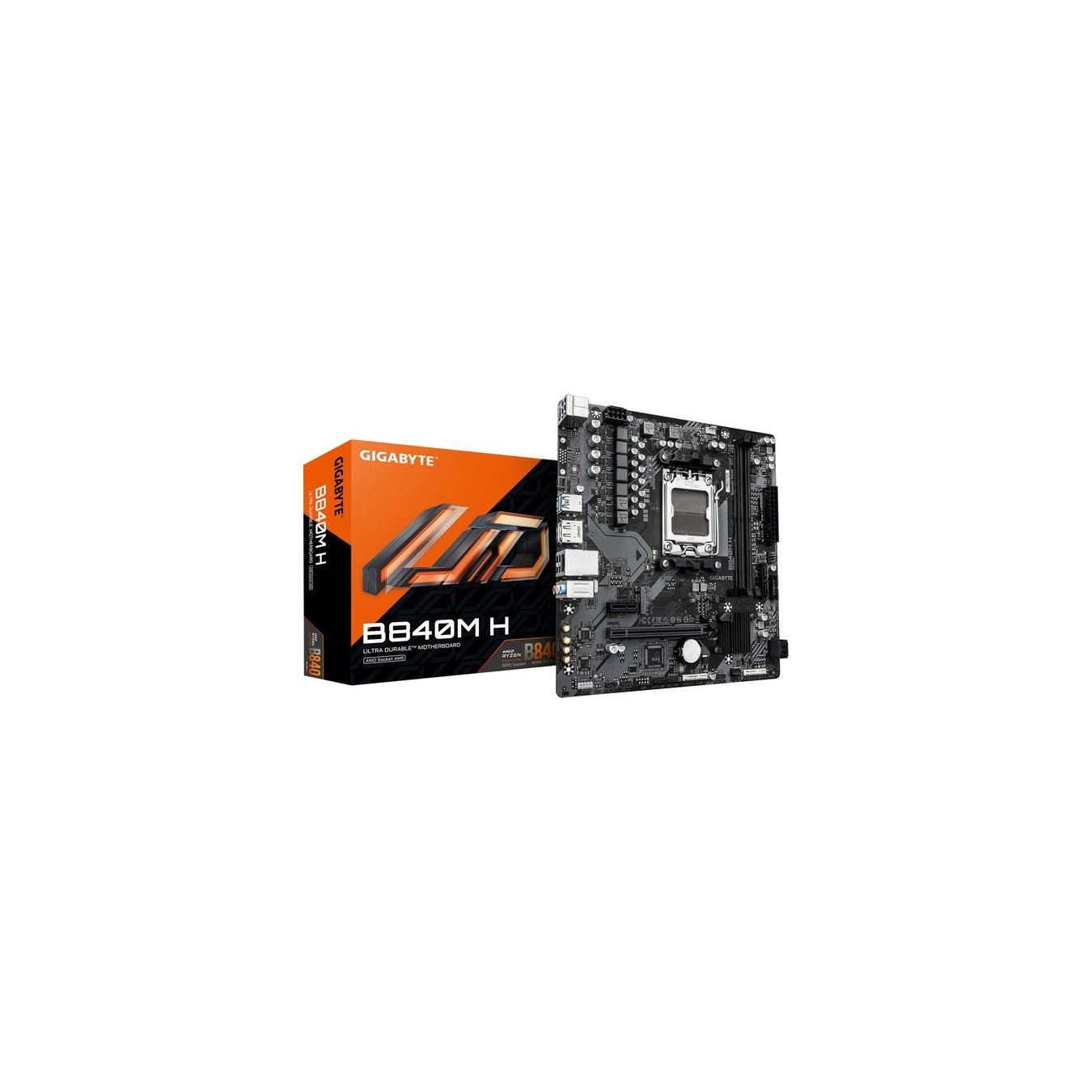

GIGABYTE Mainboard - B840M H - Mainboard
GIGABYTE B840M H motherboard based on the AMD B840 chipset, supports AM5 CPUs with 2 DDR5 slots up to 128 GB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 2 |
|---|---|
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - SATA Ports | 4 |
The GIGABYTE B840M H is based on the AMD B840 chipset and supports AMD processors for socket AM5. It has two DDR5 slots for up to 128 GB of memory. The GIGABYTE B840M H also features 1 PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The GIGABYTE B840M H also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports, an M.2 port and a number of USB interfaces.
| Typ | Mainboard |
| Color | black/gray |
| EAN | 4719331877880 |
| Manufacturer no. | B840M H |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD B840 |
| Slots - PCIe x16 | 1x (of which: 1x PCIe x16, 1x PCIe x1) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 128 GB |

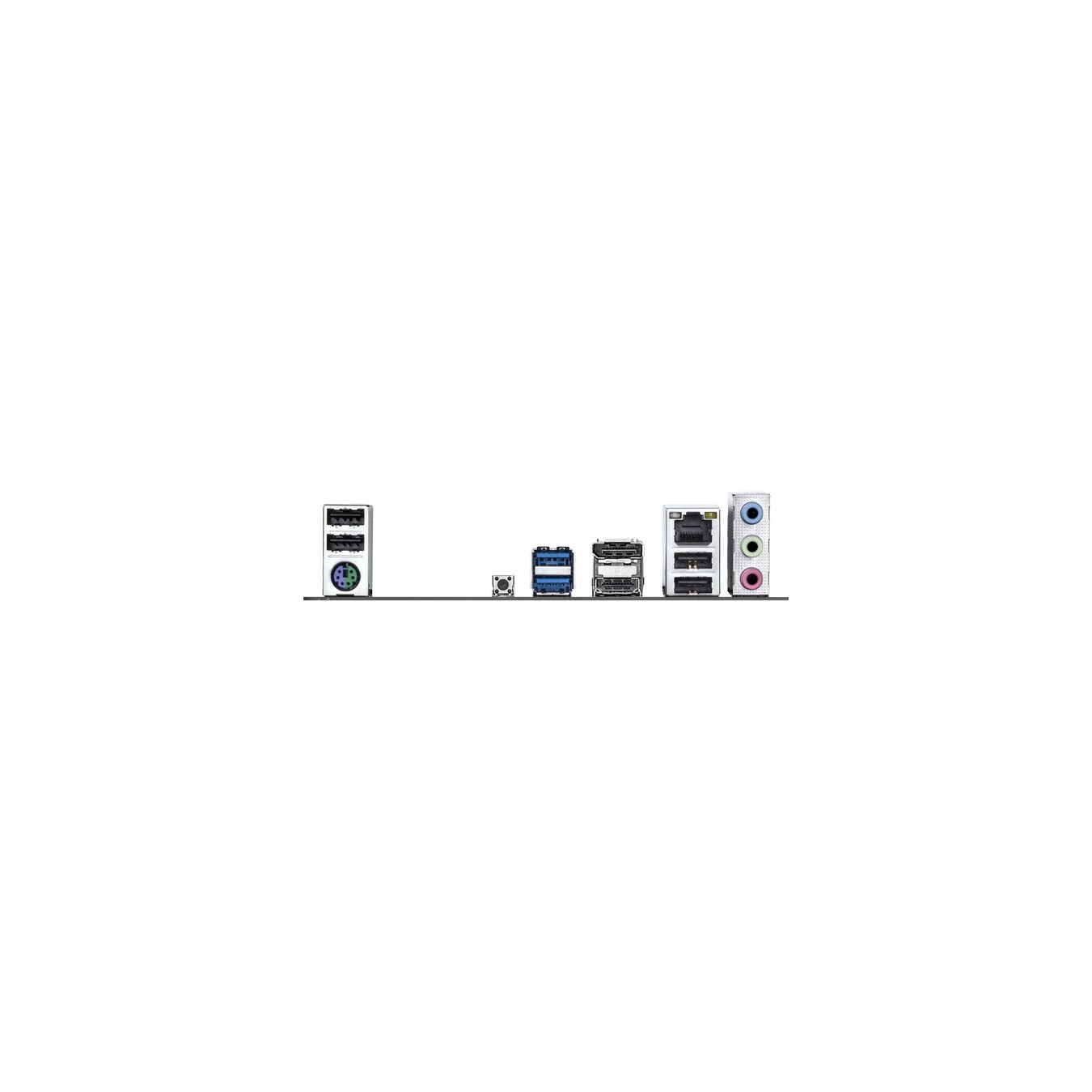

| Connections (external) - Mouse/Keyboard Combo (PS/2) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| SATA Controller | AMD B840 |
| directly usable RAID levels | 0, 1, 10 |
| USB-Controller | AMD B840 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek Audio Codec |
| LAN | Realtek GbE LAN Chip |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Dimensions | Width: 244mm x Height: 244mm |
| Warnings and safety information | Warnings: Attention: Product contains a button cell or coin battery. |
