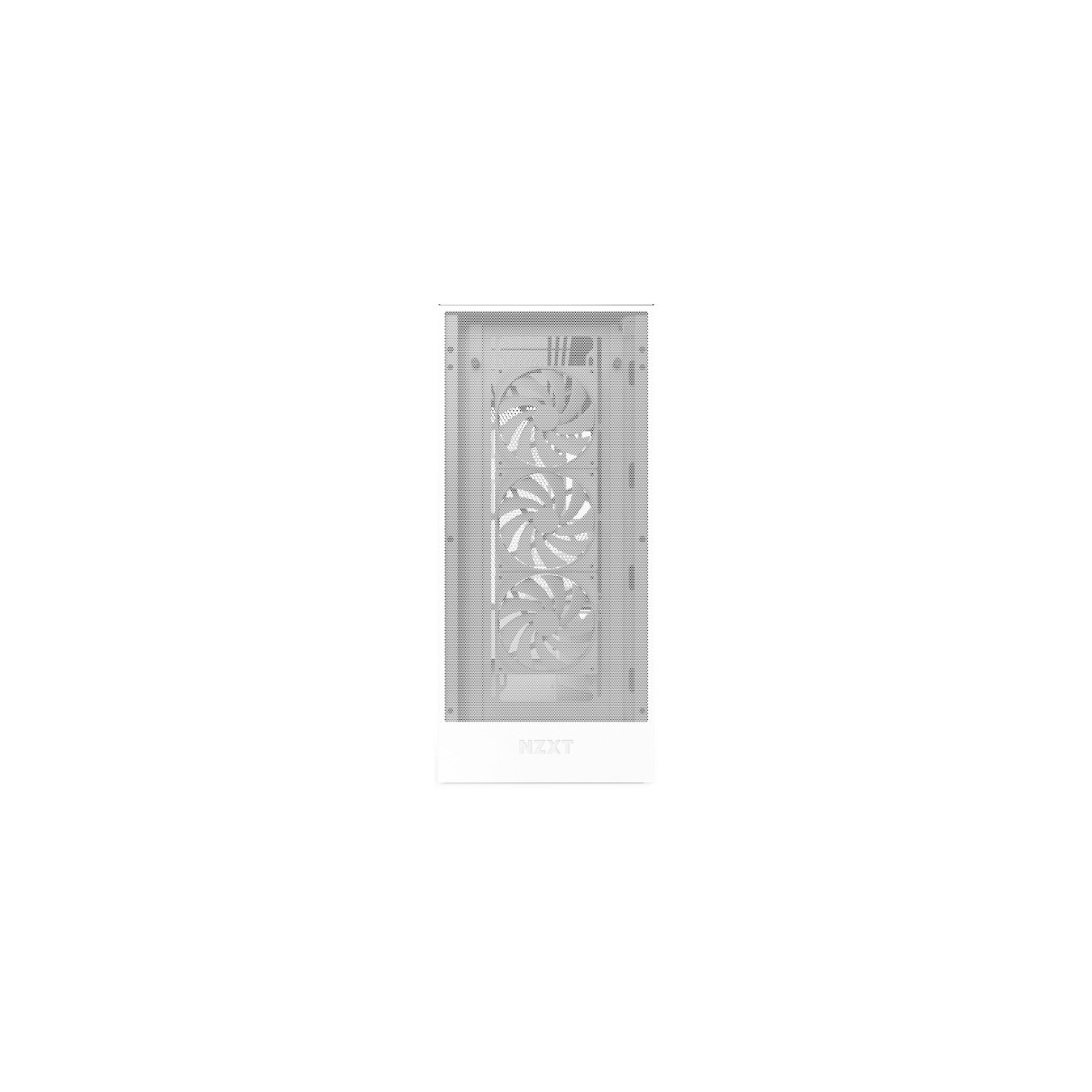

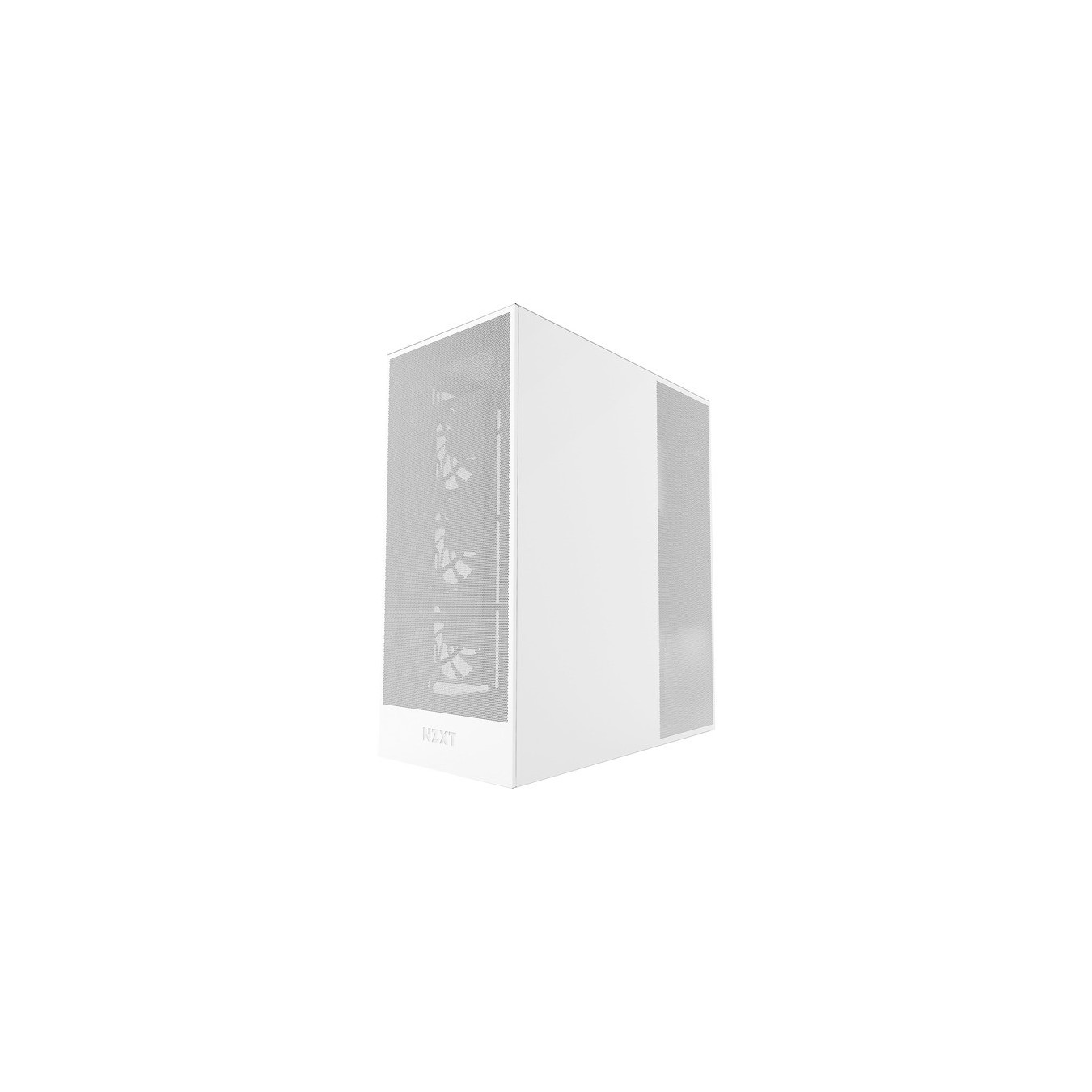

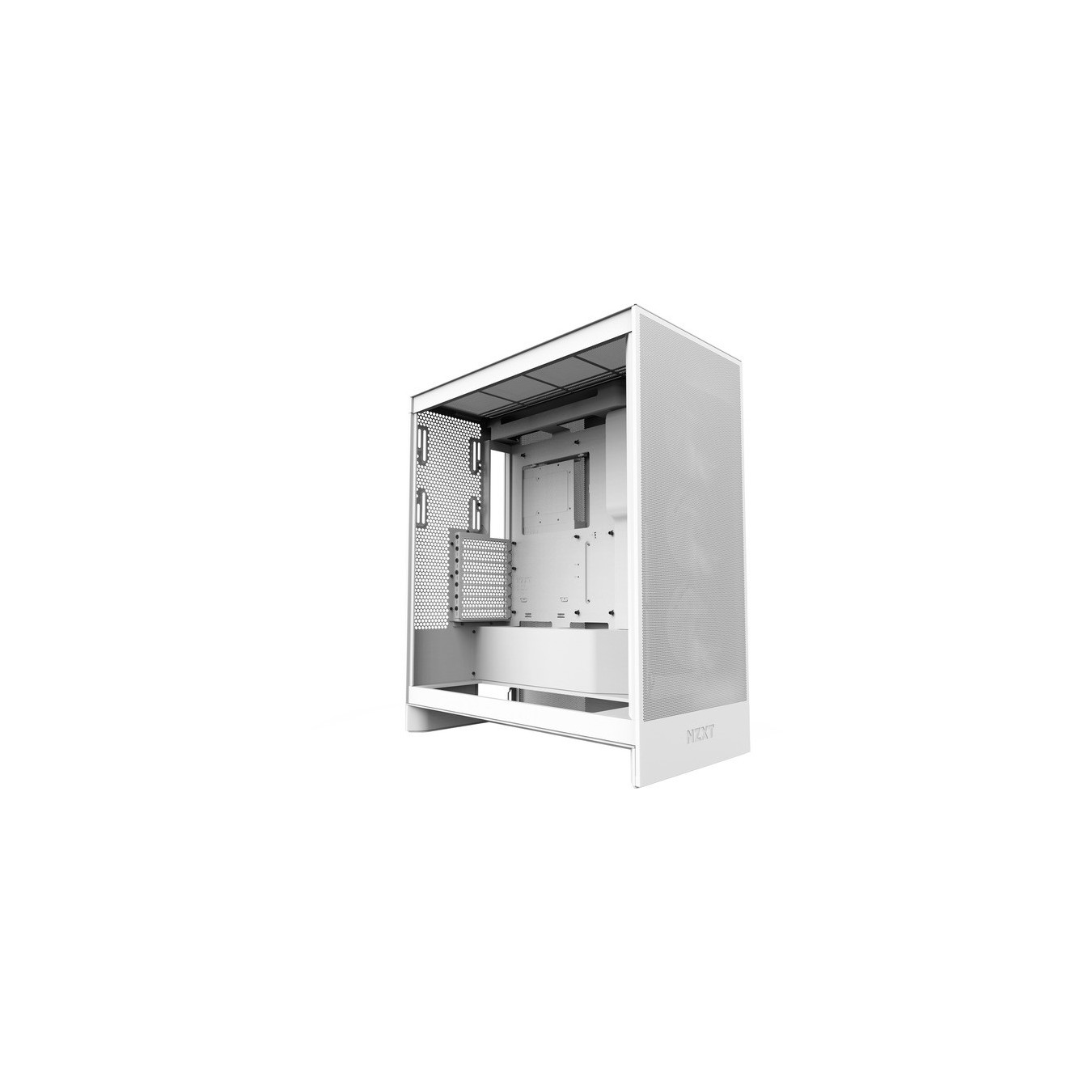

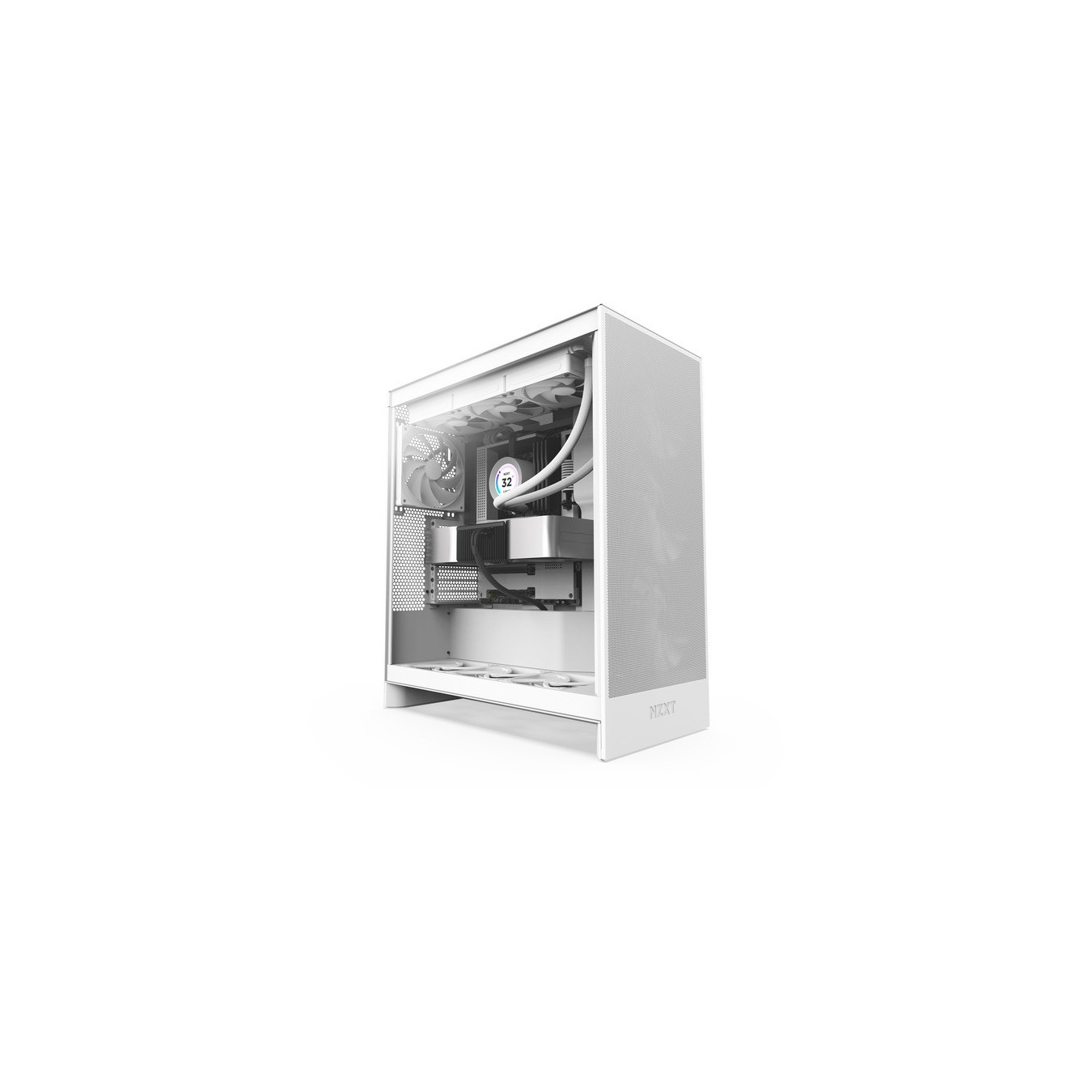

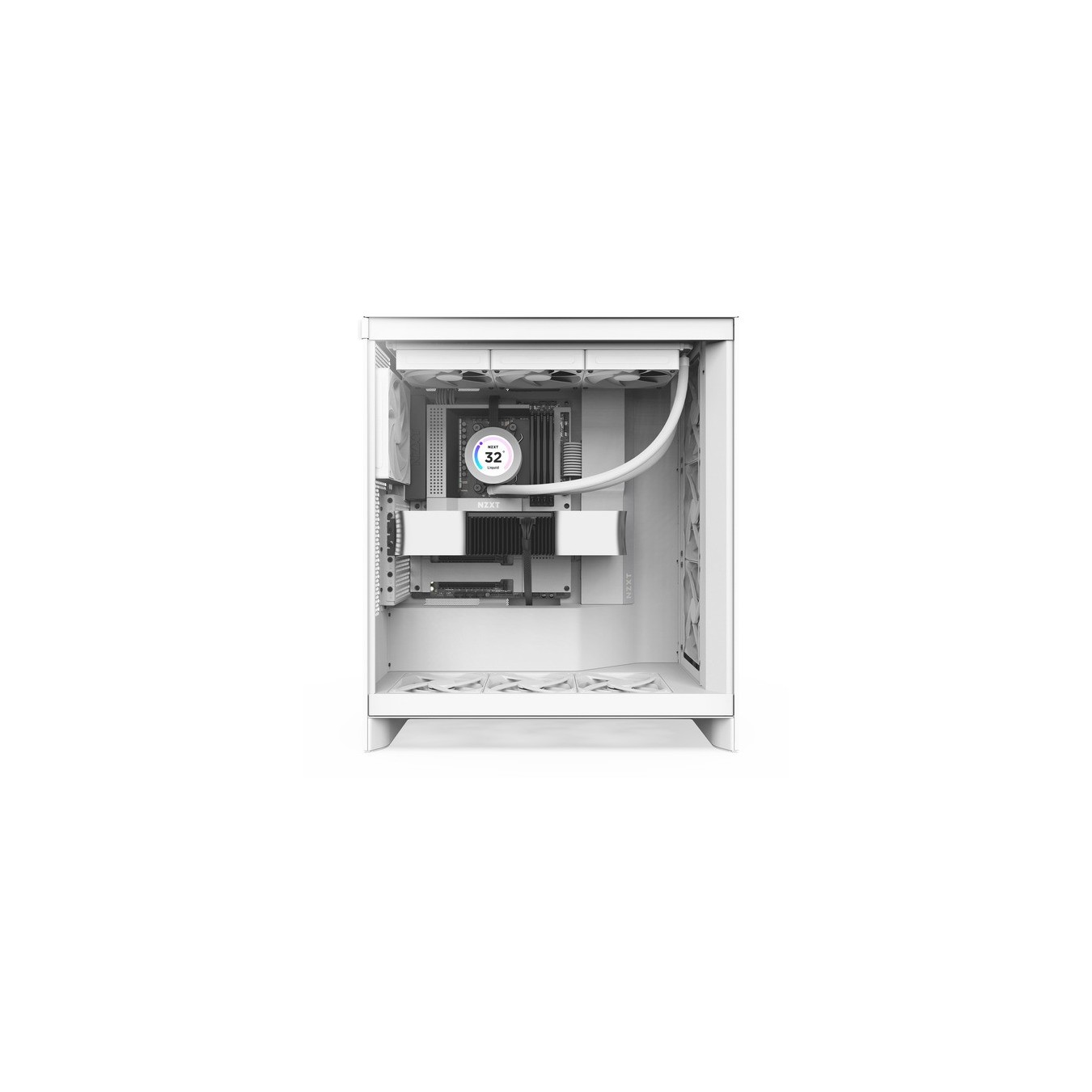

H7 Flow - H7 Flow (2024) - Tower Case
White mid-tower case with 410 mm GPU length, 7 slots, 2x 3.5" bays, includes 3x F120Q fans; supports E-ATX motherboards and front I/O with USB-C.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Included Fans | 3 |
|---|
The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Thanks to the vertical arrangement of the power supply, there is space at the bottom for 3 x 120mm fans, enabling efficient cooling without increasing the footprint of the case. Equipped with three front-mounted 120mm fans for exceptional cooling right out of the box. The efficient high performance panels maximize airflow for inlet and outlet and filter dust. The H7 Flow supports up to 420mm front radiators and 360mm top radiators for powerful cooling potential. The intuitive cable management system also offers easy cable routing thanks to wide channels, integrated hooks and included straps. You can also easily access 2 x USB-A and 1 x USB-C ports on the top. Tool-free access to the front, top and side panels makes assembly and upgrades a breeze.
| Typ | Tower case |
| Color | white |
| EAN | 5056547205519 |
| Manufacturer no. | CM-H72FW-01 |
| Serie | H7 |
| Design | Midi-Tower |
| Mainboard Formfaktor | E-ATX |
| Material | SGCC-Stahl, Tempered Glass |
| Window Kit | And |
| Mesh-Front | And |
| Internal dimensions - plug-in card length | maximal 410 mm |
| Drive bays - 3.5 inches | internally 2 pieces |
| Slots - Full-Size | 7 pieces |
| Front connections | 1x Audio, 2x USB-A 3.2 Gen 1 (5 Gbit/s), 1x USB-C 3.2 Gen 2 (10 Gbit/s) |
| front | 3 x F120Q fans included, alternatively 3 x 140 mm fans can be installed |
| back | 1 x 120 mm fan can be installed, alternatively 1 x 140 mm fan can be installed |
| Notes | Simple cable management up to 34.5 mm, dust filter: high-performance mesh, top: 3 x 120 mm fans can be installed, alternatively 2 x 140 mm fans can be installed, bottom: 3 x 120 mm fans can be installed. |
| Water cooling possible | And |
| Rear connection of the mainboard | No |
| More information | Fan Specifications: Model : F120Q Airflow Fan (Case Version), Speed : 1,350 ± 150 RPM, Airflow : 60.2 CFM, Static : 1.05mm - H2O, Noise : 24.1 dBA, Fan Connector : 3-pin. |
| Accessories - available | 3 x F120Q Airflow Fans (Pre-installed, Case Version), Mounting Accessories, Manual. |
| Volume | 62 l |
| Dimensions | Width: 24.4 cm x Height: 54.4 cm x Depth/Length: 46.8 cm |
| Weight | 11,1 kg |
