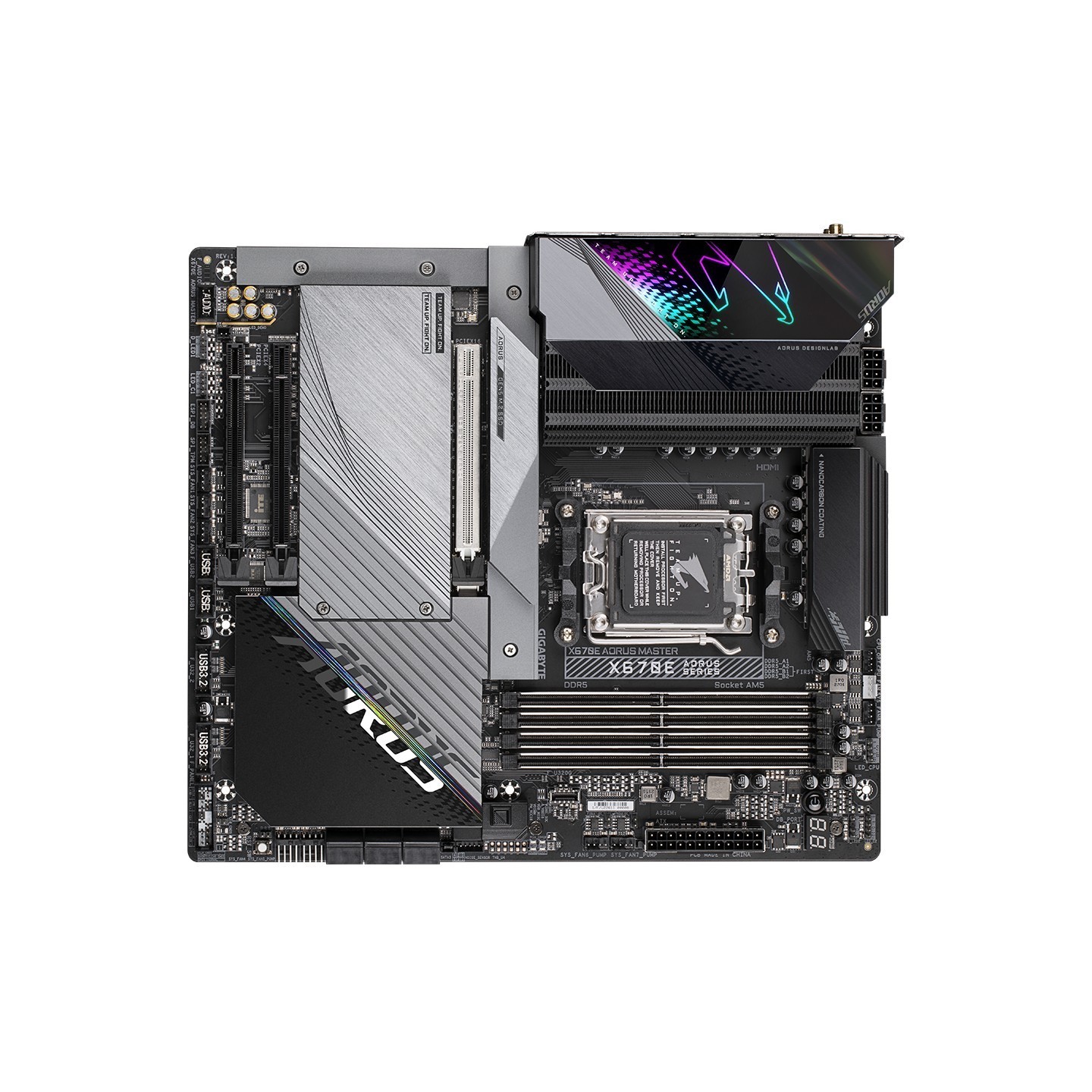

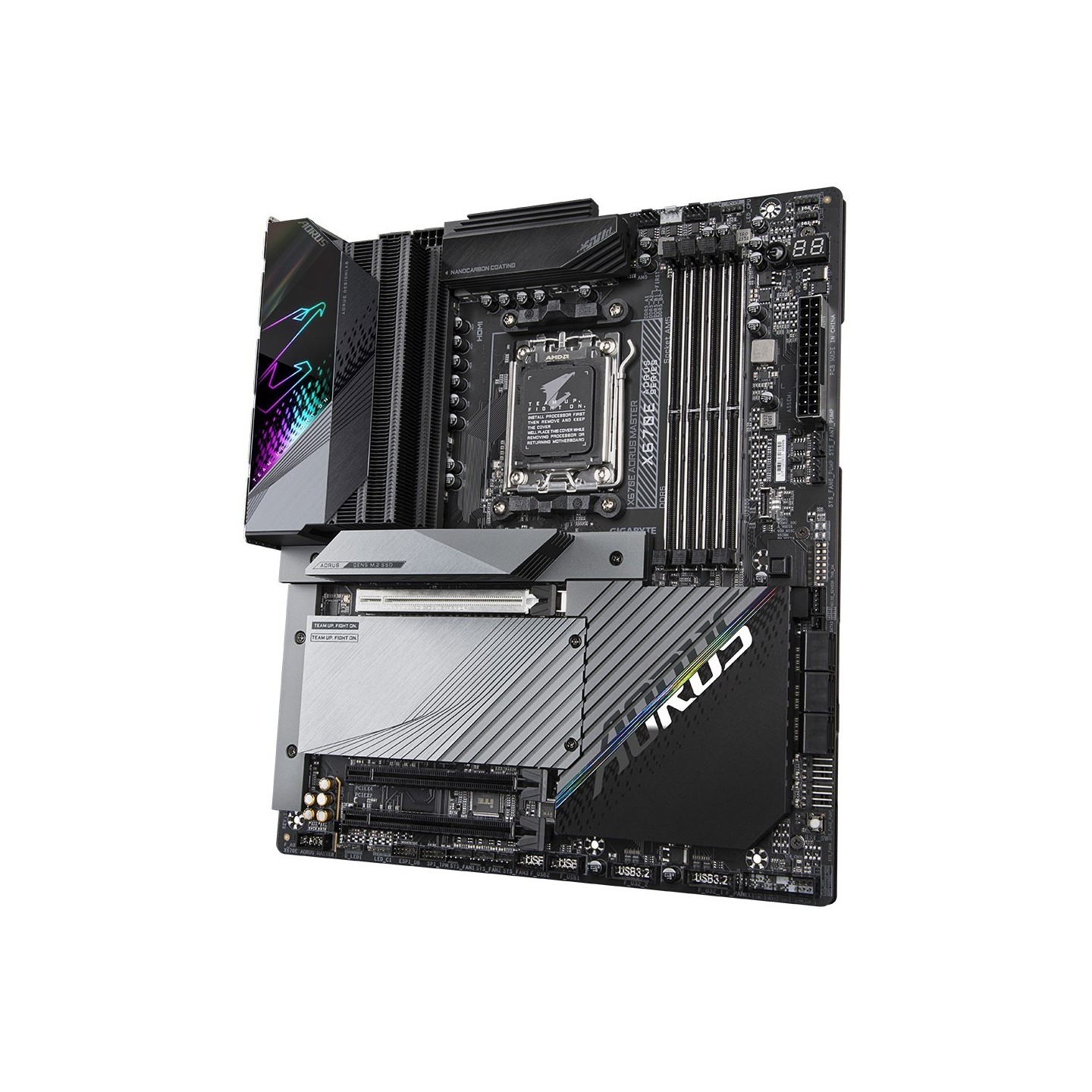

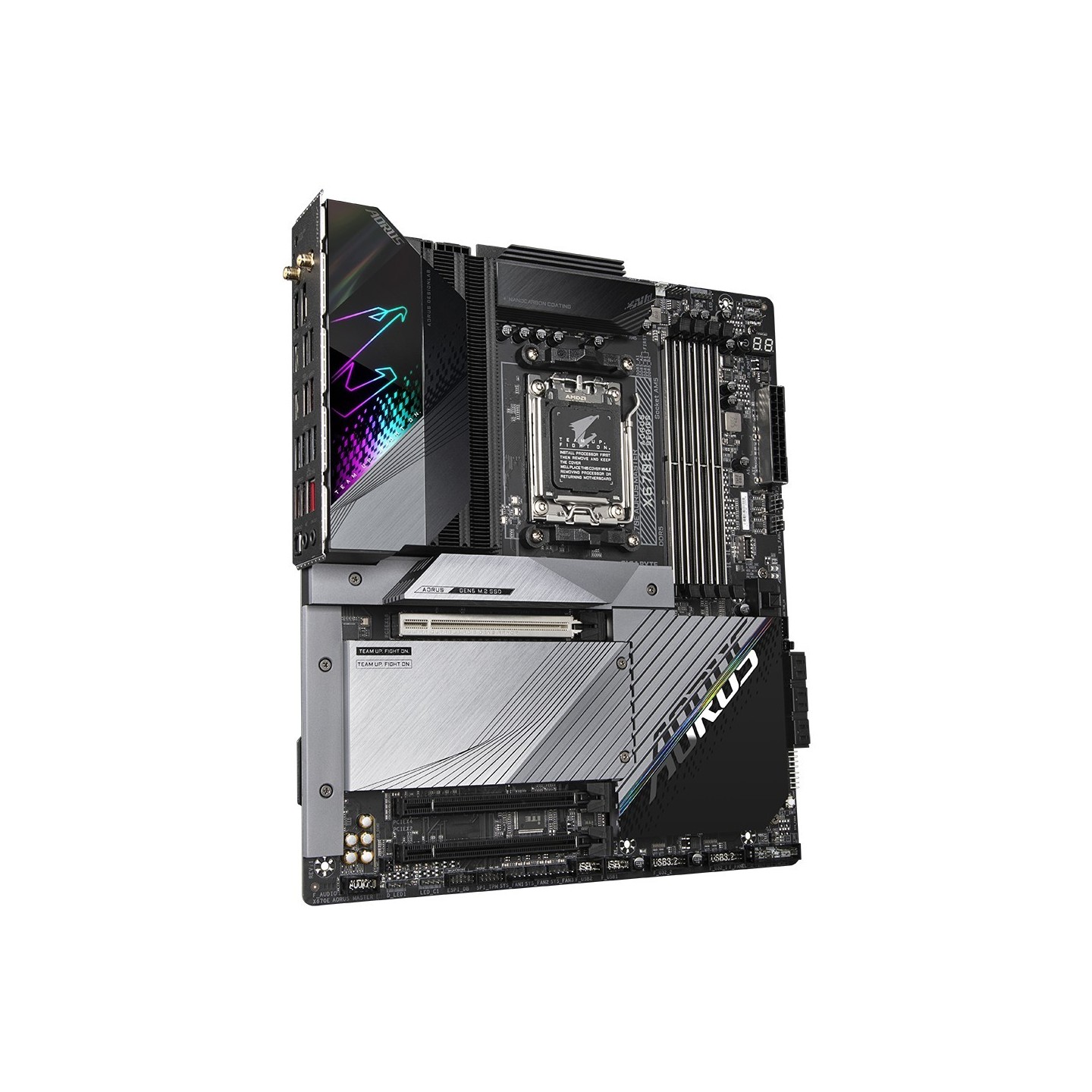

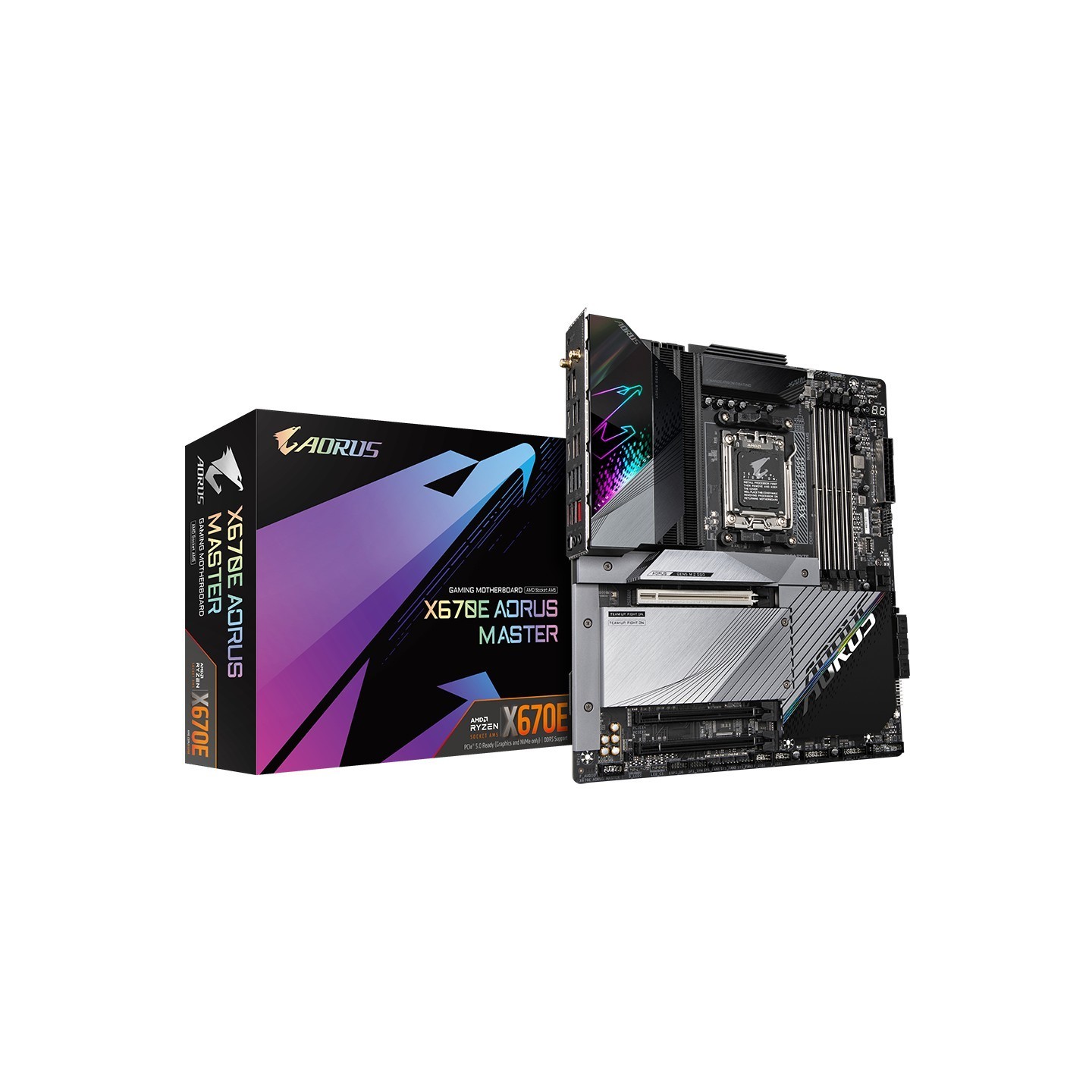

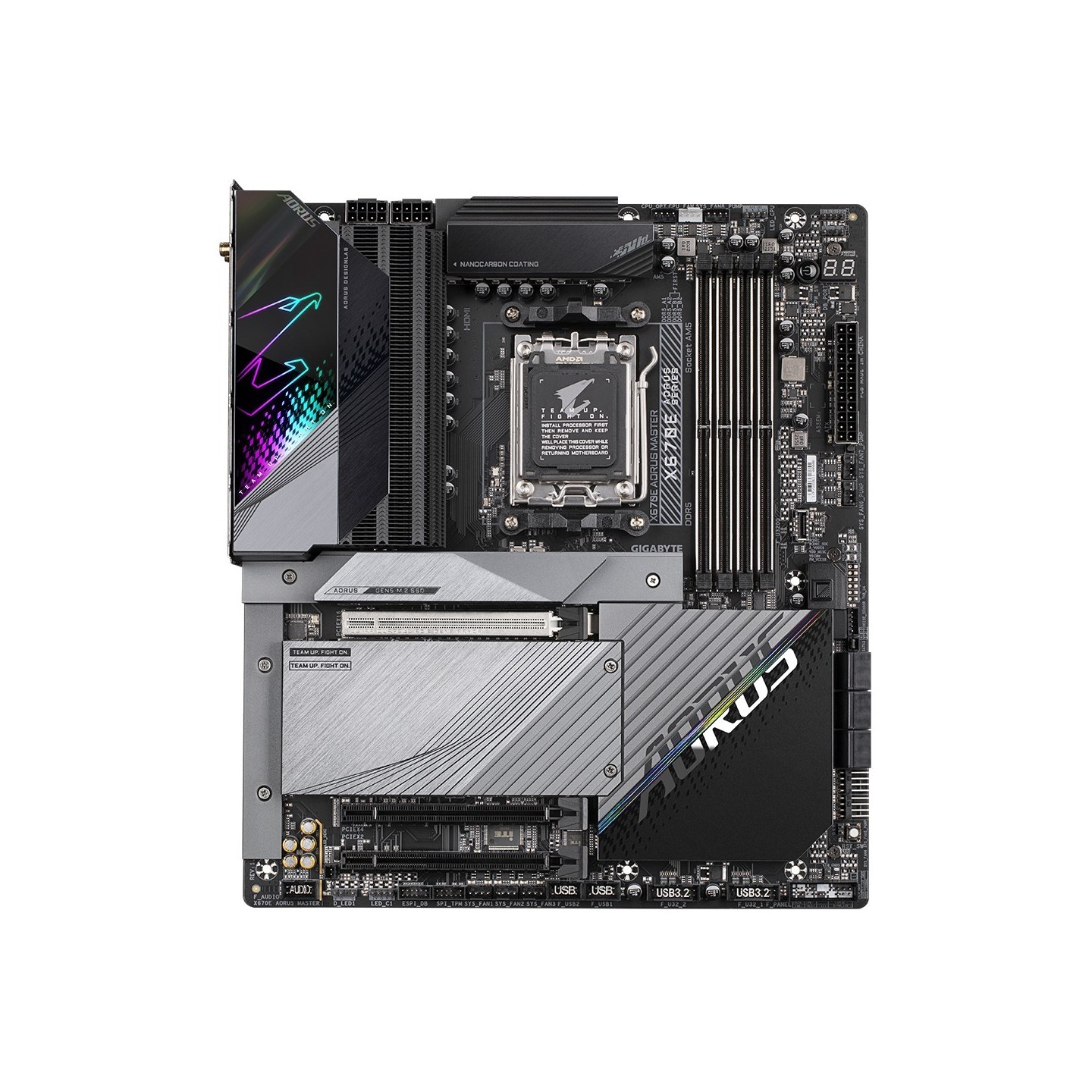

Gigabyte X670E AORUS Master AM5 E-ATX Motherboard DDR5 Wi-Fi 6E (Boxed)
High-performance Gigabyte X670E AORUS Master E-ATX motherboard for AM5 socket. Features PCIe 5.0 support, DDR5 up to 8000MHz OC, dual PCIe 5.0 M.2 slots, Wi-Fi 6E, 2.5GbE LAN, and 12 rear USB ports.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM5 |
|---|---|
| Motherboards - Chipset | AMD X670E |
| Motherboards - Form Factor | E-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | EXPO XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 4 |
| Motherboards - SATA Ports | 6 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | Bluetooth WiFi |
The Gigabyte X670E AORUS Master is a premium E-ATX motherboard designed for high-end AMD Ryzen 7000 and 8000 series processors on the AM5 socket. This well-equipped platform delivers cutting-edge connectivity with full PCIe 5.0 support for both graphics and storage, featuring a single PCIe 5.0 x16 slot and dual PCIe 5.0 M.2 sockets capable of handling next-generation NVMe SSDs and graphics cards at full bandwidth. The motherboard supports DDR5 memory with EXPO overclocking profiles, enabling speeds up to 8000MHz and beyond for enthusiasts seeking maximum performance.
Connectivity is comprehensive with 12 rear USB ports including USB 3.2 Gen 2x2 Type-C (20Gbps), Intel Wi-Fi 6E AX210 (802.11ax with 2.4/5/6 GHz support), and 2.5 Gigabit Ethernet for fast networking. The power delivery system features a robust 16+2+2 phase digital VRM with 105A MOSFETs, ensuring stable operation under heavy loads and overclocking. Additional features include Hi-Fi audio with ALC1220 codec and DTS:X Ultra processing, M.2 EZ-Latch Plus quick-release design, and comprehensive storage support with 4x M.2 slots (2x PCIe 5.0 + 2x PCIe 4.0) and 6x SATA ports for RAID configurations.
- PCIe 5.0 x16 slot with reinforced armor for RTX 40-series GPUs
- Dual PCIe 5.0 M.2 sockets supporting up to 110mm drives
- DDR5 support with EXPO profiles up to 8000MHz OC
- 12 rear USB ports with Gen 2 and Gen 2x2 Type-C
- Intel Wi-Fi 6E AX210 and 2.5GbE LAN connectivity
- 16+2+2 phase digital VRM with advanced thermal design
- 3-year manufacturer warranty
| Socket | Socket AM5 |
| Chipset | AMD X670E |
| Form Factor | E-ATX |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4x DIMM |
| Maximum Memory | 192 GB |
| Memory Speed Support | DDR5 4400 MHz to 8000 MHz (OC) |
| Memory Profiles | AMD EXPO, Intel XMP |
| M.2 Slots | 4x M.2 (2x PCIe 5.0 x4 + 2x PCIe 4.0 x4) |
| M.2 Form Factors | Up to 110 mm, supports M.2 2280 and M.2 25110 |
| SATA Ports | 6x SATA III |
| RAID Support | RAID 0, 1, 10 |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU), 2x PCIe 4.0 x4 (Chipset) |
| Power Delivery | 16+2+2 Phase Digital VRM with 105A MOSFETs |

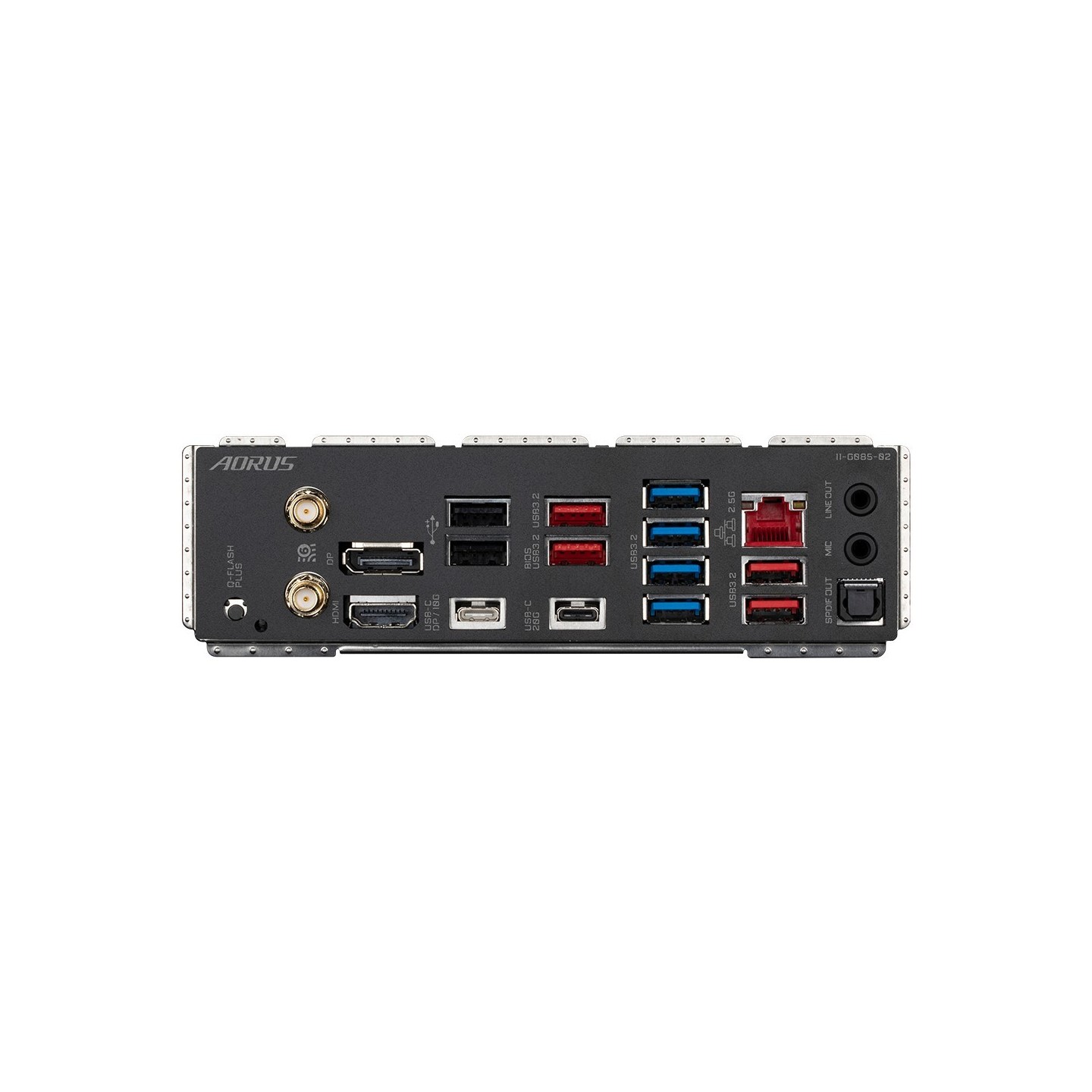

| USB Rear Ports | 12 ports total: 1x USB 3.2 Gen 2 Type-C (10Gbps), 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 4x USB 3.2 Gen 2 Type-A (10Gbps), 4x USB 3.2 Gen 1 Type-A (5Gbps), 2x USB 2.0 |
| Video Outputs | 1x DisplayPort 1.4, 1x HDMI 2.1 |
| Network | Intel 2.5 Gigabit Ethernet (RJ-45) |
| Wireless | Intel Wi-Fi 6E AX210 (802.11ax, 2.4/5/6 GHz, 160 MHz, Bluetooth 5.2) |
| Audio | Realtek ALC1220-VB codec with DTS:X Ultra processing, 7.1 channel support |
| Audio Outputs | 2x 3.5mm audio jacks, 1x optical S/PDIF |
| BIOS | UEFI AMI, 256 Mbit |
| Motherboard Dimensions | 305 x 269 x 35 mm |
| Warranty | 3 Years |
| Supported Processors | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| PCIe 5.0 Support | Yes - x16 slot and dual M.2 sockets |
| EZ-Latch Design | M.2 EZ-Latch Plus (SMD PCIe 5.0 x16 slot and M.2 connectors with quick release) |
| Thermal Design | Advanced thermal armor with 8-layer low signal loss PCB |
