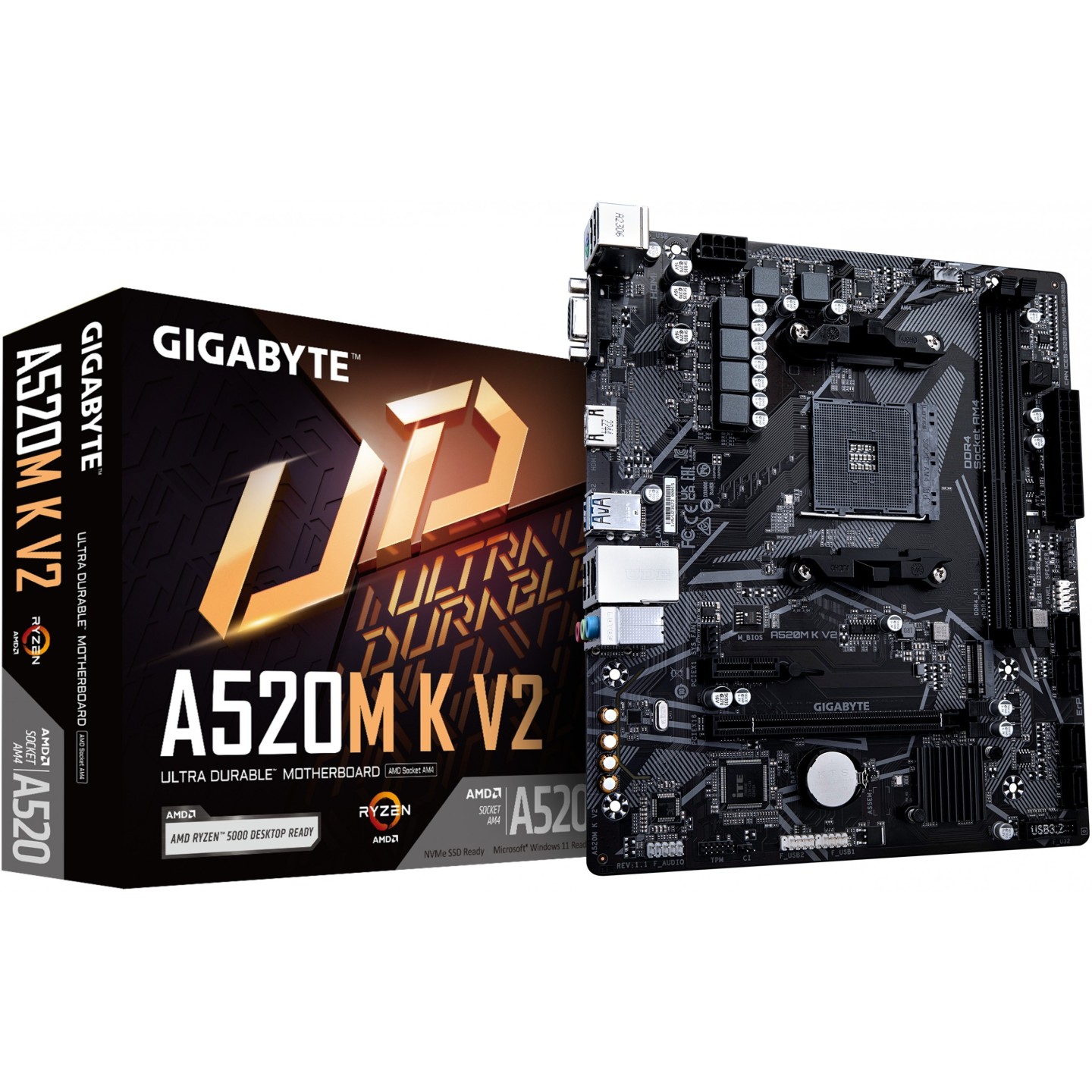

Gigabyte A520M K V2 - AM4 Micro-ATX Motherboard | AMD A520, DDR4 up to 64GB, 1x M.2 PCIe 3.0, HDMI 2.1 (Boxed)
AM4 Micro-ATX motherboard with AMD A520 chipset. Supports Ryzen 3000/4000 G-Series/5000/5000 G-Series, Dual Channel DDR4 up to 64GB (5100MHz OC, XMP), 1x PCIe Gen3 x4 M.2, 4x SATA 6Gb/s (RAID 0/1/10), HDMI 2.1 (4K@60Hz), GbE LAN, 8-ch HD Audio, Smart Fan 5.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | AMD AM4 |
|---|---|
| Motherboards - Chipset | AMD A520 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |

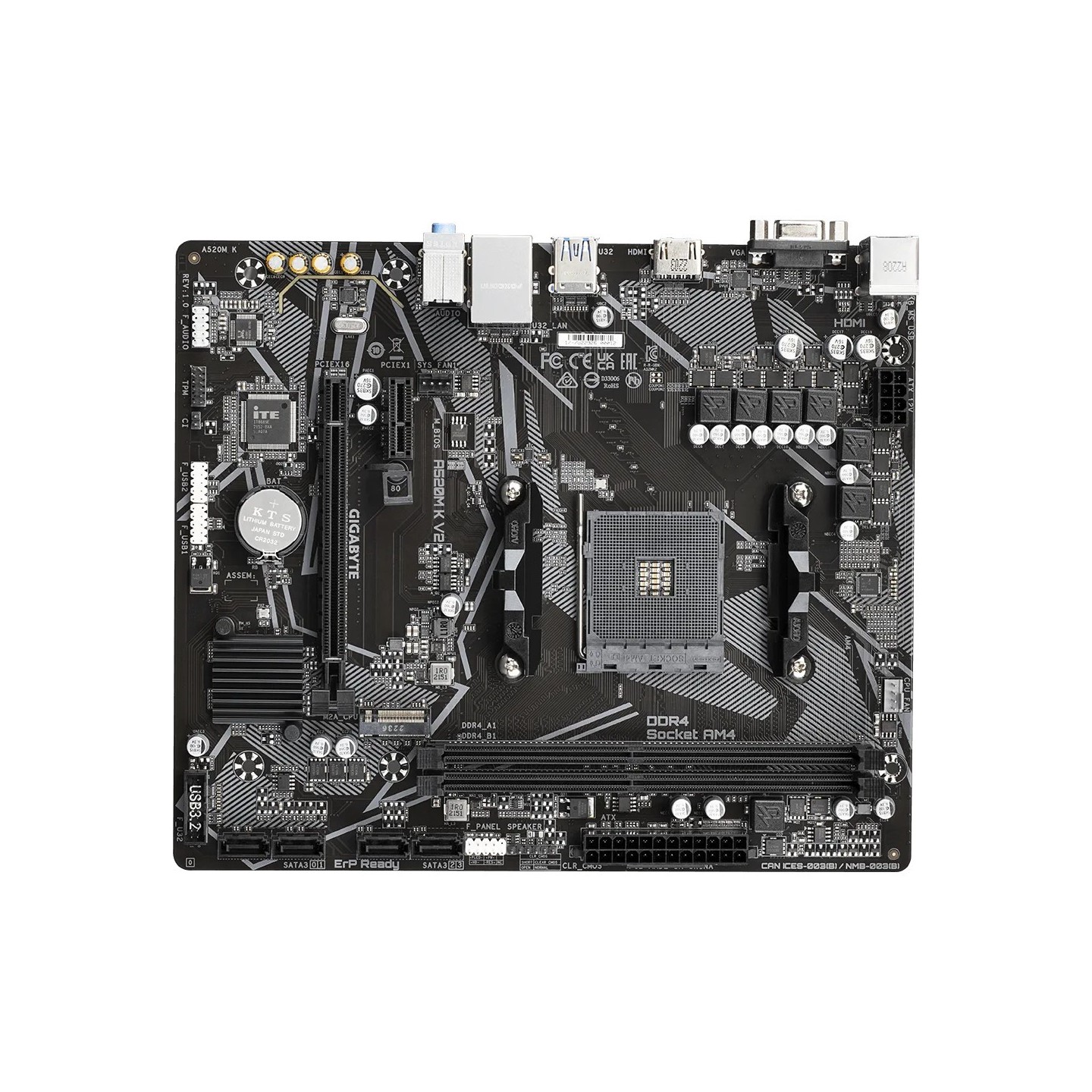

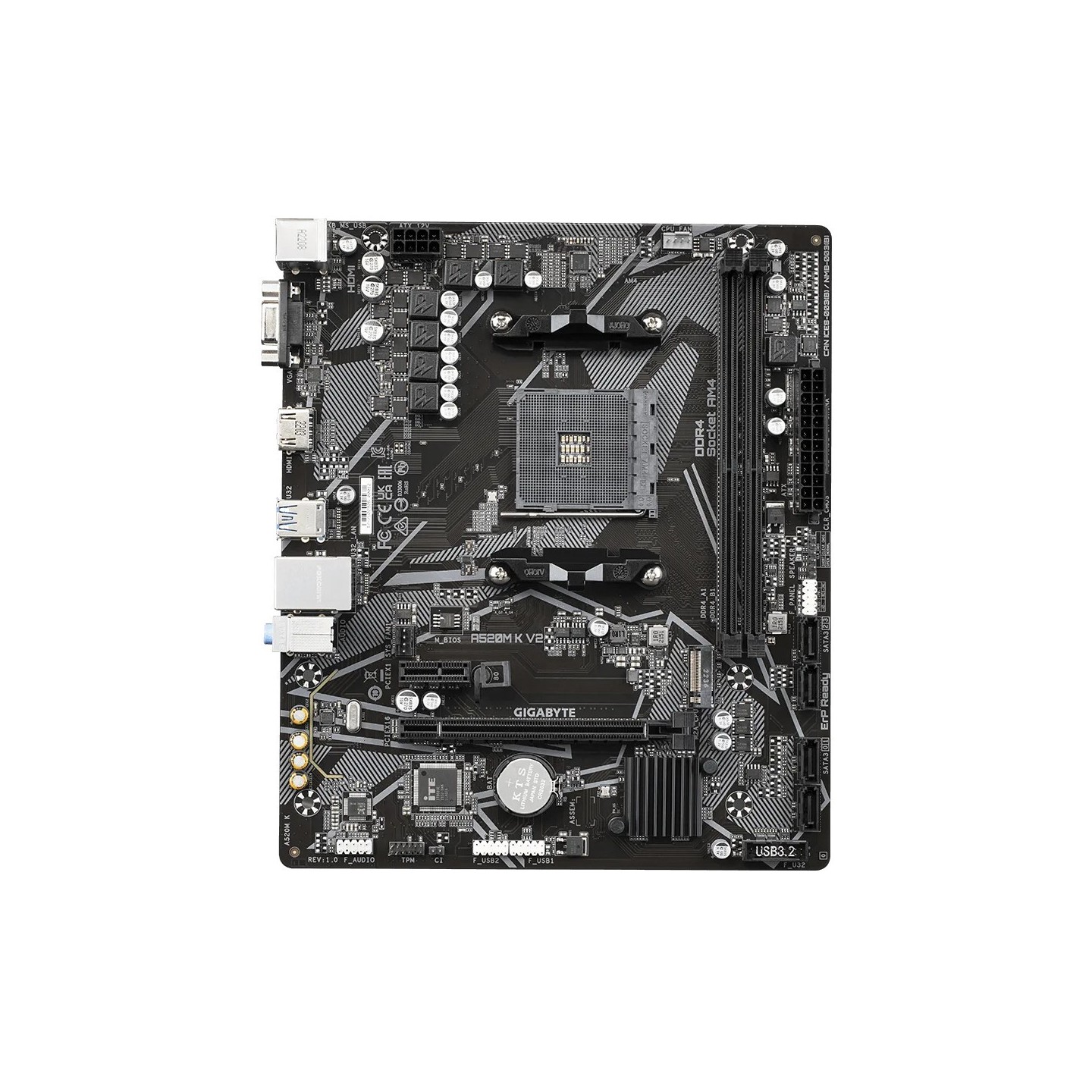

The Gigabyte A520M K V2 is a reliable Micro-ATX motherboard designed for AMD Ryzen processors on the AM4 socket. It supports Ryzen 3000 Series, 3000 G-Series, 4000 G-Series, 5000 Series, and 5000 G-Series CPUs out of the box with no BIOS update required for most. Featuring the AMD A520 chipset, it delivers essential features for budget gaming and productivity builds, including dual-channel DDR4 memory support up to 64GB at speeds reaching 5100MHz (OC) with Extreme Memory Profile (XMP).

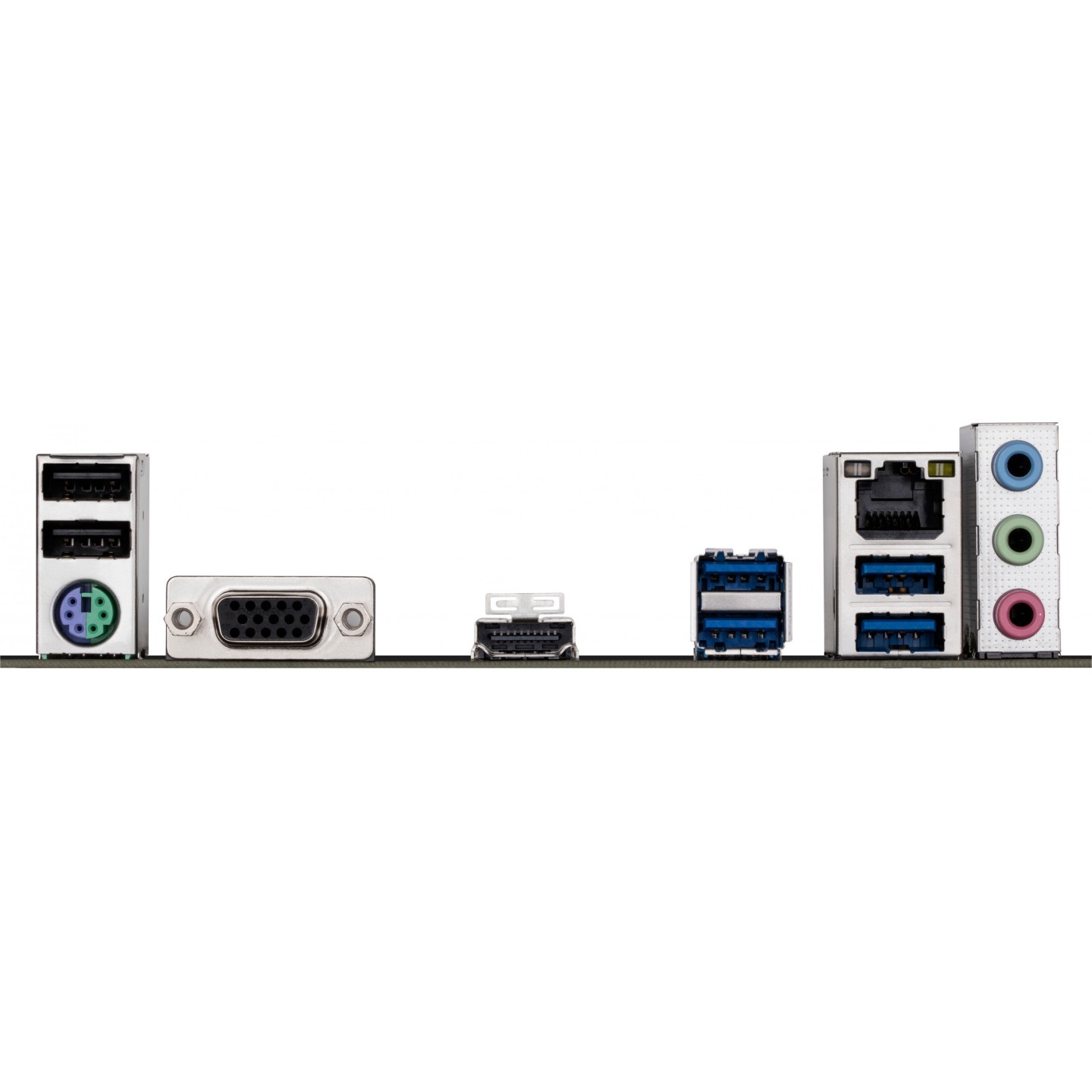

Storage options include one M.2 slot (PCIe 3.0 x4/x2 and SATA, type 2280) for fast NVMe SSDs and four SATA 6Gb/s ports with RAID 0, 1, and 10 support. Connectivity is solid with 4x rear USB 3.2 Gen 1 ports, Gigabit Ethernet LAN with bandwidth management, HDMI 2.1 (4096x2160@60Hz, HDCP 2.3, HDR), and D-Sub (1920x1200@60Hz) for multi-display setups. Audio is handled by an 8-channel HD codec with high-end capacitors, and Smart Fan 5 provides advanced cooling control with hybrid fan headers and multiple temperature sensors.
This board emphasizes durability with GIGABYTE Ultra Durable design, making it ideal for stable, long-term use. It lacks PCIe 4.0 and advanced overclocking but excels in value for entry-level AM4 systems.
- CPU Support: Ryzen 3000/4000G/5000/5000G Series (AM4)
- Memory: 2x DDR4 DIMM, 64GB max, 5100MHz OC
- Storage: 1x M.2 PCIe 3.0, 4x SATA III
- Video: HDMI 2.1 4K, D-Sub
- Expansion: 1x PCIe x16 (Gen3), 1x PCIe x1
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 3000 G-Series, AMD Ryzen 4000 G-Series, AMD Ryzen 5000 Series, AMD Ryzen 5000 G-Series |
| Motherboard chipset | AMD A520 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100(O.C.) MHz |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Number of M.2 (M) slots | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| Number of SATA III connectors | 4 |
| RAID levels | 0, 1, 10 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum resolution | 4096 x 2160 pixels @60Hz |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Width | 233 mm |
| Depth | 198 mm |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 675 g |
| Country of origin | China |
| Warranty period | 3 year(s) |
