ASRock B760 Pro RS - LGA1700 ATX Motherboard, DDR5, 4x DIMM up to 128GB, PCIe 5.0 x16, 2x USB-C - 90-B790PB-10BAY0 (Boxed)
ASRock B760 Pro RS: Intel B760 ATX for LGA1700 (12th-14th Gen Core). 4x DDR5 up to 128GB/7200+(OC), PCIe 5.0 x16, 3x M.2 PCIe4, 4x SATA3, 2.5Gb LAN, 2x rear USB-C, Dr.MOS VRM.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 PCIe 5.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| Motherboards - RGB Headers | 3-pin 5V ARGB 4-pin 12V RGB |
| Motherboards - Wireless Connectivity | None |

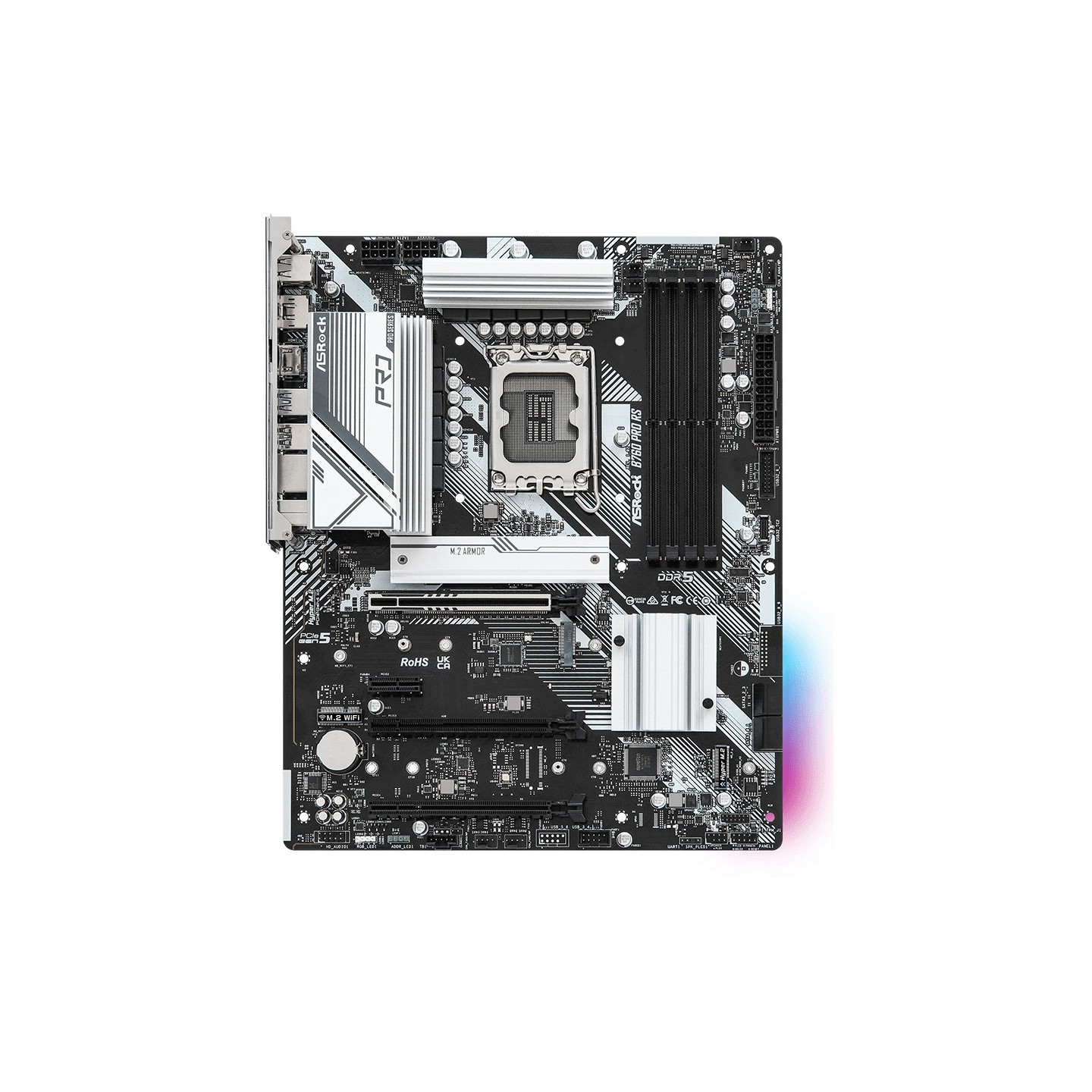

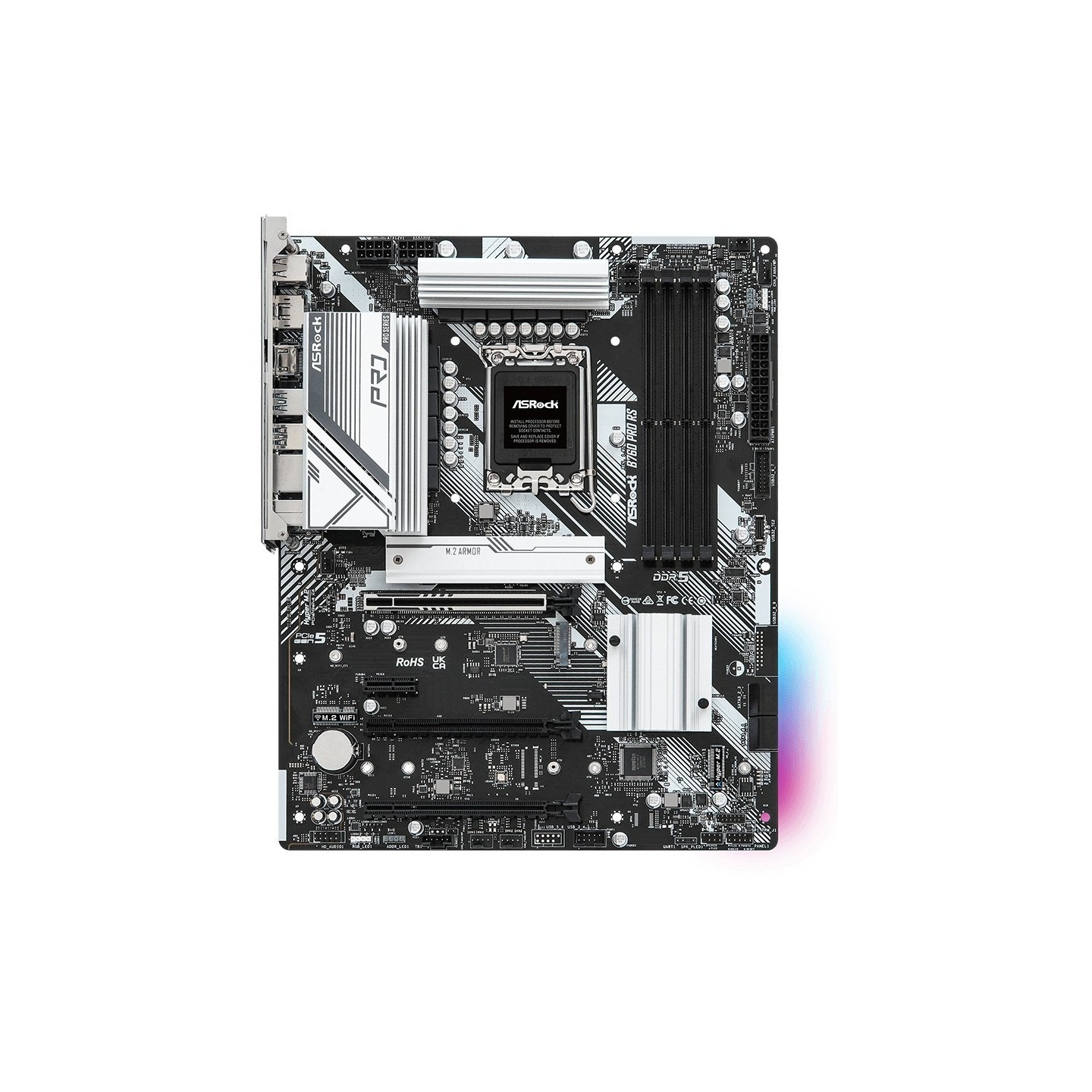

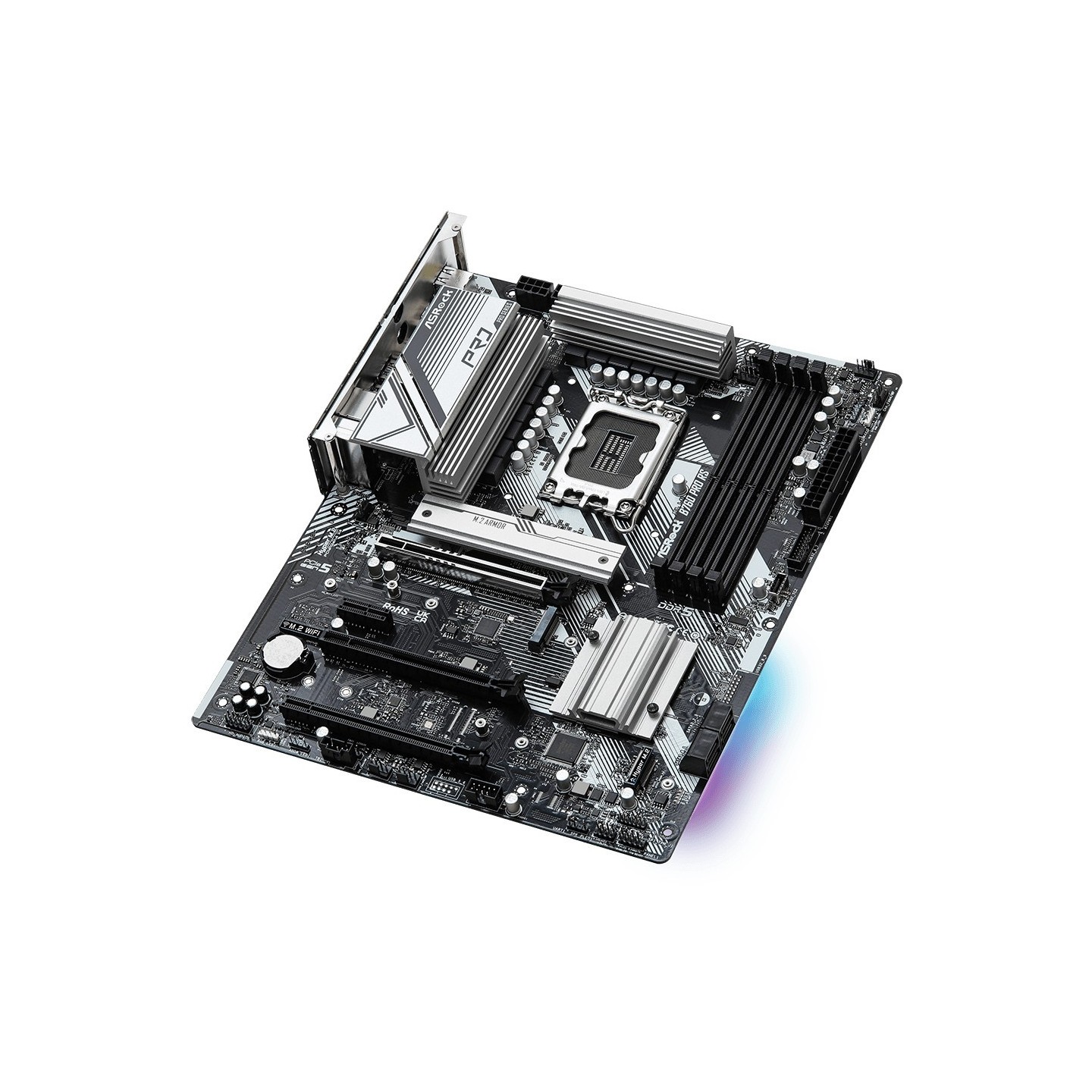

The ASRock B760 Pro RS is a feature-rich ATX motherboard designed for Intel's 12th, 13th, and 14th Gen Core processors using the LGA1700 socket. Built on the Intel B760 chipset, it supports high-speed DDR5 memory with up to 128GB across 4 DIMM slots and overclocking potential up to 7200+ MHz (OC) via XMP profiles. It features a robust 10+1+1 power phase design with Dr.MOS for stable VRM performance, ideal for gaming and productivity builds.
Storage options include 3x M.2 slots (PCIe Gen4x4), 4x SATA III ports with RAID 0/1/5/10 support, and PCIe 5.0 x16 graphics slot with surface-mount technology for maximum stability. Connectivity is enhanced by Realtek RTL8125BG 2.5 Gigabit Ethernet, Realtek ALC897 7.1-channel audio, 2x rear USB 3.2 Gen2x2 Type-C ports, plus extensive USB headers. The board includes 2x RGB headers (ARGB + RGB) for lighting customization and dual display outputs (HDMI + DP 1.4).
- CPU Support: Intel Core i3/i5/i7/i9 (12th-14th Gen), LGA1700
- Memory: 4x DDR5 DIMM, Dual Channel, up to 128GB / 7200+(OC), Non-ECC
- Expansion: 1x PCIe5.0 x16, M.2 PCIe4.0 x4 (x3), 4x SATA III
- Networking: 2.5GbE (Realtek RTL8125BG), No WiFi

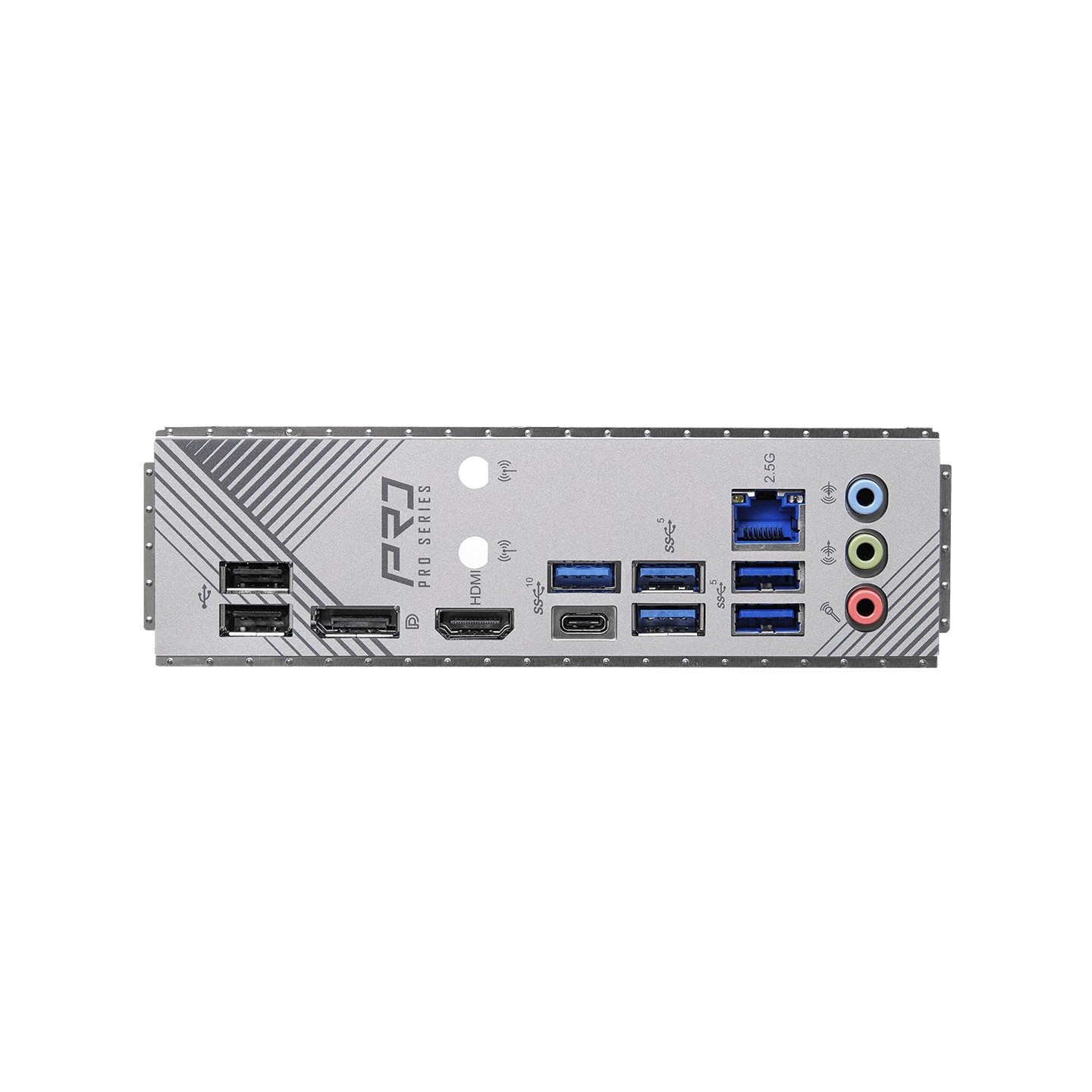

- I/O: 2x USB-C 3.2 Gen2x2 rear, HDMI, DP1.4, 7.1 Audio
- Other: UEFI BIOS, ErP compliant, ATX form factor (305x244mm)
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3, i5, i7, i9 (12th/13th/14th Gen) |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | up to 7200+(OC) MHz |
| Memory Profile Support | XMP |
| Main Slot PCIe Version | PCIe 5.0 x16 |
| M.2 Slots | 3 |
| SATA Ports | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 (rear) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125-BG |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Power Design | 10+1+1 Phase, Dr.MOS |
| RGB Headers | 1x ARGB (3-pin 5V), 1x RGB (4-pin 12V) |
| Width | 305 mm |
| Depth | 244 mm |
| Wireless Connectivity | None |
