ICY BOX IB-M2HS-70 Heatsink for M.2 2280 SSD - Aluminium (Boxed)
ICY BOX IB-M2HS-70 passive aluminium heatsink for M.2 2280 SSDs (80mm). Includes 3 pairs silicone thermal pads (1.5 W/mK) for optimal conduction. Low-profile (10mm) design fits motherboards/adapters; easy install/removal.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | M.2 Heatsink |
|---|---|
| Cooling (CPU & Case) - Socket Support | Universal |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Low Profile |

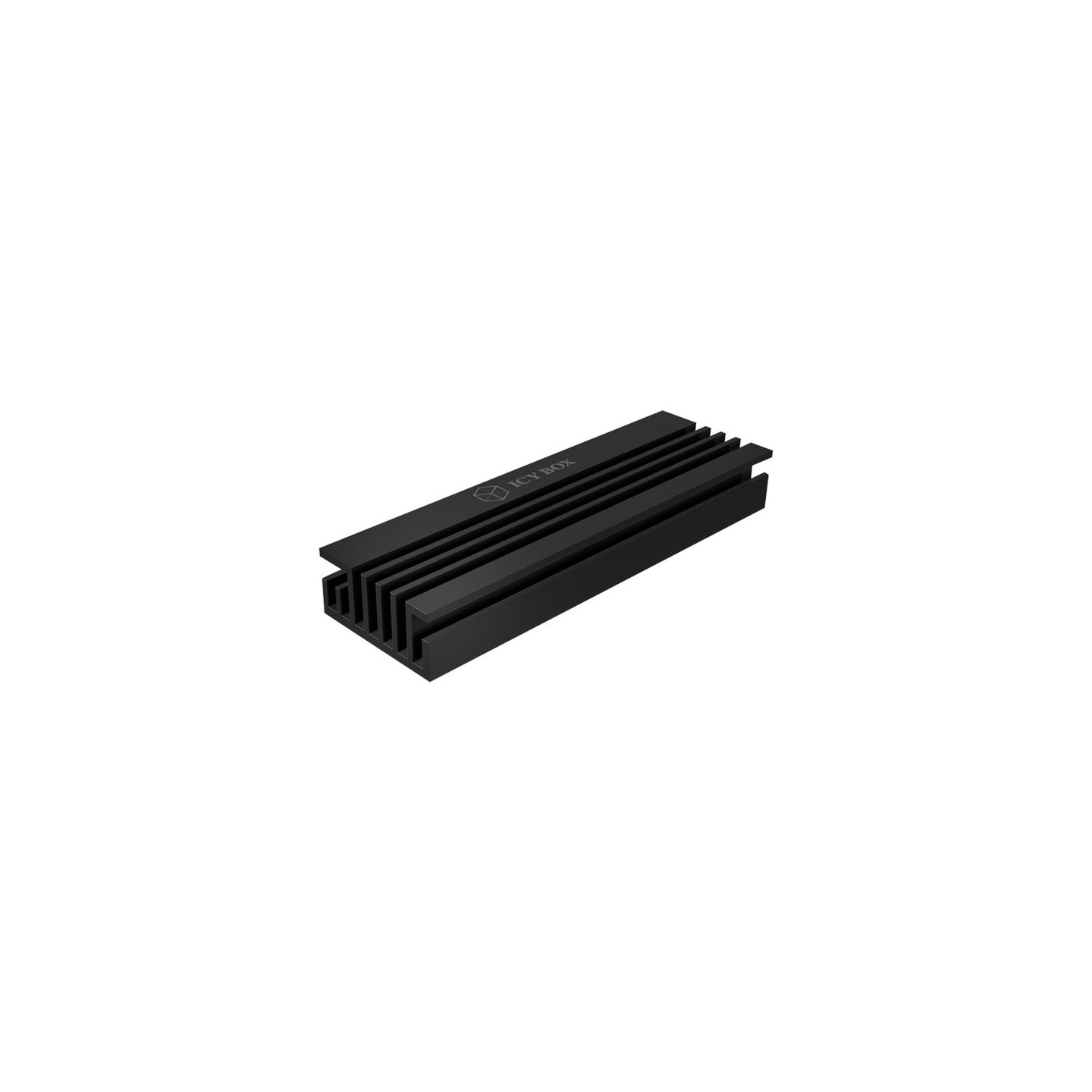

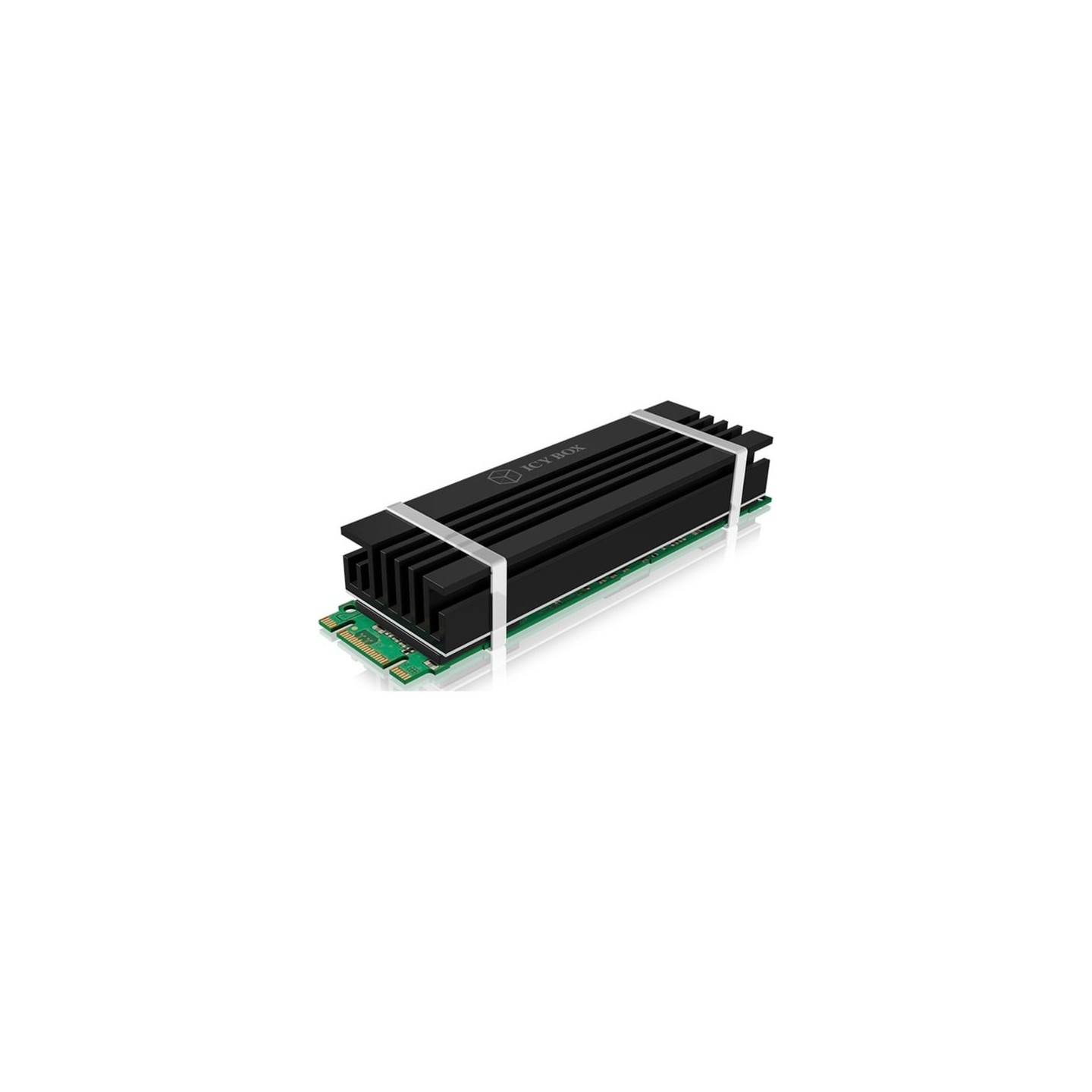

The ICY BOX IB-M2HS-70 is a passive aluminium heatsink designed for M.2 2280 SSDs up to 80mm long. It effectively improves heat distribution, preventing thermal throttling during intensive workloads. Made from high-quality aluminium with included silicone thermal pads (thermal conductivity 1.5 W/mK, -20°C to 180°C operating range), it ensures efficient heat transfer from SSD to heatsink.

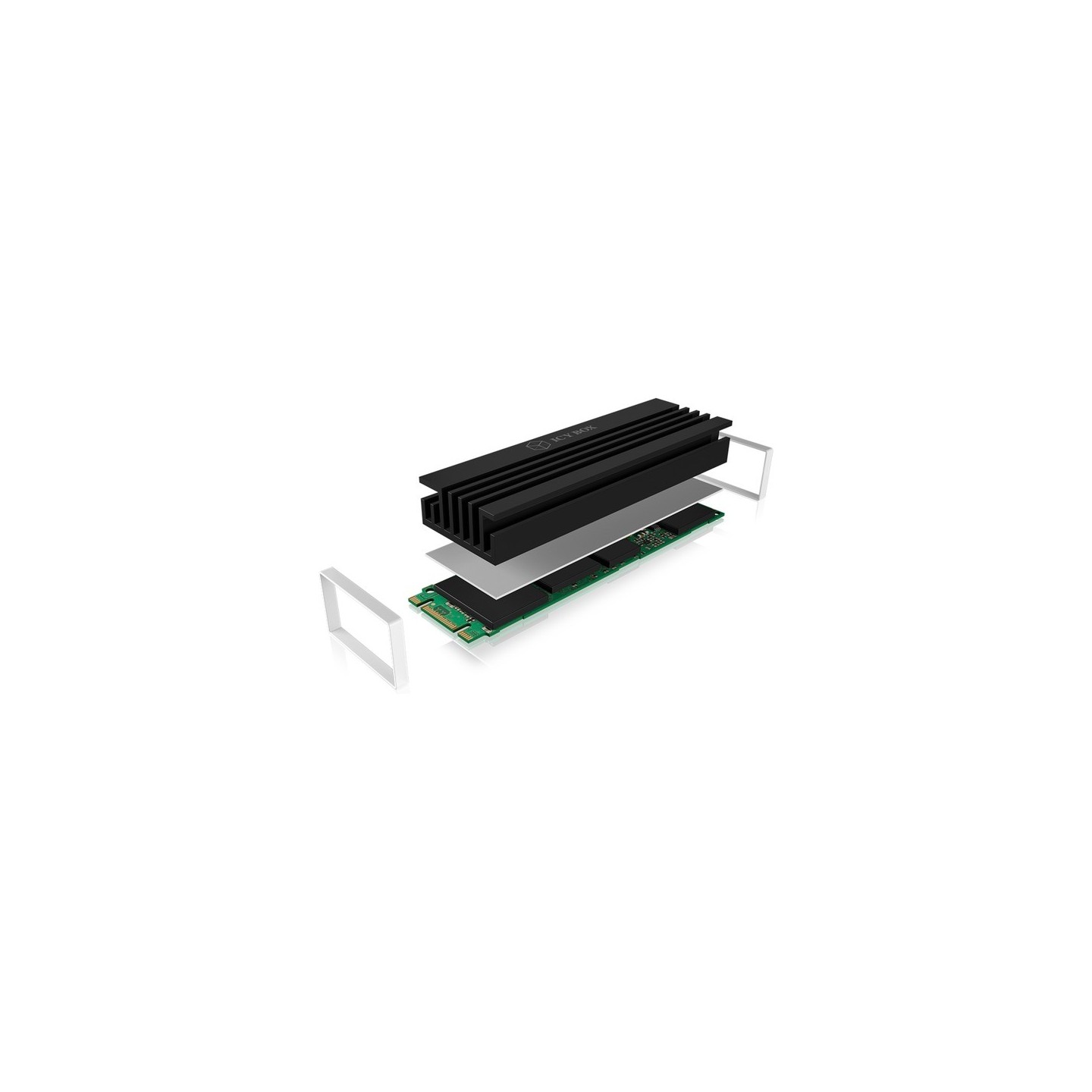

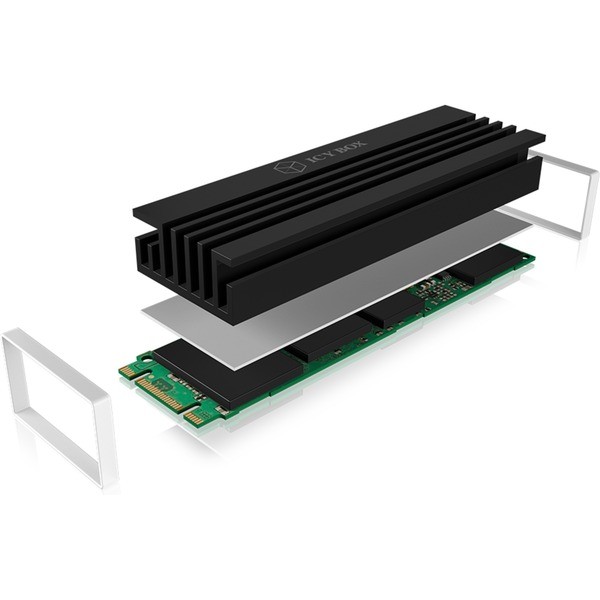

Installation is straightforward: apply the main blue thermal pad (70x20x1mm) on top of the M.2 SSD, then secure the low-profile 10mm heatsink. Optional white pads (60x20x1-1.5mm) available for adapters. Its compact dimensions (22x70x10mm) and flat design prevent interference with nearby components on motherboards or M.2 adapters. No tools required beyond what's included; easy to remove for SSD upgrades.
- Key Benefits:
- Passive cooling, no noise or power draw
- Supports M.2 2280 (22x80mm)
- 3 pairs thermal pads included (blue main + 2x white optional)
- Aluminium construction for rapid heat dissipation
- Low profile: 10mm height
- Compatible with PC motherboards and adapters
| Type | Passive heat sink |
| Color | Black |
| EAN | 4250078166405 |
| Manufacturer no. | 60314 |
| Art | Heat sink |
| use | for M.2 2280 SSD |
| Dimensions (Product) | 22 x 70 x 10 mm |
| Weight (Net) | 18 g |
| Material | Aluminium, Silicone |
| Thermal Pads | 3x2 silicone pads (1.5 W/mK, -20°C ~ 180°C); Blue: 70x20x1mm; White: 60x20x1-1.5mm |
| Feature | Low profile, easy installation/removal, for motherboards or M.2 adapters |
| Accessories | 3x two silicone thermal pads, manual |
| Country of Origin | China |
