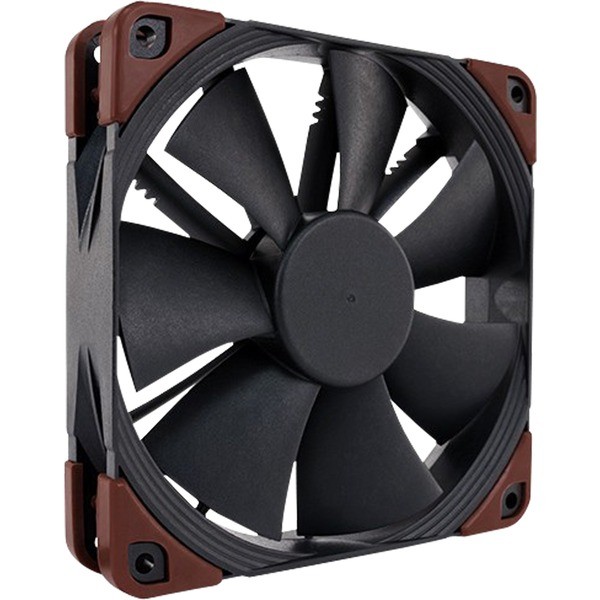

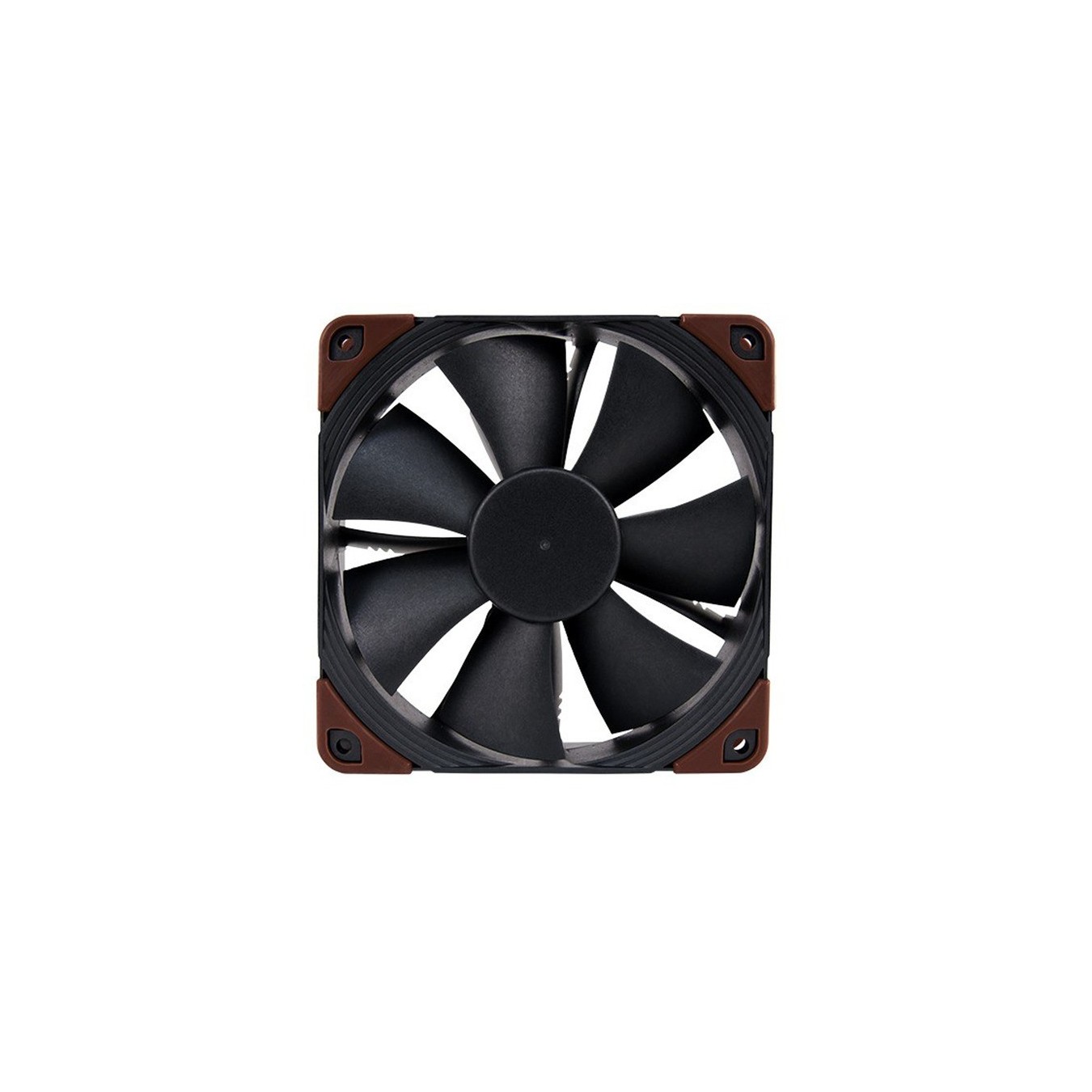

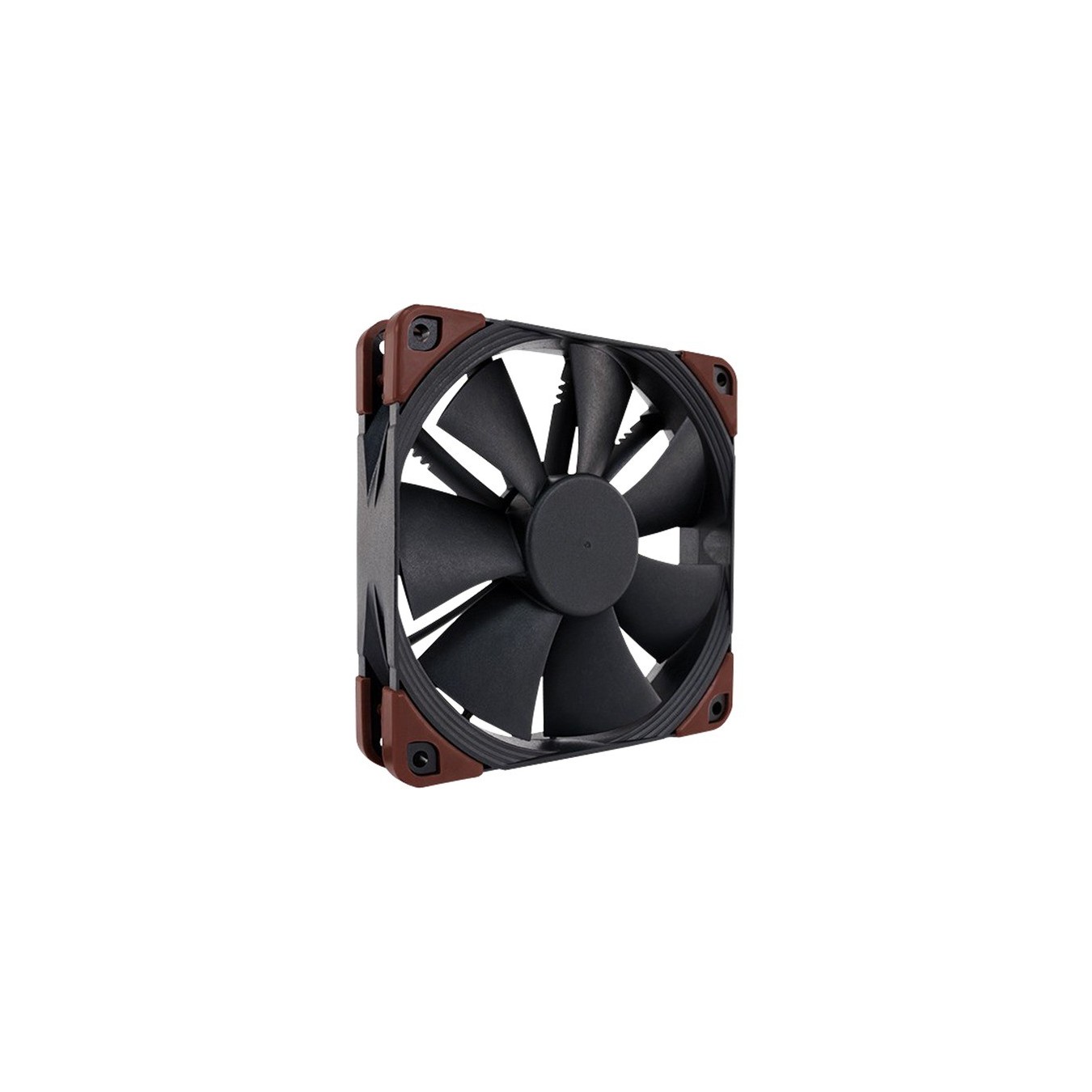

NF-F12 - industrialPPC-3000 PWM - Case fan
Industrial NF-F12 industrialPPC-3000 PWM 120x120x25 mm case fan: 12V, 3.6W, 750–3000 RPM, 186.7 m³/h, 7.63 mm/H2O, 43.5 dB, 4-Pin PWM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Fan Size | 120 mm |
|---|---|
| Cooling (CPU & Case) - Lightning | None |
Designed for industrial applications and designed to withstand heavy use and operation in difficult conditions, the NF-F12 industrialPPC (PPC stands for Protected Performance Cooling) is a more robust, faster-spinning version of the award-winning retail model. Thanks to the excellent aerodynamic efficiency of the NF-F12 design and a new three-phase motor, the industrialPPC versions with their higher speed offer real high-performance cooling, but have moderate noise and power consumption compared to fans that rotate at comparable speeds. With its fiberglass-reinforced polyamide construction and extended water and dust protection, the NF-F12 industrialPPC is also suitable for use in demanding environments. At the same time, the high-quality SSO2 bearing offers an MTBF of over 150,000 hours. Complemented by Noctua's usual reliability, the NF-F12 industrialPPC is a perfect choice for particularly challenging applications that require superior cooling performance and maximum operational reliability.
| Typ | Case fan |
| EAN | 4716123315414 |
| Manufacturer no. | NF-F12 iPPC-3000 PWM |
| Art | Case fan |
| Fastening | screwed |
| volume | 43,5 dB |
| speed | 750 bis 3,000 U/min |
| Fan storage | SSO |
| Volume flow | 186,7 m³/h (109,9 cfm) |
| Air pressure | Up to 7.63 mm/H2O |
| Power connection | 4-Pin-PWM |
| Voltage range | 12 Volt |
| Power consumption | 3,6 Watt |
| Dimensions - Fan1 | Quantity: 1 piece, width: 120 mm, height: 120 mm, depth: 25 mm |
| Weight - Total | 245 Gramm |
