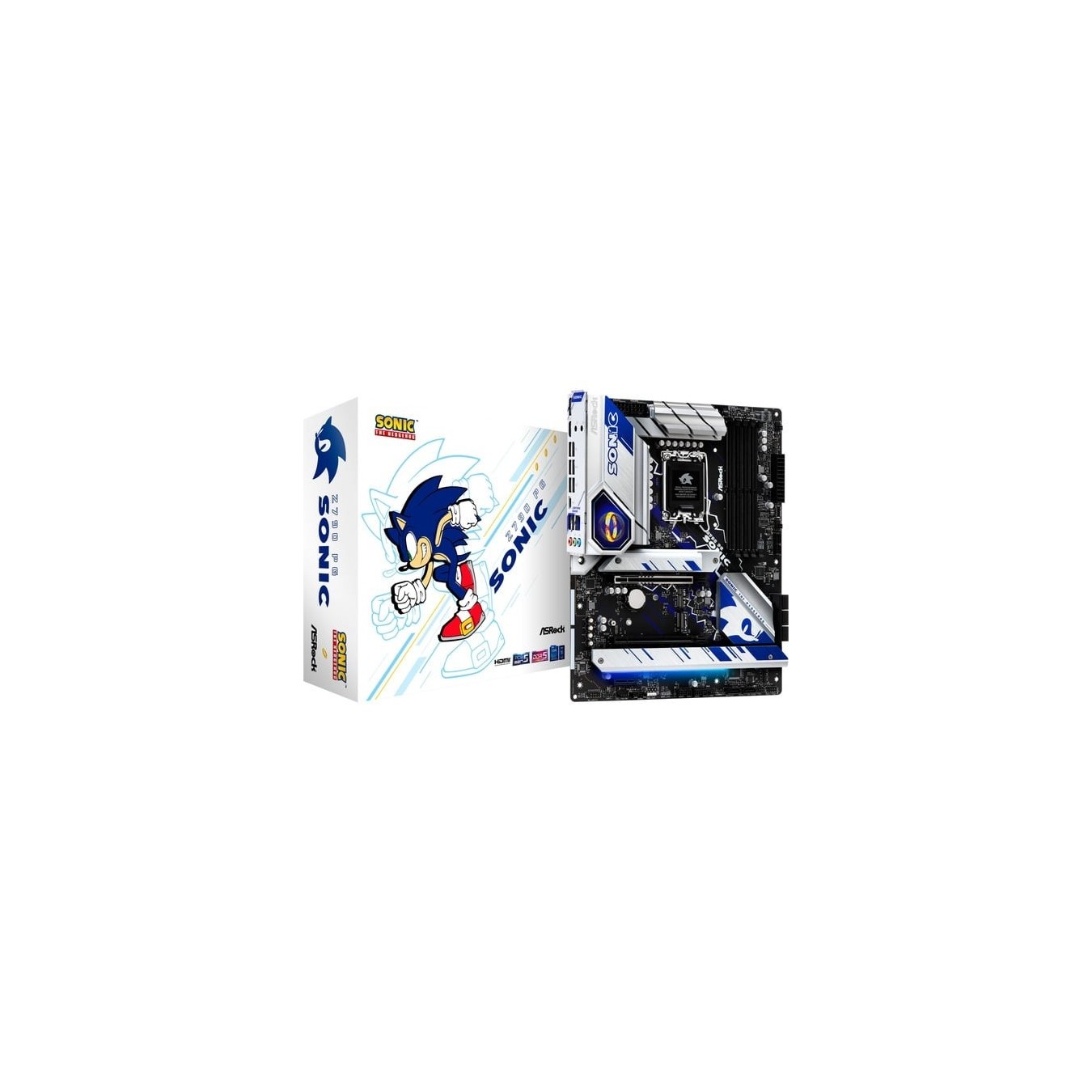

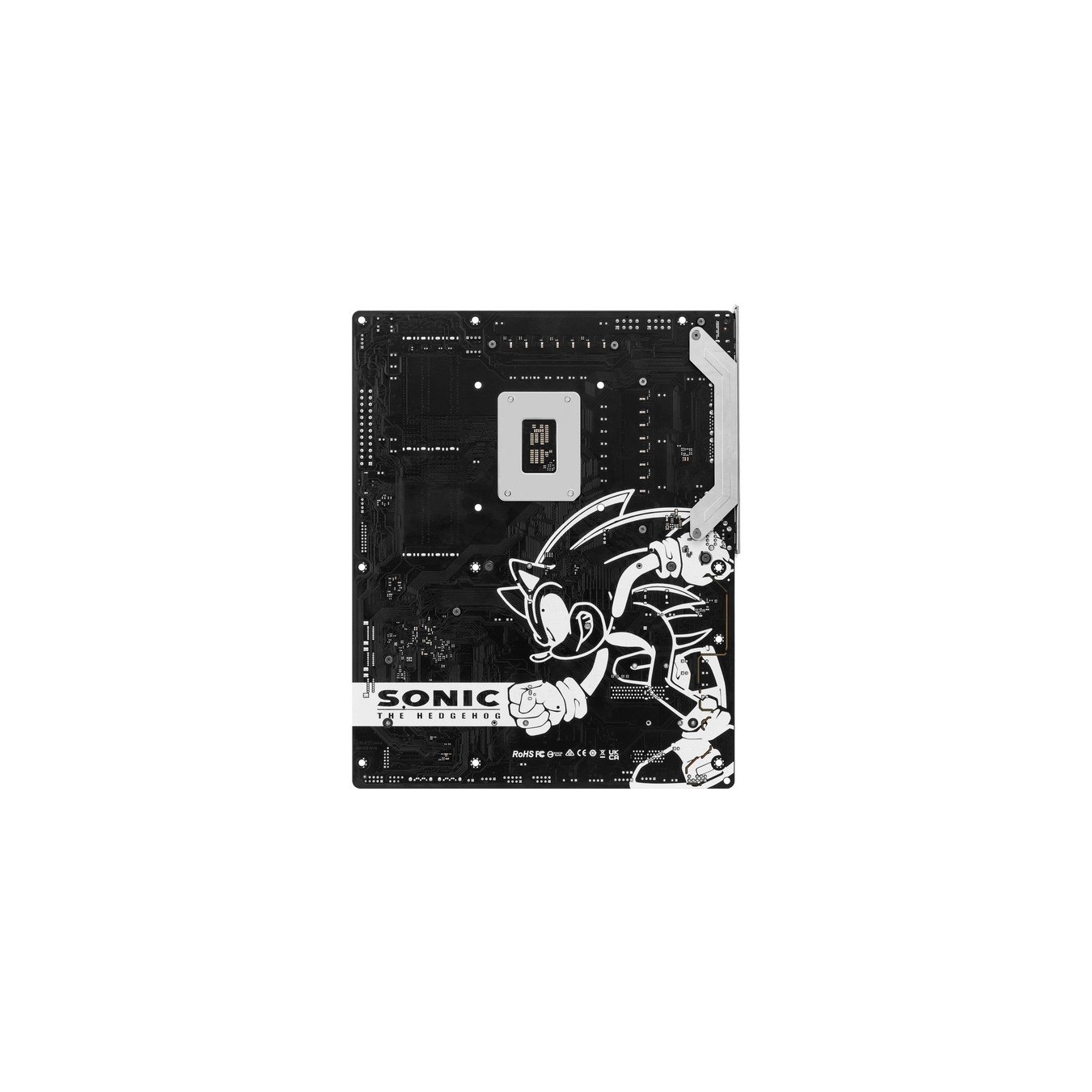

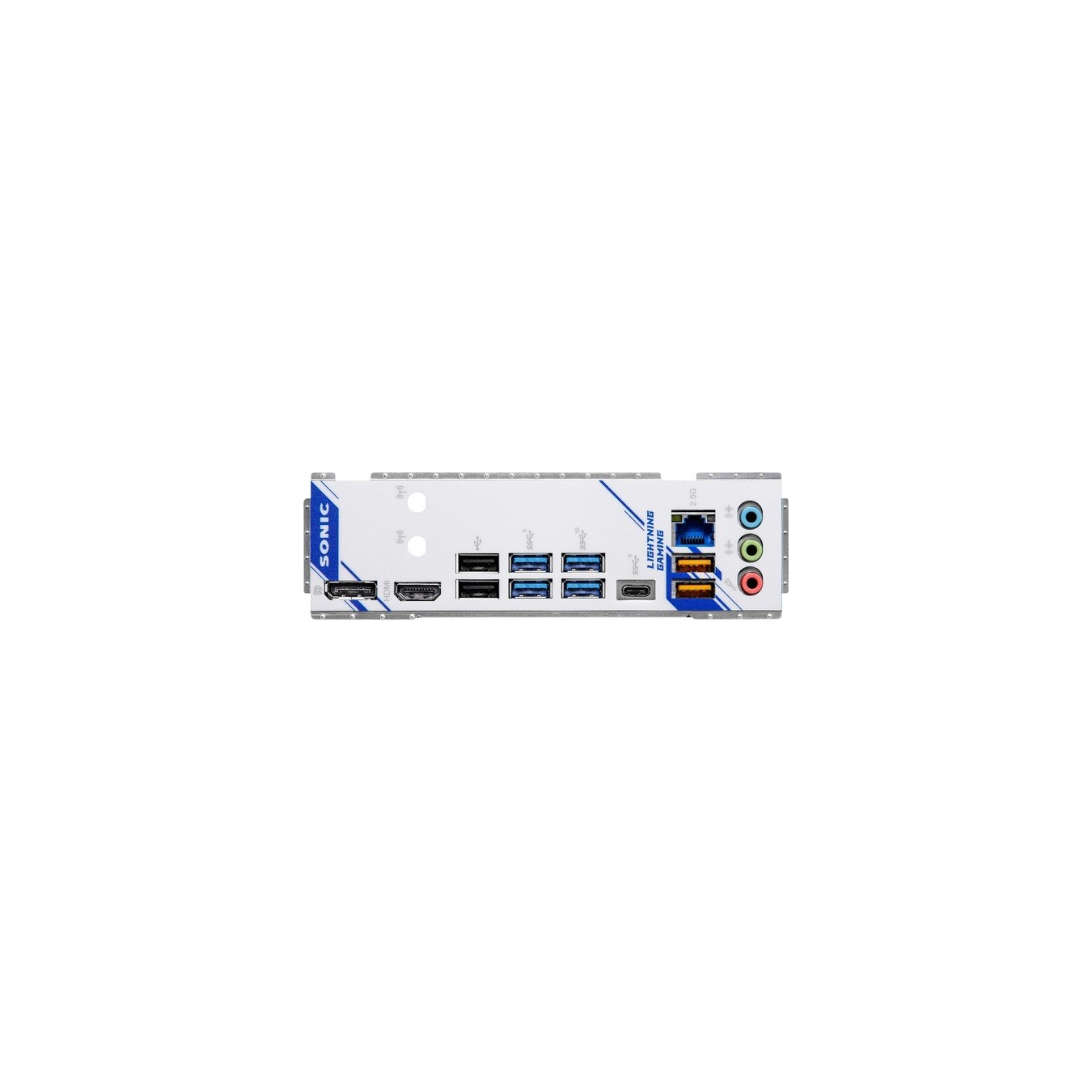

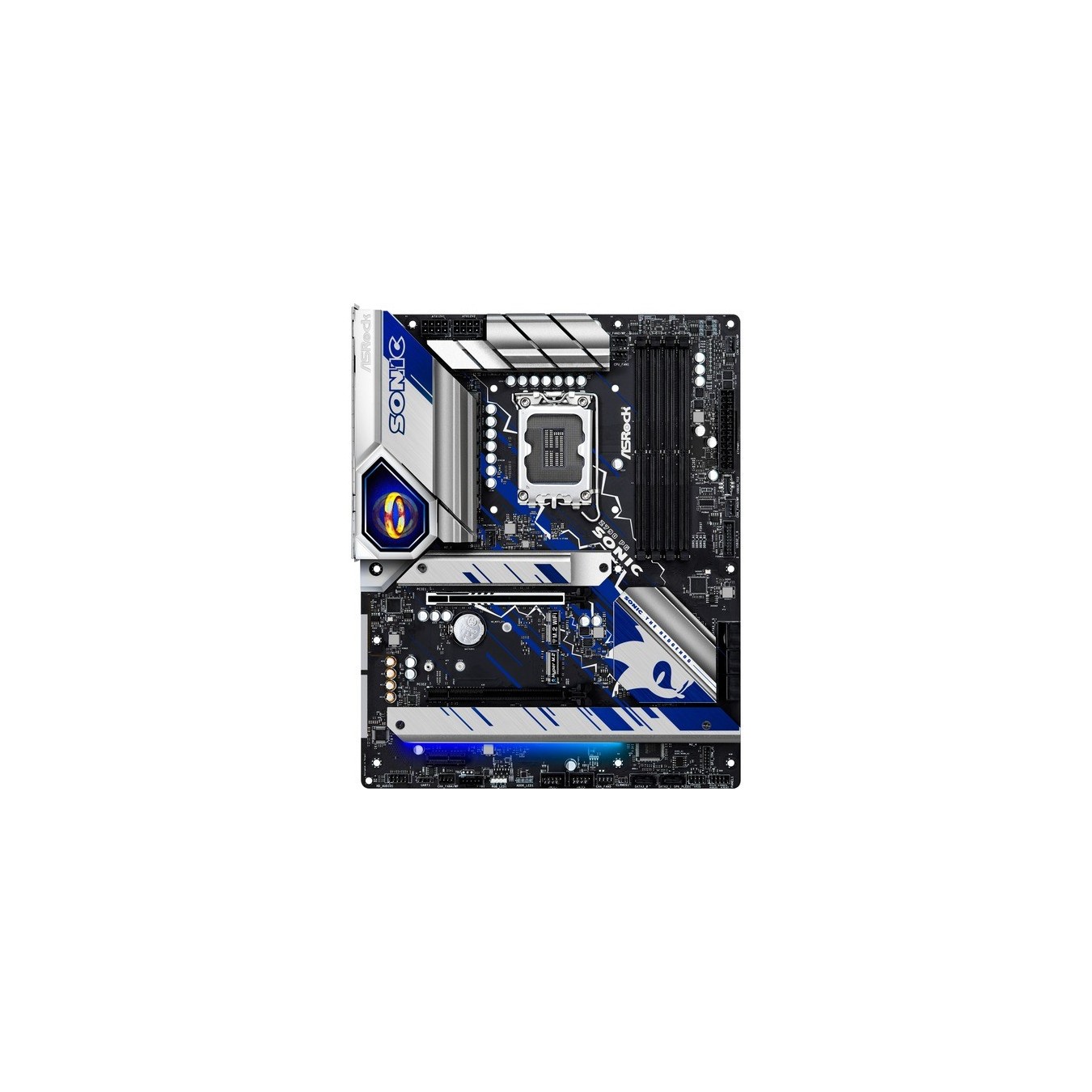

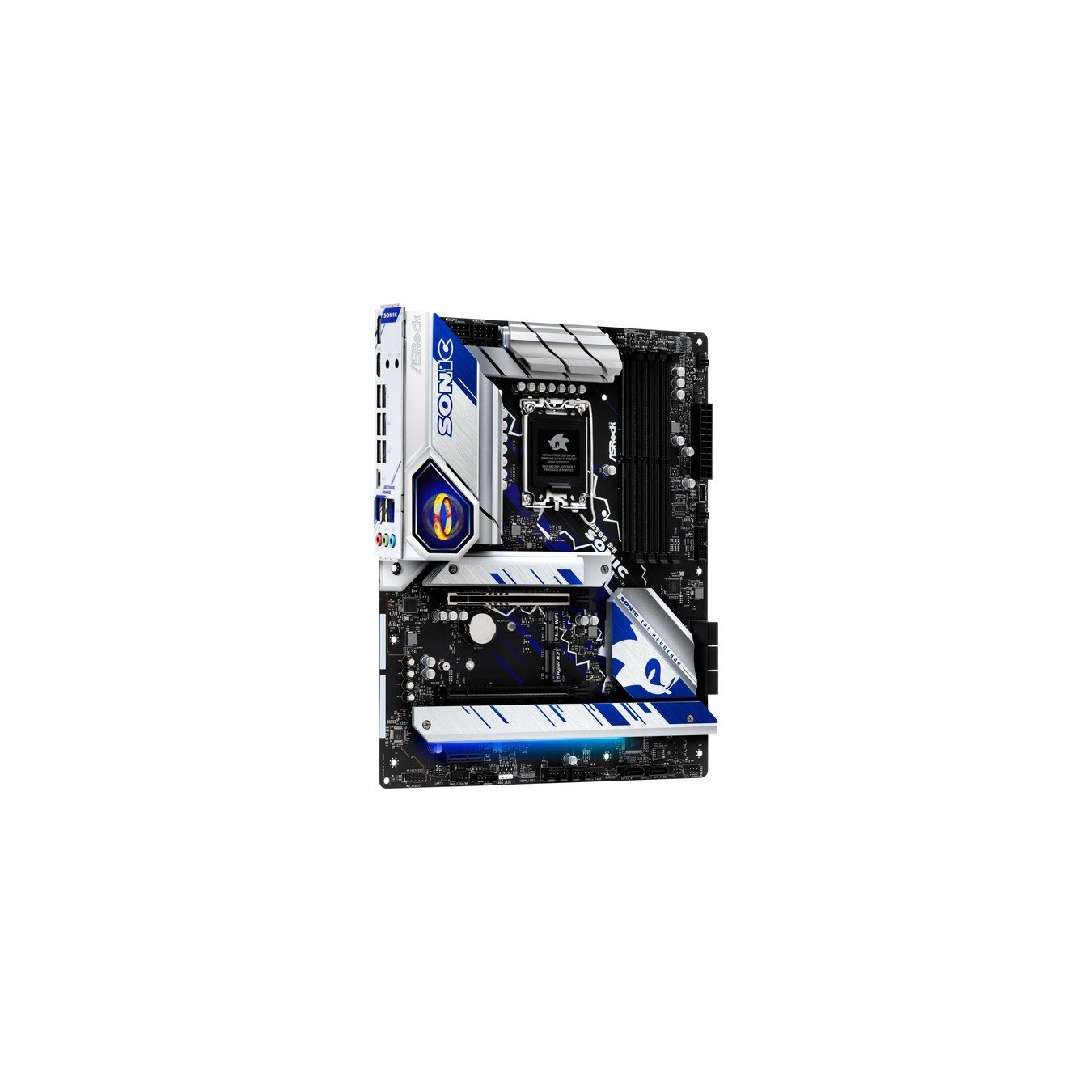

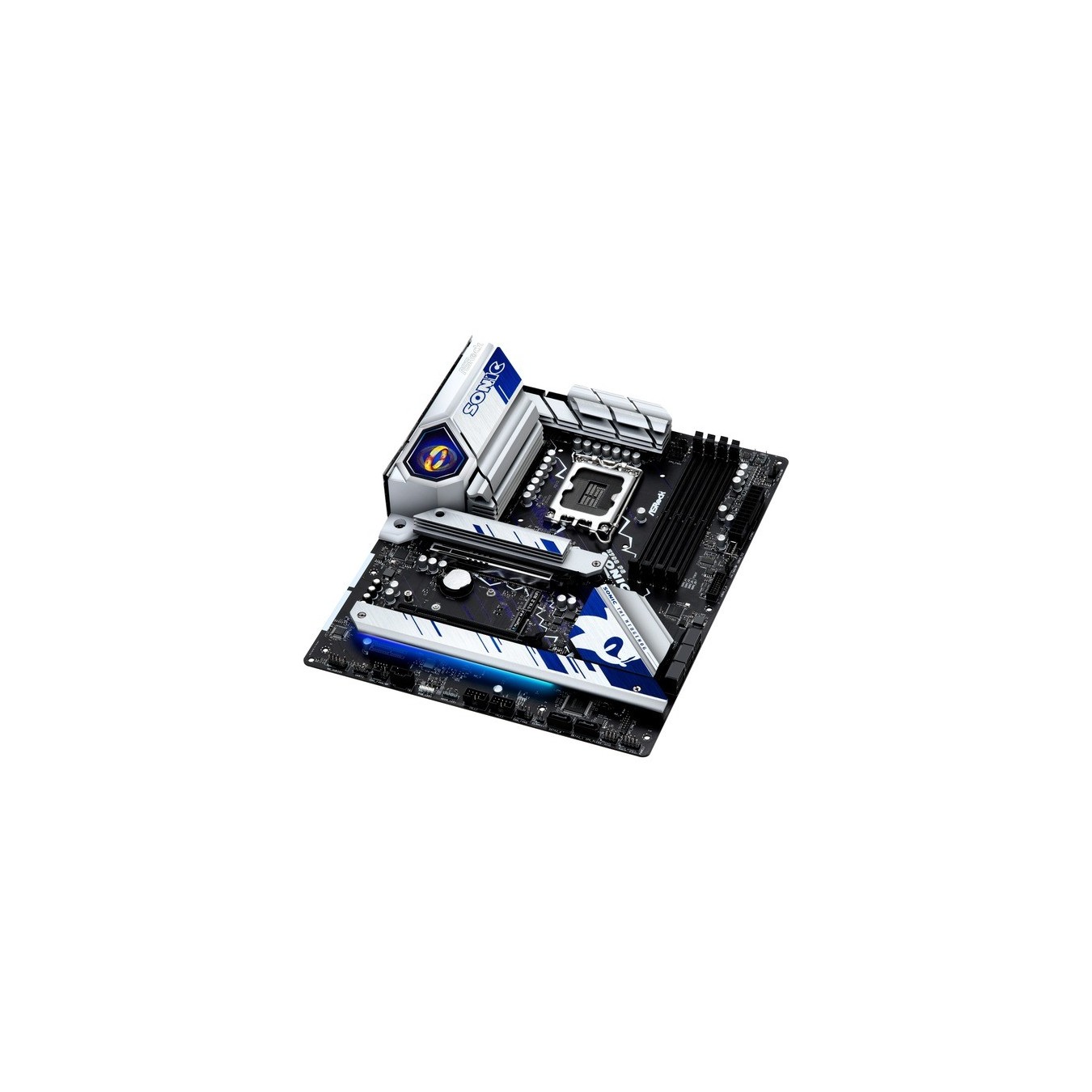

Z790 PG SONIC - Mainboard
ASRock Z790 PG SONIC motherboard based on the Intel Z790 chipset, supports Intel Socket 1700 CPUs, with 4 DDR5 DIMM slots in dual-channel.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - SATA Ports | 8 |
The ASRock Z790 PG SONIC motherboard is based on the Intel® Z790 chipset and supports Intel® processors for Socket 1700. It has four DDR5 DIMM slots in dual-channel operation for up to 256 GB of RAM. The ASRock Z790 PG SONIC's additional features include a PCIe 5.0 x16 slot, a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The ASRock Z790 PG SONIC also has 8-channel sound, a 2.5 Gigabit LAN interface, eight SATA3 ports, five M.2 ports and a variety of USB interfaces.
| Typ | Mainboard |
| Color | silver/blue |
| EAN | 4710483941009 |
| Manufacturer no. | 90-MXBKF0-A0UAYZ |
| base | 1700 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i3 14xxx (Raptor Lake-S), Core i3 14xxxF (Raptor Lake-S), Core i3 14xxxT (Raptor Lake-S), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S), Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S) |
| Chipset | Intel® Z790 |
| Slots - PCIe x16 | 2x (davon: 1x PCIe x16, 1x PCIe x4) |
| BIOS | 128Mb AMI UEFI BIOS |
| Form factor | ATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 2x 8-Pin) |
| Memory - maximum | 256 GB |
| Ports (external) - USB-A 3.2 Gen 2 (10 Gbit/s) | 2 |
| Connectors (internal) - SATA | 8 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| SATA Controller | Intel® Z790 |
| directly usable RAID levels | 0, 1, 10, 5 |
| USB-Controller | Intel® Z790 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC897 |
| LAN | Killer E3100G 2.5 Gigabit LAN |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Accessories - available | Instructions, 2x SATA cables, 5x M.2 screws |
| Dimensions | Width: 244mm x Height: 305mm |
