GIGABYTE GA-B760M D3HP - LGA1700 Micro-ATX Motherboard, Intel B760, DDR5, 4x DIMM, Up to 256GB (Boxed)
LGA1700 Micro-ATX motherboard with Intel B760 chipset and DDR5 support. Features 4 DIMM slots (up to 256GB), 2x PCIe 4.0 M.2, GbE LAN, front USB-C, and robust 4+1+1 VRM for 12th-14th Gen Intel CPUs. Ideal for gaming and productivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

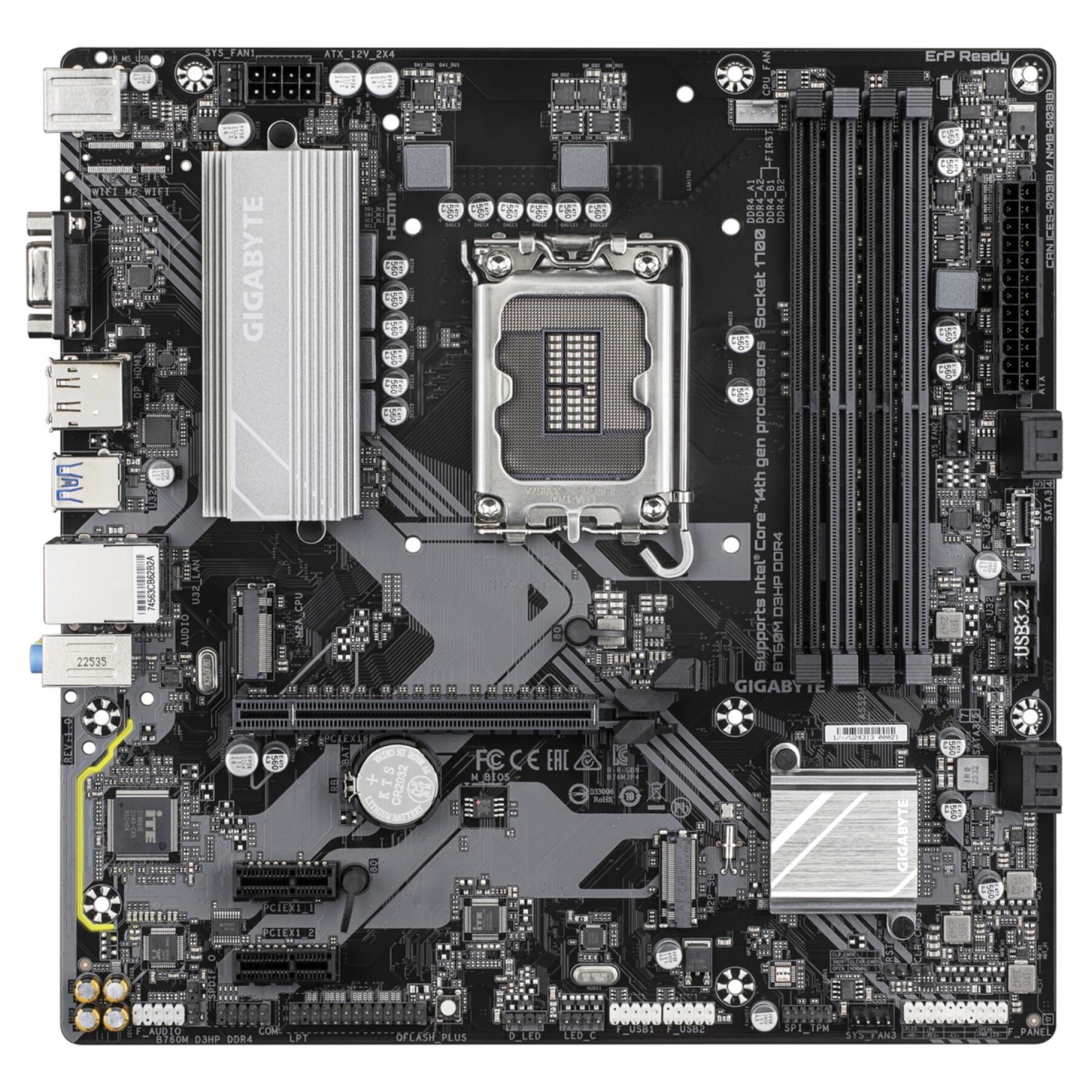

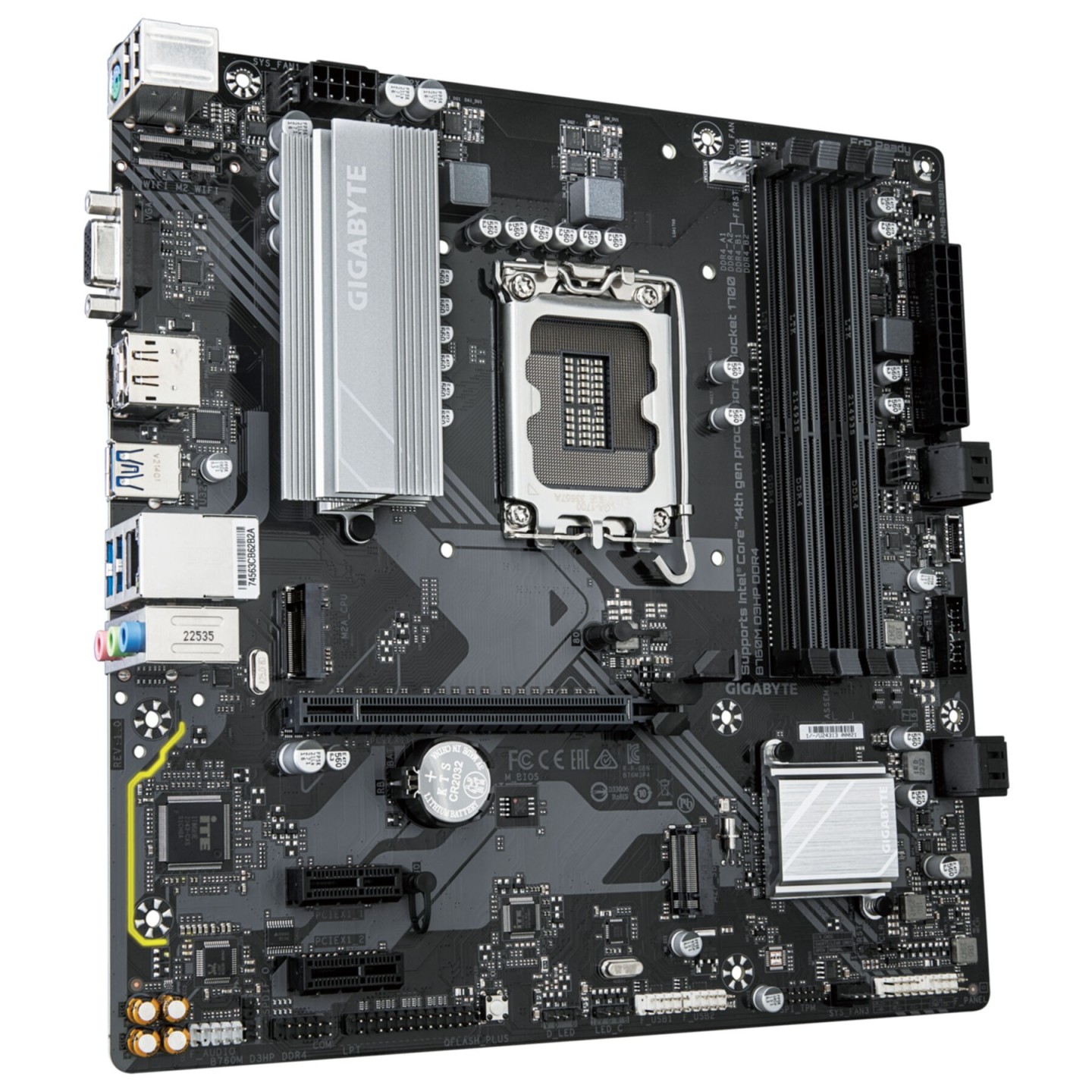

The GIGABYTE B760M D3HP is a feature-packed Micro-ATX motherboard designed for Intel's 12th, 13th, and 14th Gen Core processors using the LGA1700 socket. Built on the reliable Intel B760 chipset, it supports modern DDR5 memory with dual-channel architecture across 4 DIMM slots, reaching up to 256GB capacity and XMP overclocking for enhanced performance.

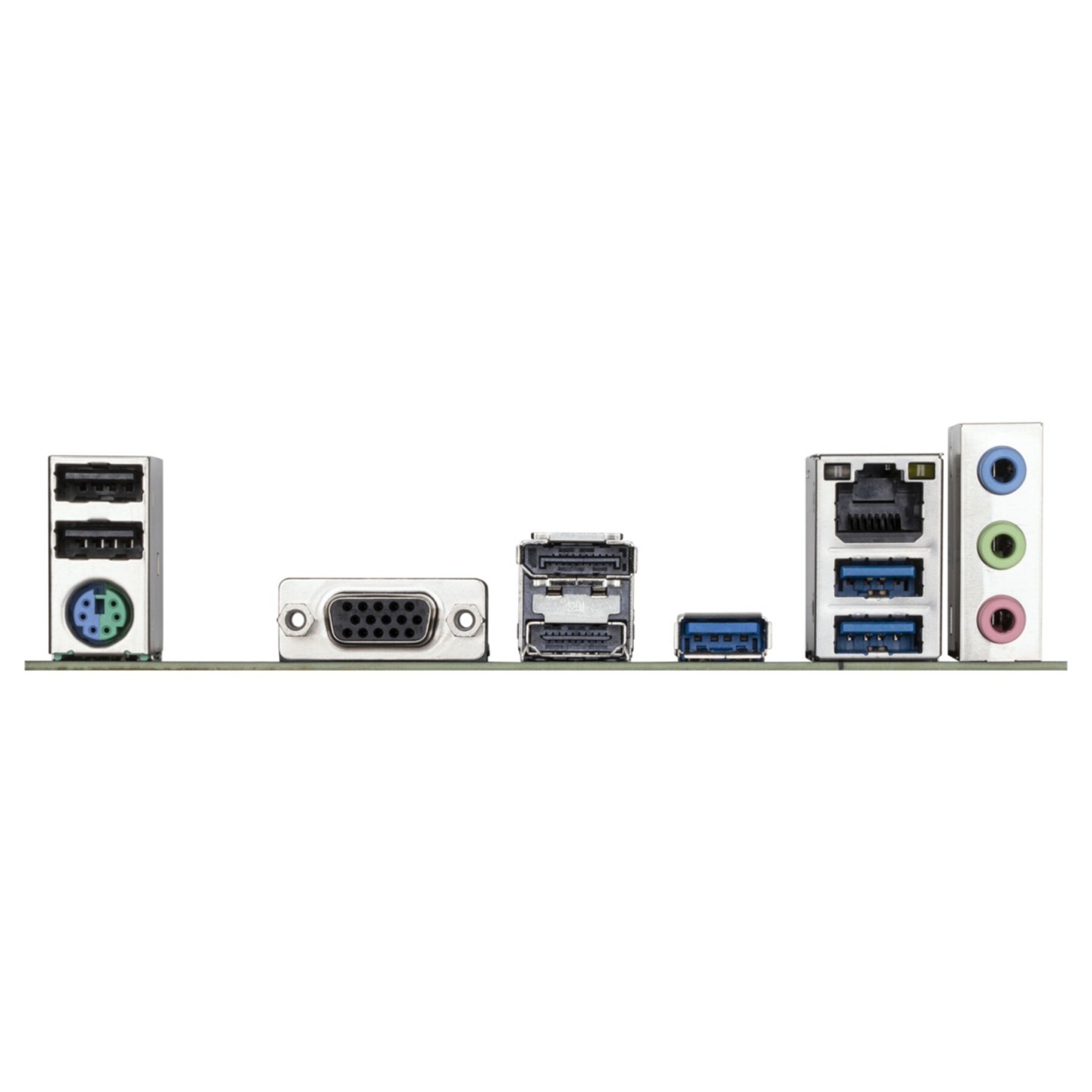

Storage options include 2x PCIe 4.0 x4 M.2 connectors for ultra-fast NVMe SSDs, complemented by traditional SATA ports. Connectivity is solid with Gigabit Ethernet LAN, front USB 3.2 Gen1 Type-C header, and rear I/O featuring HDMI, DisplayPort, and D-Sub for triple-display setups. The 4+1+1 phases digital VRM ensures stable power delivery even under load, while Smart Fan 6 provides advanced cooling control.
Additional highlights include Q-Flash Plus for easy BIOS updates and PCIe EZ-Latch for tool-free GPU installation. Perfect for compact gaming rigs, workstations, or everyday builds seeking value and reliability.
- Supports Intel Core 14th/13th/12th Gen CPUs
- Dual-channel DDR5, 4x DIMMs, XMP support
- 2x PCIe 4.0 M.2 slots
- Front USB-C 5Gb/s header
- GbE LAN and multi-display outputs
- Hybrid 4+1+1 digital VRM
| CPU Socket | LGA1700 |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
| Memory Slots | 4x DIMM |
| Max Memory Capacity | 256GB |
| Supported CPUs | Intel Core 14th/13th/12th Gen |
| VRM Design | Hybrid 4+1+1 Phases Digital VRM |
| PCIe Slots | 1x PCIe 4.0 x16 |
| M.2 Slots | 2x PCIe 4.0 x4 |
| SATA Ports | 4x |
| LAN | GbE LAN |
| Rear Video Outputs | DP, HDMI, D-Sub |
| Front USB | USB-C 5Gb/s |
| Audio | 8-ch HD Audio |
| BIOS Features | Q-Flash Plus, PerfDrive |
