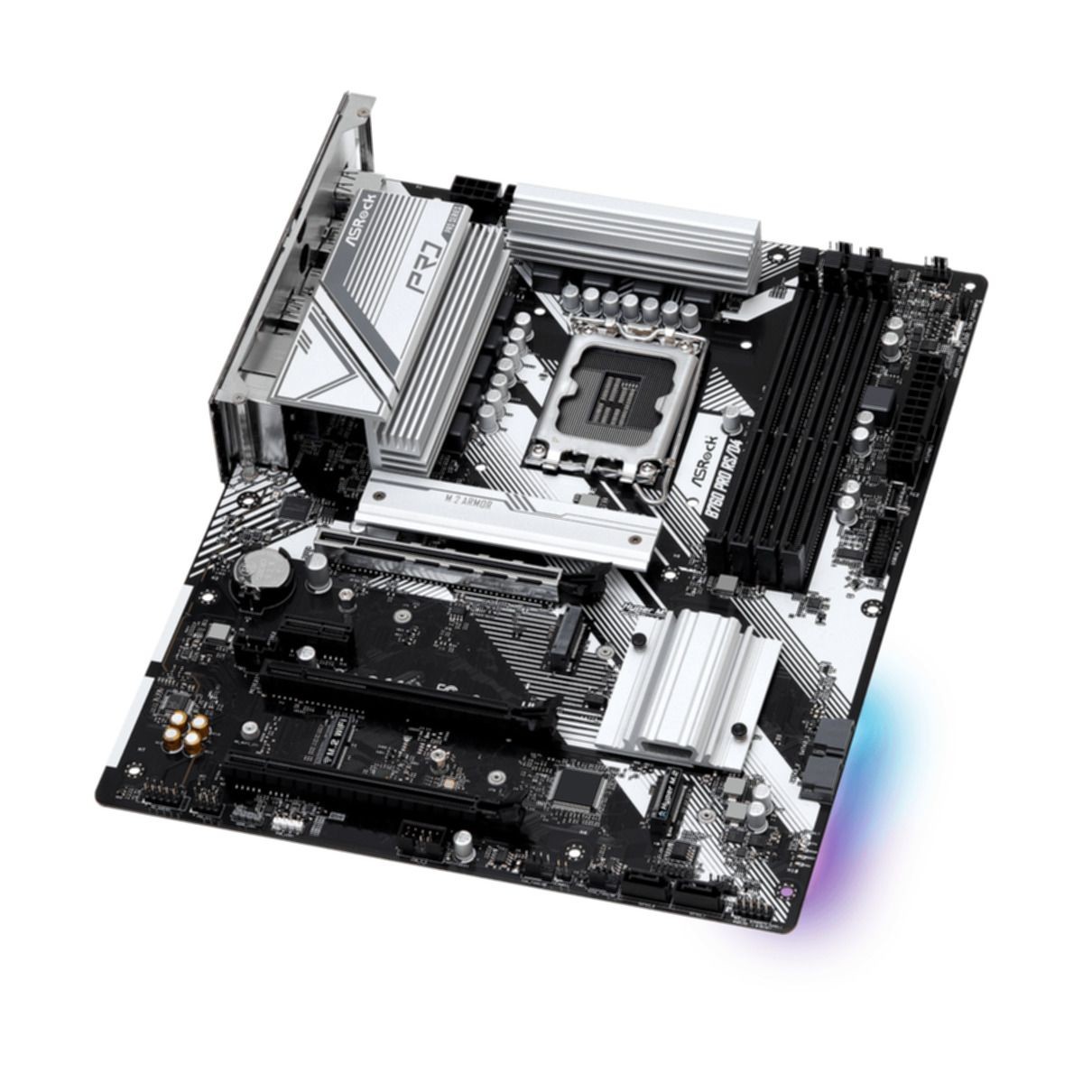

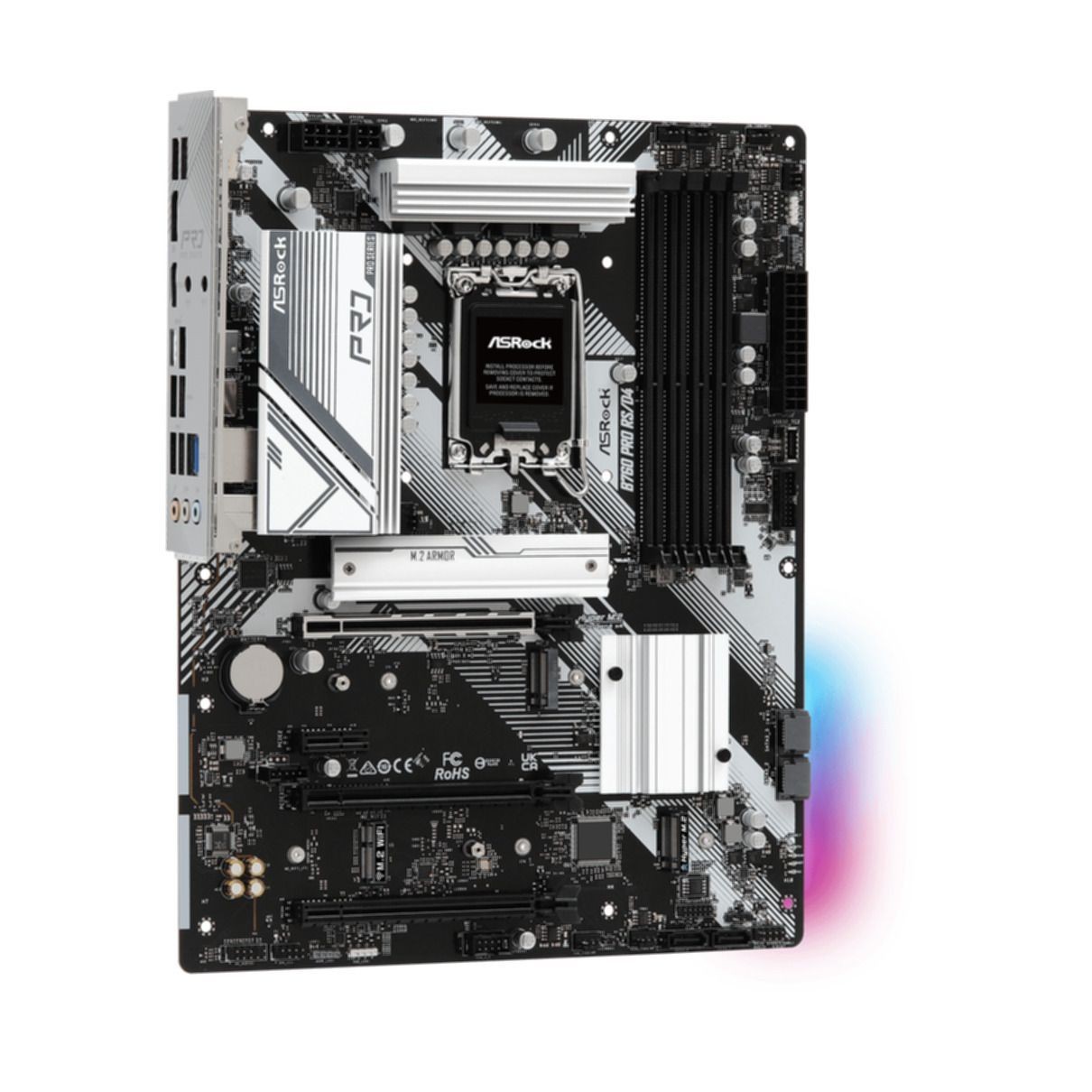

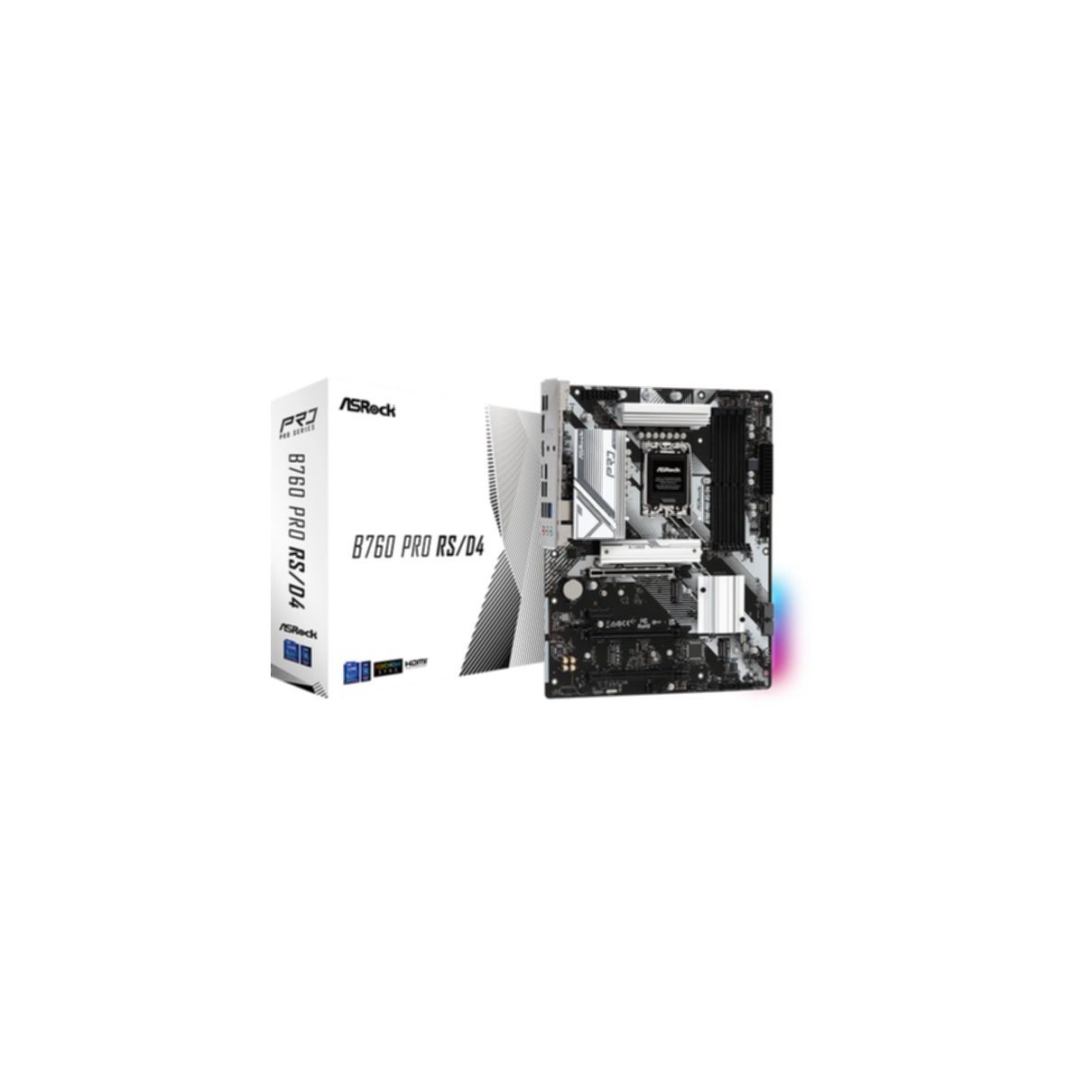

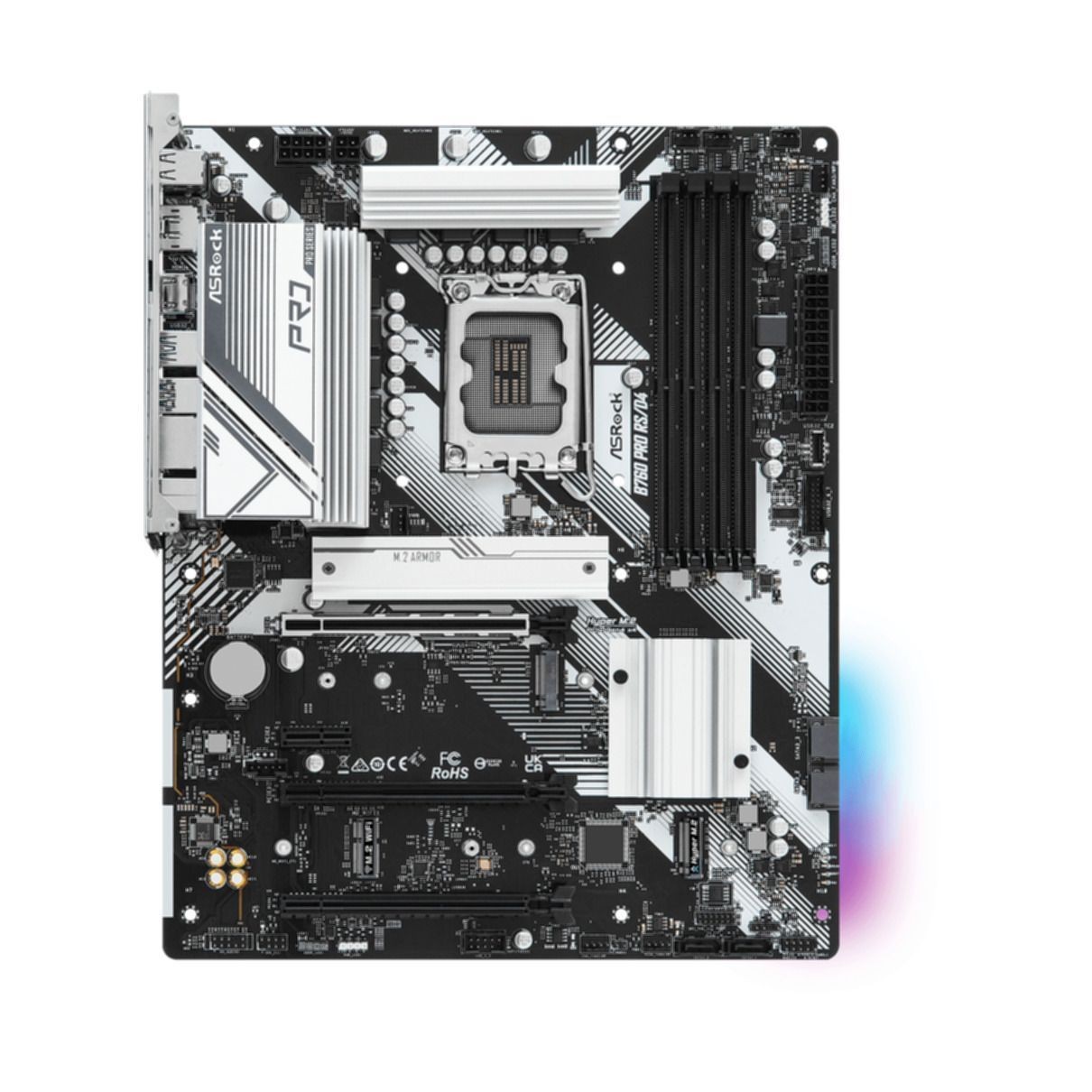

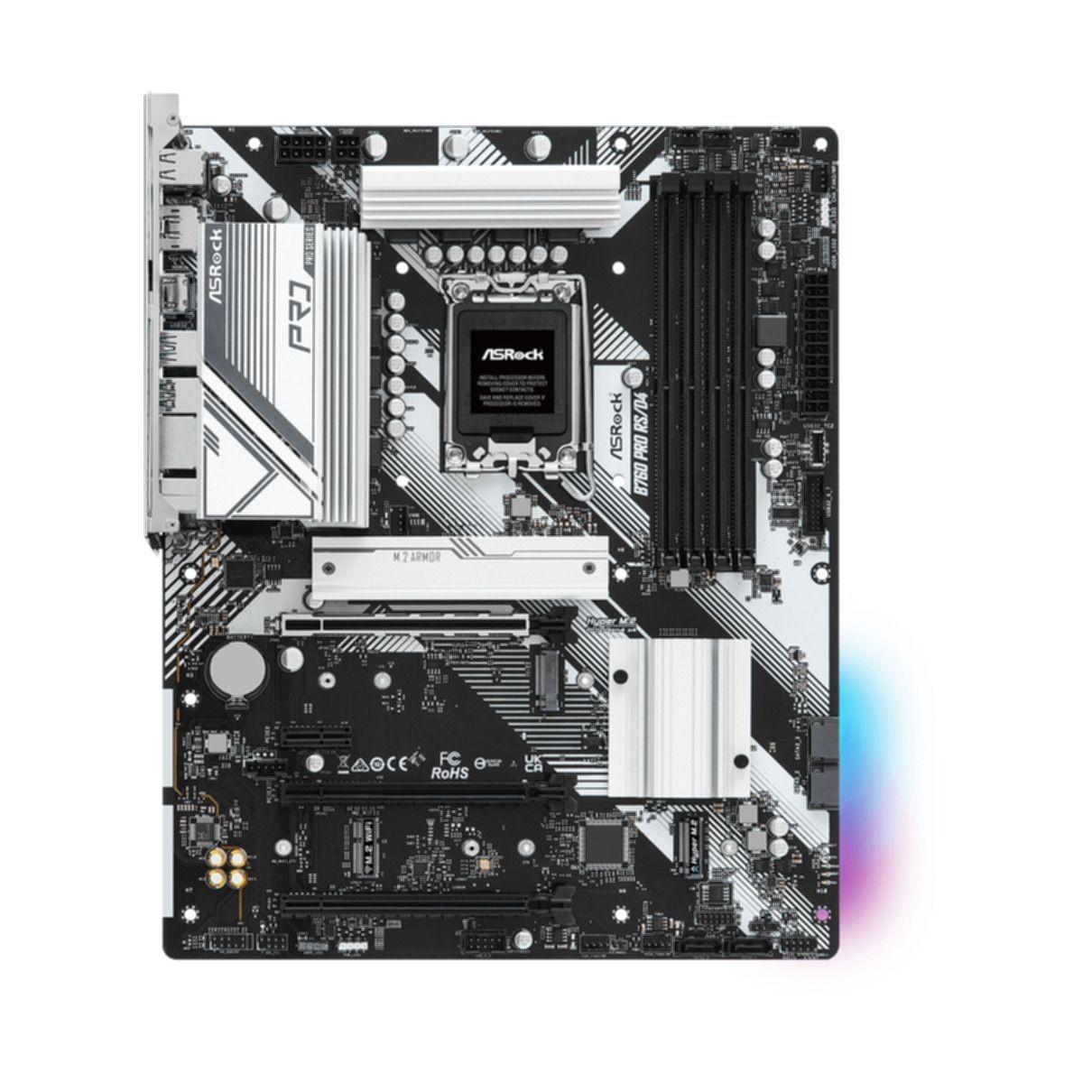

ASRock B760 Pro RS D4 - LGA1700 ATX Motherboard - B760, DDR4, 4x DIMM (128GB), 2.5Gb LAN, M.2 + SATA
Intel B760 ATX motherboard for LGA1700 CPUs. Supports DDR4 up to 128GB (4 DIMMs), 1x M.2, SATA III x4, 2.5Gb Ethernet, HDMI/DP and multiple USB 3.2 ports.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
Asrock B760 Pro RS/D4. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. Ethernet interface type: 2.5 Gigabit Ethernet. LAN controller: Realtek RTL8125-BG. Component for: PC. Motherboard form factor: ATX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 3200.4000.4266.4400.5333 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 5. 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125-BG |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Compatible operating systems | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certification | - FCC. CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Width | 305 mm |
| Depth | 244 mm |
