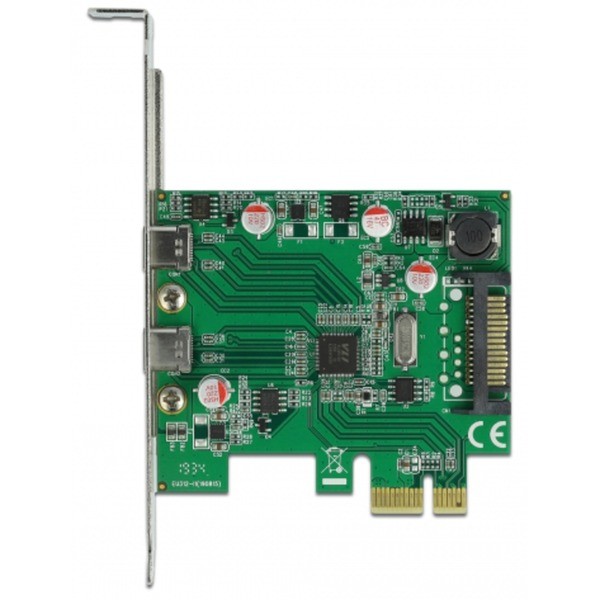

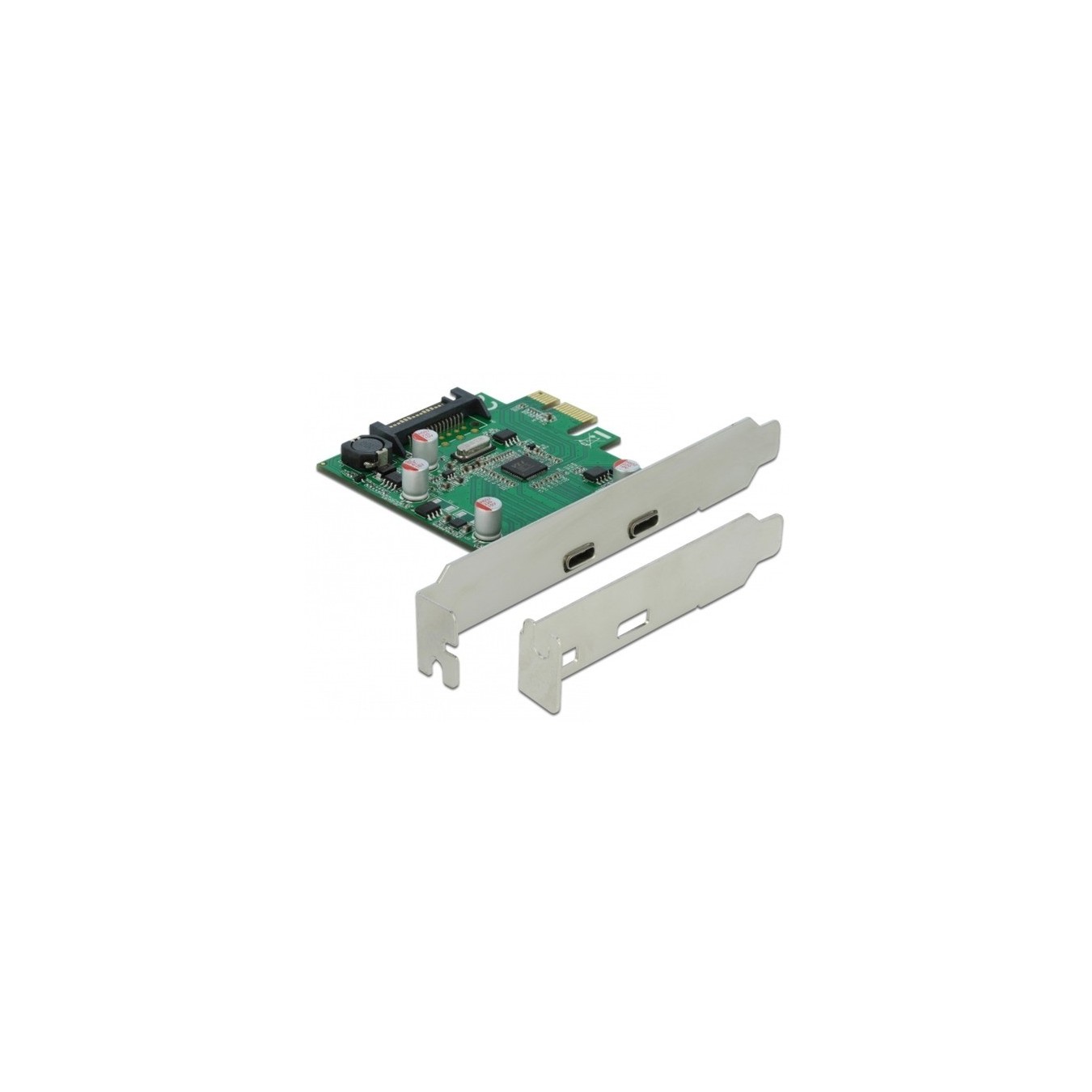

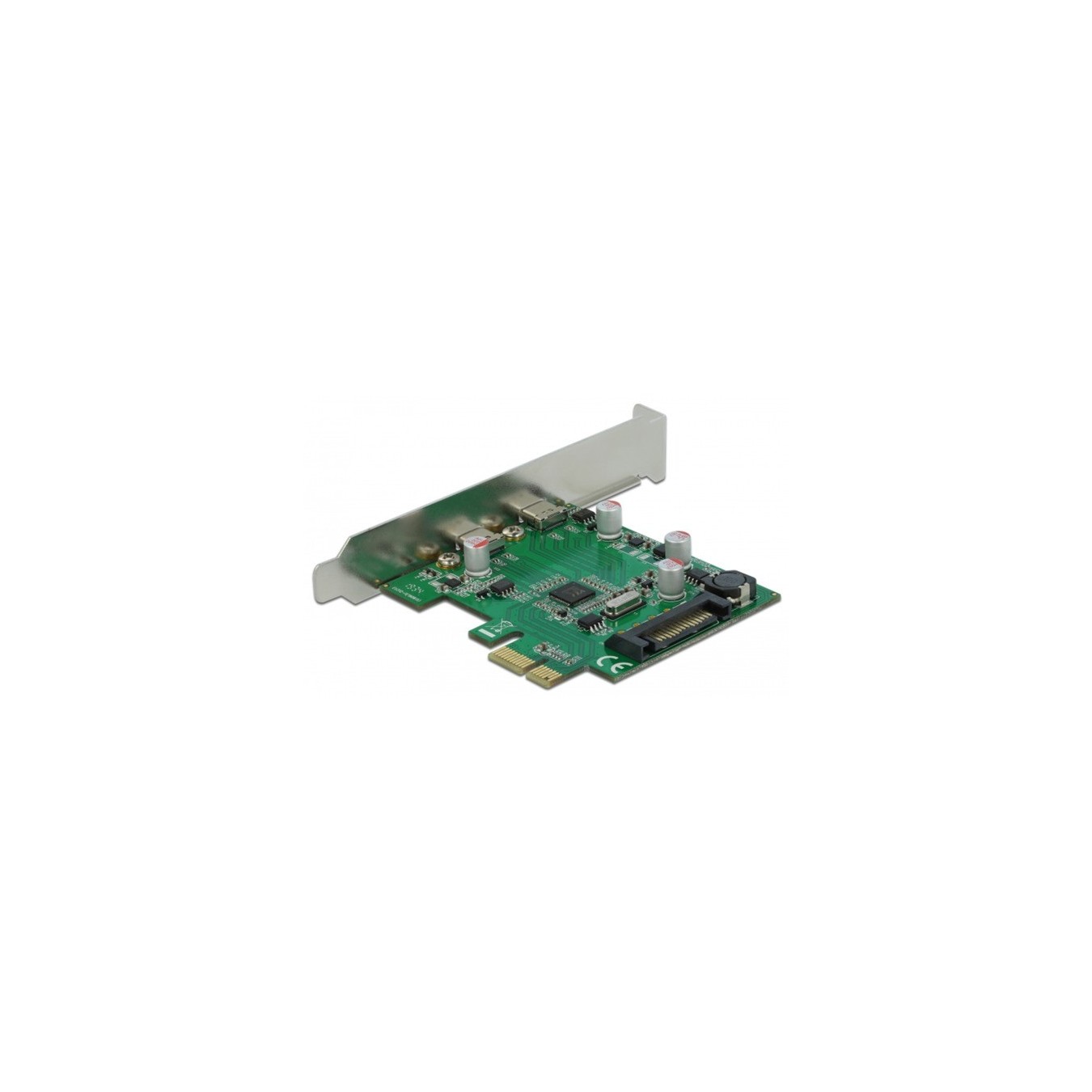

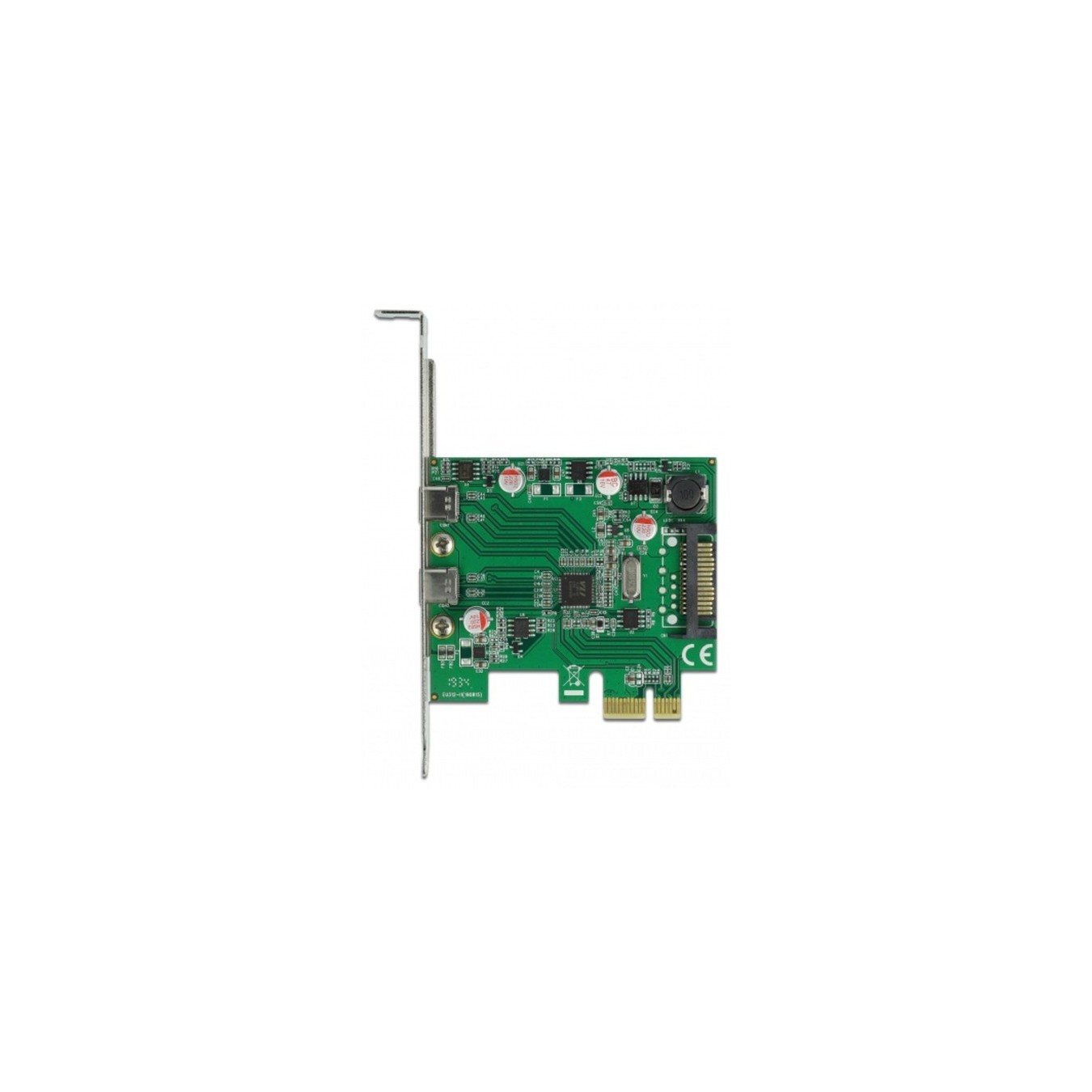

PCIe USB Controller - PCIe x1 to 2x external USB 3.2 Gen 1
Delock PCIe expansion card adds two external USB-C ports, enabling USB 3.2 Gen 1 (5 Gbit/s) connectivity for peripherals.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Delock PCI Express card expands the PC with two external USB-C ports. Various USB devices can be connected to the card, such as: B. docking stations, card readers, external housings, etc., can be connected.
| Typ | USB-Controller |
| EAN | 4043619904938 |
| Manufacturer no. | 90493 |
| Controller Art | USB 3.2 (5 Gbit/s) |
| slot | PCIe x1 Version 2.0 |
| Chip | VIA VL805 |
| Protocol | USB 3.2 Gen 1 (5 Gbit/s), PCIe x4 |
| Data throughput | 5 GBit/s |
| Connections - external | 2x USB C |
| directly usable devices | 2 |
| Operating System - Supported | Linux, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | SuperSpeed USB 5 Gbit/s, Hi-Speed 480 Mbit/s, Full-Speed 12 Mbit/s, Low-Speed 1.5 Mbit/s, backwards compatible with USB 3.0, USB 2.0, USB 1.1, power supply must be via the SATA power connection, electrical power per port: max. 7 watts (5 V / 1.4 A) |
| Notice | A free SATA power supply connector is required |
| Accessories - available | Low profile bezel, instruction manual |
