PCIe to 1x M.2 - 110mm with heatsink, controller
Delock PCIe expansion card adds an M.2 slot; supports 22110/2280/2260/2242 SSDs with PCIe x4; includes optional low-profile bracket and heatsink.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

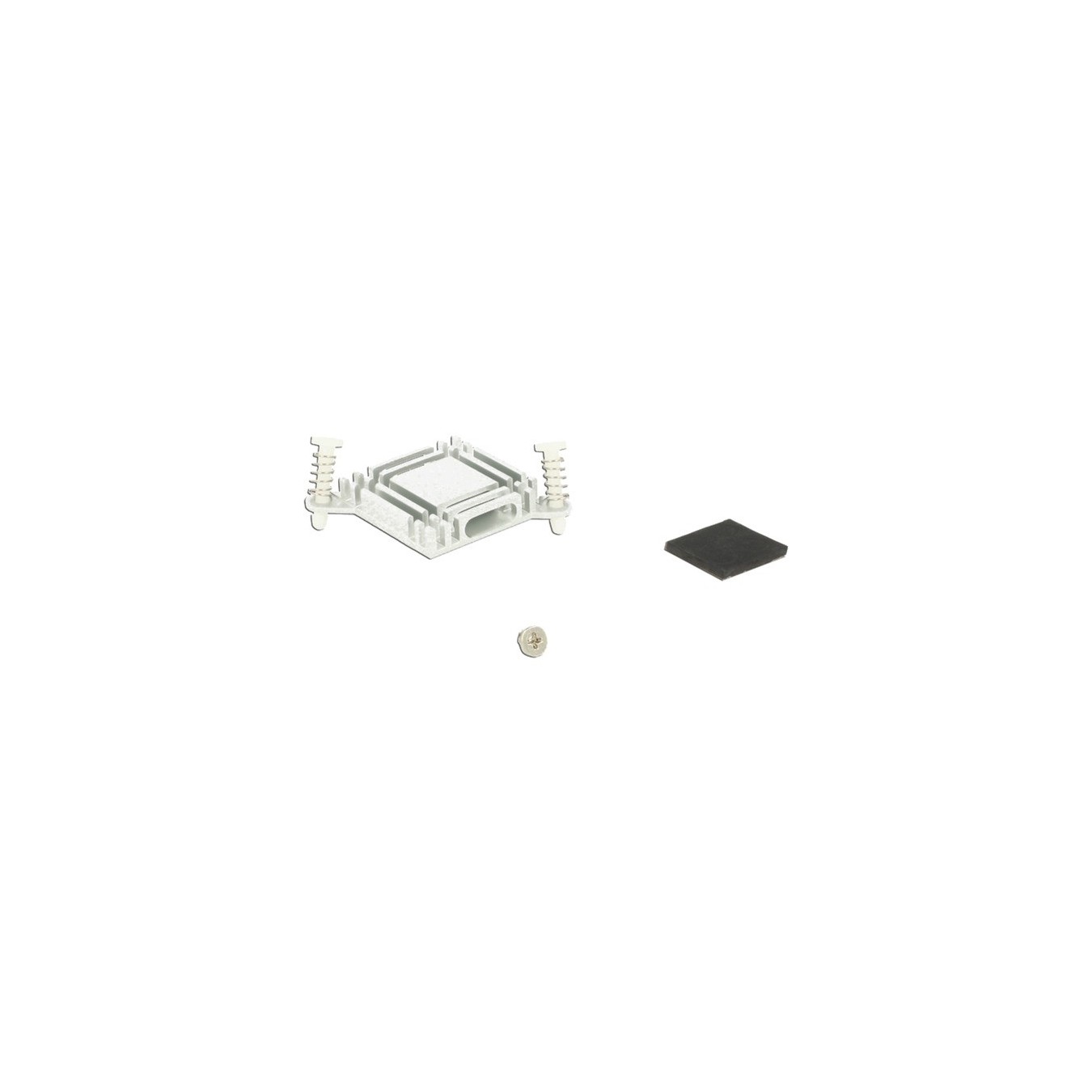

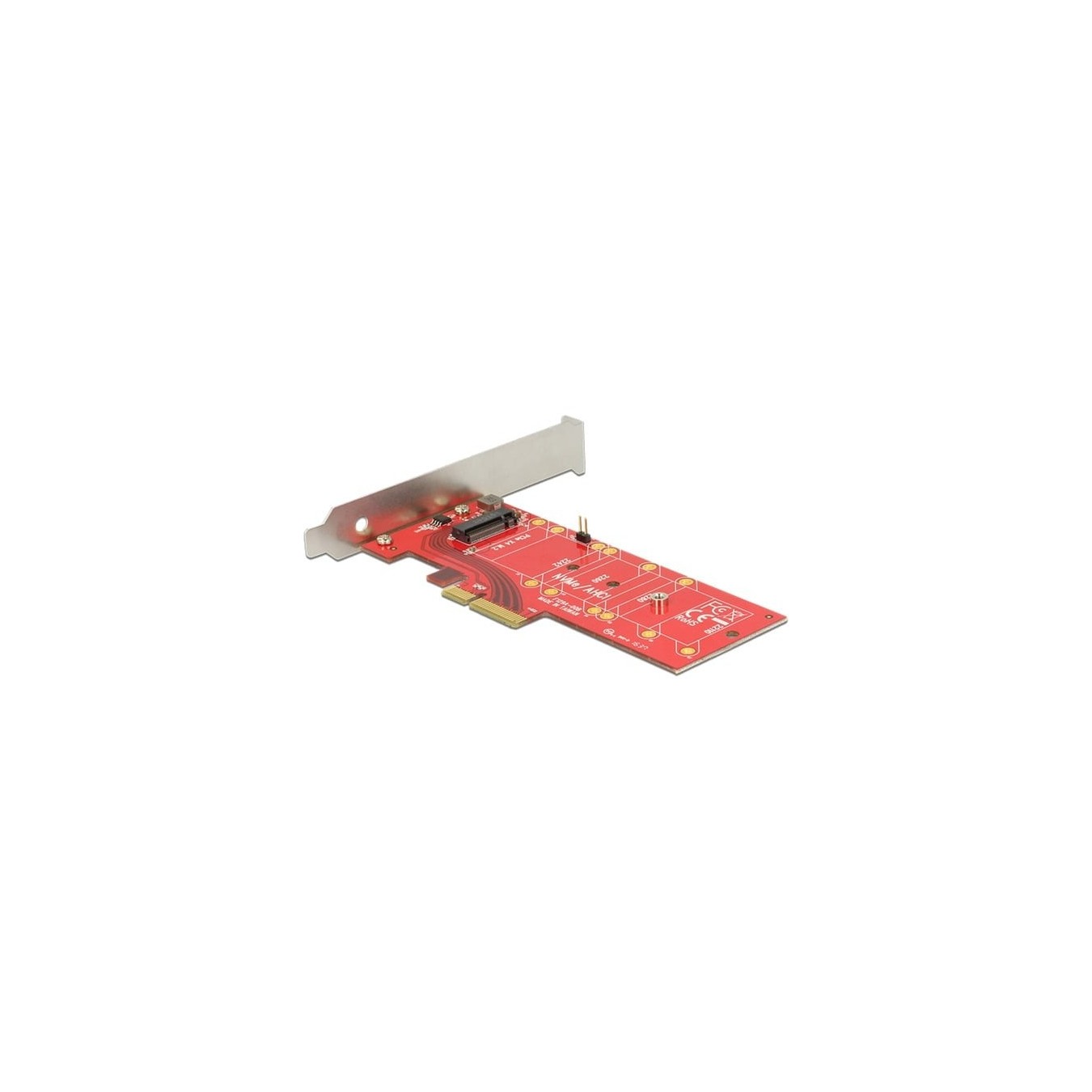

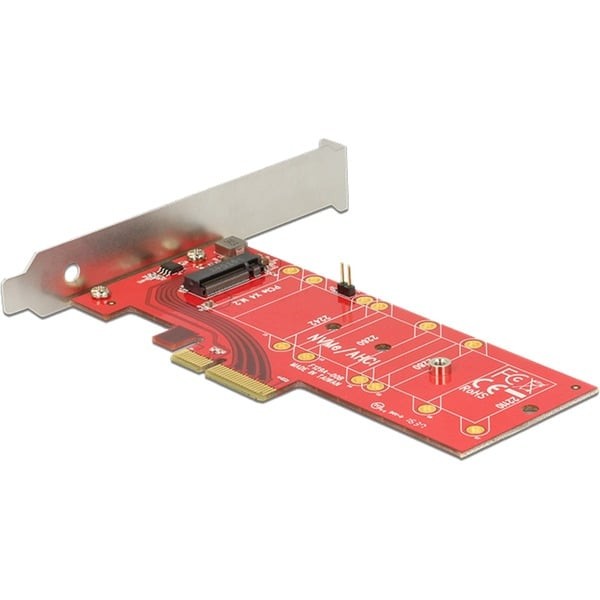

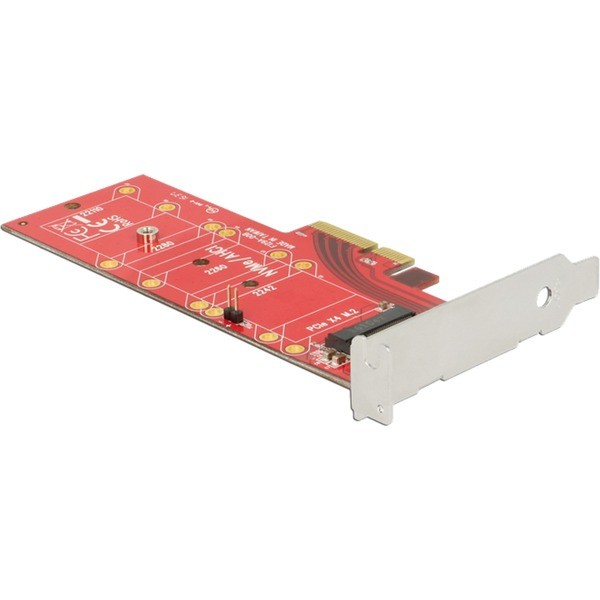

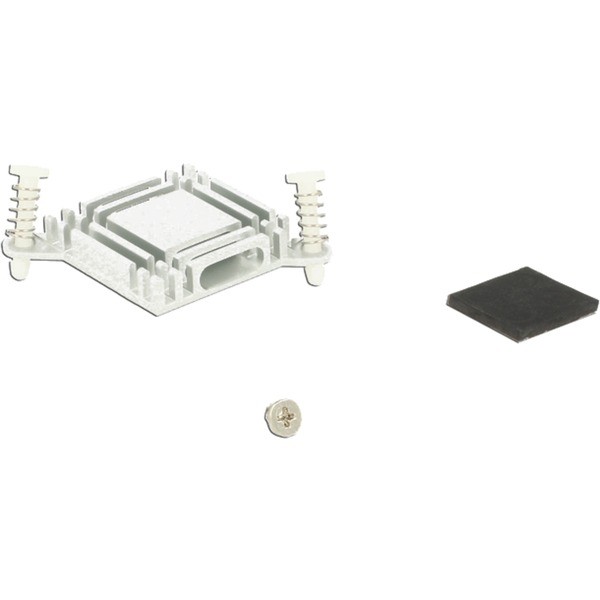

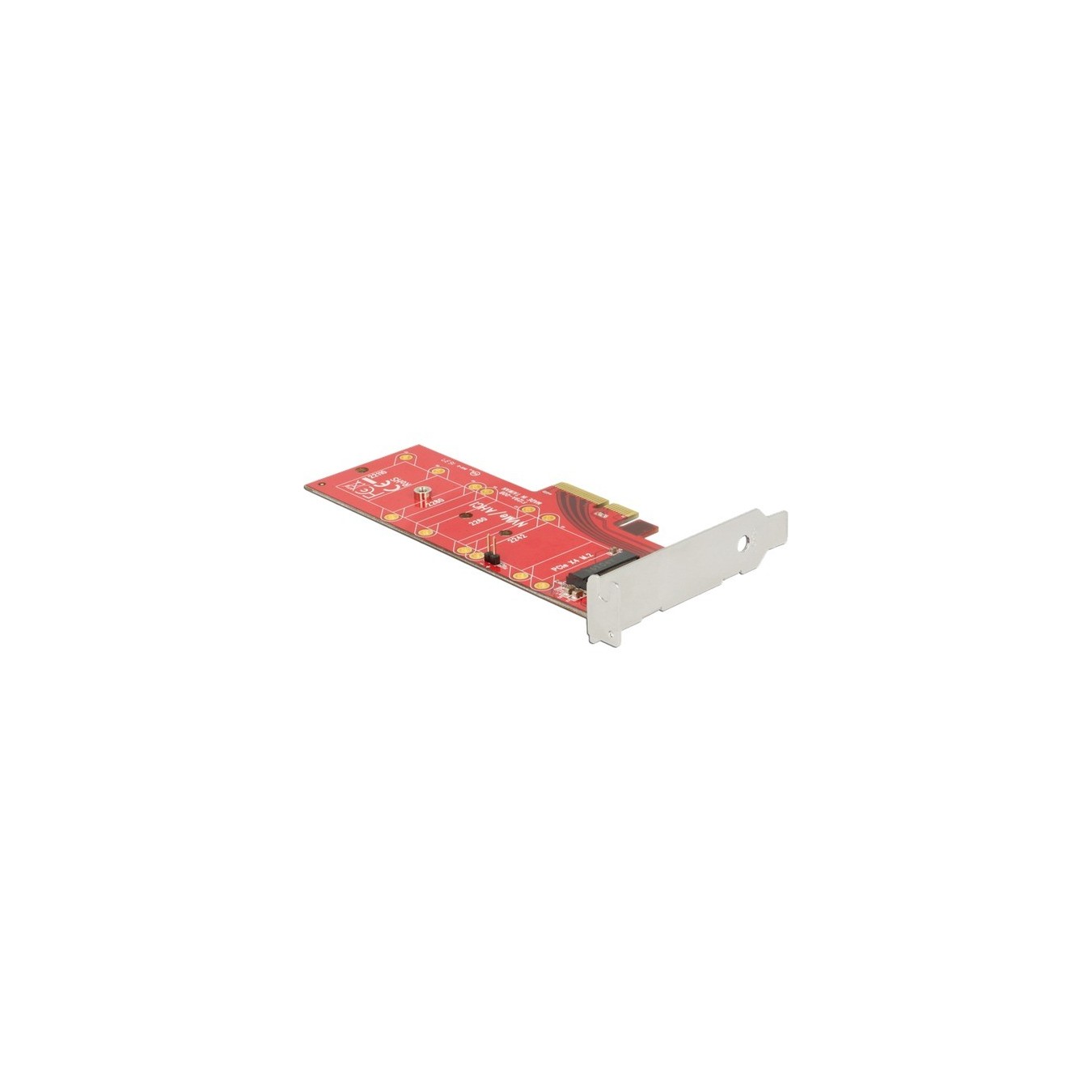

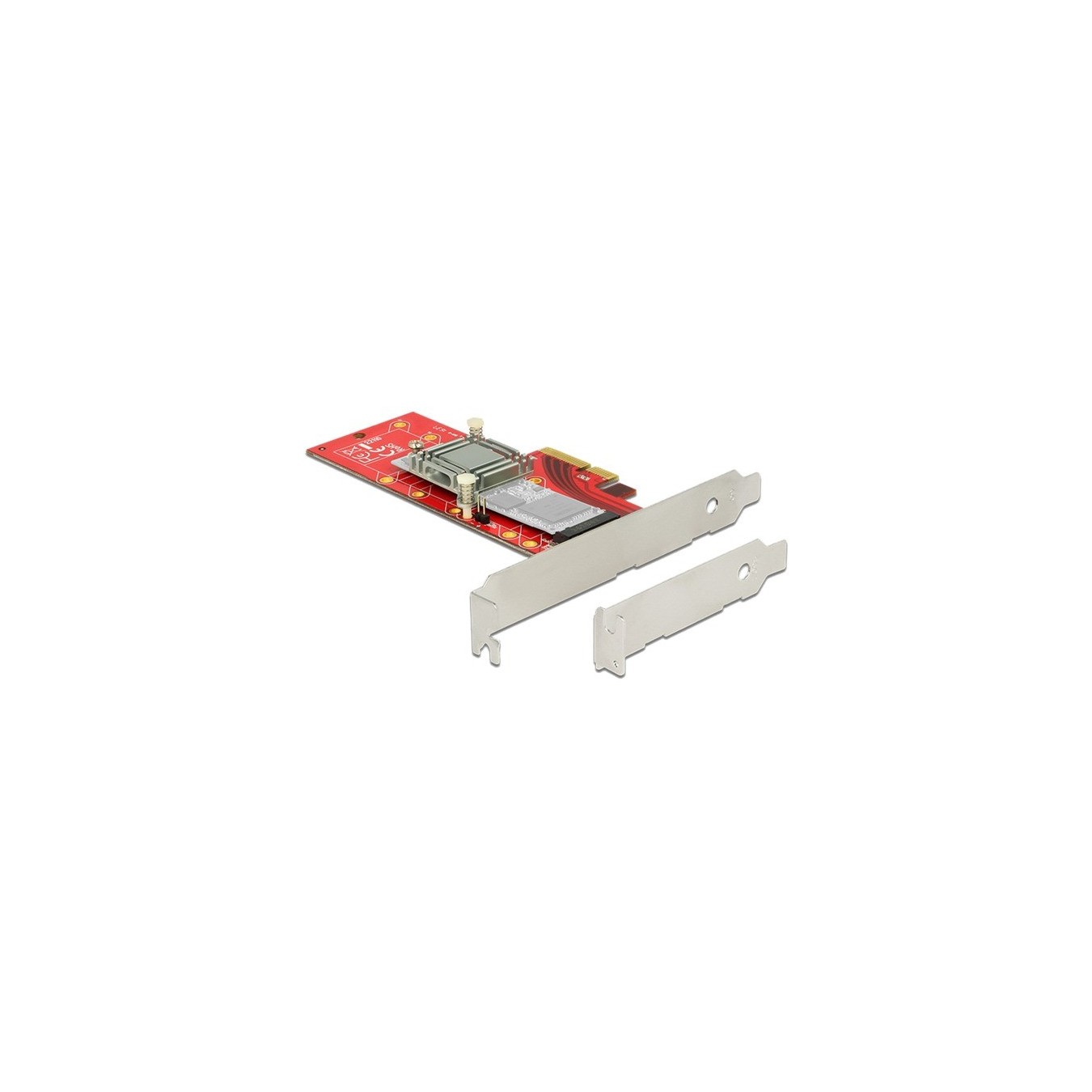

This PCI Express card from Delock expands the PC with an M.2 slot. An M.2 SSD in 22110, 2280, 2260 and 2242 format can be connected to this. The heat sink, which can be attached to various prepared positions on the circuit board, ensures good heat dissipation of the memory module.
| Typ | Controller |
| EAN | 4043619895779 |
| Manufacturer no. | 89577 |
| slot | M.2 (NGFF 2242), PCIe x4, M.2 (NGFF 2242) |
| Low Profile | optional |
| More information | Connections: internal: 1x 67 pin M.2 Key M slot; 1x PCI Express x4, V3.0; 1x 2 pin LED post connector; Interface: PCIe; Supports M.2 modules in format 22110, 2280, 2260 and 2242 with Key M or Key B+M on PCIe basis; Maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible; Data transfer rate up to 39 Gbps |
| Accessories - available | Low-Profile Blende |
| Weight | 149 Gramm |
